MB 200 - MICROMOT Proxxon drilling support

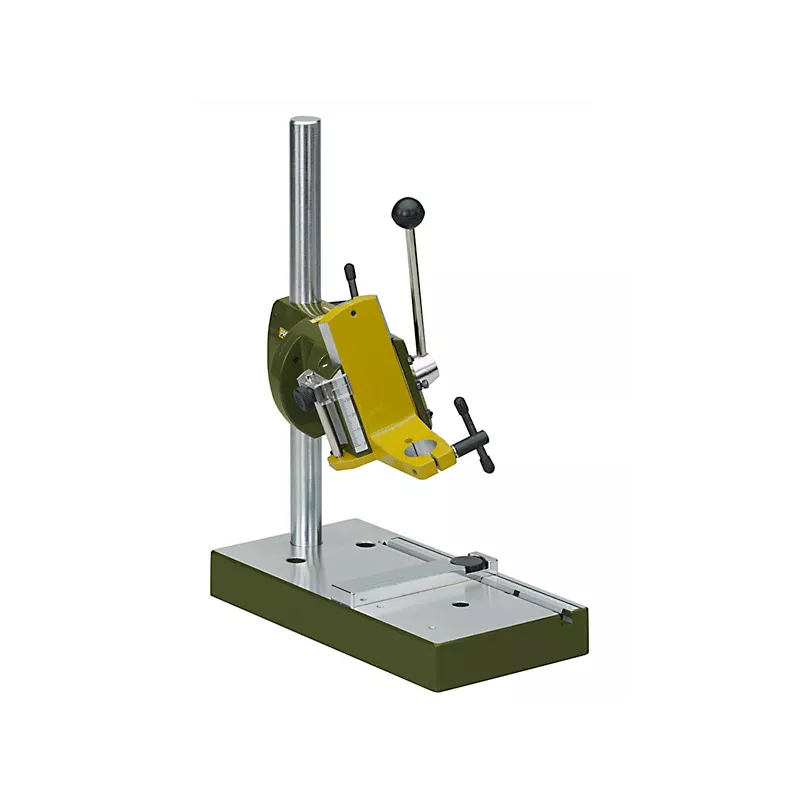

DRILLING support MICROMOT MB 200 Proxxon - 28600

Head with dovetail steerable at 90 degrees (graded ring available). Allows for sloping drilling and multi-purpose milling.

Strong rack multiplied with spring booster for effortless sensitivity. Practical drilling depth indicator with adjustable stop (maximum 40 mm run). 20 mm collar for drills and millers. Massive column in chrome steel (280 x 20 mm), Reach (inside the column to the center of the tool) 140 mm.

Plateau (220 x 120 mm) with parallel stop and graduation. Drilling for the KT 70 MICRO-coordinated table attachment and support attachment is planned. Weight 2.2 kg.

Note:
Our designers prefer pressurized cast aluminum. A noble, stainless and durable material. Adjustments and guides are machined on our state-of-the-art digitally controlled machines (fresh, papered, turned). Precision in its purest form!


Machine seal MICROMOT MS 4 - NO. 28,132
Aluminium cast iron. Three fresh support surfaces. With groove, also adapting to the longitudinal stop of the TBM 220 established drill, the MB 140/S and MB 200 drilling supports. Vertical and horizontal prism for round materials. Jaw width 50 mm. Jaw height 10 mm. Spread maximum 34 mm.
