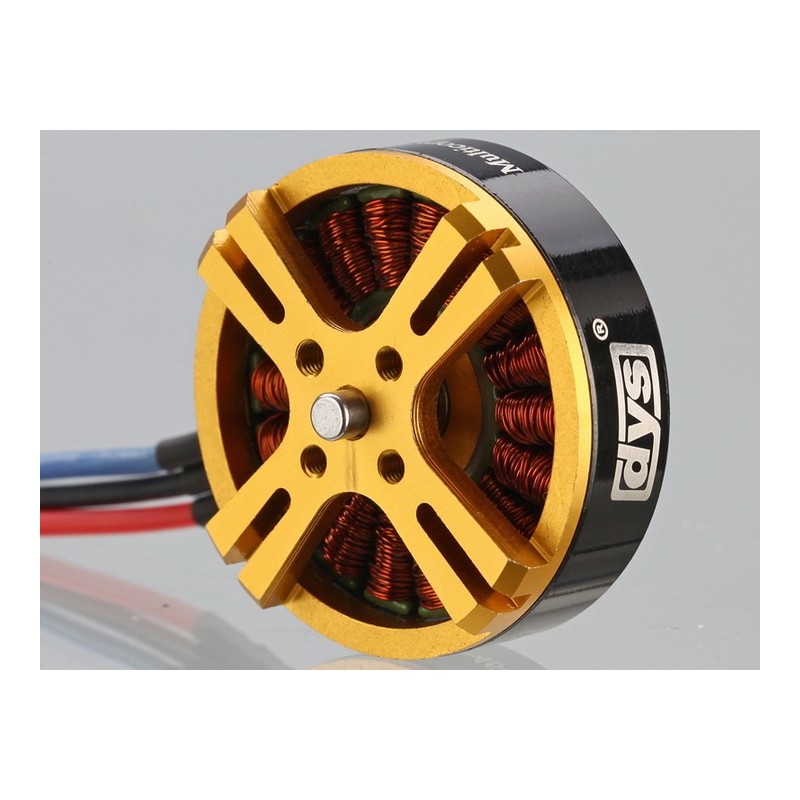

Brushless motor multicopters BE3608-11 DYS

BE3608-11

KV: 630
Stator diameter: 36mm
Stator length: 8mm
Shaft diameter: 4.0 mm
Engine dimensions (Dia.*Lon): Φ42x15mm

Volume discounts

Quantity Discount You Save
5 €35.90 Up to €179.52
€45.90
Tax included
Quantity
In Stock

100% secure payments
Description

Features:

KV: 630
Stator diameter: 36mm
Stator length: 8mm
Shaft diameter: 4.0 mm
Engine dimensions (Dia.*Lon): Φ42x15mm
Weight: 83g
NB cells (Lipo): 3-6 S
Max continuous current: 32.1 A
Continuous max power: 700W
Internal resistance: Item No. 0.076Ω.

NO LOAD ON LOAD LOAD TYPE BE3608-11
(630KV)
VOLTAGE		 CURRENT SPEED CURRENT Sweater Power Battery/prop V
A RPM A g W 11.1
0.7 6985 8 713 88.8 LiPoх3/1047 (APC) 11.9
1029 132.1 LiPoх3/1238 (APC) 15.1
1119 167.6 LiPoх3/1365 (CF prop) 12
927 133.2 LiPoх3/1447(CF prop) 17.7
1392 196.5 LiPoх3/1503(CF prop) 14.8
0.8 9285 12.6 1154 186.5 LiPoх4/1047 (APC) 19.3
1650 285.6 LiPoх4/1238 (APC) 23.2
1652 343.4 LiPoх4/1365(CF prop) 17.8
1442 263.4 LiPoх4/1447(CF prop) 25.5
2069 377.4 LiPoх4/1503(CF prop) 18.5
0.9 11675 17.6 1620 325.6 LiPoх5/1047 (APC) 22.4
1970 414.4 LiPoх5/1238 (APC) 24.6
1805 455.1 LiPoх5/1365(CF prop) 24.4
1987 451.4 LiPoх5/1447(CF prop) 30.1
2275 556.9 LiPoх5/1503(CF prop) 22.2
0.9 13775 18.1 1783 401.8 LiPoх6/1047 (APC) 22.6
2121 501.7 LiPoх6/1238 (APC) 27
1990 599.4 LiPoх6/1365(CF prop) 26.3
2123 583.9 LiPoх6/1447(CF prop) 32.1
2369 712.6 LiPoх6/1503(CF prop) DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2 mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese pure NSK imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
