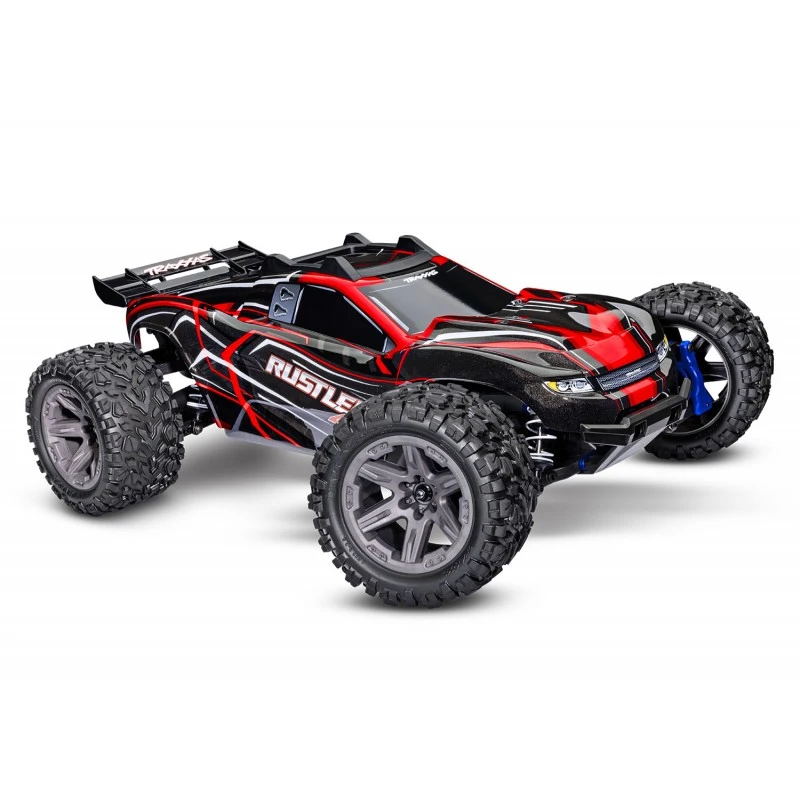

A NEW BREED OF STADIUM TRUCK
The Rustler 4×4 is the go-to machine for 4×4 speed, agility and traction. Underneath the reinforced body without clips, the Rustler's chassis is low and wide for increased stability and precise handling. The Rustler's all-new BL-2s brushless drive system delivers ultra-fast acceleration and high torque to all 4 wheels. In addition, the Rustler 4×4 now comes standard with Traxxas' Extreme Heavy Duty upgrade kit to take strength and durability to the next level.
NEW BL-2S BRUSHLESS MOTOR SYSTEM
The Rustler 4×4's BL-2s brushless drive system delivers up to 60% more speed and faster acceleration than comparable brushed drive systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan keep the Rustler 4×4 running battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV is future-proof and virtually maintenance-free.
EXTREMELY DURABLE UPGRADE KIT
The "Extreme Heavy Duty" upgrade kit pre-installed on the Rustler 4×4 replaces key drivetrain and suspension components with reinforced parts designed for ultimate strength and durability. From the HD wishbones to the steel wheel hubs, this is the strongest drivetrain ever offered in a Rustler.
CLIPLESS BODY INSTALLATION
The Rustler 4×4 now uses a clipless body locking system for secure attachment and quick one-handed installation/removal. The sleek, aerodynamic body features a robust internal structure and external rollover protection for long life and "Traxxas Tough" strength.
UNMATCHED STRENGTH
Designed for maximum strength, the "Extreme Heavy Duty" upgrade kit bolsters the Rustler 4×4 with a full set of transmission and suspension parts designed to work together. Combined with Traxxas HD wishbones, the Rustler sets a new standard for brushless durability in skateparks, race tracks and gardens.
LOW CG CHASSIS
The Rustler 4×4 sits on an elongated, low-CG chassis for stability. The low center of gravity and wide track keep the Rustler firmly anchored in corners for thrilling high-speed fun.
CLIP-FREE CONVENIENCE
The new locking system of the Rustler 4×4 is robust and does not require clips. It offers secure installation and easy one-handed removal. Battery changes are quick and easy, with no risk of misplacing body clips. The integrated internal cage, roof protector and spoiler reinforce the body for extra-long service life.
WATERPROOF ELECTRONICS
Your R/C experience should be filled with fun and adventure, not limited to electronics. Traxxas' patented waterproof technology gives you the freedom to go on your wildest adventures, no matter the weather.
BL-2 BRUSHLESS PROPULSION SYSTEM
The BL-2s Waterproof Electronic Speed Controller incorporates prominent features such as three drive profiles, low-voltage sensing for LiPo batteries, a patented drive mode, and thermal cut-off protection to prevent overheating. The BL-2s 3300kV sensorless motor with built-in cooling fan delivers solid brushless performance with near-zero maintenance.
TQ RADIO SYSTEM
The TQ 2.4GHz radio system allows you to focus on the fun, without worrying about interfering with other vehicles. The advanced TQ radio technology provides long-range control and its ergonomic design provides comfort for long riding sessions.
MODULAR SIMPLICITY
The modular chassis design of the Rustler 4×4 allows the entire front section to be removed with only 5 bolts and the rear assembly with only 4 bolts. In less than a minute using an electric screwdriver, you have full access for easy maintenance and adjustment.
2.8′ RXT GREY WHEELS AND EXT BEAD TIRES
The Rustler's 2.8′ RXT grey wheels offer ground clearance capable of conquering the most demanding terrain. Aggressive Talon EXT tires dig through dirt and grass for exceptional 4×4 traction. The EXT tire compound provides extra durability on the pavement with a singular design that resists "bloat" when the wheels centrifuge at high speeds.
HEX SCREWS
Hex screws offer a better hold and more secure than other types of screws. The black oxide coating provides a high-tech look and feel while being rust-resistant.
LONG-TRAVEL SUSPENSION
The Rustler 4×4 has huge suspension travel, ultra-smooth to swallow jumps and provide incredible control. Performance-optimized suspension components provide maximum friction-free articulation.
HYDRAULIC SHOCK ABSORBERS
The Rustler 4×4's oil-filled Ultra Shocks use dual X-ring technology for a perfect seal and fine operation. The large oil capacity and solid design absorb big jumps and off-road overruns to provide a smooth ride. They are easy to adjust with a wide selection of oils, springs and pistons available.
INNOVATIVE CHASSIS
The modular design of the Rustler 4×4 results in a chassis that is both strong and easy to maintain. The front and rear bulkheads can be easily removed with just a few screws. In less than a minute using an electric screwdriver, you'll have full access for easy maintenance and adjustment.
STRONG BATTERY HOLD
An innovative battery holding device includes a reinforced latch for a solid locking action to keep the batteries secure, no matter how intense the action.
TRAXXAS HIGH-CURRENT CONNECTOR
Patented high-current connectors deliver maximum power to the vehicle's electronics. The high-current connectors also provide the fastest and safest charging for Traxxas batteries.
WATERPROOF RECEIVER BOX
The Rustler's waterproof receiver box keeps the receiver safe and dry while allowing easy access for maintenance. The antenna and servo wires pass seamlessly through a patented watertight seal for true all-weather fun.
3-CHANNEL RECEIVER WITH FAIL-SAFE
In the event of a signal loss due to accidental transmitter shutdown or depleted batteries, the receiver automatically returns the throttle trigger to neutral and maintains the last commanded direction position. The safety programming is built-in, there is no manipulation to be carried out to activate it.
DIGITAL STEERING SERVO
The Traxxas 2056 Steering Servo delivers powerful steering power over rough terrain with 6kg.cm of torque to steering. The fully sealed servo uses special O-rings to keep the fun going even in wet environments.
DOUBLE-DEFLECTOR STEERING WITH SERVO MOTOR
The Rustler 4×4's dual-deflection design pivots smoothly, even in the harshest conditions. A built-in cam-type servo saver protects the steering servo from collision impacts without sacrificing steering accuracy.
BODYWORK WITHOUT CLIPS
The Rustler 4×4 uses a heavy-duty clipless locking system for secure installation and easy one-handed removal. The locking system incorporates an internal cage that significantly strengthens the body for a long service life. The body pre-painted and cut with decals already applied.
HEAVY-DUTY WISHBONES
Molded from our toughest composite material, the Rustler 4×4's heavy-duty wishbones provide just the right amount of flexibility to withstand breakage, even in cold weather! From skateparks to 10-foot (3-meter) ramps, these wishbones stand up to even the most demanding riders for non-stop driving fun.
REINFORCED FRONT AND REAR BUMPERS
Reinforced bumpers protect the chassis from impacts. The specially designed front bumper provides a high approach angle that allows the Rustler 4×4 to climb and clear obstacles with ease.
EXTREME SUSPENSION COMPONENTS
The Rustler 4×4 is equipped with the "Extreme Heavy Duty" upgrade kit for ultimate strength and durability. The calipers, steering knuckles, and tail knuckles are reinforced with more materials and a stronger design.
CROWN 32 DP
The Rustler 4×4's drivetrain is designed to handle the standard brushless power and even the extreme power of the Velineon 3s brushless drive. The crown features large teeth for total reliability, no matter how much power is used.
IMPROVED SLIPPER CLUTCH
The Rustler 4×4's slipper clutch features larger alloy pressure discs and high-temperature aluminum pads for linearity of power delivery. The slipper clutch provides equal front-to-rear power distribution for instant throttle response and provide pugnacious grip to four-wheel drive.
MAXX-DUTY DRIVESHAFTS
The Rustler 4×4's Maxx-Duty driveshafts with reinforced U-joints are designed to handle brushless power without breaking a sweat. The large 6mm axles fit into the included steel wheel hexes for unmatched strength and durability.
SEALED STEEL SPROCKET DIFFERENTIALS
Sealed steel-gear differentials are ready to handle brushless power without expensive upgrades. Silicone gaskets and X-ring seals allow differentials to be adjusted for specific operating conditions by varying the viscosity of the oil inside. The modular chassis design of the Rustler 4×4 makes access to differentials quick and easy.
Characteristics:
Length: 457 mm
Front track: 329 mm
Rear track: 329 mm
Ground clearance: 27 mm (center)
Weight (without battery): 2.33 kg
Height (overall): 161 mm
Wheelbase: 295 mm
Shock Length (Front): 88mm - Long
Shock Length (Rear): 101 mm - XX-Long
Speed Control: BL-2s ™ Electronic Speed Control
Motor (electric): BL-2s ™ 3300 kV without brushless sensor
Overall gear ratio: 12.81:1
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Speed Pitch: 32
Frame Structure/Material: Composite Bathtub
Driving System: 4WD Shaft Drive
Control: Dual deflection with integrated servo saver
Tires: EXT Talon™ with Foam Inserts
Tire diameter: 4.5 inches (114 mm) (front and rear)
Wheels (Front/Rear): 2.8" Grey RXT Wheels
Wheel diameter: 2.8 inches (71 mm)
Radio system: TQ ™ 2.4 GHz (2 channels)
Servo control: Waterproof digital servo #2056 (6kg/cm2 torque)
Battery compartment (L/W/H): 162 mm 6.38 x 50 mm x 25 mm
Essentials not included:
- 4 AA batteries (LR6) for remote control
- Ni-Mh 8.4V or Li-Po 2S Traxxas socket
- Ni-Mh or Li-Po charger
