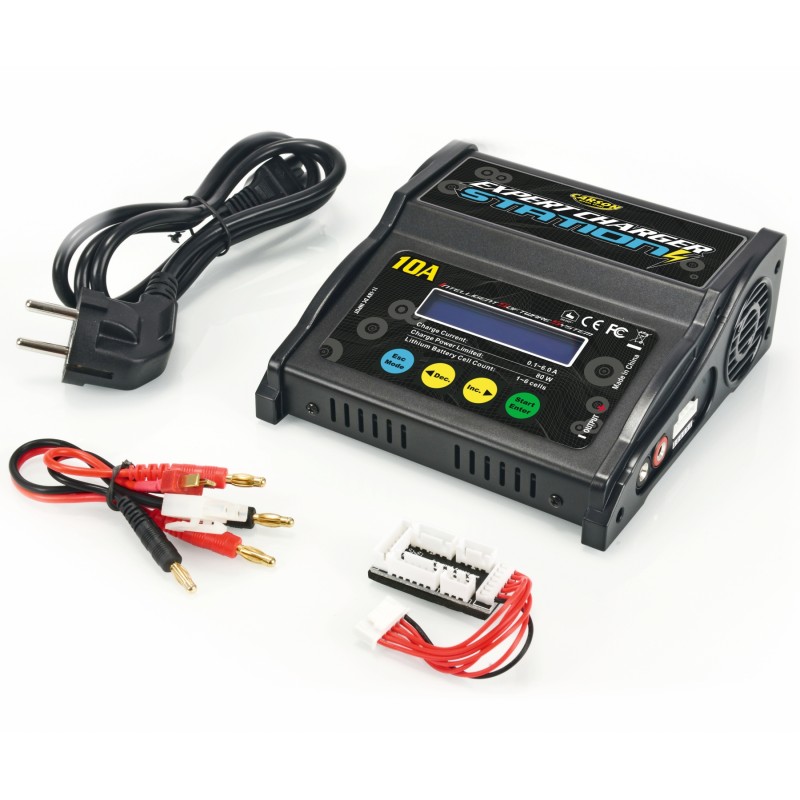

The CARSON Expert Charger Station is an innovative computer charger with many professional functions. It charges all types of batteries from 1 V to 20 V with 0.1 to 10 A. The practical charger is extremely powerful and suitable for conventional NiMH/lead-acid batteries as well as modern lithium batteries (LiIon/LiPo/LiFe) and is also a device for accurately measuring the state of charge of the battery.
The highlight is the memory function, which makes it easy to store and call up to five battery data. The light blue LCD display shows the battery voltage, current charging current, charging time and charged capacity. The balancer ensures that all cells in the LiXXX packs have the same final charging voltage. The Expert Charger Station is equipped and very easy to use.
Characteristics :
- Charging current up to 10 A - Large blue backlit LCD screen - Charging/discharging function - LiPo/LiIon/LiFe 1-6 cells - 3-24V power supply function - 12V or 230V connection - With balancing adapter, TAMIYA & T Plug charging cable
Technical specifications:
- Input voltage: 230 V or 11-18 V - Charging current: 0.1-10 A (max. 80 W) - Delta Peak stop - Car charging current 1 C in capacity input - Discharge current: 0.1 to 2.0 A (max. 6 W) - Choice of discharge current stop for cell voltage of 3.0 to 4.0 V - 5 NiMH/NiCd cycles (conditioning), charging/discharging or The battery storage function increases battery life. - Display of single-cell voltage and total voltage Clear LCD backlight display with automatic shutdown (0 to 10 min). - 1 to 6 Li-XX cells (lithium-ion/polymer/iron oxide) - 1 to 16 NiMH cells (nickel hydride), NiCd 1 to 10 lead cells (Pb), integrated balancer from 2.45 to 24.5 V, tolerance +/- 0.01 V, equilibrium current of 250 mA - Golden charging sockets with TAMIYA Charging cable T-plug XHP - Power supply function 3V to 24V - Aluminum housing - Weight: about 640g - Dimensions: approx. 145 x 145 x 56 mm
Contents of the box:
-charger - 230 V connection cable - XHP adapter card - TAMIYA Plug and T charging cable - Manual in German / English
Product Details
500606066
1 Item
Charger-unloader, for NiMh, NiCd, Li-Ion, LiPo, Li-Hv, LiFe and Pb batteries with balancer, mains and 12 volts. Power 10A - 80W!
