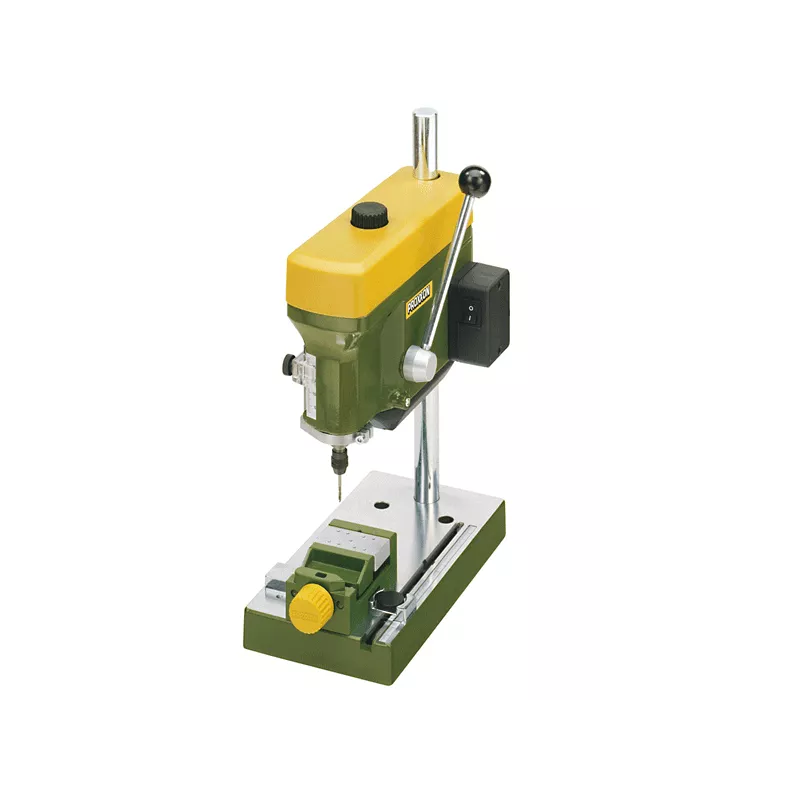

TBM 220 - 3-speed established drill with 6 pliers from 1.0 to 3.2 mm Proxxon

- 3 speed speeds per belt movement for a low-speed triple torque.
- Practical indication of drilling depth with adjustable stop.
- The advantageous MS 4 zinc machine noose cast under pressure (not supplied with TBM 220).
- Comes with 6 steel MICROMOT pliers.

Fresh work table flat in aluminum cast iron, pressurized casting (220 x 120 mm) with parallel stop and graduation and threaded holes for fixing the MICRO-table with coordinates KT 70.

Solid steel column (20 x 340 mm). Pressurized cast-iron aluminum console with guides and adjustments worked on the pin. Very high quality engine, VDE certified, extremely quiet and very durable. 3-speed belt drive. The movement of the belts allows for 3 speeds of rotation and a triple torque at the bottom speed. Practical indication of adjustable stop drilling depth.

Technical data:

230 V. 85 W. 50 - 60 Hz. Rotation speeds: 1,800, 4,700 and 8,500 rpm. Range (from inside the column to the center of the tool) 140 mm. Pin sheath run: 30 mm. Taking the accessories by 6 microMOT steel clamps with triple slit (1 - 1.5 - 2 - 2.4 - 3 and 3.2 mm). 3/8" threading for the attachment of a serrating chuck with a toothed crown. Weight 3.3 kg.

Toothed-crowned chuck (optional)

For 0.5 to 6.5 mm stems. Industrial finish-the with very precise concentricity (up to 10,000 rpm.). 3/8" TBM 220-compatible thread.

NO 28 122

MACHINE seal MICROMOT MS 4 (optional)

Aluminium cast iron. Three fresh support surfaces. With groove, also adapting to the longitudinal stop of the TBM 220 established drill, the MB 140/S and MB 200 drilling supports. Vertical and horizontal prism for round materials. Jaw width 50 mm. Jaw height 10 mm. Spread maximum 34 mm.

NO. 28,132

MICRO-table with coordinates KT 70
Highly traction-resistant aluminum (densified surface) with adjustable dovetail slides. 3 T-shaped longitudinal grooves (MICROMOT 12 x 6 x 5 mm). Sliding rule that facilitates the cross-positioning of the trolley. Mollettes with repositionable vernier on zero: 1 lap - 1 mm, 1 graduation - 0.05 mm lead. Comes with the straps and fasteners for the MB 140/SThe MB 200 TBM 220. Table 200 x 70 mm. Setting X (longitudinal) 134 mm, setting Y (in depth) 46 mm, height 43 mm.

No. 27,100
