Reference: PRX-28172
Brand: Proxxon
Bi-Metal saw ribbon for MBS 240/E Proxxon
Bi-Metal saw ribbon for MBS 240/E, 1067 x 6.0 x 6.0 mm Proxxon - 28172Ideal for cutting all natural shades of steel, non-ferrous metals and stainless steel.
Banner

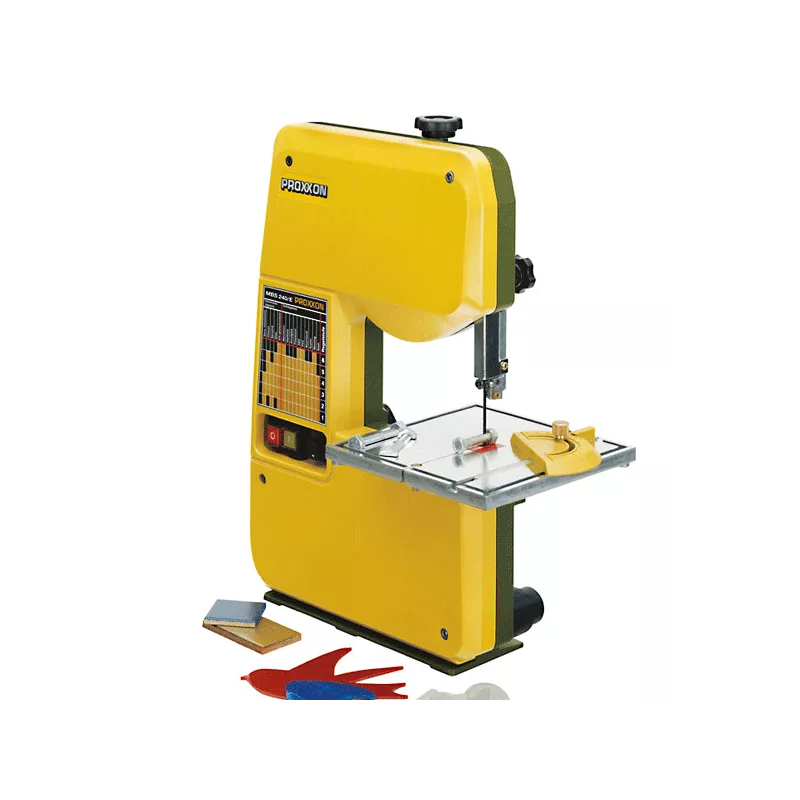

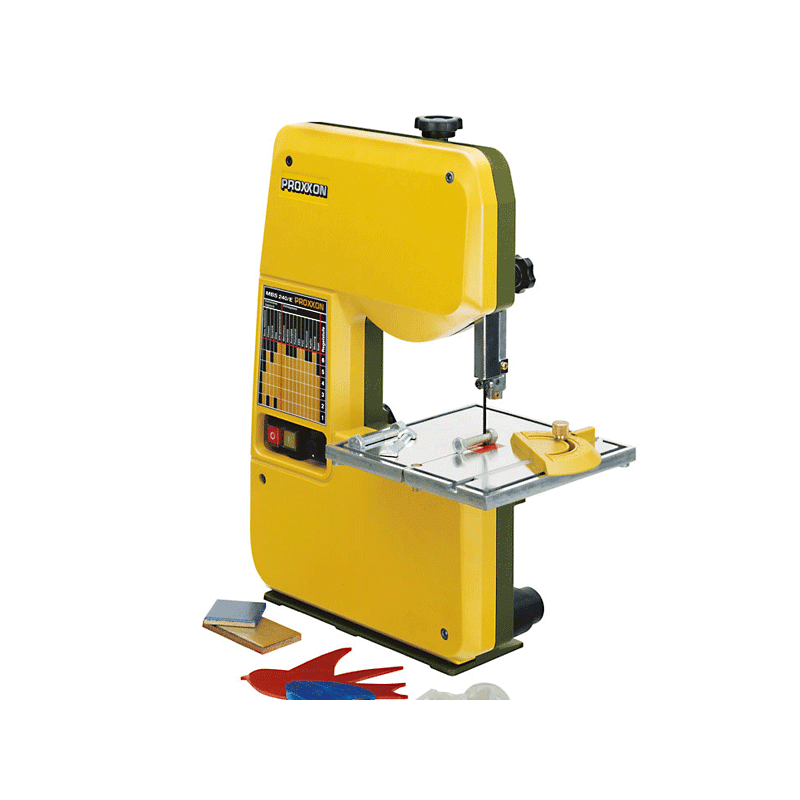

MBS 240/E - HT Micro Band Saw Max Cutting 85 mm Table 220 x 200 mm - 27172
Solid case made of ribbed cast aluminium (construction not made of steel tubes or stamped sheets).
Solid case made of ribbed cast aluminium (construction not made of steel tubes or stamped sheets).
Aluminum pulleys with double bearings. Stable table with flat-milled worktop, miter cut groove. (45° tilting plate for miter cuts). Belt guide mounted on 3 bearings and adjustable height. Adjustable for different slats of different widths. Silent drive with 220 Volt motor with Optibelt toothed belt. (superior quality and endurance). Electronically adjustable speed for extremely clean cuts (not requiring further finishing). A clear table illustrates the diets for virtually all materials. The ideal web format (5 x 0.4 mm) allows for rounded cuts with a small radius.
Technical data:
230 V. Adjustable belt speed from 180 to 330 m/min (feedback effect). Passage between the blade and the housing 150 mm. Maximum height passage 80 mm. Worktable 200 x 200 mm (rotatable from 0° to 45°). Weight Approximately 8 kg. A 1065 x 5 x 0.4 mm (14 teeth) saw band is part of the standard equipment.
The MBS 240/E is equipped with an outlet for the suction hose. For clean work. We recommend the use of our compact CW-matic workshop vacuum cleaner.
Separate blade guide
NO. 28 187
Standard Saw Band
Made of hardened Swedish steel. With fine teeth (24 d). For steel and brass.
NO. 28 174 1.065 x 5 x 0.4 mm
Likewise
but with coarse teeth (14 d).
NO. 28 176 1.065 x 5 x 0.4 mm
Extra-thin (3.5 mm) saw band for narrow radii
Made of specially coated steel with induction-hardened coarse teeth (14 d). Particularly suitable for aluminium and plastics.
NO. 28 180 1.065 x 3.5 x 0.5 mm
Bi-metal saw band
The saw teeth are made of high-alloy steel and are made of wear-resistant HSS. Variable teeth 10 - 14 d. Ideal for cutting all normal grades of steel, non-ferrous metals and stainless steel.
NO. 28 172 1.065 x 6 x 0.6 mm
Cutting Saw Tape
Extremely thin (1.3 mm), for very tight bending radii. Transforms the MICRO MBS 240/E band saw into a cutting saw. Made of special high-performance steel. Wavy and set teeth (10 teeth per inch). For all types of wood, plastics and non-ferrous metals.
NO. 28 182 1.065 x 1.3 x 0.44 mm
Diamond Saw Tape
For cutting stone, ceramic, glass or fiberglass. Only the correct cooling of the diamond tape ensures optimal cutting of the glass or ceramic and allows for a long service life of the tape. We recommend doing this with a brush.
NO. 28 186 1.065 x 3 x 0.3 mm
Hardened spring steel saw band (without teeth)
For cutting foam, plastic, rubber, leather, paper and cardboard.
NO. 28 184 1.065 x 6 x 0.4 mm
Reference: PRX-28172
Brand: Proxxon
Bi-Metal saw ribbon for MBS 240/E, 1067 x 6.0 x 6.0 mm Proxxon - 28172Ideal for cutting all natural shades of steel, non-ferrous metals and stainless steel.
Reference: PRX-28174
Brand: Proxxon
Saw ribbon, 24 thin teeth for steel and brass for MBS 240/E Proxxon - 28174Soaked Swedish steel. With fine tooth (24 d). For steel and brass.
Reference: PRX-28176
Brand: Proxxon
Saw ribbon, 14 large teeth for wood and synthetic materials for MBS 240/E Proxxon - 28178Soaked Swedish steel. With coarse tooth (14 d). For wood.
Reference: PRX-28180
Brand: Proxxon
Saw band, 14 very thin teeth for aluminum and synthetic materials for MBS 240/E Proxxon - 28180 Steel with a special coating, with coarse teeth hardened by induction (14 d). Particularly suitable for aluminum and plastics.
Reference: PRX-28182
Brand: Proxxon
Extremely narrow saw band (1.3mm), for tight spokes. For MBS 240/E Proxxon - 28182 Extremely thin (1.3 mm), for very tight radii of curvature.For all types of wood, plastics and non-ferrous metals.
Reference: PRX-28186
Brand: Proxxon
Diamond saw band for MBS 240/E Proxxon - 28186For cutting stone, ceramic, glass or fiberglass.
Reference: PRX-28187
Brand: Proxxon
Separate Blade Guide for MBS 240/E Proxxon - 28187
