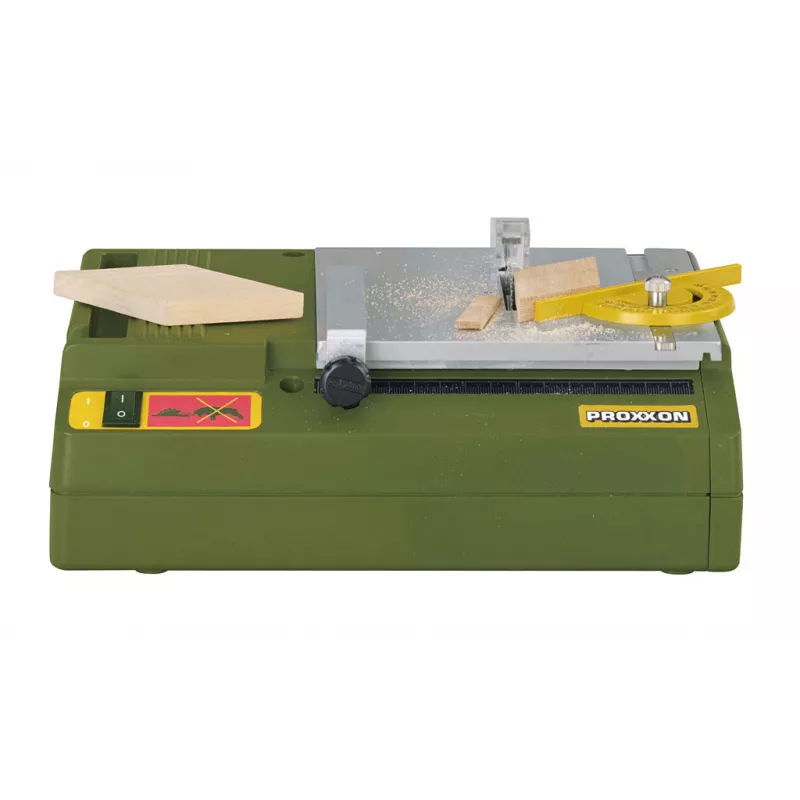

KS 230 - Circular workbench saw cut in soft wood up to 8 mm Proxxon - 27006
For straight cuts in wood, non-ferrous metal, plastic and fiberglass.
KS 230 - Circular workbench saw cut in soft wood up to 8 mm - 27006
For straight cuts in wood, non-ferrous metal, plastic and fiberglass.
The supplied "super-cut" blade (Ø 58 mm) allows soft wood to be cut up to 8 mm thick.
AC motor, quiet and resistant. Transmission by notched belts for the precise speed of the saw blade with doubled torque. Cutting performance in wood 8 mm, plastic material (also PERTINAX plates) about 3 mm, non-ferrous metals about 1.5 mm. Even CCA plates can be separated by means of the carbide hard alloy saw blade. Adjustable longitudinal with scale. Stop with a graduation. Die-cast aluminum work table (160 x 160 mm).
Technical data:
230 V. 85 W. 8.000/min. Weight 1.8 kg.
Especially important for a circular saw: a suction tip with adapter allows clean work. We recommend the use of our compact CW-matic workshop vacuum cleaner.
Circular saw blade "Super-Cut" - NO. 28014
Ø 58 mm (bore 10 mm). Alternating teeth 80 teeth. Ideal for cutting hard and soft wood, Pertinax and plastic. For a quick and clean cut. Cross teeth, individually sharpened: for an excellent cut!
Solid reinforced metal saw blade - NO. 28011
Ø 50 mm (bore 10 mm), thickness 0.5 mm. Fine teeth (80 teeth): ideal for cutting fiberglass plates of up to 3 mm, non-ferrous metal, duro-plastic and other "problematic" materials.
Diamond cutting blade - NO. 28012
50 mm (bore 10 mm). 0.5 mm diamond coating "D 107". For cutting ceramic, porcelain, tile, stone and fiberglass turntables.
Saw blade made of a special steel alloy (HSS) - NO. 28020
Ø 50 mm (drilling 10 mm), thickness 0.5 mm. Made of a high percentage of tungsten, vanadium and molybdenum for homogeneous structure, high hardness and long service life. Fine teeth (100 teeth) particularly suitable for very fine cuts in NE metal (aluminum, brass, copper). Also suitable for cutting composite materials, such as PC cards, wood and plastics.
Circular saw blades coated with reinforced metal - NO. 28017
Ø 50 mm x 1.1 (bore 10 mm). 20 teeth. For the extremely clean cut of balsa and plywood. Also for cutting fiberglass and POLYCARBONATE turntables.
Reference: PRX-28011
Brand: Proxxon
Hard metal saw blade full fine teeth, 80 teeth Ø 50 mm Proxxon - 28011Ideal for cutting platinums in fiberglass of 3 mm max., non-ferrous metal, duro-plastic material and other "problematic" materials.
Reference: PRX-28014
Brand: Proxxon
Circular saw blade Super-cut alternating teeth, 80 teeth Ø 58 mm Proxxon - 28014Ideal for cutting hard and soft wood, Pertinax and plastic.
Reference: PRX-28012
Brand: Proxxon
Coated diamond cutting blade D107 Ø 50 mm Proxxon - 28012For cutting ceramic, porcelain, tiled, stone and fiberglass turntables.
Reference: PRX-28017
Brand: Proxxon
Circular saw blade with carbide wafers, 20 teeth Ø 50 mm Proxxon - 28017For the extremely clean cut of balsa and plywood.Also for the cutting of fiberglass turntables and POLYCARBONATE.
Reference: PRX-28020
Brand: Proxxon
Spring steel saw blade, 100 teeth Ø 50 mm Proxxon - 28020Fine teeth (100 teeth) particularly suitable for very fine cuts in NE metal (aluminum, brass, copper).Also suitable for cutting composite materials, such as PC cards, wood and plastics.
