Reference: PRX-28610
Brand: Proxxon
UHZ - Universal support with clamp, for all MICROMOT Proxxon machines
UHZ - Universal support with clamp, 20mm collar for all MICROMOT Proxxon machines - 28610With patella. Orientable from all sides.
Banner

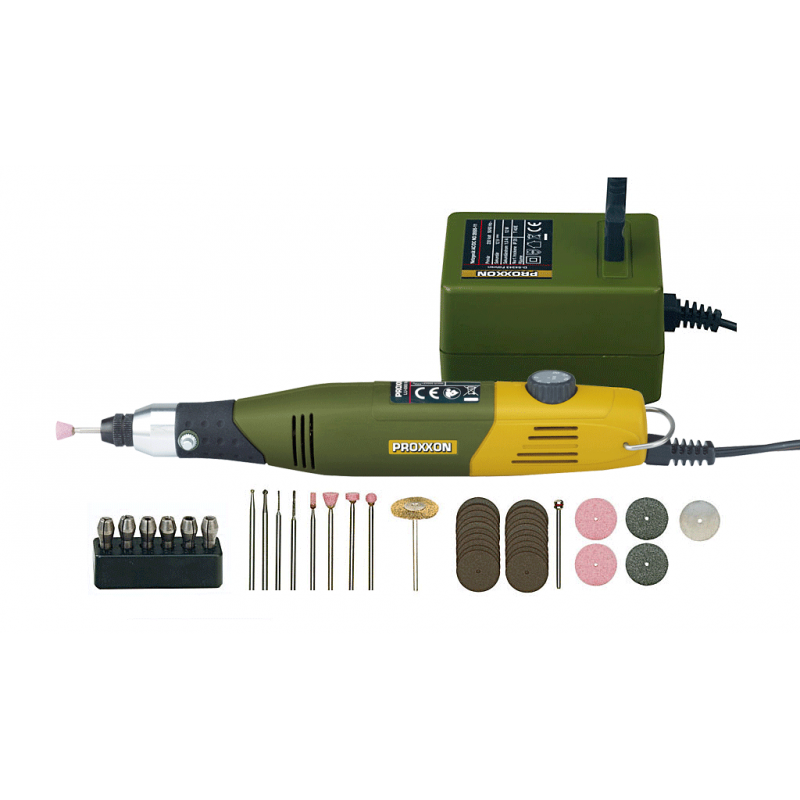

Engraving-modelling set with MICROMOT 60/E Proxxon - 28515
Includes a MICROMOT 60/E drill-milling machine, a transformer and 34 dental grade accessories.
Engraving set for modellers with drill-milling machine MICROMOT 60/E
MICROMOT 60/E drill-milling machine:
Electronic stepless speed adjustment and high drive power at low speeds. Tool holder with MICROMOT steel collet (1 piece 1 - 1.5 - 2 - 2.4 - 3 and 3.2 mm).
Technical data:
Direct current 12 - 18 V. 40 W. 5,000 - 20,000/min.
Length of 220 mm.
Weight 230 g.
Comes with 34 industrial and dental-grade accessories:
1 diamond grinding wheel on shank, 1 fine milling cutter, 1 micro-drill 0.5 and 1 mm, 1 brass brush, 4 grinding wheels on corundum shank (cylinder, ball, wheel and cone), 1 elastic polisher, 2 grinding discs in corundum and 2 in silicon carbides, 20 cutting discs and 1 tool holder. In addition, 6 MICROMOT collet clamps from 1 to 3.2 mm. With 230 V mains transformer (12 V, 1 A). Comes in an elegant case made of sturdy plastic.
MICROMOT steel collets are hardened, which gives them a consistently high elasticity. They retain the necessary precision even after long use (incomparable to 4-slot unhardened collet or brass or aluminum collets). The triple lunge, which is much more difficult to achieve than a quadruple lunge, allows you to obtain a better seat. This is especially important for centering small diameter rods.
Remark:
The speed control of our 12 volt units only works with unstable power supplies (e.g. all MICROMOT transformers). Connection to stabilized power supplies is possible. Nevertheless, the devices then operate at maximum speeds (this also applies to battery operation).
Suitable accessories:
FS Foot Switch - NO. 28700
Work hands-free. For all devices with a European plug (class 2) and up to a maximum power of 500 W. Also suitable for bench fixtures. Fiberglass reinforced NYLON housing. 250 cm cord for 230 V mains. 50 cm of cable output. For 12 V devices, the switch can be connected to the transformer.
Reference: PRX-28610
Brand: Proxxon
UHZ - Universal support with clamp, 20mm collar for all MICROMOT Proxxon machines - 28610With patella. Orientable from all sides.
Reference: PRX-28600
Brand: Proxxon
MB 200 - MICROMOT Proxxon drilling support - 28600Head with dovetail steerable at 90 degrees (graded ring available). Allows for sloping drilling and multi-purpose milling.
Reference: PRX-28620
Brand: Proxxon
Flexible 110/P with 3 ball bearings 35000 rpm with 6 pliers from 1 to 3.2 mm - 28620With precision aluminum accessory holders. With fast-tightening chuck.
Reference: PRX-28622
Brand: Proxxon
Flexible 110/BF, with 3-jaw chuck - 28622With precision aluminum accessory holders. With steel clamps.
