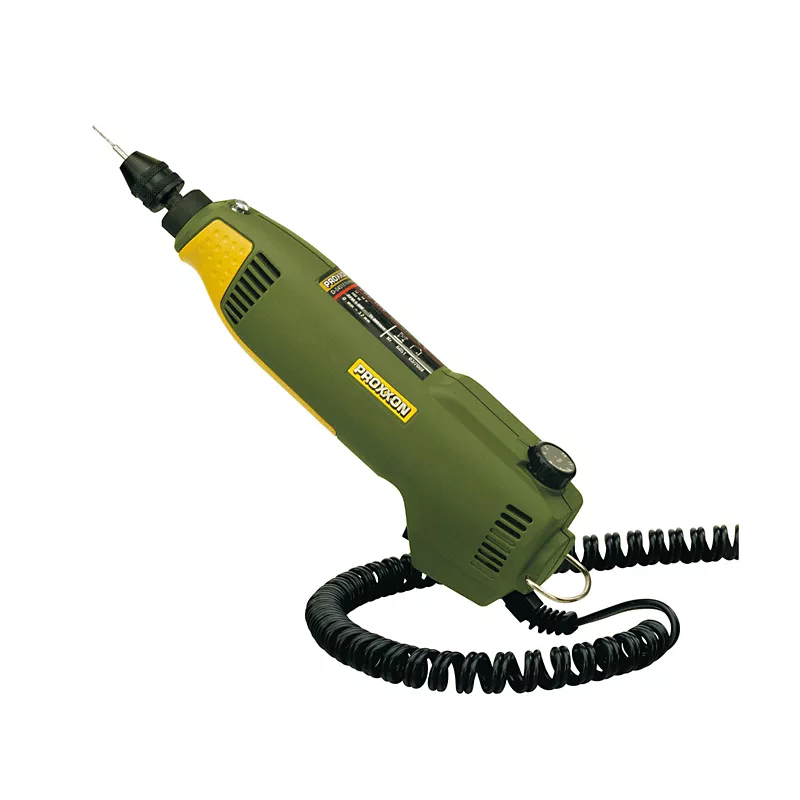

FBS 12/E - 100W grinder, 2A max, with Proxxon chuck

FBS 12/EF Proxxon Drill Grinder

For precision drilling, milling, sanding, polishing, brushing, clearing, engraving, chiseling and cutting.

With chuck (0.3 to 3.2 mm). Precise axis in rectified steel, mounted on ball bearing. Blocking the tree by pressing a button for tool change. Head of the sleath allowing the use of MICROMOT clamps. DC special engine balanced, powerful, quiet and durable. Gradual adjustment of the feedback-effect regime (high power at low speeds). PolyAMIDE case reinforced with fiberglass.

1. 20 mm collar for MICROMOT devices.
2. Ventilation for long periods of use.
3. DC special engine balanced, powerful, quiet and durable.
4. Speed control with feedback effect.

It is mandatory to use with a transformer:
Transformer PROXXON: 28707 - 28704 - 28706

Technical data:

Continuous current 12 - 18 V.
100 W.
3,000 - 15,000 rpm.
Length 185 mm.
Weight 450 g.

Note:

The speed control of our 12-volt units only works with unstabilized power supplies (e.g. all MICROMOT transformers). A connection to stabilized power supplies is possible. However, the devices then operate at maximum speeds (this also applies to battery power).
