MICROMOT 60 - 12V milling drill, with 6 Proxxon clamps

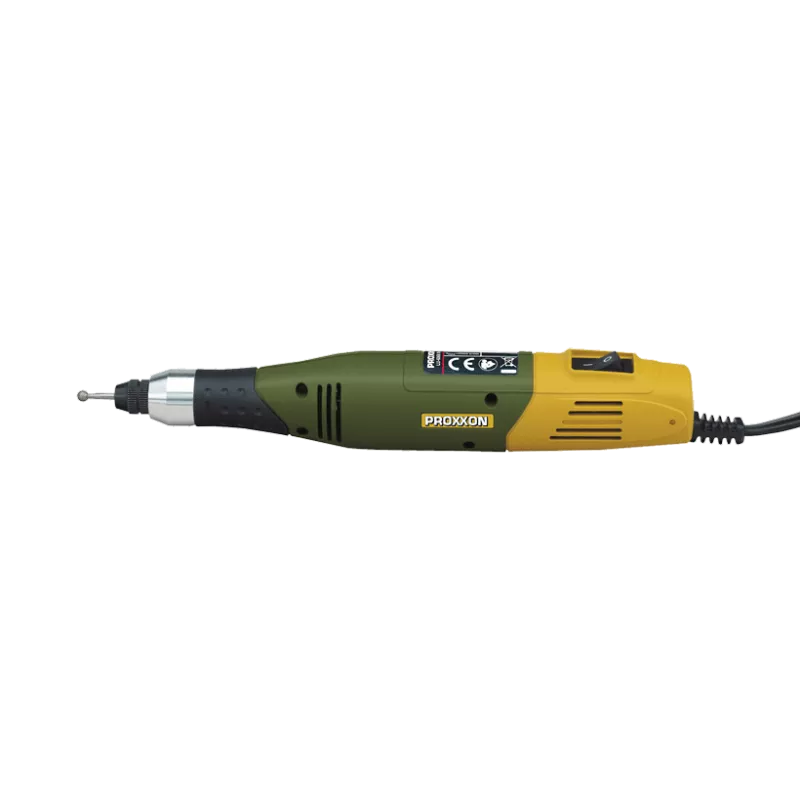

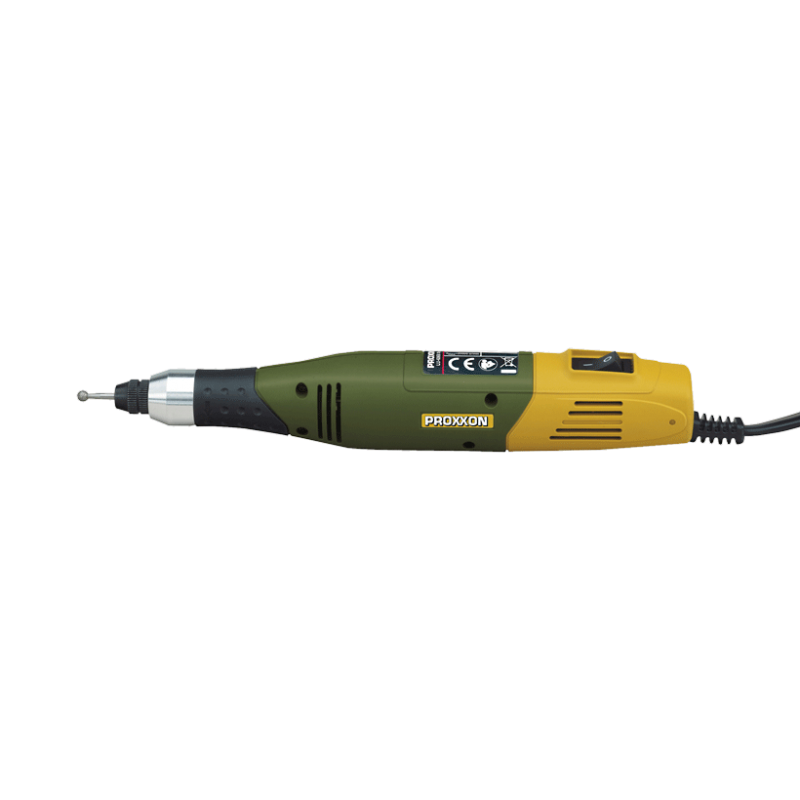

Drill Milling machine MICROMOT 60

Particularly maneuverable thanks to their diameter of 35 mm, they also have a reduced weight (approx. 230 g), pleasant noise and smooth operation thanks to a balanced motor and the rectified axis mounted on a ball bearing. The use of MICROMOT clamps made of high-quality steel (see description below) allows extremely concentric tightening of the smallest tool tails. There is no grazing or jerking of the tool.

The use of MICROMOT 60 devices requires a transformer. We recommend micromot ng 2 transformers.

1. 20 mm collar fastening system allows use with THE MB 200 vertical bracket and the UHZ universal bracket.
2. Robust housing made of POLYAMIDE reinforced with fiberglass. With flexible component in the grip area.
3. Electronic progressive adjustment of the rotational speed with feedback effect. For high drive power at low revs.

• For drilling, milling, sanding, polishing, brushing, cutting and engraving. For the processing of steel, precious metals, glass, ceramics, plastic and minerals.
• With safety voltage at low voltage. So also suitable for working with coolant (polishing and cutting under liquid).
• For electronics do-it-yourselfers, modellers, precision mechanics, goldsmiths, opticians, sculptors, pedicures, dentists, tool and mold making.

Without adjusting the rotational speed. (Constant 20,000 rpm). Tool holder by micromot steel clamps (1 piece 1 - 1.5 - 2 - 2.4 - 3 and 3.2 mm).

Remark:

The speed control of our 12-volt units only works with unstabilized power supplies (e.g. all MICROMOT transformers). A connection to stabilized power supplies is possible. Nevertheless, the devices then operate at maximum speeds (this also applies to battery operation).

Remark:
MICROMOT steel clamps are hardened, which gives them a high and constant elasticity . They retain the necessary precision even after a long use (incomparable to unquenched clamps with 4 slots or those made of brass or aluminum. The triple slot which is much more difficult to achieve than a quadruple slot, allows to obtain better sitting. This is especially important for the centering of stems with a small diameter.

Technical data:

Direct current 12 - 18 V.
40 W.
20.000/min.
Length of 220 mm.
Weight 230 g.

Appropriate accessories:

FS foot switch
Work hands-free. For all devices with a European plug (class 2) and a power up to 500 W max. Also suitable for workbench devices. Nylon case reinforced with fiberglass. Cord 250 cm for mains 230 V. 50 cm of cable output. For 12 V devices, the switch can be connected to the transfo.

NO. 28,700

MICROMOT extension cord
300 cm. For 12 volt devices. Male and female plugs with polarity.

NO. 28,992
