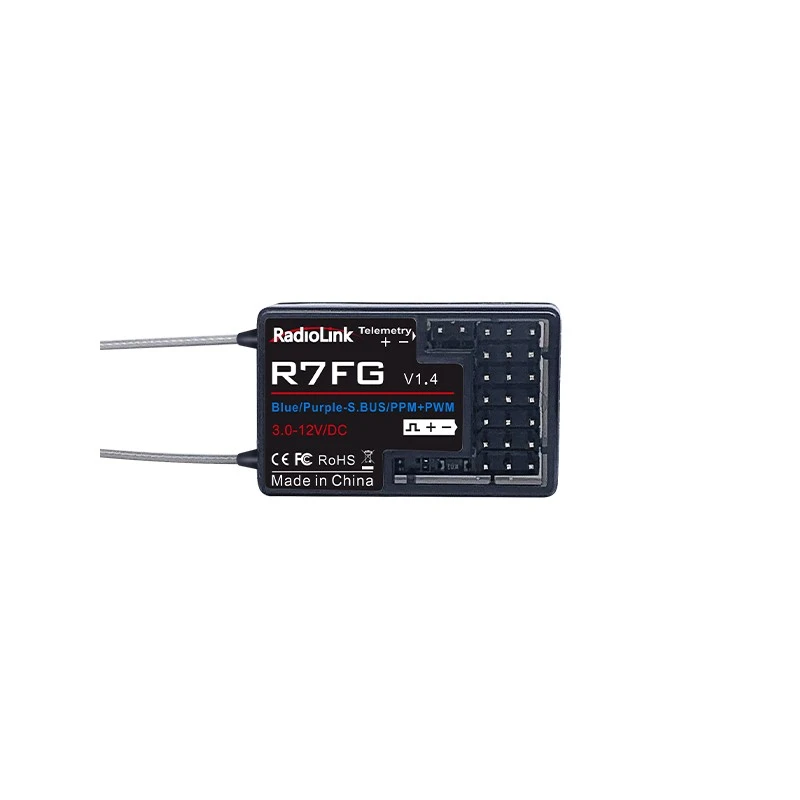

R7FG RadioLink 7-way surface receiver with integrated telemetry and dual antenna.
The built-in telemetry allows you to know the battery voltage thanks to the cable supplied with the radio.
The IPX4 standard of this receiver allows it to be impervious to splashes of water.
This receiver is equipped with an integrated gyro – useful in leisure but prohibited in competition.
Finally, it has anti-polarity protection to prevent bad connections and it can manage high voltage servos (3-12V).
Control distance of 600 meters
The stable remote control distance of the R7FG can reach 600 meters on the ground. Control with camera and display screen/goggles allows pilots to enjoy FPV fun.
Built-in real-time telemetry
Capable of transmitting in real time the RSSI, receiver and voltage of the model.
The RSSI value and receiver voltage will be displayed on the screen once the link between the transmitter and receiver is complete.
The model voltage will be displayed on the screen by connecting the battery to the telemetry port via the voltage return cable (supplied with the R7FG), with no additional link module required.
The maximum real-time voltage can be up to 8S battery.
To support the two-way transmission function, the latest firmware must be flashed.
Receiver with integrated gyroscope
The standard R7FG receiver is the receiver with built-in gyroscope and supports high voltage servo.
It is non-slip and retains unidirectional steering. With the gyroscope built into the R7FG installed, the vehicle spins more easily and drifting at high speeds can be avoided.
Water splash resistant (IPX4)
The PCB board and pins of the R7FG have the same waterproof treatment as the mobile phone, i.e. a nano-coating technology treatment and the degree of sealing is IPX4.
IPX4: IP×× rated standard recommended by the International Electrotechnical Commission (IEC). Versions V1.2 and V1.3 of the R7FG have been designed to withstand splashing water (IPX4).
SBUS/PPM/PWM signal supported
PWM signal output mode: when the R7FG LED is green or red, PWM output signal CH1 to CH7.
PWM + PPM/PWM + SBUS signal output mode: When the LED of R7FG is blue or purple, CH1 to CH5 emit a PWM signal while CH6 with PPM and CH7 with SBUS signal output. Players can customize the signal output mode to fully enjoy the fun of the model fishing boat and car with FPV.
4096 accuracy, fast response 12ms
4096 high-resolution ratio, 0.5us stability, low loss rate and 48MHz M0 high-speed processor ensure extremely fast 12ms response.
Branch ID
Able to designate a subsidiary ID among several link receivers to meet special needs such as long-distance rescue with model cars/boats. There may be a total of 10 branch IDs stored.
Characteristics:
Dimensions: 35*22*14 mm
Antenna length: 205 mm
Weight: 6 g
Number of channels: 7
Signal output: PWM+PPM+SBUS
Application of the model: car/boat.
Frequency: 2.4 GHz ISM
Spread spectrum mode: 67-channel FHSS pseudo-random frequency hopping
Voltage range: 3-12 V
Operating current: 30 mA (based on supply voltage)
Control distance: 600 meters on the ground
Compatible Transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101) / T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
