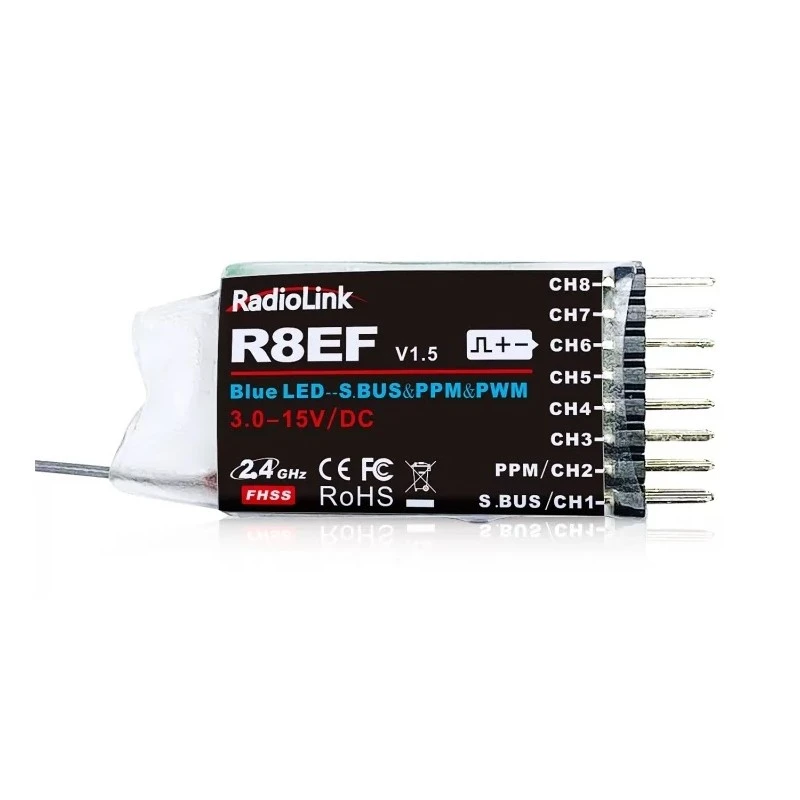

R8EF RadioLink 8-Way Receiver

RadioLink R8EF Receiver

Control distance of 2,000 meters

The same FHSS* spread-spectrum algorithm as the AT9S Pro and the 67-channel pseudo-random frequency hopping help reduce overall signal interference.
2 km The range allows for all the RC fun possible.
The maximum PWM jitter is 1.84us with a standard of only 0.5us.

8 channels

SBUS/PPM and PWM can operate simultaneously for seamless user control.
Adaptable models include rotating wings, fixed wings, gliders, multicopters, cars, boats and robots.
Wide operating voltage tolerance from 3 to 12 volts.

Characteristics:

Size: 41.5x21.5x11.5 mm
Weight: 7 g
Number of channels: 8 for SBUS/PPM and PWM signal
Operating voltage: from 3 to 15V
Operating current: 38-45mA@5V
Scope: Up to 2 km
Compatible transmitters: T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS
