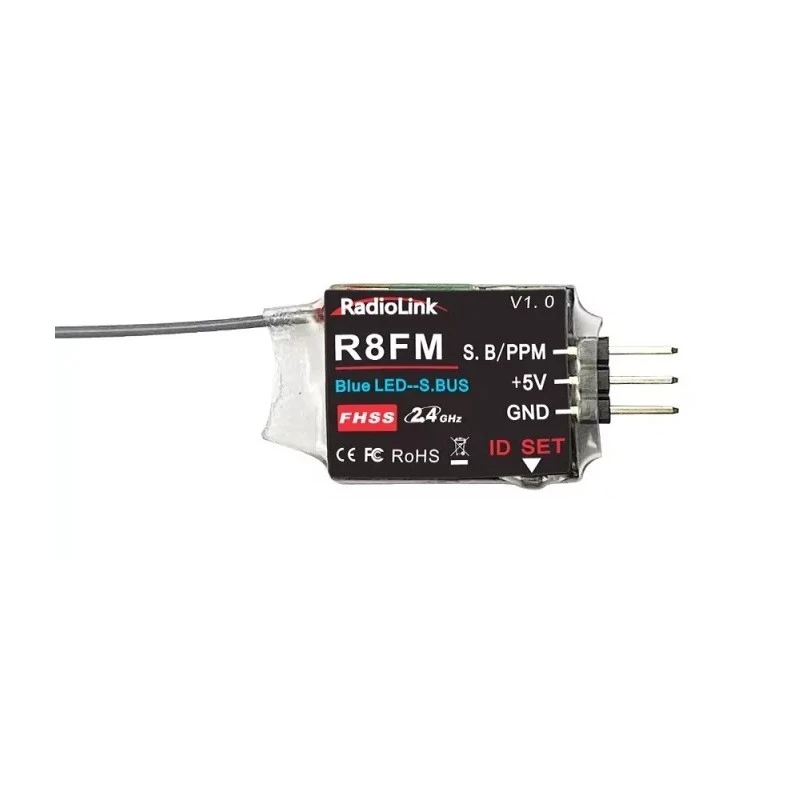

8-way R8FM SBUS/PPM RadioLink signal receiver

RadioLink R8FM receiver SBUS and PPM signals.

Control distance of 2,000 meters

The same FHSS* spread-spectrum algorithm as the AT9S Pro and the 67-channel pseudo-random frequency hopping help reduce overall signal interference.
2 km The range allows for all the RC fun possible.
The maximum PWM jitter is 1.84us with a standard of only 0.5us.

SBUS or PPM signal output

8 channels of SBUS/PPM signal output.
Compatible with PIXHWAK, MINI PIX, TURBO PIX and APM flight controllers that support SBUS or PPM signal.
A weight of 2.5 g (0.09 oz) and a small size of 30 * 17.5 mm (1.18" * 0.69") make the R8FM quite small even for mini drones and racing gliders.

Characteristics:

Size: 30x17.5 mm
Weight: 2.5g
Number of channels: 8 for SBUS/PPM signal
Antenna length: 85 mm
Operating voltage: from 3 to 6V
Operating current: 38-45mA@5V
Scope: Up to 2 km

Compatible transmitters: T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS(must work with a flight controller).
