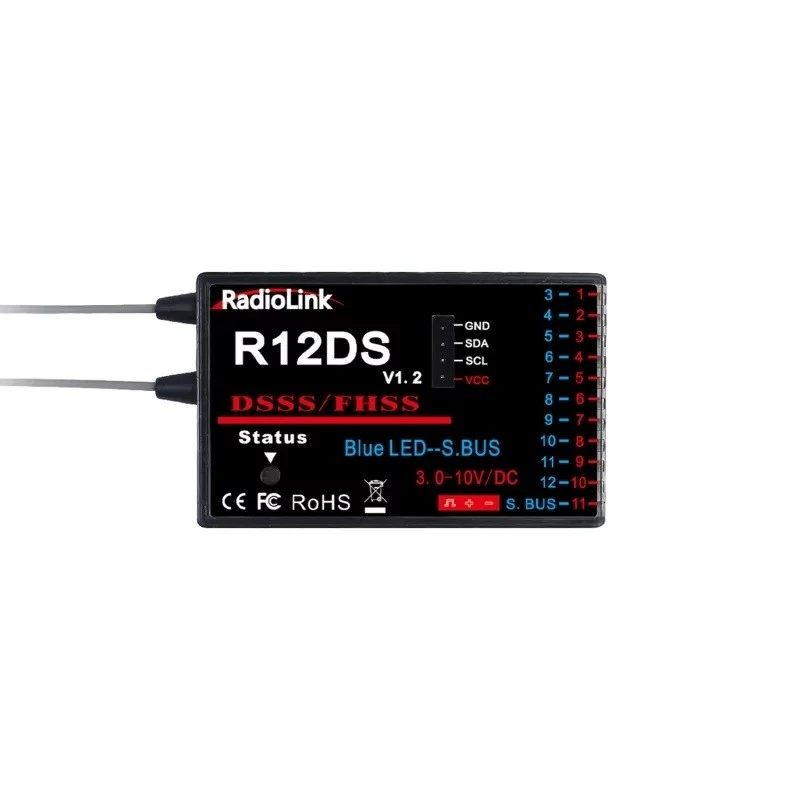

RadioLink R12DS 12-Channel Aero Receiver

RadioLink R6FG Receiver

4,000 meter control distance

Hybrid DSSS* and FHSS* spread spectrum, pseudo-random frequency hopping on 16 channels and QPSK* modulation ensure excellent anti-interference performance, a highly constant and stable transmission signal present on all 12 channels of the R12DS.

4,000 meters (2.49 miles) in the air, 2,000 meters (1.24 miles) on the ground (maximum range tested in open areas and without interference and may vary depending on local regulations).

The maximum PWM curve is 1.84us with a standard of only 0.5us.

12 lanes. Detachable antennas.

SBUS and PWM can work simultaneously for seamless user control.

Adaptable models include rotating wings, fixed wings, gliders, multicopters, cars, boats, and robots.

Compatible with PIXHWAK, MINI PIX, TURBO PIX, APM, Byme-A, and Byme-D flight controllers that support SBUS or PPM signal.

Real-time telemetry

Real-time model data allows users to receive crucial information about the model's systems.
When paired with the PRM-01 flight module, the model voltage is displayed.

Characteristics:

Size: 50x32x14.5mm
Weight: 14g
Number of channels: 11 channels for PWM output and 12 channels for SBUS and PWM output
Number of antennas: 2
Operating Voltage: 3.6-12V
Operating Current: 38-45mA@5V
Range: Up to 4 km in the air and 2 km on the ground (depending on the environment and the rules in force).
Compatible with PRM-01 telemetry module

Compatible with transmitters: AT10II/AT10/AT9S Pro/AT9S/AT9
