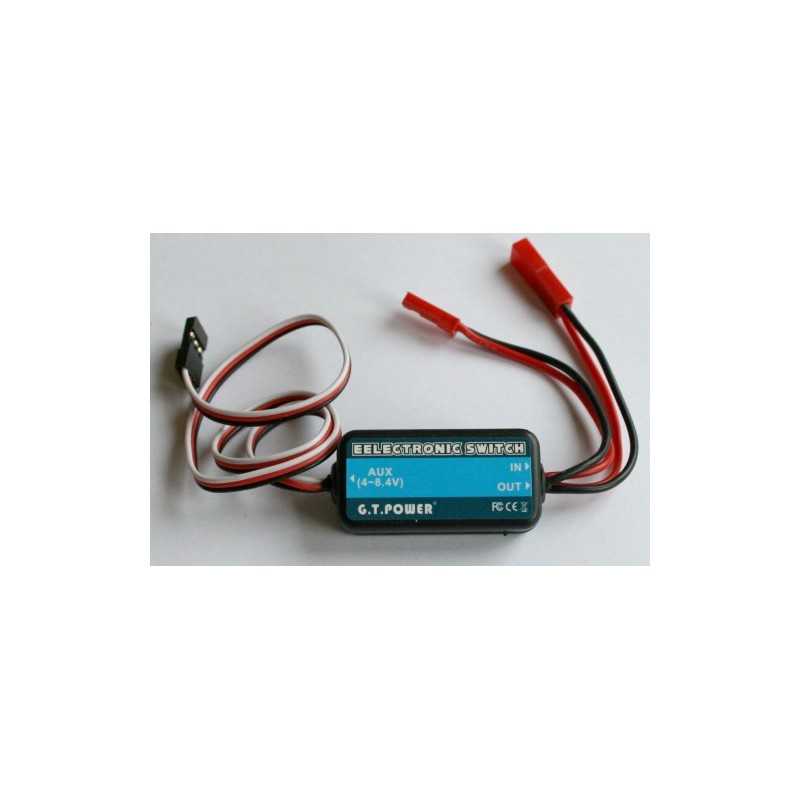

GT-Power embedded electronic switch

Embedded electronic switch high voltage (40V) and intensity (10A), can be connected to an auxiliary channel of the receiver for supplying an electronic module of your choice controlled by the issuer as: lights, smoke, system release, navigation lights, Horn, Horn mist, heater spark plug, engine starter, ect...

The switch to an effect of cut the supply on your module as the way of your radio is at 0% or 100% of its travel.

Connection:

IN: supply battery - up to 40V
OUT: is connected the module you want to control on / off
To the: is connected to a channel of your receiver that will control the electronic switch, usually shutters or train routes. Alternatively, you can connect to the throttle channel for example for a smoke, or LED post combustion for example system that will activate the system as soon as the throttle channel will exceed 50%

Features:

* Input voltage: 0 ~ 40V DC
* Output voltage = input voltage
Permissible continuous current: 7A
* Current continues permissible maximum: 10A (10 sec)
* To (connection to the receiver) length: 30cm
* To (connection to the receiver) connector: taken universal servo
* To (connection to the receiver) voltage: 4 ~ 8.4V
* Input (side battery) length: 8cm
* Input (side battery) connector: JST (BEC) Male
* Output (rated pilot module) length: 8cm
* Output (rated pilot module) connector: JST (BEC) female
* Dimensions: 25 x 10 x 5mm
* Weight: 8 g

IMPORTANT: The input INPUT voltage will be the same as the voltage out OUTPUT on the component you wish to control. This switch will not reduce the output voltage.
