Radio RC4GS V3 2.4Ghz 5 channels + R6FG RadioLink

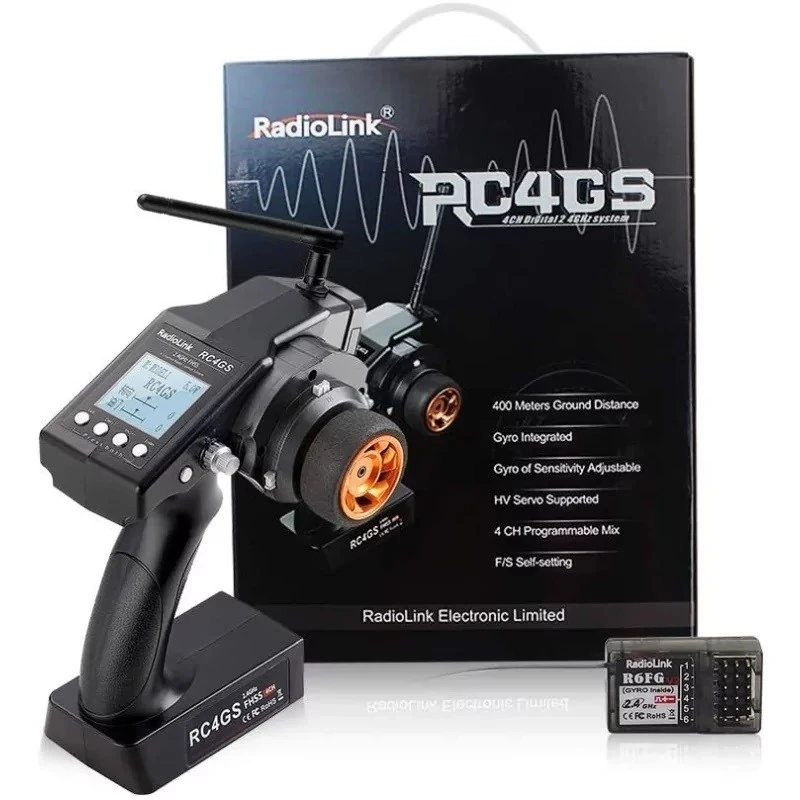

RadioLink Radio RC4GS V3 2.4Ghz 5 channels + R6FG receiver

· 5 lanes for cars, boats, lifebuoys, robots tracked
· Control distance of 400 meters
· 30 models In memory, cruise control system
· Integrated gyroscope and HV servo Supported
· D/R activation switch.
· Programmable function of timer and Double mixing
· Support for telemetry up to 8S for the propulsion battery.

Compatible with R7FG, R8FG, R8EF, R8F, R6FG, R6F, R4FGM, R4F receivers

Ground distance of 400 meters

With the same FHSS spread spectrum as the AT9S Pro and 67 channels, pseudo-random frequency hopping gives the RC4GS V3 superior anti-interference capability both on the same frequency band and on different frequency bands.
With the transmitting chip of ARM M4 and the receiving chip like the industrial 32-bit ARM Cortex M0, ensuring the superior anti-sparking interference capability, even with a tanker.
The control distance can reach 400 meters.

Timer function

The RC4GS V3's timer function allows you to grab the lap and complete the track results in time to help you train before the race.

5 channels for several types of models

RC4GS V3 is an ideal partner for all types of RC cars and boats on the market, including single- and twin-engine models such as Crawlers, Tanks, Caterpillars, Basher, RC Short-Course Truck, RC Crawler, Drifting RC Car, RC Petrol. Car, mini RC car, RC monster truck, off-road RC car, GP RC car, RC EP car, sailboats, trimaran, baitboat, remote control lifebuoy and other types of RC cars or boats.

JST connector

Battery case dimension: 89*59*25mm
Reverse polarity protection circuit

The RC4GS V3 easily adapts to different battery configurations with wide operating voltage tolerance: 6 AA or 2S-4S LiPo or 18650 Lithium batteries.

The universal JST connector with Radiolink's voltage protection software ensures that vital components are protected against reverse polarity connection.

Programmable Dual Rate

5-channel transmitter. CH1 is the direction, CH2 is the throttle, CH3 to CH5 can be programmed.

2 arbitrary channels can be easily defined as mix control, easy to understand.

For crawlers: the dual programmable mixing control allows mixing of the front wheels with the rear wheels, which can reduce the turning radius.

Performance enhancement: ergonomic design for hours of fun

Based on feedback from hundreds of experienced RC drivers, we redesigned the throttle trigger, handle thickness, and the location of each switch to get a better comfortable driving experience.
The length and proportional tension of the throttle trigger makes it easy and precise to adjust the accelerator.
FPV display stand design helps drivers enjoy driving pleasure.
An opening of the FPV display support: M6 thread (1/4 thread) (English screw)

Multiple function for DSC port

The DSC port of the RC4GS V3 can be defined as a simulator function (supports VRC Pro, CarX, Assetto Corsa Competizione simulators, etc.), or defined as TBS Crossfire function (by connecting the TBS Crossfire to the DSC port).

Receiver with integrated gyroscope

Customizable gyro sensitivity
The standard R6FG receiver is the receiver with built-in gyroscope and supports high voltage servos.
With the gyroscope built into the R6FG installed, the vehicle spins more easily and drifting at high speeds can be avoided.
Easy adjustment ensures better control of gyroscope stabilization.
The sensitivity of the gyroscope can be adjusted by STD or CH3 which is controlled by the default VR switch to maximize or minimize the gyro function.

Wide compatibility

RC4GS V3 comes with an R6FG receiver.

RC4GS V3 is also compatible with R4FGM/R4F 4-channel mini receivers designed for mini RC cars, R6F 6-channel receiver, 7-channel receiver with built-in gyroscope, high-voltage servo support, and voltage telemetry model supports R7FG and R8FG/R8EF/R8F 8-channel receivers, designed for RC boats.
