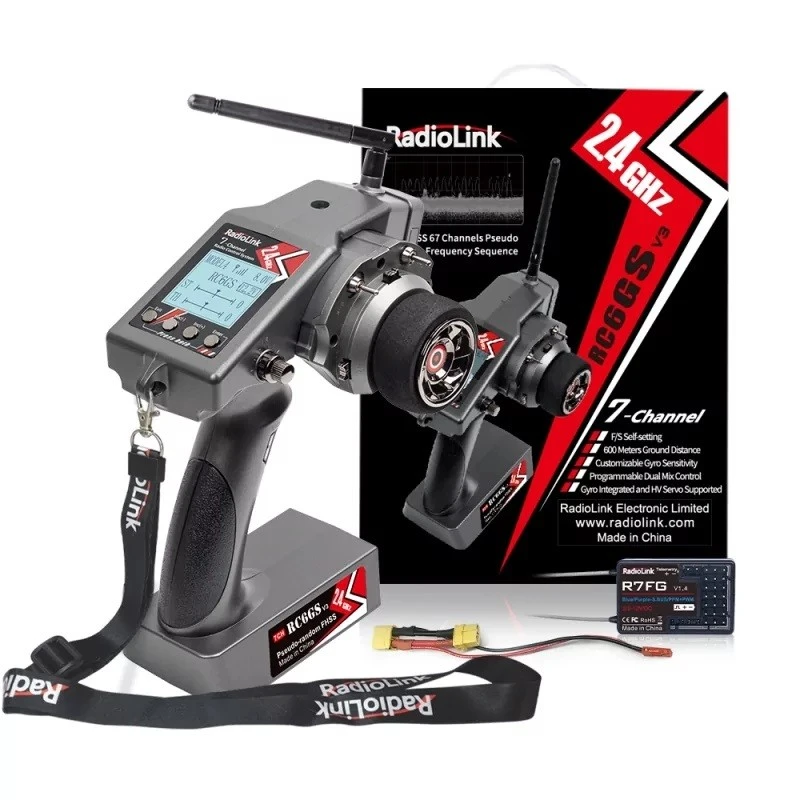

RadioLink Radio RC6GS V3 2.4Ghz 7 channels + R7FG receiver
· 5 lanes for cars, boats, lifebuoys, robots tracked
· Control distance of 600 meters
· 30 models In memory, cruise control system
· Integrated gyroscope and HV servo Supported
· D/R activation switch.
· Programmable function of timer and Double mixing
· Support for telemetry up to 8S for the propulsion battery.
Compatible with R7FG, R8FG, R8EF, R8F, R6FG, R6F, R4FGM, R4F receivers
Ground distance of 600 meters
With the same FHSS spread spectrum as the AT9S Pro and 67 channels, pseudo-random frequency hopping gives the RC6GS V3 superior anti-interference capability both on the same frequency band and on different frequency bands.
With the transmitting chip of ARM M4 and the receiving chip like the industrial 32-bit ARM Cortex M0, ensuring the superior anti-sparking interference capability, even with a tanker.
The control distance can reach 600 meters.
Timer function
The RC4GS V3's timer function allows you to grab the lap and complete the track results in time to help you train before the race.
7 channels for several types of models
RC6GS V3 is an ideal partner for all types of RC cars and boats in the market, including single-engine and twin-engine models such as tracks, tanks, tracks, Basher, Short-Course RC trucks, RC tracks, drifting RC cars, gasoline RC cars. Car, mini RC car, RC monster truck, off-road RC car, GP RC car, RC EP car, sailboats, trimaran, baitboat, remote control lifebuoy and other types of RC cars or boats.
JST connector
Battery case dimension: 89*59*25mm
Reverse polarity protection circuit
The RC4GS V3 easily adapts to different battery configurations with wide operating voltage tolerance: 6 AA or 2S-4S LiPo or 18650 Lithium batteries.
The universal JST connector with Radiolink's voltage protection software ensures that vital components are protected against reverse polarity connection.
Dual programmable mix control
7-channel transmitter.
2 arbitrary channels can be easily set as mix control, easy to understand.
For track: CH1 is the rudder, CH2 is the throttle, CH3 can be configured to control the transfer case, CH4 can be configured to control the gear shift, CH5 can be configured to control the front locker, CH6 can be configured to control the rear, and CH7 can be set to control the capstan.
For forestry trucks: the dual programmable mixing control allows the mixing of the front wheels with the rear wheels, which can reduce the turning radius.
Performance enhancement: ergonomic design for hours of fun
Based on feedback from hundreds of experienced RC drivers, we redesigned the throttle trigger, handle thickness, and the location of each switch to get a better comfortable driving experience.
The length and proportional tension of the throttle trigger makes it easy and precise to adjust the accelerator.
FPV display stand design helps drivers enjoy driving pleasure.
An opening of the FPV display bracket: M6 thread (1/4 thread) (English screw)
Multiple function for DSC port
The DSC port of the RC6GS V3 can be defined as simulator function (supports VRC Pro, CarX, Assetto Corsa Competizione simulators, etc.), FPV Head Track function (a 3 or 2 axis track can be selected) or TBS Crossfire function.
Receiver with integrated gyroscope
Customizable gyro sensitivity
The standard R6FG receiver is the receiver with built-in gyroscope and supports high voltage servos.
With the gyroscope built into the R6FG installed, the vehicle spins more easily and drifting at high speeds can be avoided.
Easy adjustment ensures better control of gyroscope stabilization.
The sensitivity of the gyroscope can be adjusted by STD or CH3 which is controlled by the default VR switch to maximize or minimize the gyro function.
FPV tracking function
RC6GS V3 used FPV goggles to control the up, down, left and right movement of the camera on the RC car.
In addition, the RC6GS V3 is compatible with TBS Crossfire by connecting it to the DSC port.
Get more than 600 meters controller distance by connecting to the TBS crossfire and work with the FPV head tracking function to fully enjoy the enjoyment of the first-person view of the race or crawl.
Wide compatibility
Water splash resistant (IPX4) for R7FG receiver
An R7FG receiver will come with RC6GS V3.
The PCB board and pins of the R7FG have the same waterproof treatment as the mobile phone, i.e. a nano-coating technology treatment and the degree of sealing is IPX4.
R7FG is a 7-channel receiver with built-in gyroscope, high voltage servo support and model voltage telemetry support.
RC6GS V3 is also compatible with R4FGM/R4F 4-channel mini receivers designed for Mini RC cars, R6FG/R6F 6-channel receivers and R8FG/R8EF/R8F 8-channel receivers, designed for RC boats.
IPX4: IP×× rated standard recommended by the International Electrotechnical Commission (IEC).
