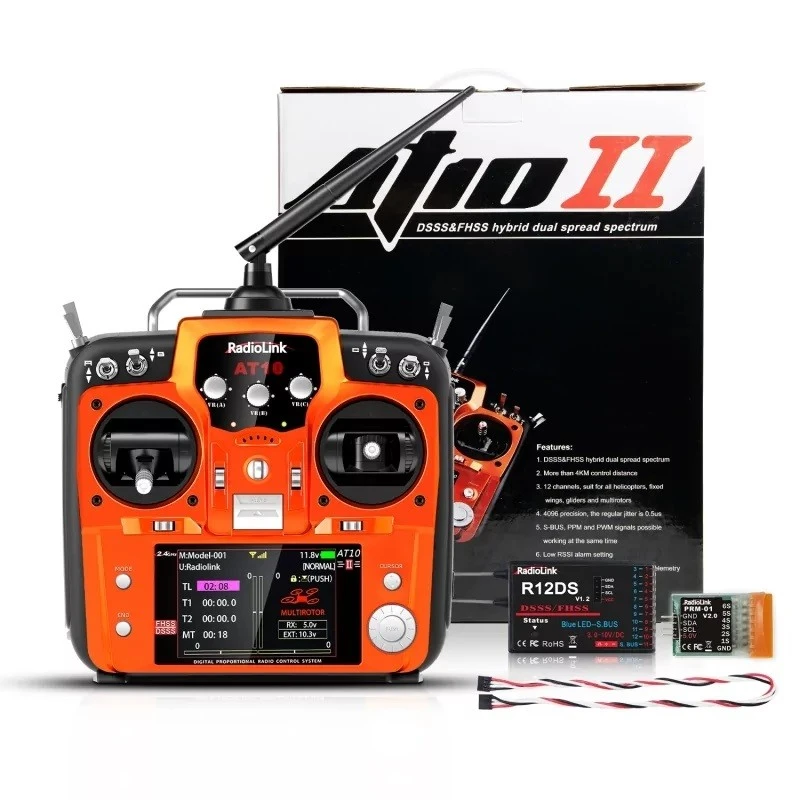

12-way AT10II 2.4Ghz Radio + R12DS + PRM-01 RadioLink

RadioLink Radio AT10II 2.4Ghz 12 channels + R12DS receiver + PRM-01 telemetry

DSSS and FHSS direct sequence spectrum spread

DSSS* and FHSS* spread spectrum, 16-channel frequency hopping and QPSK* modulation ensure excellent interference-free performance, a constant and stable transmission signal.

Range possible up to 4 km

The high gain (7 dBi*) of the transmitting antenna and the low signal noise with a bandwidth of 5.0 MHz guarantee a range of up to 4 km.
The R12DS receiver with its diversity antenna manages a simultaneous SBUS and PWM output signal. This signal allows perfect reception even in hilly flight sites.
This is the reason why the AT10II transmitter is used for professional drones in agricultural and industrial fields.

3ms response

The AT10 radio uses new high-speed processors that offer better stability and accuracy.
The twelve channels respond simultaneously in less than 3 ms.

Adapts to all types of models

A remote control that is easy to use for a beginner and sophisticated enough for an expert.
It is possible to use this transmitter for different types of models: rotary wing (helicopter), fixed wing (plane), glider, multicopter, car, boat and robot.
Several features are offered for each type of model. 5 specific flight programs are offered for each model.
Controls are fully customizable (8 switches, 3 knobs and 2 sliders) and can be assigned to your specific needs.
The layout of the controls is automatically adapted to the chosen flight mode.
Aircraft configurations: Delta wing (elevons), classic wing (1-2 ailerons with 0-2 flaps), V-shaped or classic tail
Configurations for helicopters: Rotor head H1, H2, H3, H4, HR3, HE3, HN3 and H4X

High-quality components and electronic design that ensure maximum precision

The brand new IC 4096 circuit minimizes parasitic micro oscillations of servos (jitter).
The optimal PCB design and high-quality potentiometers allow for high output signal stability. The maximum PWM is 1.84 US with an average of only 0.5 US which is essential to ensure high precision flights.

Built-in real-time telemetry

Telemetry data from the model is sent in real time to the AT10II's display.
The large 16-color screen of 12.7x 8.90 cm allows easy reading.
When paired with the PRM-01 telemetry module, the model's propulsion battery voltage is displayed. With the OSD PRM-03 information telemetry module and a flight controller (PIXHAWK, Mini Pix, TURBO PiX and APM) model voltage, speed, rate of climb, acceleration, GPS position (longitude and latitude), altitude, RSSI, flight mode and distance are also displayed.

SBUS, PPM and PWM compatibility

SBUS, PPM and PWM can operate simultaneously and transparently for the user.
The R12DS receiver that comes with the receiver works with an SBUS and PWM signal.
AT10II is compatible with RadioLink R6DSM, R6DS, R9DS and R12DSM receivers.
These compatible receivers cover a wide range of models and meet many applications.

Programmable mixes

Easy-to-understand graphical view for setting parameters.
Channels 5 to 12 can be freely programmed *
An airbrake function is pre-programmed as well as many other mixes such as (Wing/Depth, Flaps/ailerons....)

* The number of channels may vary depending on the type of model

Ready for the simulator

AT10II includes an interface compatible with the majority of aircraft simulators*.
In simulator mode, the transmit module can be turned off to save battery.
The simulator port (located on the back of the AT10II) can also be used for wireless schooling mode.

* Simulation software sold separately. Please refer to the software specifications to check compatibility with RadioLink's AT10II transmitter

USB port updates

Updating the AT10II with new firmware is easy. The transmitter can simply be connected to a computer via a USB cable.

Ergonomic design

The AT10II remote controller has been designed for experts and beginners.
Switches of different lengths allow easy recognition and operation.
Long control sticks improve movement accuracy.
It is possible to switch from Mode 2 to Mode 1 by a simple setting on the radio (refer to the user manual for more details).
For drone users, a spring for throttle handle is included. It allows a return to the neutral of this command.
The intuitive design and very pleasant grip make the AT10II an excellent transmitter for leisure, sports, competition or 3D flight.

A power supply circuit that offers more autonomy

The switching power supply (SMPS) consumes 50% less energy than on similar products. The consumption of the AT10II is only 105 mA maximum.
The transmitter can work for twelve hours with a 1800 mAh LiPo battery.
The universal JST connector allows the AT10II to easily adapt to different battery configurations: 8 AA batteries, LiPo battery (2S-4S), 18650 Lithium, Li-ion, NiMH or NiCad battery.
If you want to use a lithium battery to power AT10II, please make sure that the battery is equipped with a JST connector and that the size of this battery is 115 x 32 x 30.5 mm. The operating voltage is between 7.4 and 15.0 V.

Reverse polarity protection

RadioLink's voltage protection technology protects the transmitter and receiver from reverse polarity during connection.

Multiple alarms

Audible alarms and configurable messages signal potential problems such as low RSSI value, low model, receiver or transmitter voltage.

Characteristics:

12 channels (from 5 to 12 customizable)
Registration for up to 15 models
CISO and Telemetry
Operating voltage from 7.4 to 15.0v, Consumption <105mA
Adjusting screen brightness and contrast
Multiple and configurable alarms
Fail Safe adjustment in case of signal loss
Reversal of the direction of servos=
Adjustment of the limit of the servos
Adjusting the rotation range of servos
Test function of servos for problem detection
Adjustment of sticks (tension and length)
Double and triple rates and exhibition adjustment
Digital Trims
Sub-trim tuning
Compatible receivers: R12DS (Std pack), R12DSM, R9DS, R6DS and R6DSM

Delivered in mode 2, the radio can be modified in mode 1 by yourself:

Features of the R12DS receiver:

Size: 50*32*14.5mm
Weight: 14 g
Channel quantity: 11 channels for PWM signal output, 12 channels for SBUS and PWM signal output.
Signals: PWM/SBUS&PWM
Operating voltage: 3.6-12 V
Operating current: 38-45 mA at 5 V
Section accuracy: 4096, 0.25us per section
Control distance: 4,000 meters in the air, 2,000 meters on the ground (maximum range tested in open areas and without interference and may vary depending on local regulations).
Compatible with PRM-01 extended telemetry module
Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

Product Content

1x AT10II mode 2
1x R12DS Receiver
1x PRM-01
1x Spring Accessories
1x Manual
