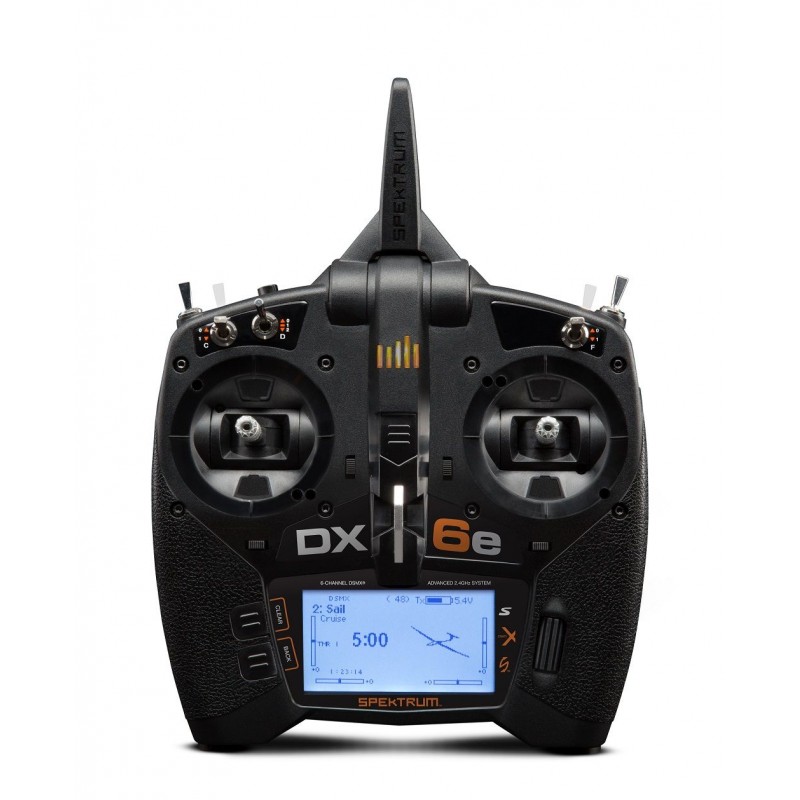

Radio Spektrum DX6e Mode 1 and 2

SPMR6650EU Spektrum DX6e 6 lanes.

Having a reduced budget doesn't mean you can't have the best. The Spektrum DX6e delivers the incredible response of DSMX technology, the simplicity of AirWare programming software and many other features you won't find with budget-equivalent transmitters.

The great novelty You now have the option of switch between Mode 1, Mode 2 and a new position (center) with a return to neutral for both rounds (drone)!

Programmable functions for aircraft, helicopter, glider and drone

The DX6e is equipped with the programming needed to fly almost all models. And because it's based on the same software as most Spektrum transmitters, you can share model settings with other Spektrum users.

Plane

7 wing types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 2 Aileron 1 flap, Elevon A, Elevon B
6 tail types: Normal, V-Tail A, V-tail B, Dual Elevator, Dual Rudder, Dual Rudder / Elevator
Flap system with depth compensation
3 flight modes
Double fares and Expo
7-point gas curve
3 pre-defined mixes: rudder-to-wing / Elevon, rudder-wing, rudder lift
4 programmable mixtures - Normal or curved

Helicopter

Gyro
7-point gas curve
7-point step curve
7-point tail curve
2 types of cyclic tray: Normal, 3-Servo 120
3 flight modes - throttle maintenance
Double debates and Expo
Cyclic synchronization mixes with accelerator and cyclic tray
4 programmable mixtures - Normal or curved

Glider

4 types of wings: single fin, double fin, 2 fins 1 flap, 2 fins 2 flaps
3 types of tail: Normal, V-Tail A, V-Tail B
Bodywork system
Preset Camber
5 flight modes
Double fares and Expo
4 pre-defined mixes: rudder-to-rudder fin, flap-to-pan, lift-to-pan, lift-to-lift
4 programmable mixes - Normal or curved

Drone

Multirotor channel entries - ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
Checklists and multirotor warnings
Simplified configuration of multirotor flight mode and switch allocation

250 memorable models

The DX6e has exceptional storage capacity, you will rarely ever need to juggle your transmitter and SD card. The model memory menu is even easier to use. Only locations with a saved model setting will appear on the screen. You don't have to navigate through empty locations or move patterns if you delete one.

Integrated telemetry

Built-in telemetry gives you real-time information like your model's battery level, signal quality, engine temperature, speed, altitude, and more.

*Requires telemetry sensors and a compatible telemetry receiver.

Wireless eco-commerce

Wireless schooling allows instructors to wirelessly connect to another DSM2/DSMX transmitter. Once the DX6e is paired with another transmitter, ModelMatch technology allows for a reconnection to the DX6e without having to redo the pairing process.

New sleeve system with fashion switch

The patented design of the DX6e allows you to change the spring configuration of your sleeves simply by moving the switch on the back of the transmitter. You no longer need tools. Simply select the configuration that matches the mode you're using and that's it.

There are four configurations:

• Linear gas notched or not for modes 2 and 4 (Airplane, Helicopter and glider)
• Gas with return to neutral for modes 2 and 4 (Quadcopter)
• Gas with return to neutral for modes 1 and 3 (Quadcopter)
• Linear gas notched or not for modes 1 and 3 (Airplane, Helicopter and glider)

The switch is protected by a lid to avoid accidentally changing the in-flight configuration.

General features

• Programming aircraft, helicopter, glider and drone
• Memory 250 models
• Integrated telemetry
• Patented sleeve design with spring configuration switch
• Wireless schooling function
• 7 wing configurations and 6 aircraft tail configurations
• 7 cyclical tray configurations
• 4 wing configurations and 3 glider tail configurations
• Flight mode setting for drone
• 7-point gas curve for aircraft and helicopter
• 7-point step and anti-coupling curves for helicopter
• Sharing models with other Spektrum transmitters
• 4 AA batteries included
• Compatible EN328

Technical features:

Frequency: 2.4GHz
Model memory: 250
Type of models: Aircraft, Helicopter, Glider and Drone
Modes: 1, 2, 3 or 4 (User-selectables)
Piles: 4 AA
Modulation: DSMX, DMS2
Tracks: 6
Receiver: not included
Telemetry: Yes
