On-board ignition RPM GT-Power

Tachometer for engine with series (DLE, MT Gas...) Rcexl ignition system.

Features:

-Uses a PIC16F628a microcontroller
-Small volume
-Does not annex battery
-Plug futaba corded Y included.
-Indicates up to 30 000 rpm
-Speed = speed shown on the x 10 monitor

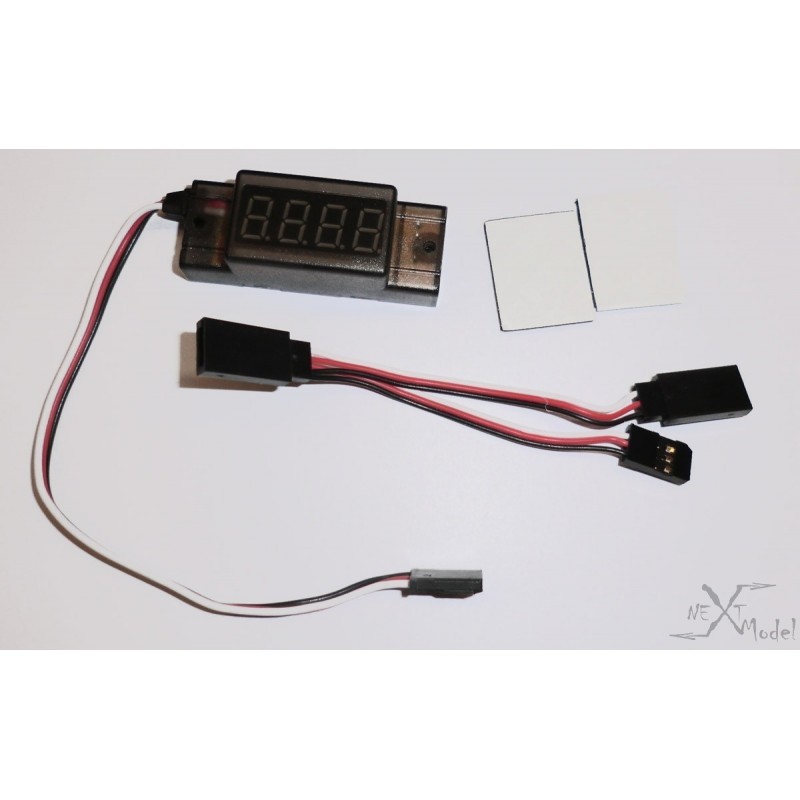

Content:

-Tachometer
-Cable Y
-Manuel

Specifications:

-Supply voltage: 12V 3
-Consumption: 25 - 60mA
-Weight: 15 gr
-Size: 54x20x15mm

Installation :

-Use the cable Y to connect the sensor Hall-effect with the lighting in series
-Connect the tachometer to another socket cord Y
-The display should be directly from the connection
