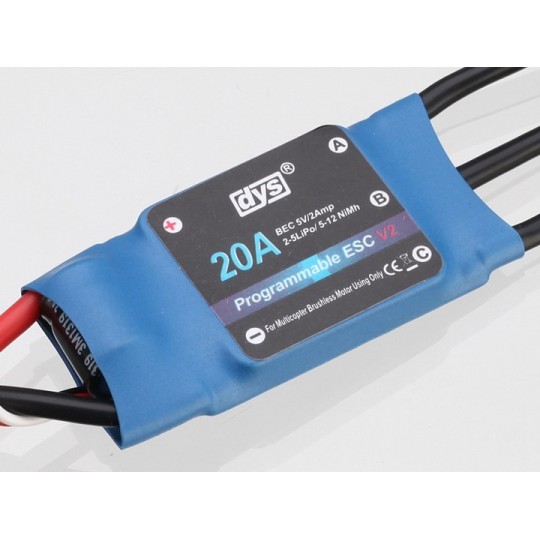

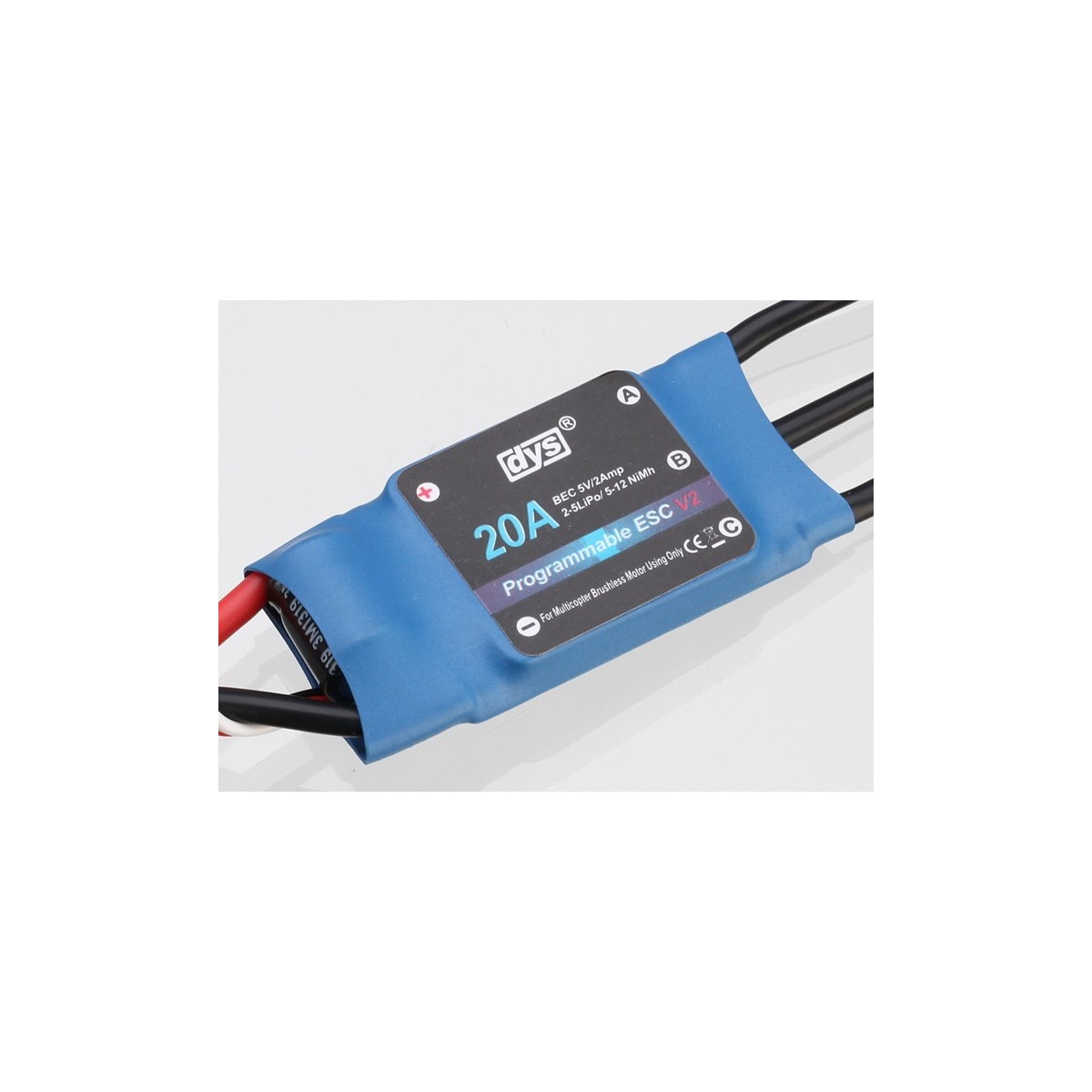

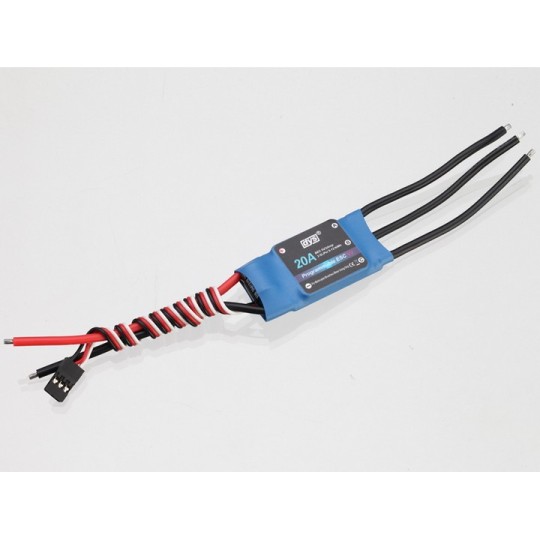

Variateur brushless multicopters 20A DYS - MB30020

Contrôleur DYS multicopters 20 Amp ESC sans BEC avec firmware SimonK

• Compact 30 Ampères Brushless
• BEC : 5V / 2A
• 20 Ampères en continu, 25 ampères en pointe (10 sec)

Dimensions : 46mm x 26mm x 11mm
Poids : 22g

Caractéristiques :

- Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
- The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
- Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
- Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.
