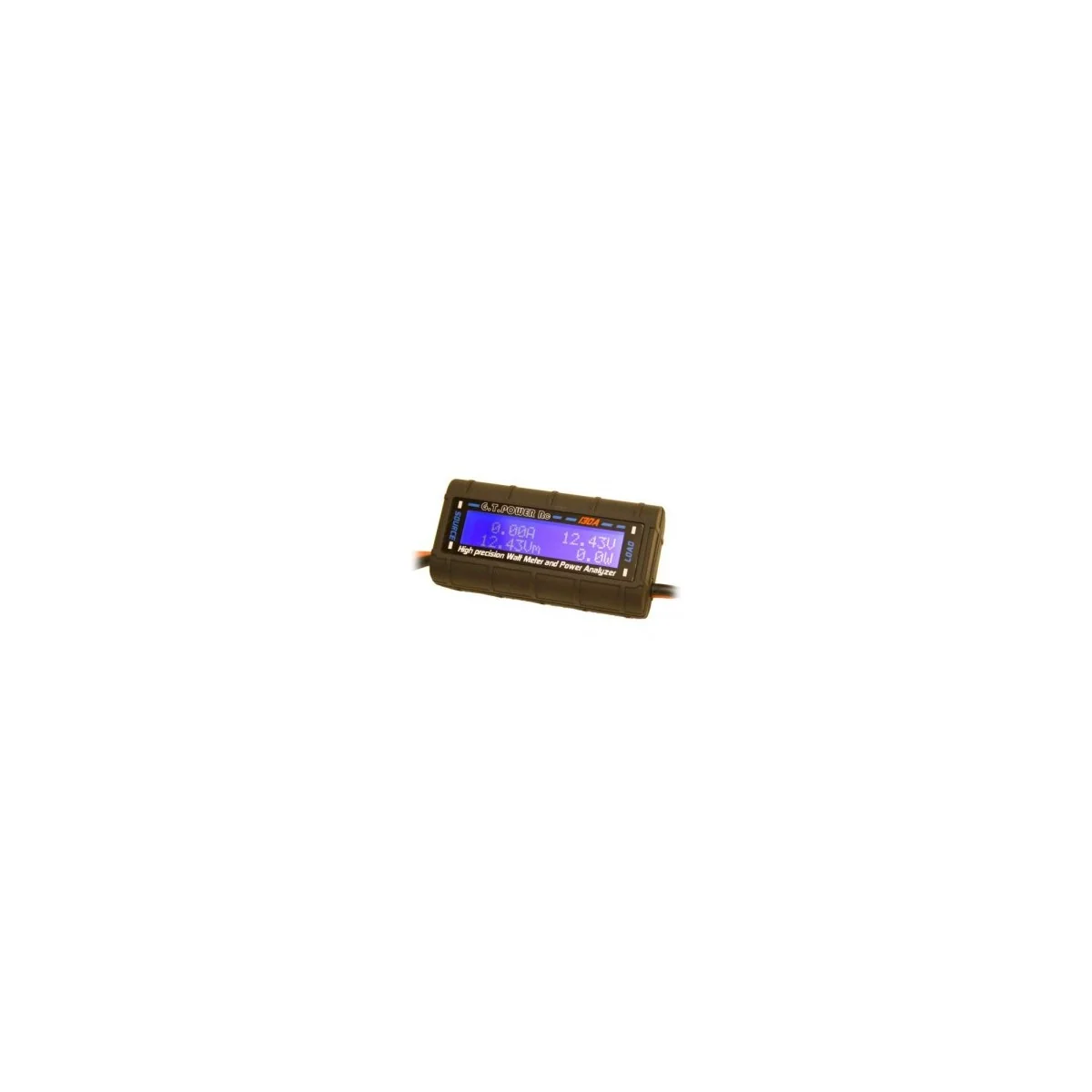

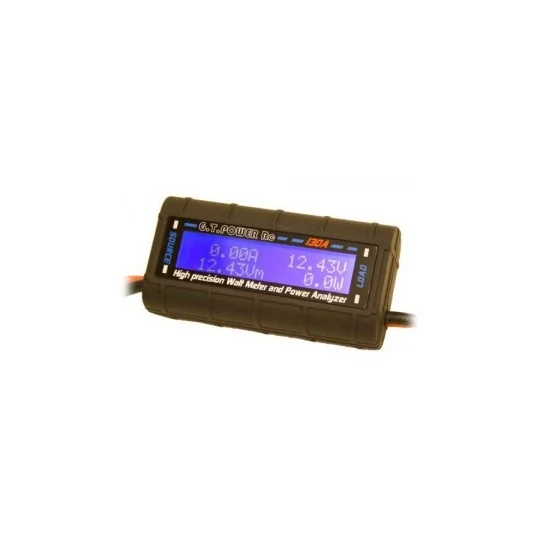

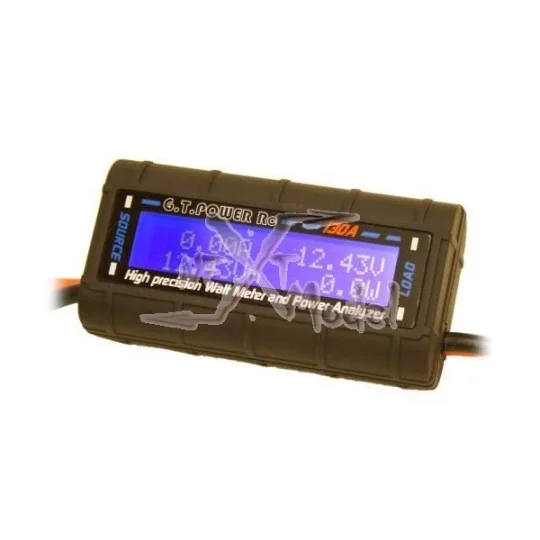

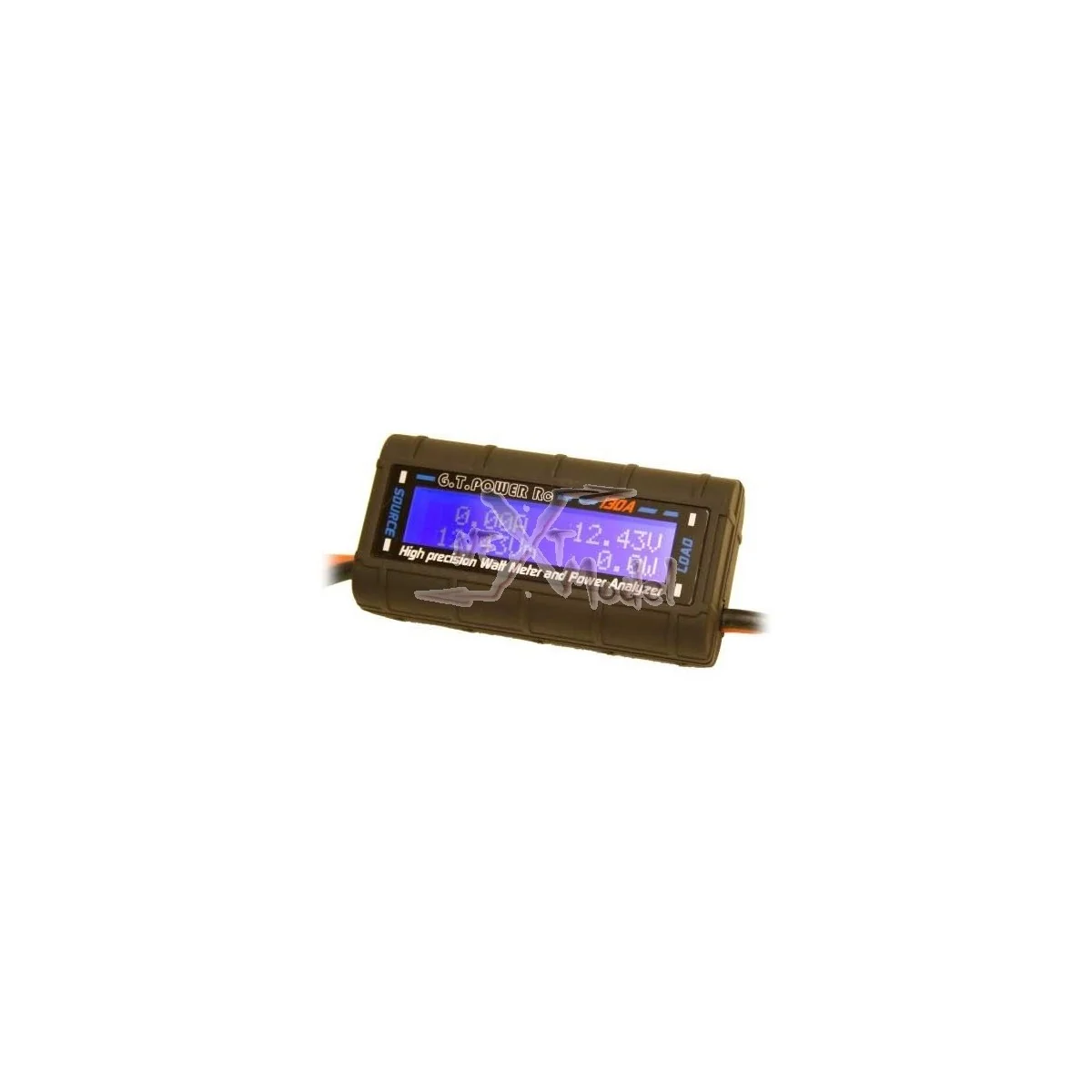

Voltmeter and power GT Power Analyzer

The GT Power Voltmeter and Power Analyzer is a practically indispensable tool for electric helicopters or airplanes! The blue LCD screen constantly displays the current values for voltage (V), current (A), and power (W). The module also calculates and displays the charge (mAh) in both directions (charging and discharging).

This module can be used on all battery-powered systems.
An electric bike, for example, connected to the battery output, informs you about the state of charge of your battery, consumption, maximum power requested...
The connectors need to be ordered separately.

8 measurement parameters

• Volts - In real time
• Volts - Minimum
• Amps - Real-time
• Amps - In the lead
• Watts - Real-time
• Watts - Peak
• Amps/Hour
• Watts/Hour

Functions:

• To prevent potential damage to the battery, speed controller or brushless controller, motor and connectors.
• Check that the supply voltage is sufficient.
• Check the battery capacity and its good condition.
• Confirm that the battery charging system is functioning correctly.
• Measure the current consumption of the receiver and servos to determine if a UBEC (voltage regulator) is needed.

Features :

• Operating voltage: 4.8 to 60V or drops to 0V with an auxiliary battery.
• 0 to 130A, resolution 0.01A
• 0 to 60V, 0.01V resolution
• 0 to 6.554W, 0.1W resolution
• 0-65 Ah, resolution 0.001 Ah
• 0-6554 Wh, resolution 0.1 Wh.
• 16 x 2, backlit LCD screen
• Dimensions: 85 x 42 x 25 mm
• Weight: 82g
