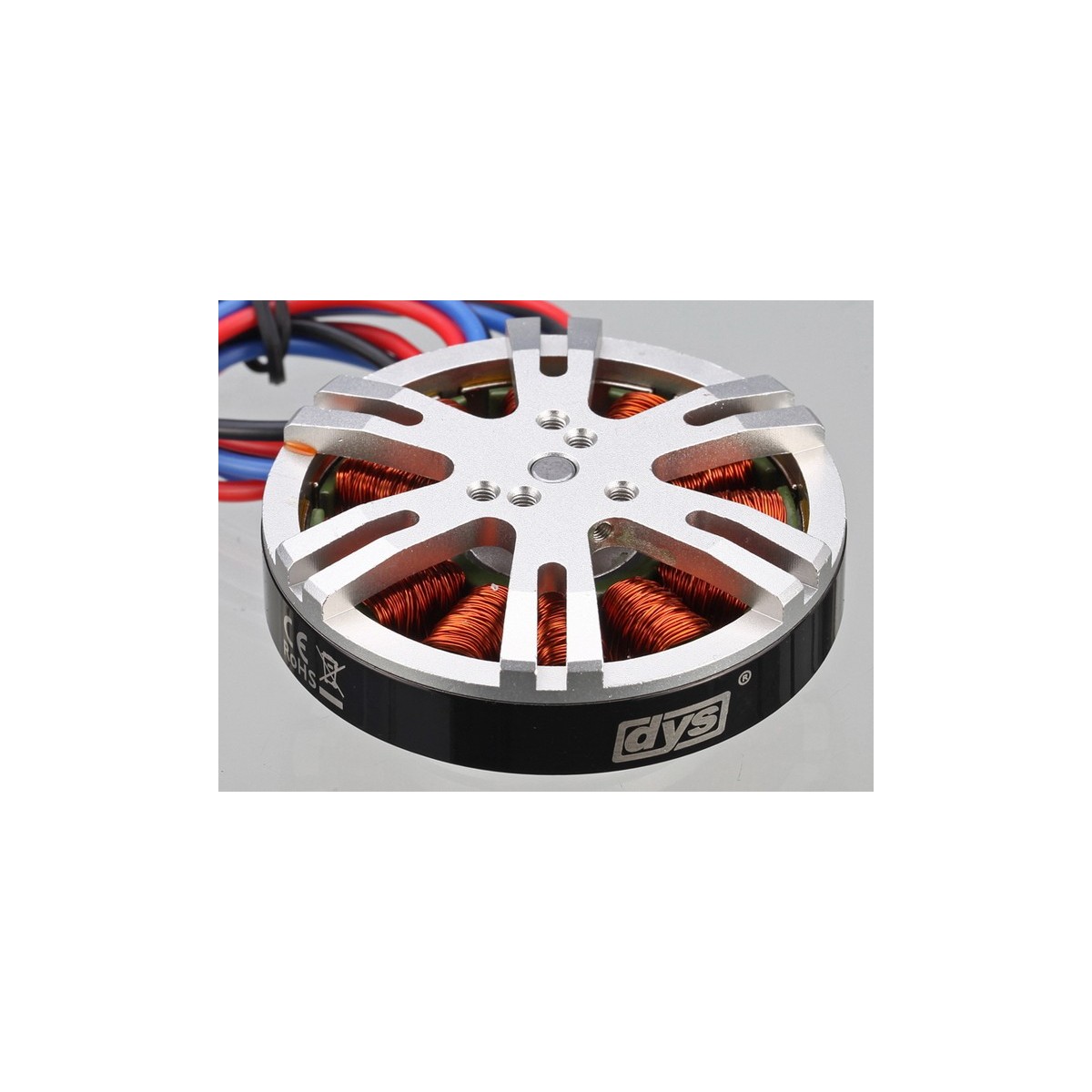

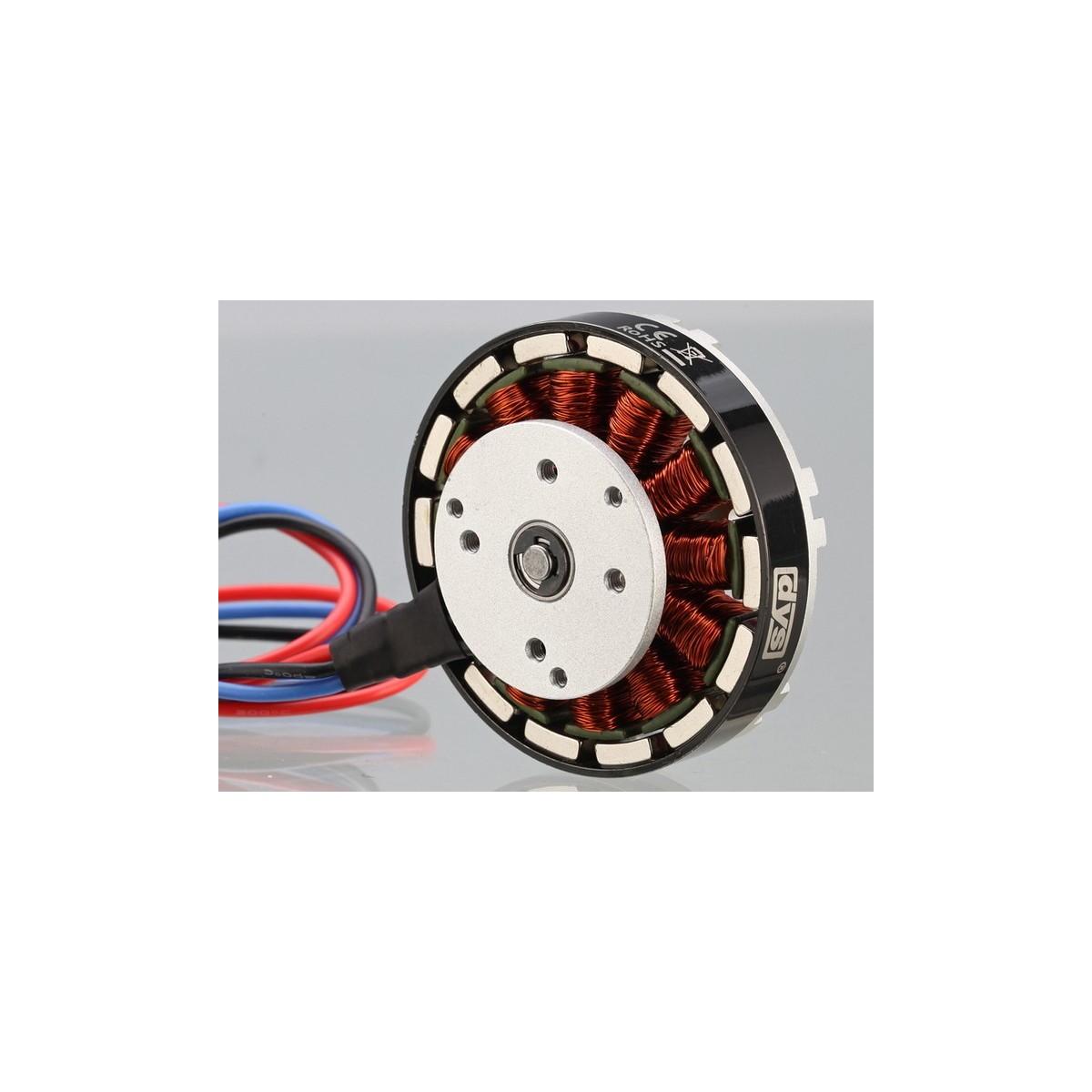

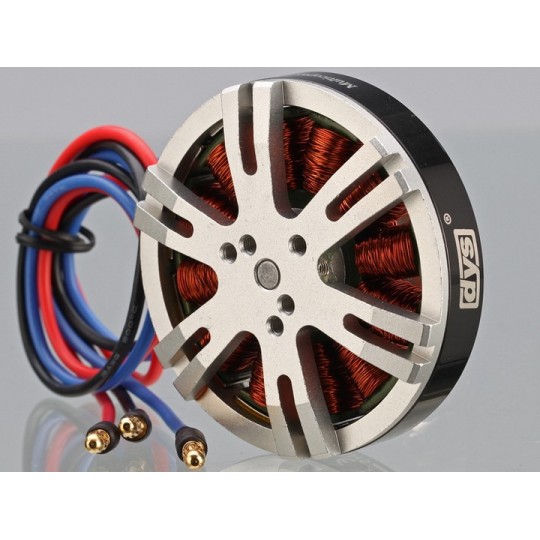

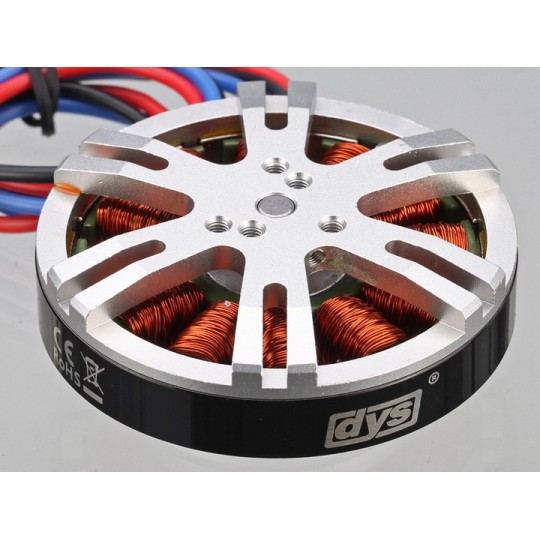

BE5208-25-Brushless motor multicopters BE5208-25 DYS

Brushless motor multicopters BE5208-25 DYS

Name: Brushless motor multicopters BE5208-25 DYS
Brand: DYS
SKU: BE5208-25
Price: 52.9 EUR
Availability: InStock

€52.90

Tax included

Reference: BE5208-25

Brand: DYS

EAN13: 2000000001487

KV: 330
Stator diameter: 52mm
Stator length: 8mm
Shaft diameter: 5.0mm

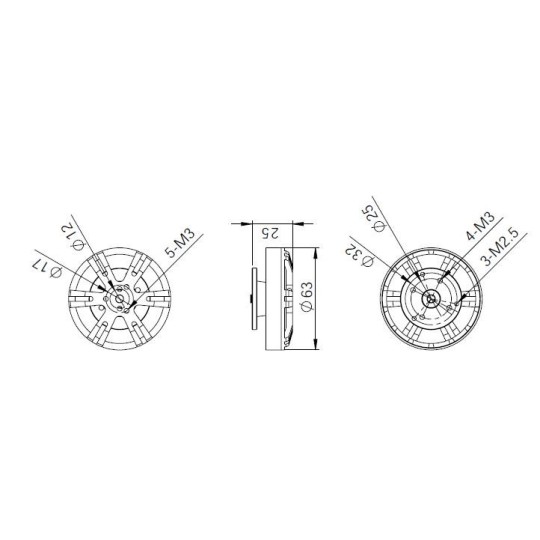

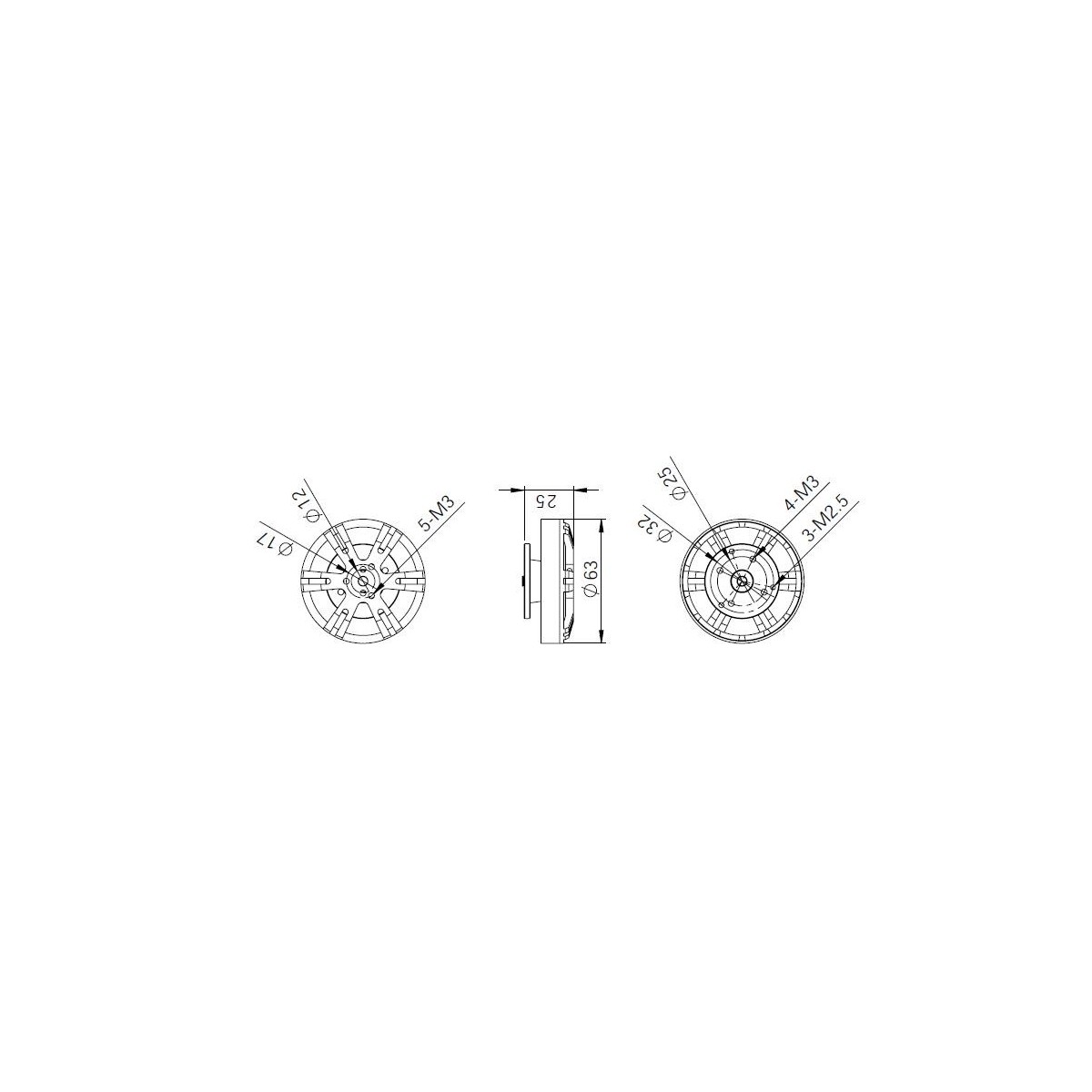

Motor dimensions (Dia.*Length): Φ63x30mm

Order now and receive it...

between 6 Apr and 9 Apr with Colissimo Points de retrait €7.90

between 6 Apr and 9 Apr with Colissimo Domicile €8.90

between 6 Apr and 9 Apr with DPD Livraison en relais Pickup €7.90

between 6 Apr and 9 Apr with DPD Livraison à domicile Predict €8.90

between today and 10 Apr with Magasin Next Model RC / Univers Train Free!

Hurry up! Only 5 item(s) left in Stock!

Description
Product Details

Features :

KV: 330
Stator diameter: 52mm
Stator length: 8mm
Shaft diameter: 5.0mm
Motor dimensions (Dia.*Length): Φ63x30mm
Weight: 200g
Number of cells (LiPo): 3-6S
Maximum continuous current: 28.2A
Maximum continuous power: 626W
Internal resistance: 0.106Ω

tem No.		NO LOAD		ON LOAD			LOAD TYPE
BE5208-25(330KV)	VOLTAGE	CURRENT	SPEED	CURRENT	Sweater	Power	Battery/prop
	V	HAS	rpm	HAS	g	W	Battery/prop
	11.1	0.6	3680	5	680	55.5	LiPox3/16x8(APC)
	11.1	0.6	3680	10	1200	111.0	LiPo x3/18 x 5.5 (APC)
	14.8	0.6	4900	8.4	1190	124.3	LiPox4/16x8(APC)
	14.8	0.6	4900	15.6	1890	230.9	LiPox4/18x5.5(APC)
	18.5	0.7	6130	12.4	1800	229.4	LiPox5/16x8(APC)
	18.5	0.7	6130	22	2650	407.0	LiPo x 5/18 x 5.5 (APC)
	22.2	0.7	7360	17.4	2500	386.3	LiPox6/16x8(APC)
	22.2	0.7	7360	28.2	3300	626.0	LiPo x6/18 x 5.5 (APC)

DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
