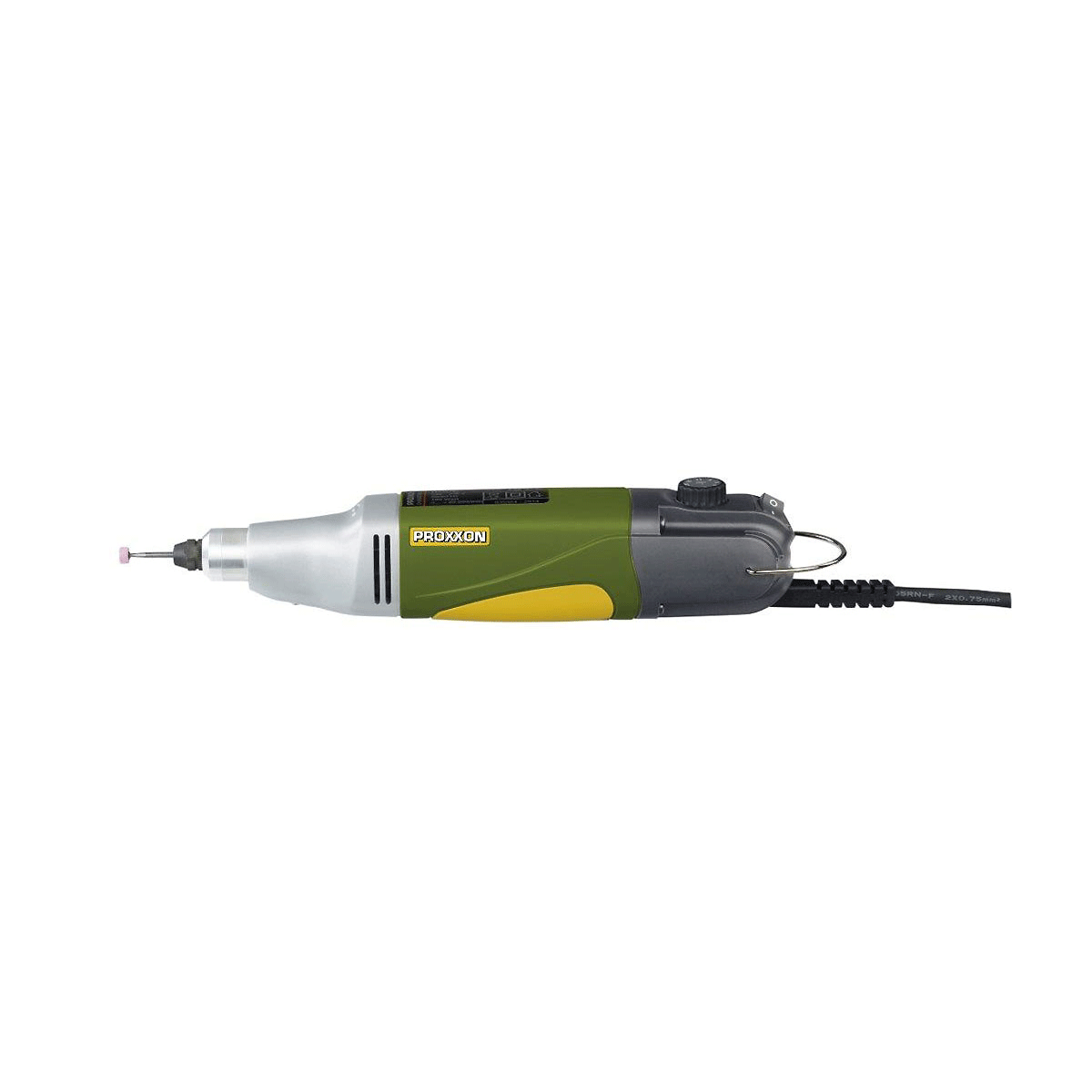

IBS/E - Industrial 100W Proxxon

To drill, mill, grind, sand, clean, cut, burn and sign. For precision mechanics, modeling, jewellery, optics, applied arts and electronics.
High concentricity accuracy (maximum 3/100 mm). No grazing, no tool beat.

1. A rectified steel axis mounted on a double bearing. Change of tool with tree lock button.
2. Narrow aluminum cast-iron transmission head allows precise fitting of bearings for better stability in extreme load.
3. Silent 100W engine ensuring good transmission of power with full-wave electronic regulation, from 5,000 to 22,000 rpm.
4. Uncompromising safety: Class 2 protection insulation.

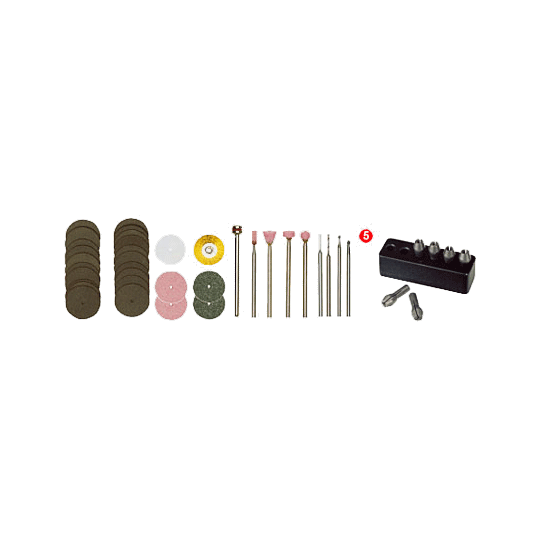

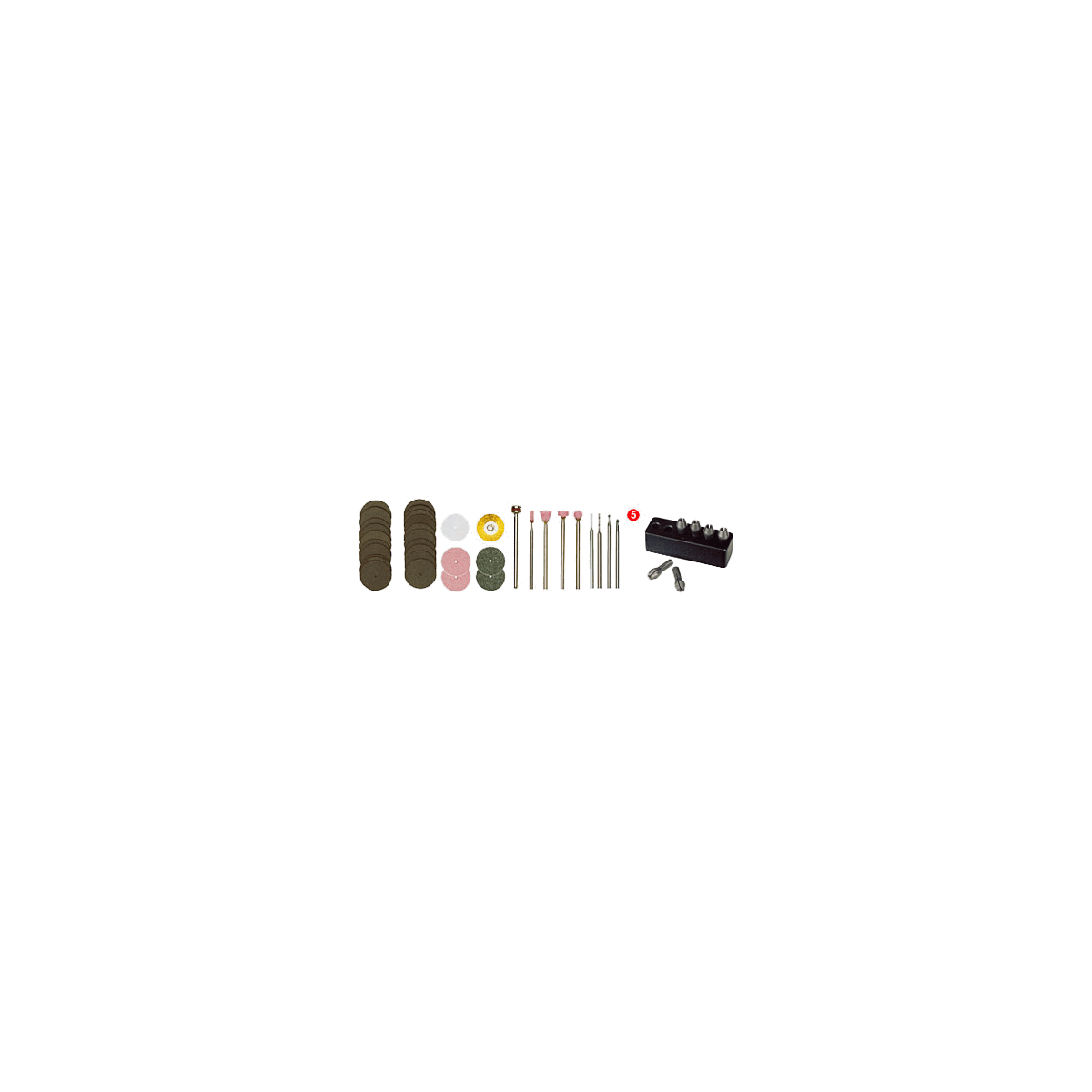

5. With 34 industrial-grade tools. All stems - 2.35 mm. Comes with 6 1 to 3.2 mm triple-slot steel clamps.

A special DC motor bestseller balanced. Gradual electronic speed adjustment (full-wave electronics). A rectified steel axis mounted on ball bearing. With 6 triple-slit steel clamps (1 - 1.5 - 2 - 2.4 - 3 - 3.2 mm and clamping nut). Aluminium cast iron training head with 20 mm MICROMOT collar for use on drilling supports and horizontal supports. A fiberglass-reinforced POLYAMIDE central case. Delivered in a plastic briefcase with 34 tools.

For table or established employment, we recommend our tools with network connection. They are lighter, more manageable (shorter) and are not limited in their use.

The core of our MICROMOT precision tools for 230 V: Relatively expensive special DC engine with permanent magnet technology.

Technical data:

230 V. 5,000 - 22,000 rpm. 100 W.
Length 230 mm.
Weight 500g.
Protection insulation Class 2.

Comes with its quality PP briefcase. Well designed, solid and high in capacity. For storage of the device after use. The sticker on the side identifies the content.

Note:
MicroMOT steel clamps are soaked, giving them a high and constant elasticity . They retain the necessary precision even after long use (incomparable to unstipped clamps with 4 slots or brass or aluminum clamps. The triple slot which is much more difficult to achieve than a quadruple slot, allows for a better seating. This is particularly important for the centering of small diameter stems.

Accessories:

MICROMOT steel clamp set
Three slits and soaked. Sizes: 1 - 1.5 - 2 - 2.4 - 3 and 3.2. With clamping nut and storage base (see below).

NO. 28,940
