THERMOCUT 12/E Hot Wire Cutter

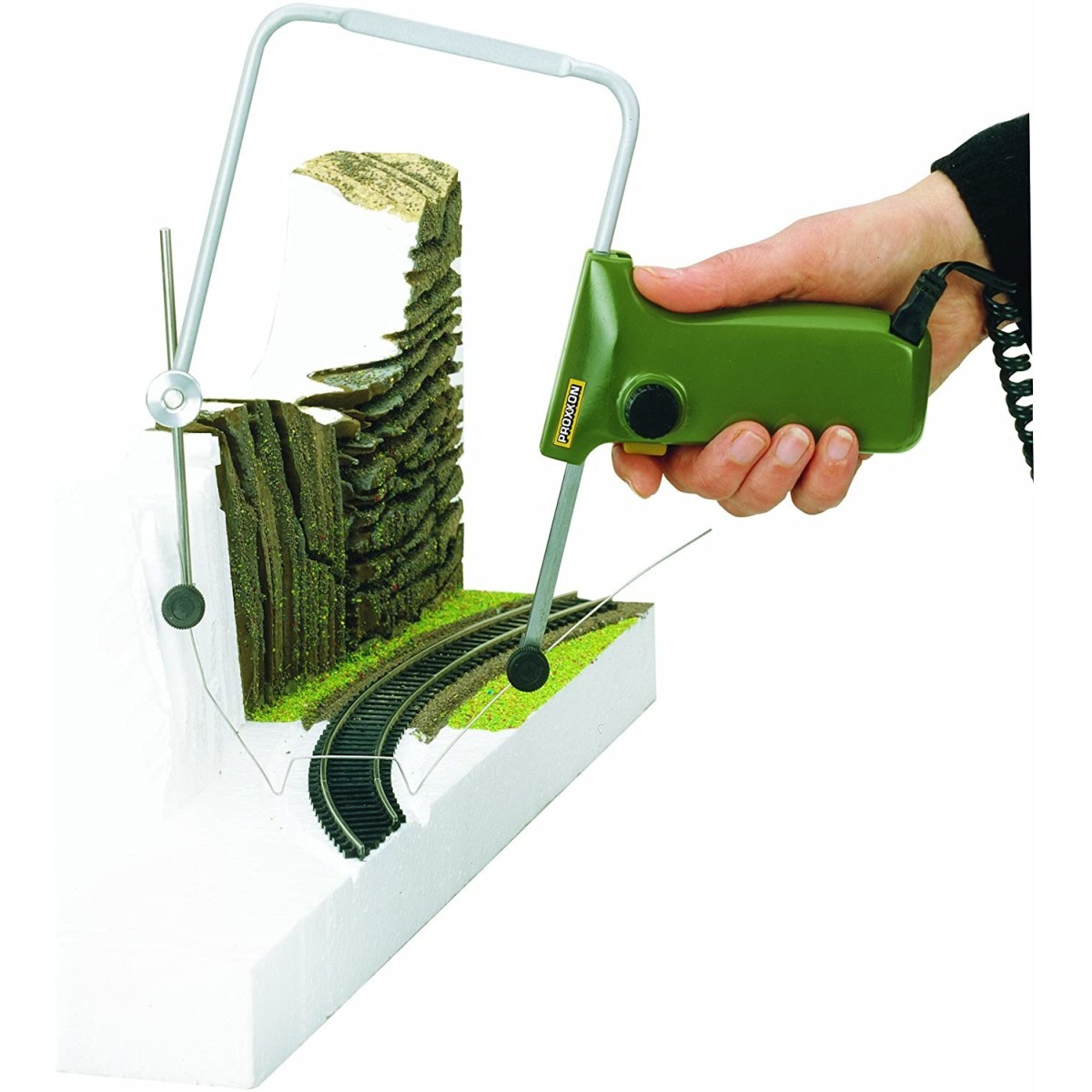

Also suitable for free-cutting polystyrene sheets for model railway dioramas. For creating all desired profiles.

Other areas of application include architectural model making, prototype construction, for designers, decorators, or for high-precision work on building insulation. And of course, also for traditional model making.

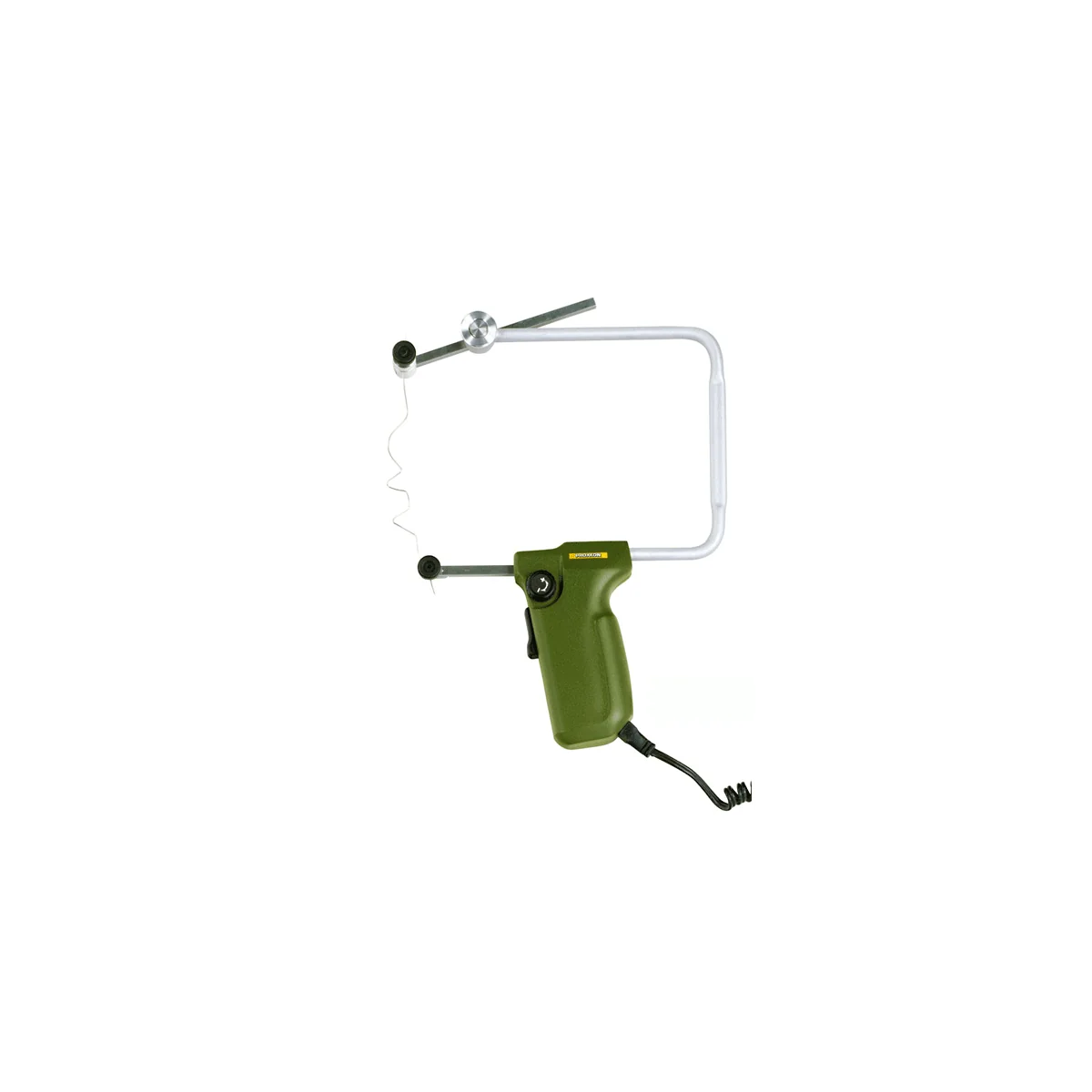

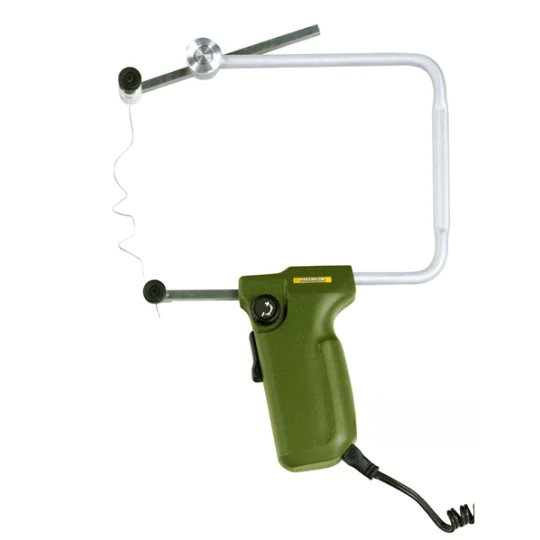

Sturdy bracket with pivoting fixing element at the top and telescopic wire fixing at the bottom. Maximum total offset 200 mm. Maximum free height of 150 mm.

Cutting wire temperature with progressive adjustment: depending on the density and thickness of the material, it is possible to obtain an optimal cut with a little practice.
Most of the time for a measured temperature and pressure.
Heating time: 1 second.

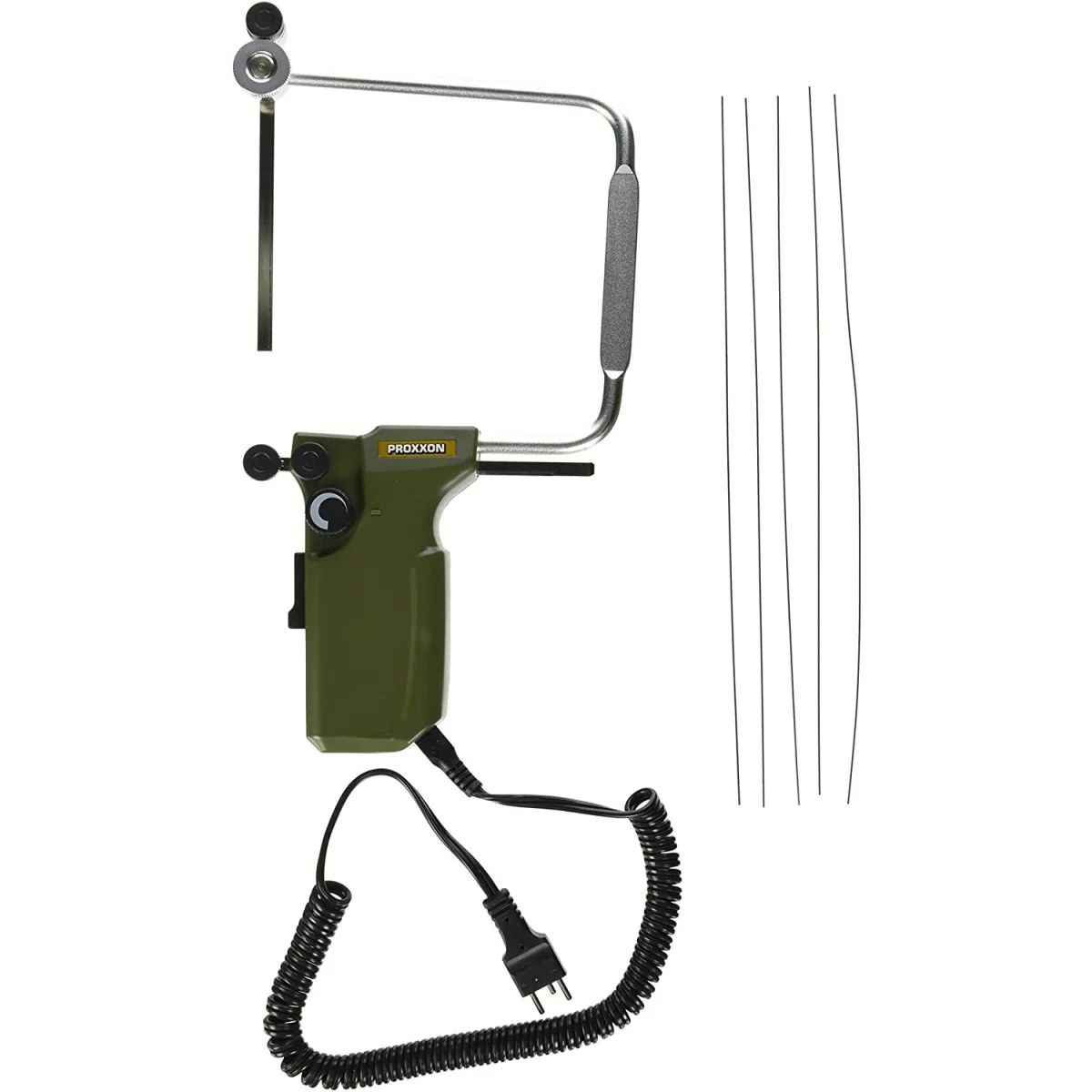

Supplied with 5 flexible cutting wires 285 x 0.85 mm.

Technical specifications:
12V / 50W
Adjustable cutting wire temperature from approx. 150 to 350 °C.
We recommend using MICROMOT transformers with a power rating of 2A or higher.

Noticed :
Polystyrene is an inexpensive, very eco-friendly material compared to others, and can be easily cut with a hot wire. It is available in almost all DIY stores in standard-sized sheets of 50 x 100 cm and thicknesses ranging from 2 to 16 mm.

Replacement cutting wire - NO 28082
For the THERMOCUT 12/E. Slightly deformable and therefore ideal for model making.
10 copies
