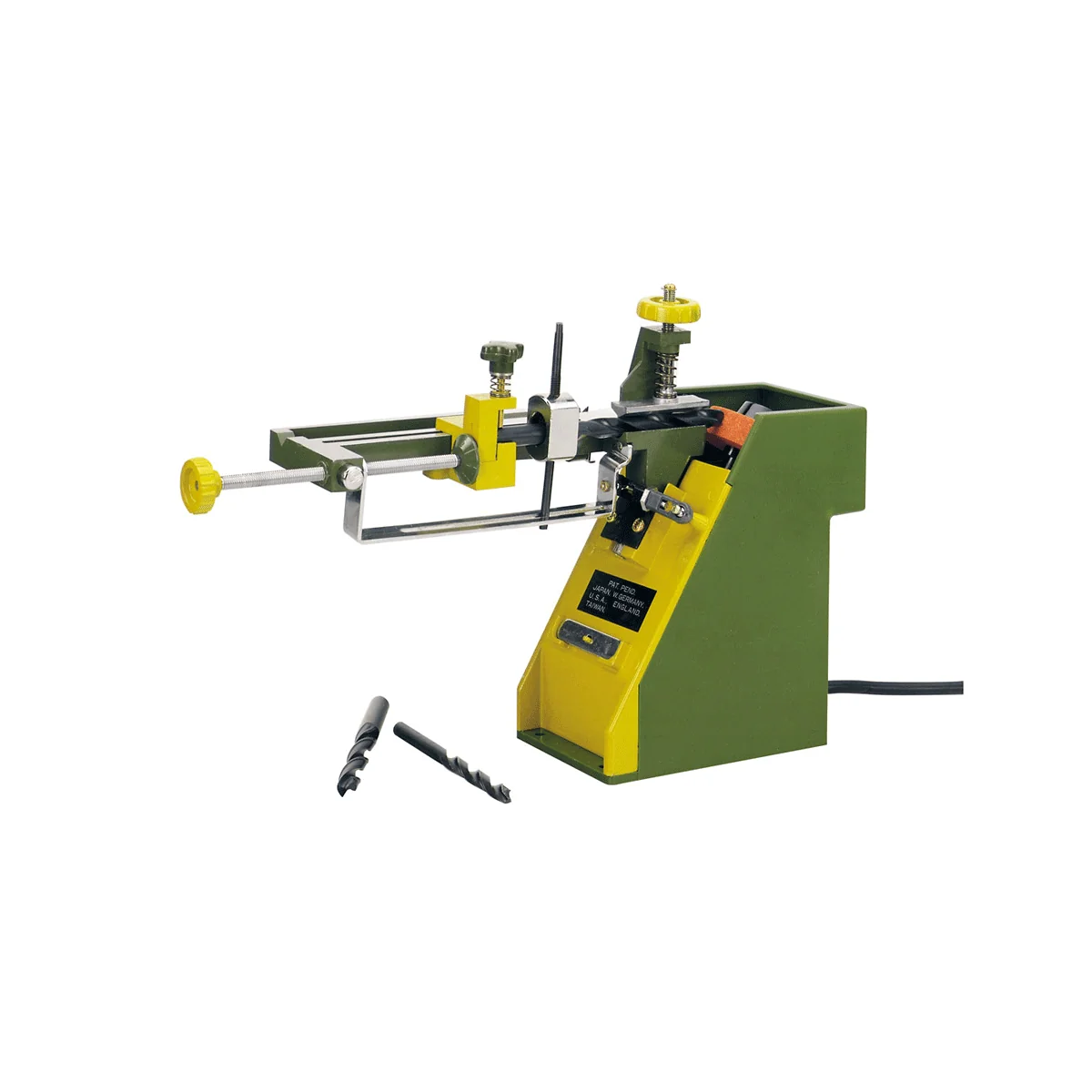

BSG 220 - Proxxon Drill Bit Sharpener

Proxxon BSG 220 Drill Bit Sharpener - 21200

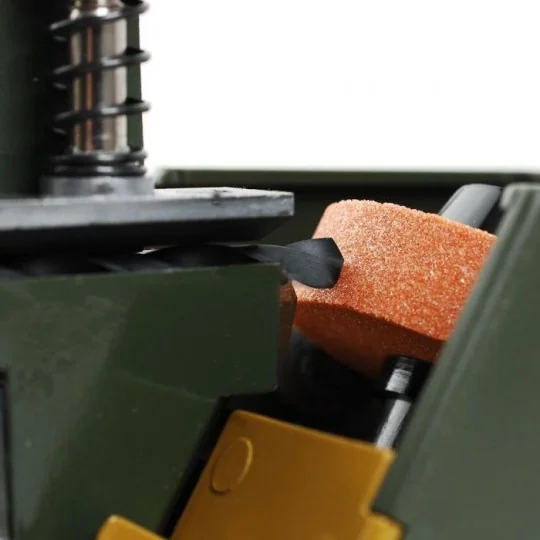

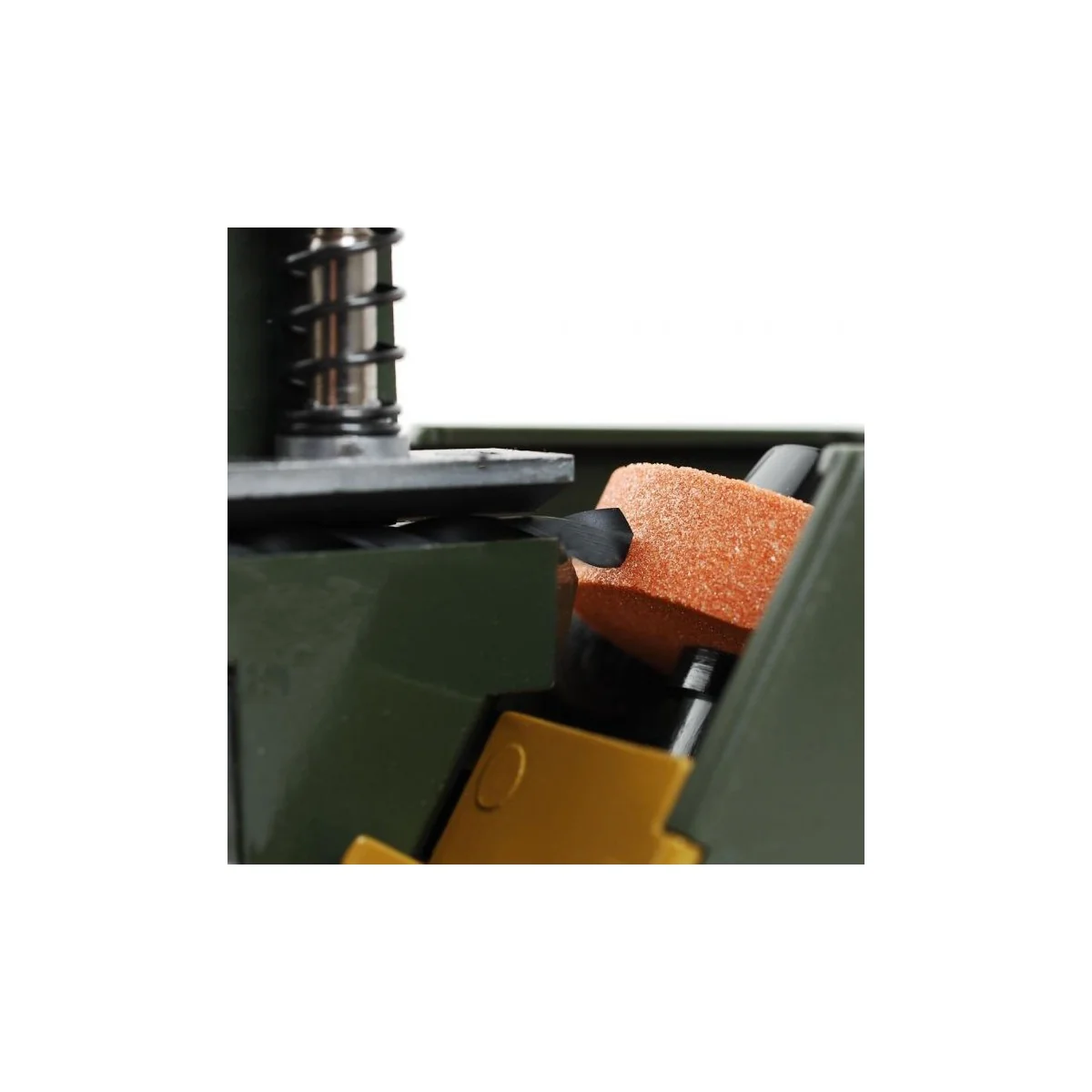

Sharpening is done by pivoting the arm in the prism.

During this movement, the arm also pivots on its own axis. This creates the necessary clearance. A dial allows for quick adjustment. The integrated cleaning device cleans the grinding wheel with a simple press of a button.

Technical data:

230 V. 85 W.
Corundum disc (50 x 13 mm).
Base-mounted enclosure for bench mounting.
Weight 1.7 kg.
Comes with a spare disc and user manual.

Noticed :

The BSG 220 drill bit sharpener is relatively easy to use. It also allows inexperienced users to sharpen drill bits according to the DIN standard. However, it is absolutely essential to carefully read the provided instruction manual first. A trial run (without having read the manual) rarely yields satisfactory sharpening results.

Clean the grinding wheel.

Accessories :

- Adapter for sharpening twist drill bits up to Ø 3 mm - REF: 21232

Ø 1.5 to 3 mm for BSG 220 sharpener.
1 piece of each in diameter 1.5 - 1.6 - 2 - 2.4 - 2.5 and 3 mm.
Neatly packaged in a wooden box with a sliding lid.

- Replacement grinding wheels for BSG 220 (50 x 13 mm) - REF: 28308

Superior corundum.
(Hardness N). Bore 12.7 mm.

- Silicon carbide - REF: 28310

Bore 12.7 mm.
Soft material for very hard materials.
