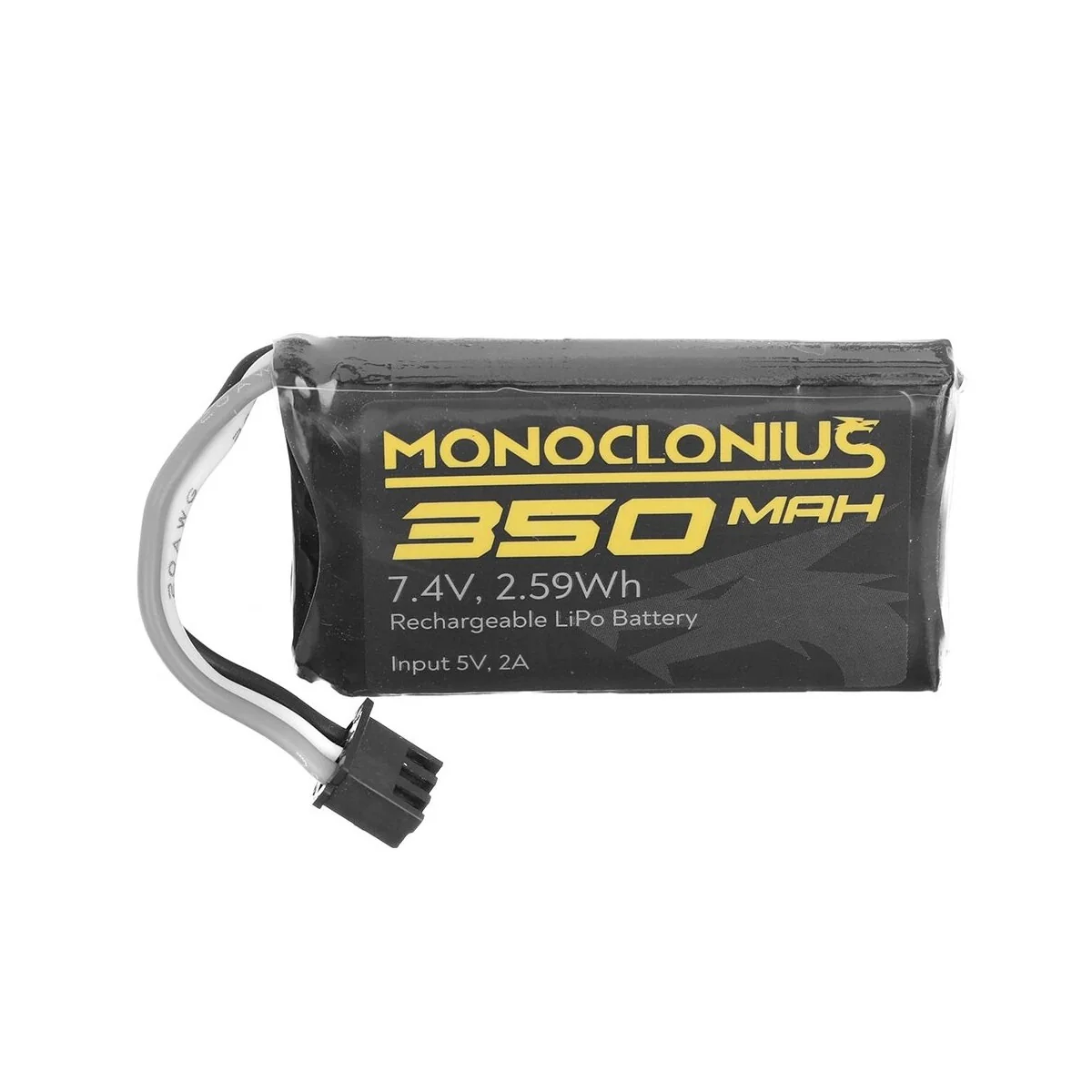

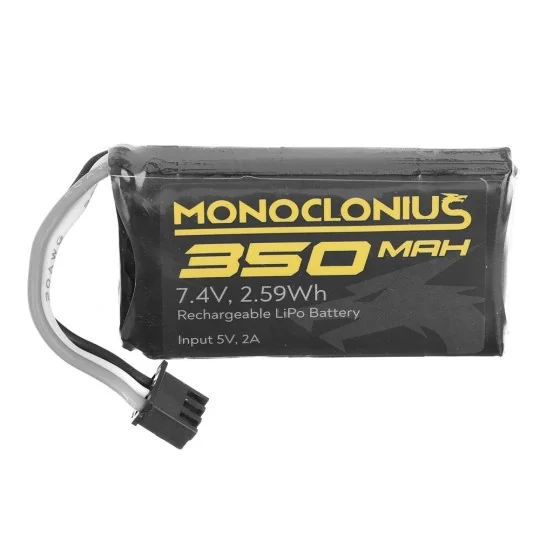

7.4V 350mAh Li-Ion battery for UCX24 UDI RC

The UDI RC UCX24-E004A is a replacement LiPo battery designed for UDI RC radio-controlled cars of the UCX24 platform, including the 1/24 scale UCX2405 and UCX2405 PRO . It provides a nominal voltage of 7.4V thanks to its 2S configuration and has a capacity of 350mAh, which is a stated energy of 2.59Wh.

This compact battery is equipped with an XH2.54-3P connector. It uses the same format as compatible models and is a suitable solution for replacing an original battery or having an additional battery to extend driving sessions.

In an electric RC car, the battery powers the speed controller, receiver, and motor. A 2S LiPo battery consists of two lithium-polymer cells connected in series; therefore, it must be used with the wiring and charging system designed for the specific model.

To preserve the battery's performance and safety, remove it from the vehicle before charging, allow it to cool after use, and follow the charging instructions specific to LiPo batteries. Do not short-circuit the terminals, do not expose the battery to high heat, water, or fire, and do not use a damaged or swollen battery.

Technical specifications:

• Brand: UDI RC
• Reference: UCX24-E004A
• Type: LiPo battery
• Configuration: 2S
• Nominal voltage: 7.4 V
• Capacity: 350 mAh
• Energy: 2.59 Wh
• Connector: XH2.54-3P
• Dimensions: 51 x 30 x 7.5 mm
• Net weight: 22.7 g
• Known compatibility: UDI RC UCX2405 and UCX2405 PRO 1/24
• Contents: 1 UCX24-E004A LiPo battery
