Set of propulsion DogFighter ULTRA Multiplex - 332657
€148.00
Tax included

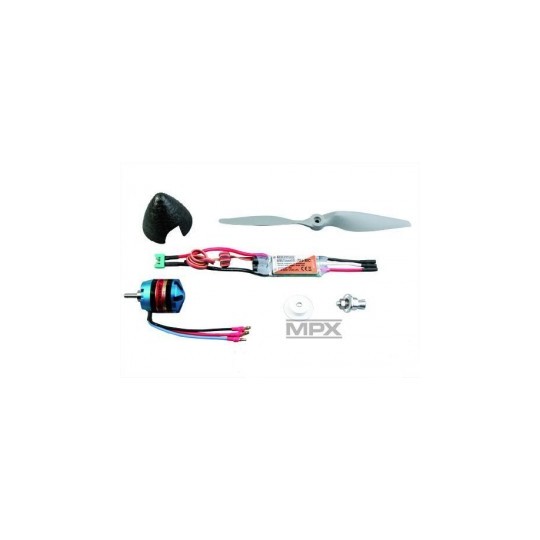

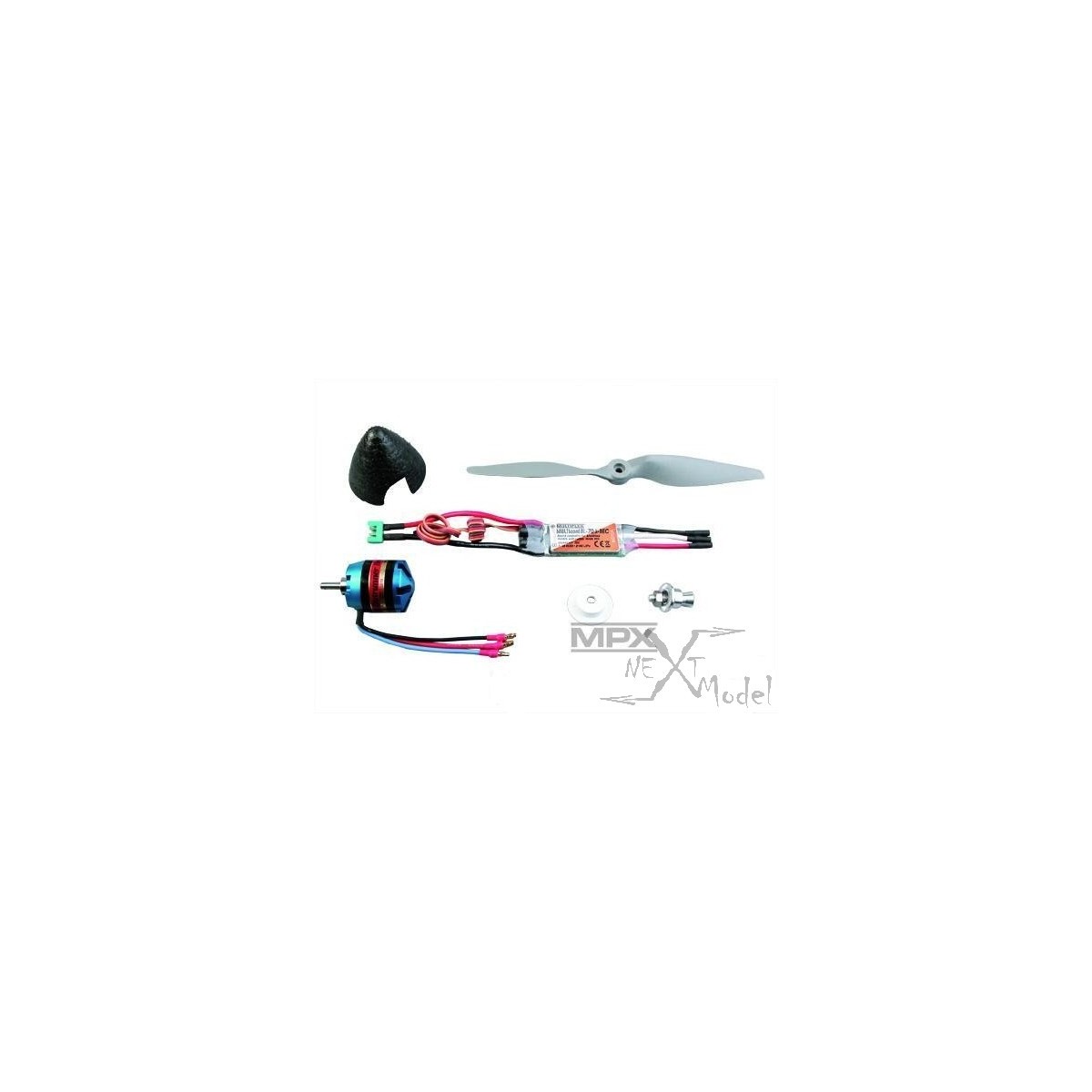

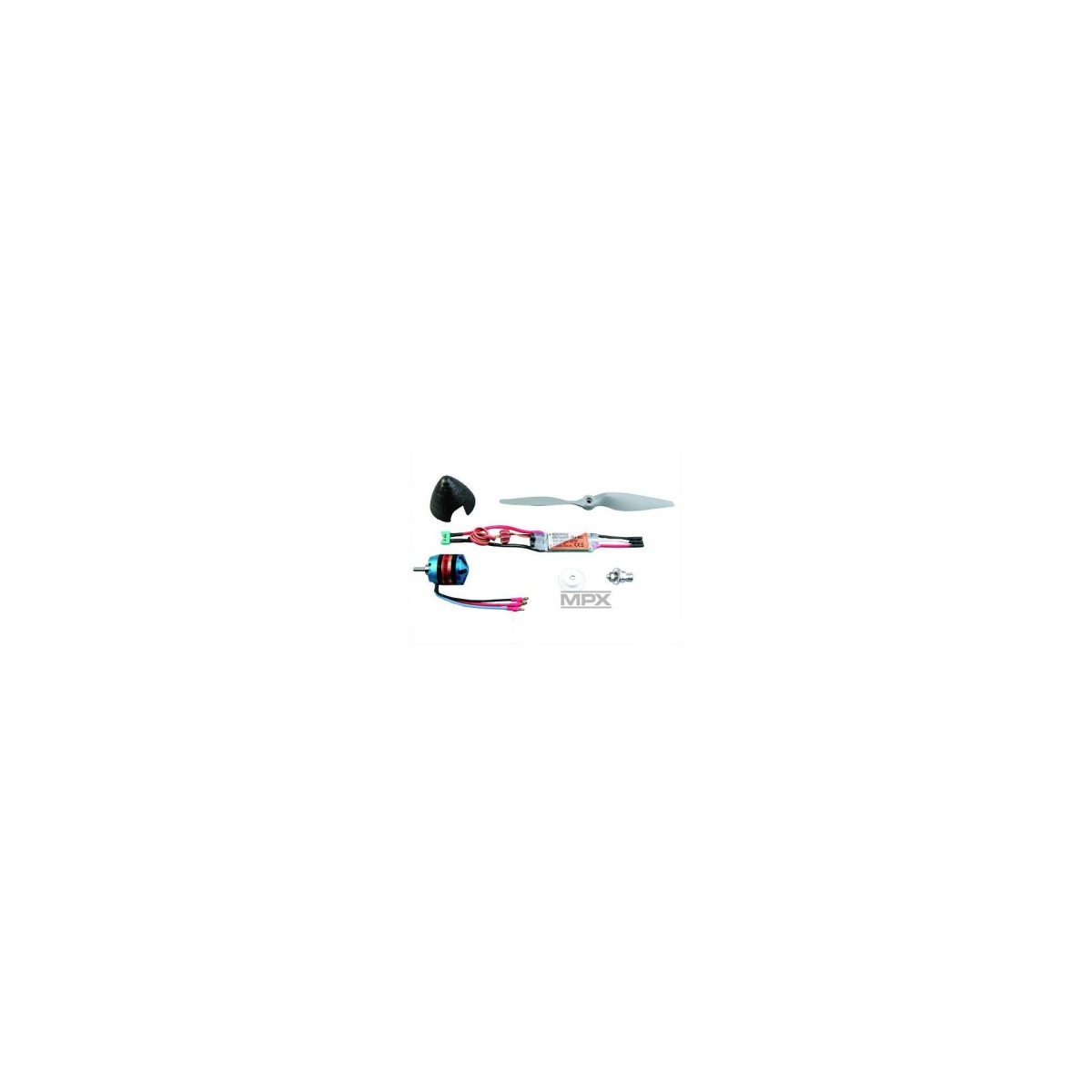

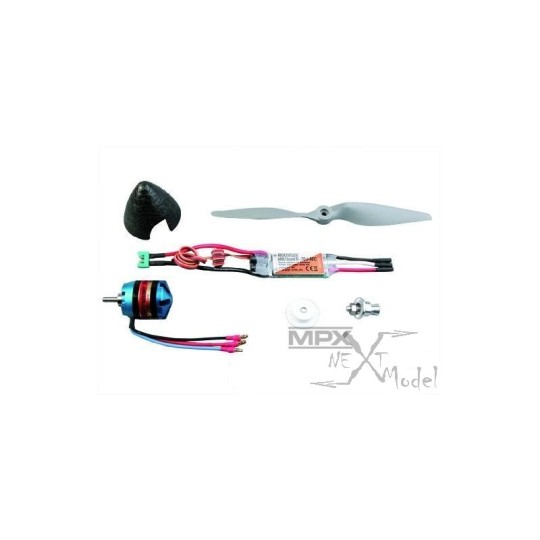

Multiplex propulsion set for the DogFighter ULTRA, including a Himax C3516-1350 brushless motor, a MULTIcont BL-70 S-BEC speed controller, a 9 x 6 propeller and the swashplate with cone.
This kit is designed to complement the model's motorization.
Hurry up! Only 1 item(s) left in Stock!
This engine is designed for those who want to get the most out of their model.
Himax rotating cage motor Himax C3516-1350:
Brushless motor for aerobatic aircraft between 900 and 1300g or trainers from 1600 to 2000g
technical specifications:
Power output: 350 Watts
Speed / V: 1350
NiXX / LiPo power supply: 6 - 9/ 2S - 3S
Consumption: 15 to 40
Max. current: 56A 15 sec.
Diameter: 35mm
Length: 42mm
Weight: 134g
Shaft diameter: 5mm
Example current consumption: with 2S LiPo / 12" x 6" propeller: approx. 49.0 A, with 2S LiPo / 11" x 7" propeller: approx. 43.0 A
MULTIcont BL-70 SBEC drive:
Technical specifications:
Power supply: NiXX / LiPo with BEC 6-25 / 2-6S
Maximum Current: 70A
Bec voltage: 5v
Bec current: 2.5A
frequency: 8 kHz or 16 kHz (variable)
Dimensions approx.: 76 x 28 x 13 mm
Approximate weight: 57 g
Motor/battery connectors: 3.5 mm gold-contact sockets / M6
Recommended battery (not included): 3S 11.1V 2200mAh Li-Po, nominal voltage 11.1V
Package contents:
•Himax C 3516-1350 Brushless Motor
•MULTIcont BL-70 S-BEC drive
•9” x 6” propeller
• Tray and cone
332657
Specific References
- EAN13
- 4041033056578
