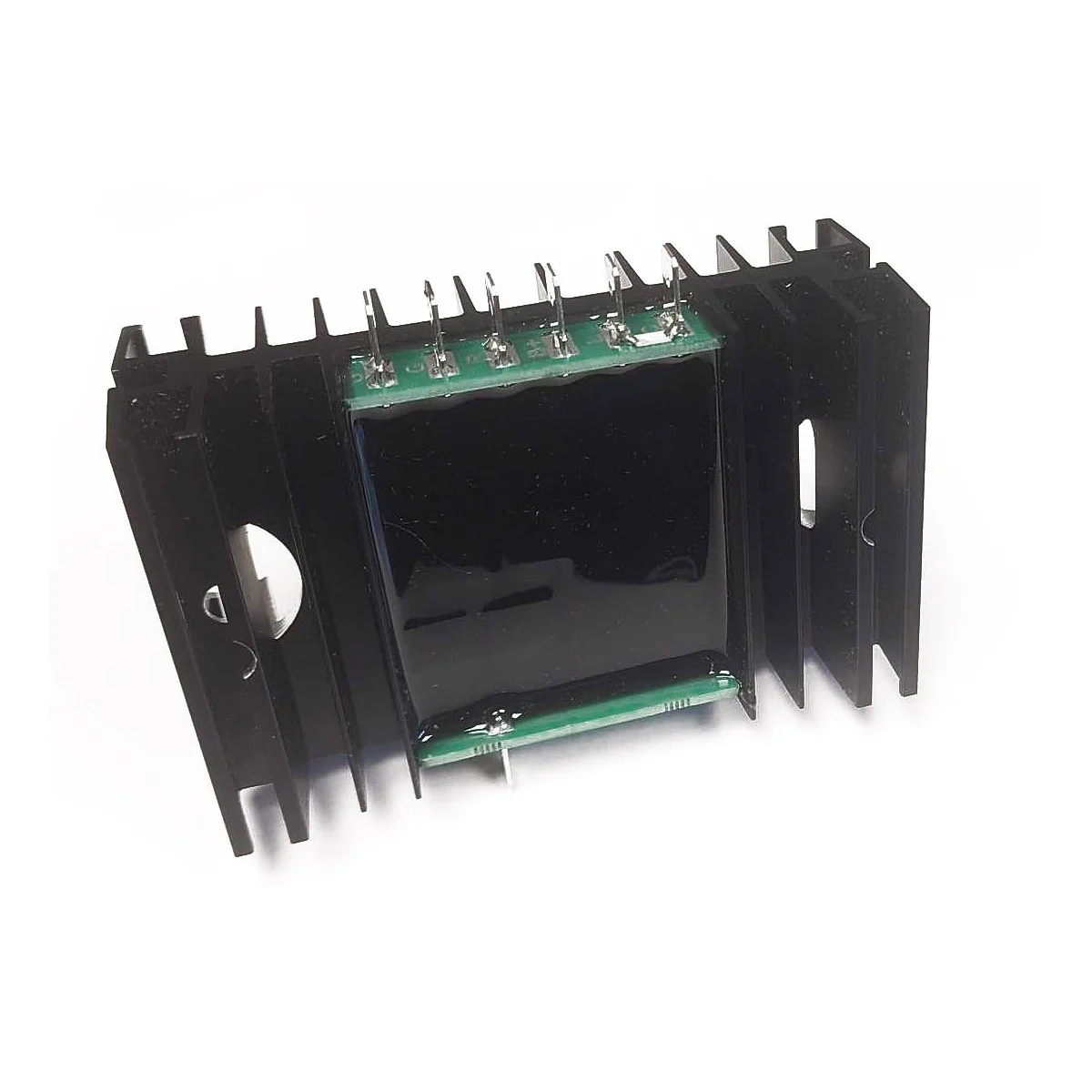

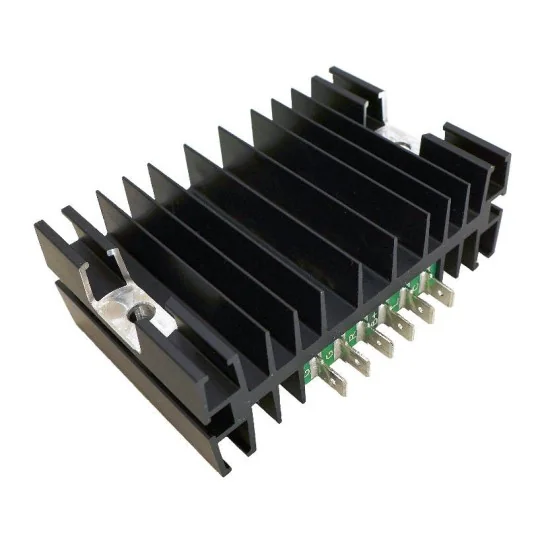

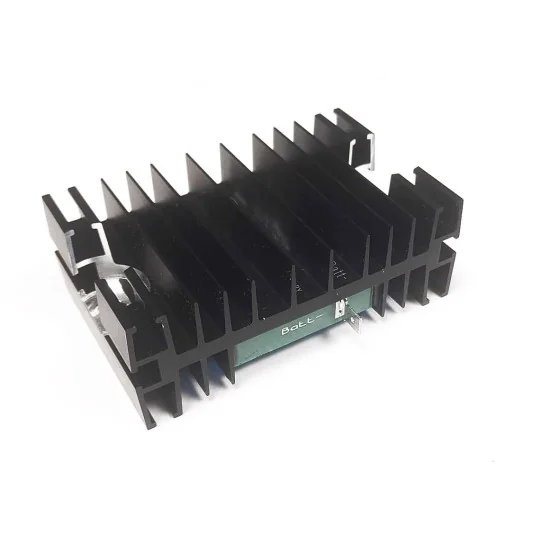

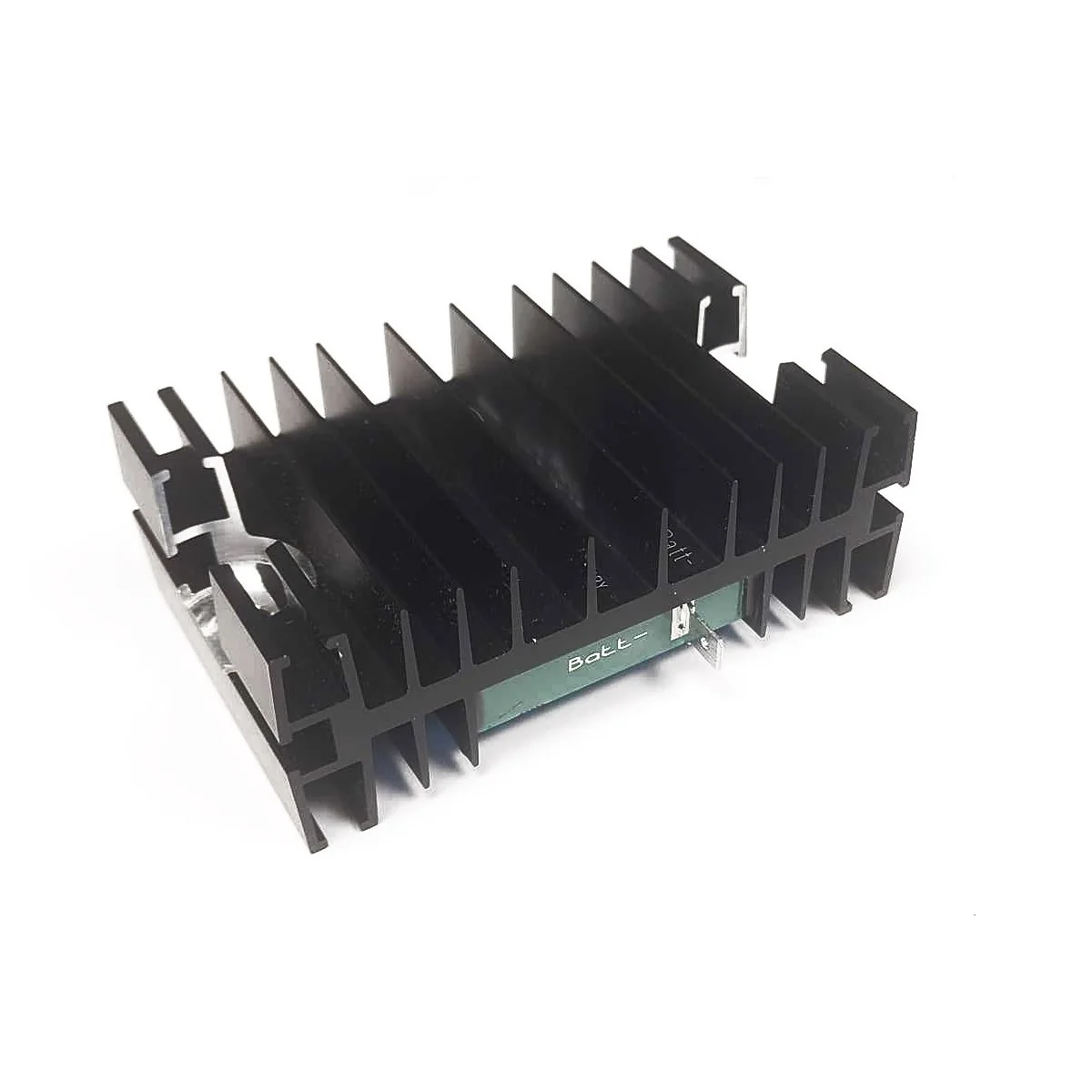

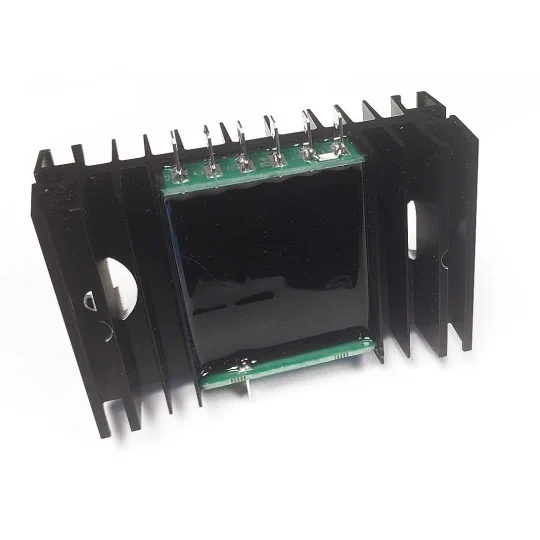

Silent Hektik Lima 14V 30A Regulator for Rotax 912 / 914 ULM
€179.90
Tax included
F4126ECO
Regulator, rectifier, Silent Hektik 4126 High-end with surge protection recommended for batteries LITHIUM LiFePo4.
Perfectly suited for ULM as a replacement in Place and place of the original regulator Ducati Rotax 912 and 914.
Order now and receive it...
between 25 Feb and 2 Mar with Colissimo Points de retrait €7.90
between 25 Feb and 2 Mar with Colissimo Domicile €8.90
between 25 Feb and 2 Mar with Livraison en relais Pickup €7.90
between 25 Feb and 2 Mar with Livraison à domicile Predict sur créneau horaire €8.90
Hurry up! Only
3
item(s) left in Stock!
High-end regulator, rectifier, voltage Silent Hektik 4126 with surge protection recommended for batteries LITHIUM LiFePo4.
Supplied with wiring instructions in French.
Connector and connection order identical to the original DUCATI Energia regulator Rotax 912 / 914 as well as in the Jabiru engines.
The fixing centre distance is also identical.
High-frequency crossover regulator for perfect protection of the battery, BMS and on-board electronics.
The Silent Hektik 4126 regulator can be used for both batteries and lead existing batteries LiFePO4 with CV charging technology, if a >15A charge is allowed.
When the LiMa controller is in operation, it generates up to 35W of heat, which must be dissipated by proper cooling (by airflow) to ensure continuous and safe operation. Under all operating conditions, the temperature of 55 °C must not be exceeded in the long term. The controller should not be installed directly next to an exhaust manifold or in the cockpit, as the cooling possibilities may not be sufficient.
The edge voltage is regulated largely regardless of the size of the battery. The maximum voltage of 14.3 V +/- 0.2 V is only reached at a sufficiently high speed and with an optimally charged battery and should be checked with a good voltmeter after the installation of the controller.
Apart from the shape of the case, it is identical to the 4112 version.
- Intelligent microprocessor technology
- Longitudinal regulation 13.2V to 14.3V
- measurement on battery - not from "C"
- Software CV load characteristic> LiFePO4 & Pb
- Load voltage regulation
- Reduced charge after 90 minutes
- Temperature-compensated load
- Redundant >14.6 V MosFet OVP
- contactless shutdown above >85°C
- Battery test at power-up
- Redundant negative connection to the battery
- Fits the original power strip
- Fits the original attachment
- Made in Germany
F4126ECO
