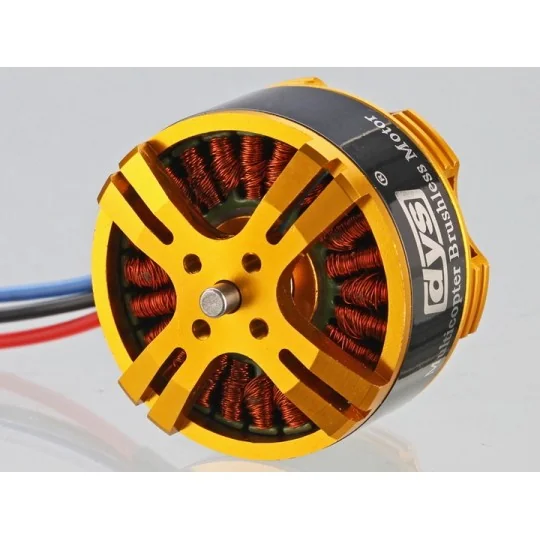

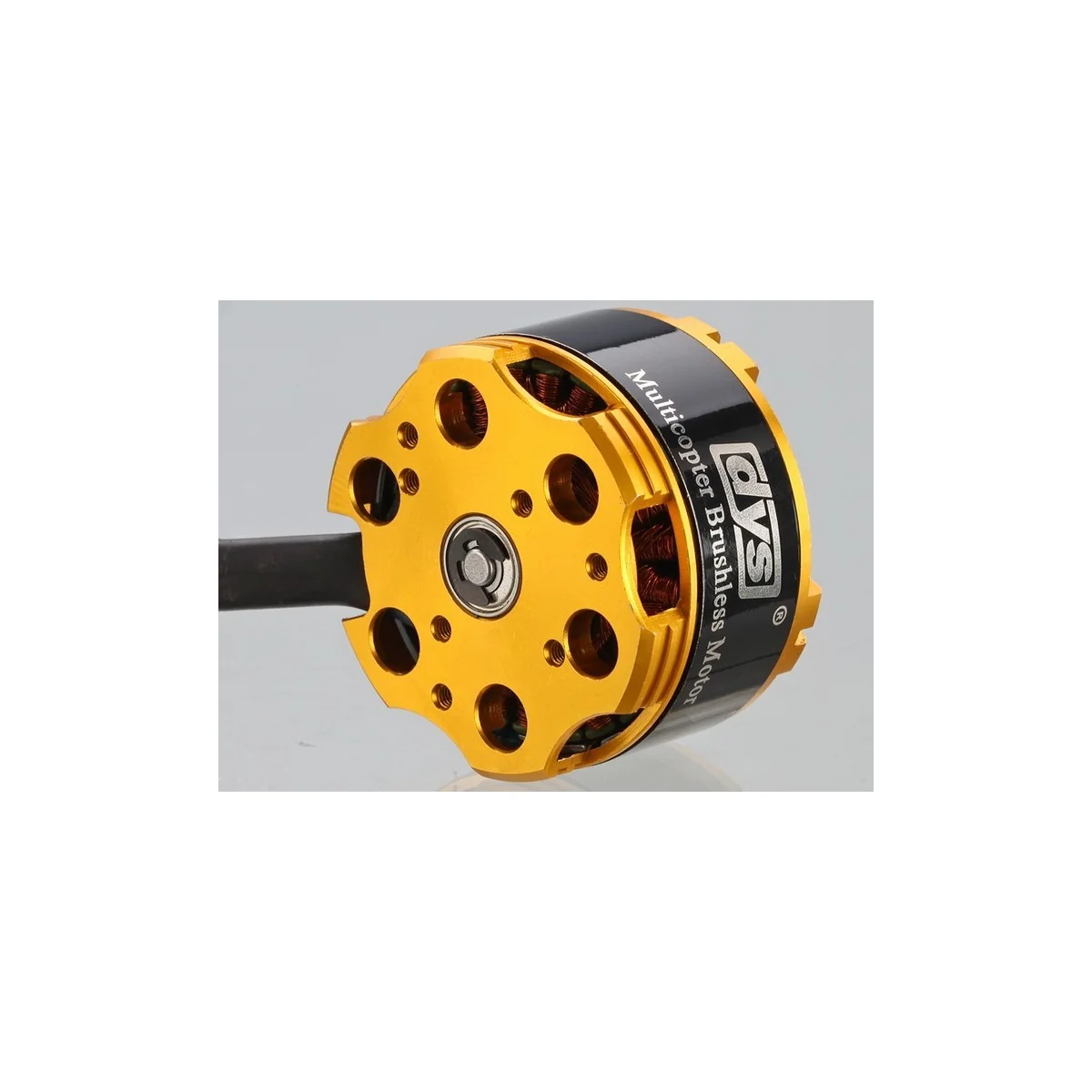

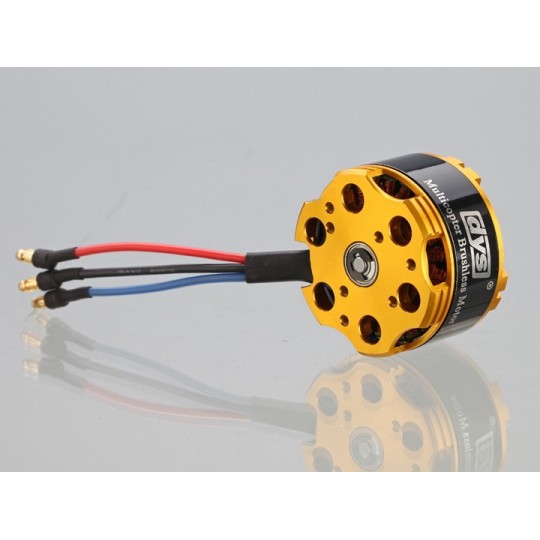

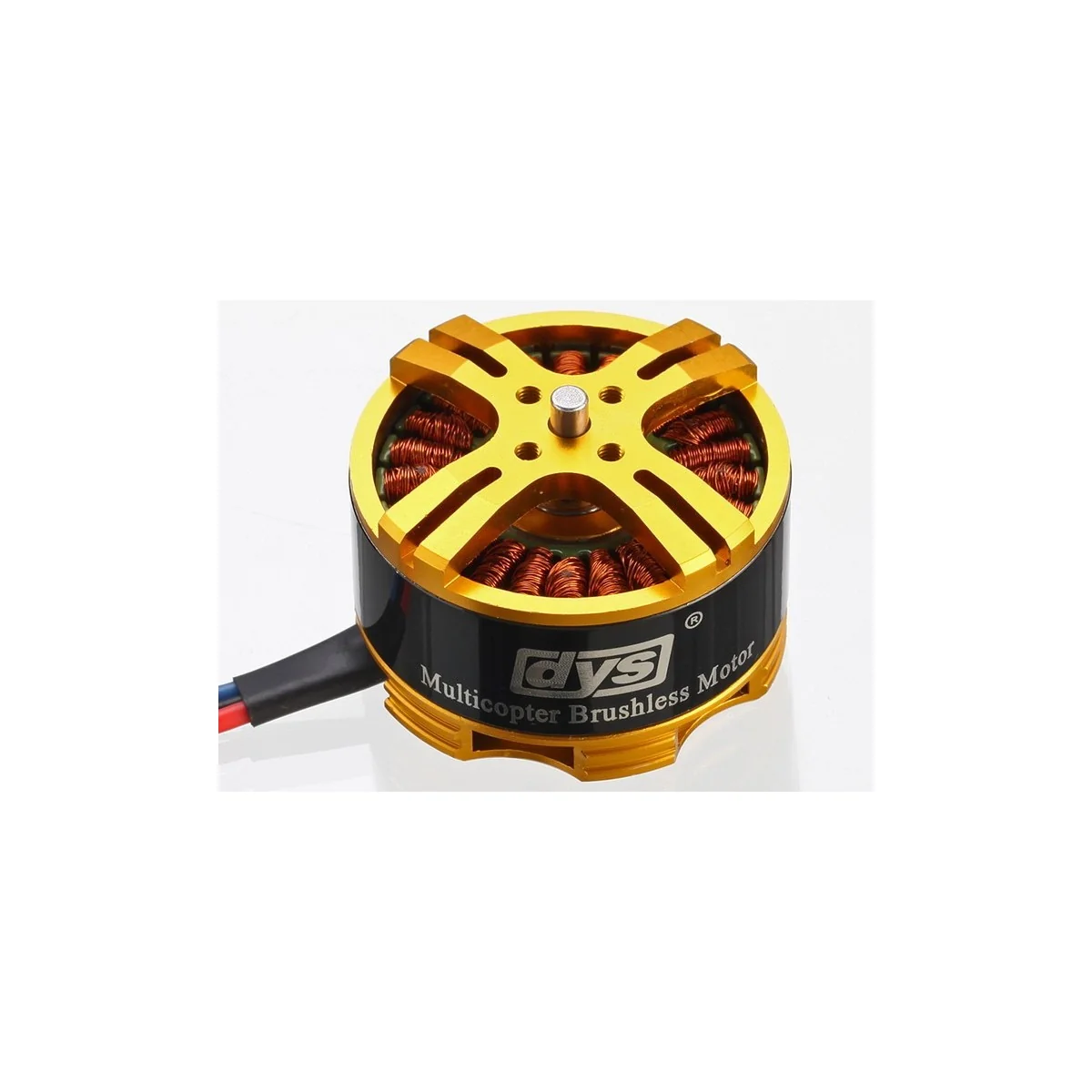

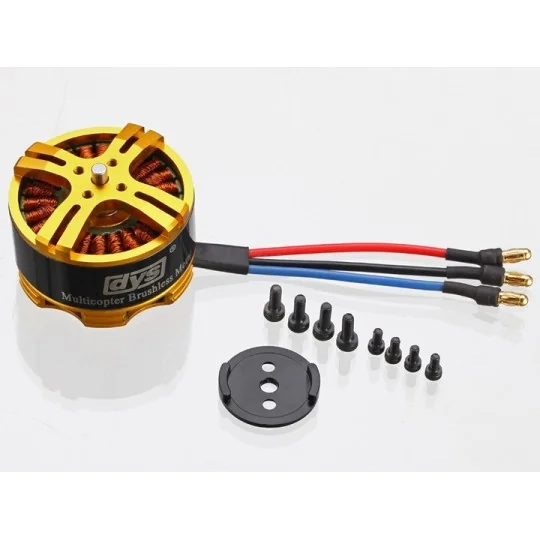

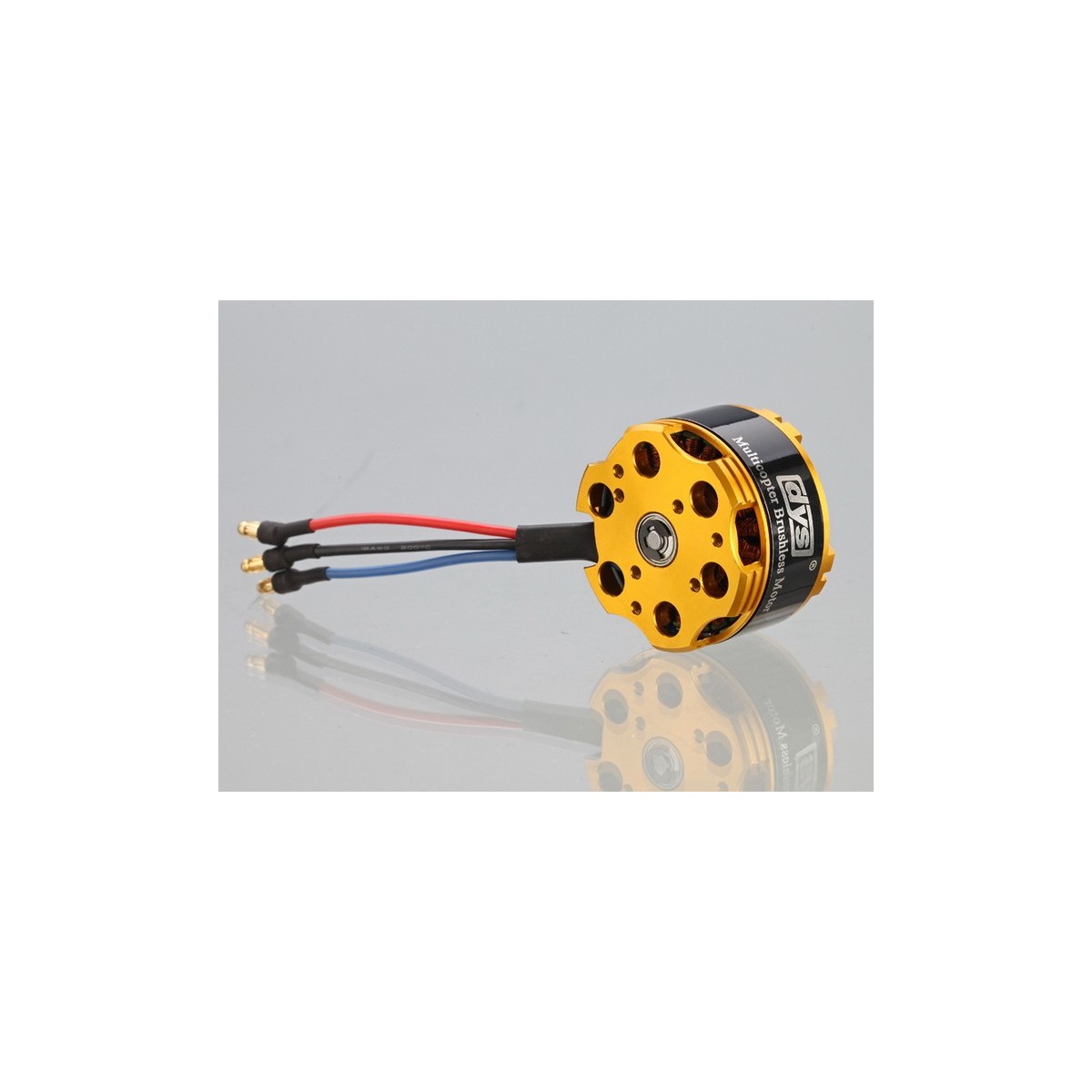

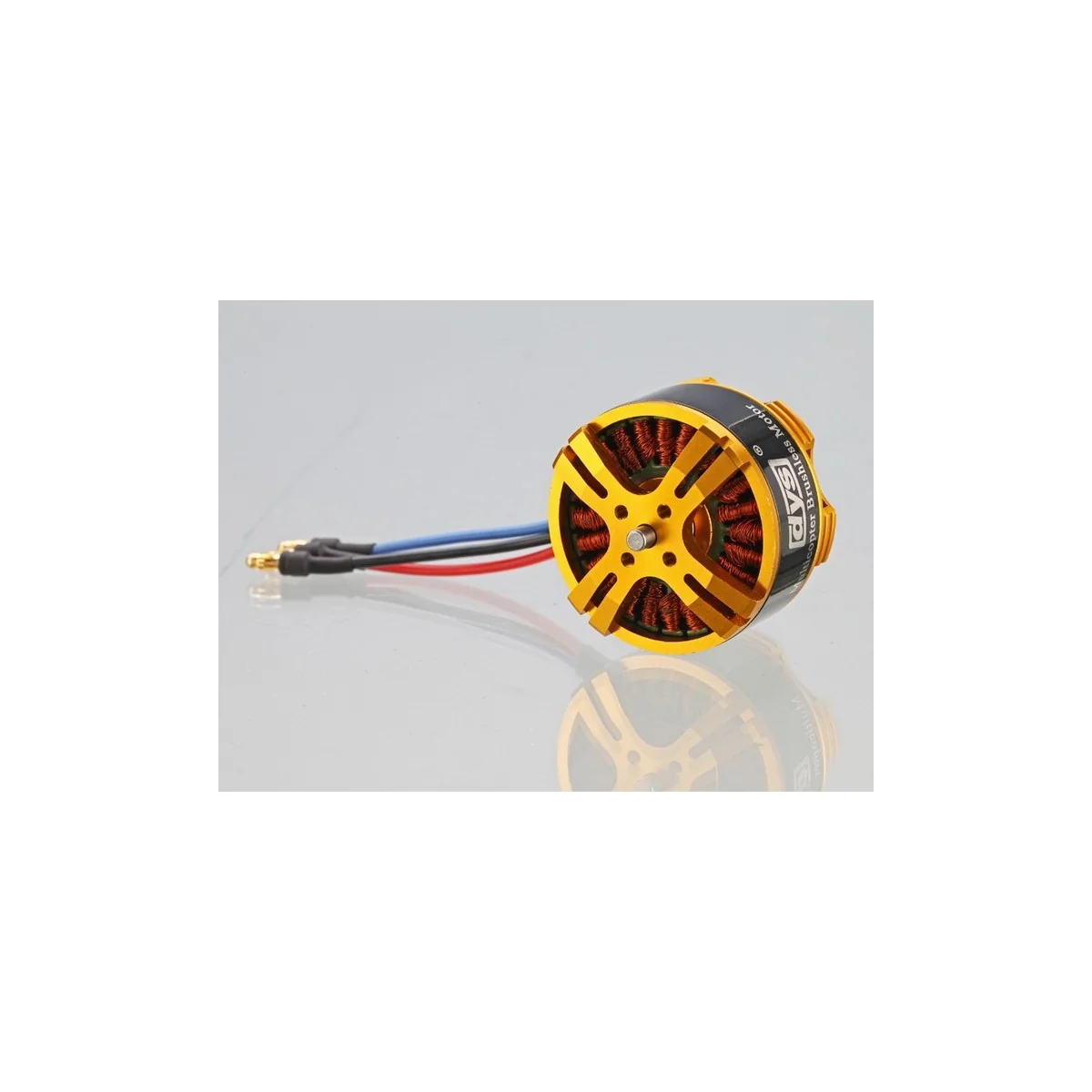

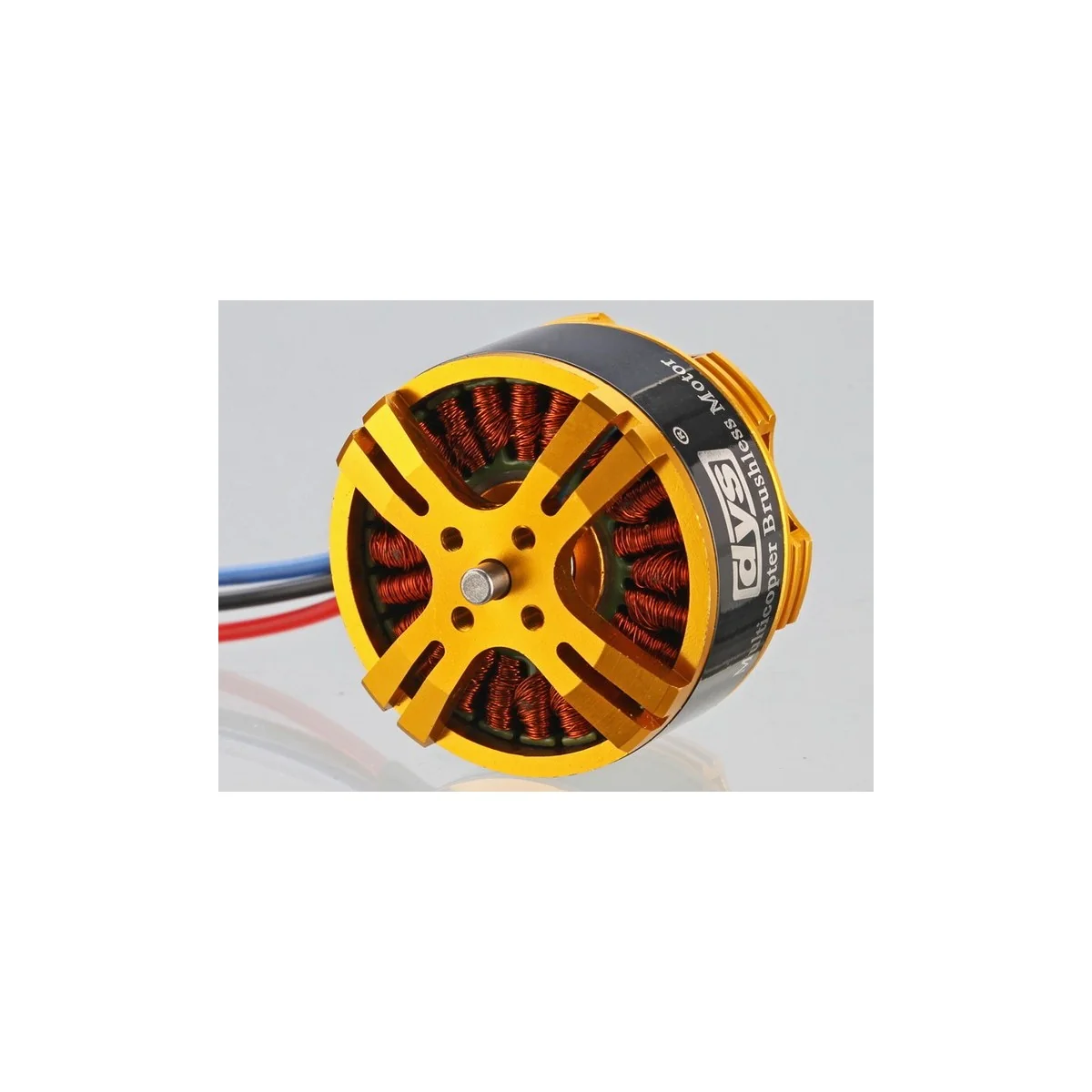

BE4114-10-Brushless motor multicopters BE4114-10 DYS

Brushless motor multicopters BE4114-10 DYS

Name: Brushless motor multicopters BE4114-10 DYS
Brand: DYS
SKU: BE4114-10
Price: 62 EUR
Availability: InStock

€62.00

Tax included

Reference: BE4114-10

Brand: DYS

EAN13: 2000000001494

KV: 350
Stator diameter: 41mm
Stator Length: 14mm
Shaft diameter: 4.0mm
Motor dimensions (Dia.*Length): Φ46x31mm

Order now and receive it...

between 6 Apr and 9 Apr with Colissimo Points de retrait €7.90

between 6 Apr and 9 Apr with Colissimo Domicile €8.90

between 6 Apr and 9 Apr with DPD Livraison en relais Pickup €7.90

between 6 Apr and 9 Apr with DPD Livraison à domicile Predict €8.90

between 6 Apr and 9 Apr with Lettre simple (sans assurance) €6.50

between 6 Apr and 9 Apr with Lettre suivi (sans assurance) €5.00

between today and 10 Apr with Magasin Next Model RC / Univers Train Free!

Hurry up! Only 6 item(s) left in Stock!

Description
Product Details

Features :

KV: 350
Stator diameter: 41mm
Stator Length: 14mm
Shaft diameter: 4.0mm

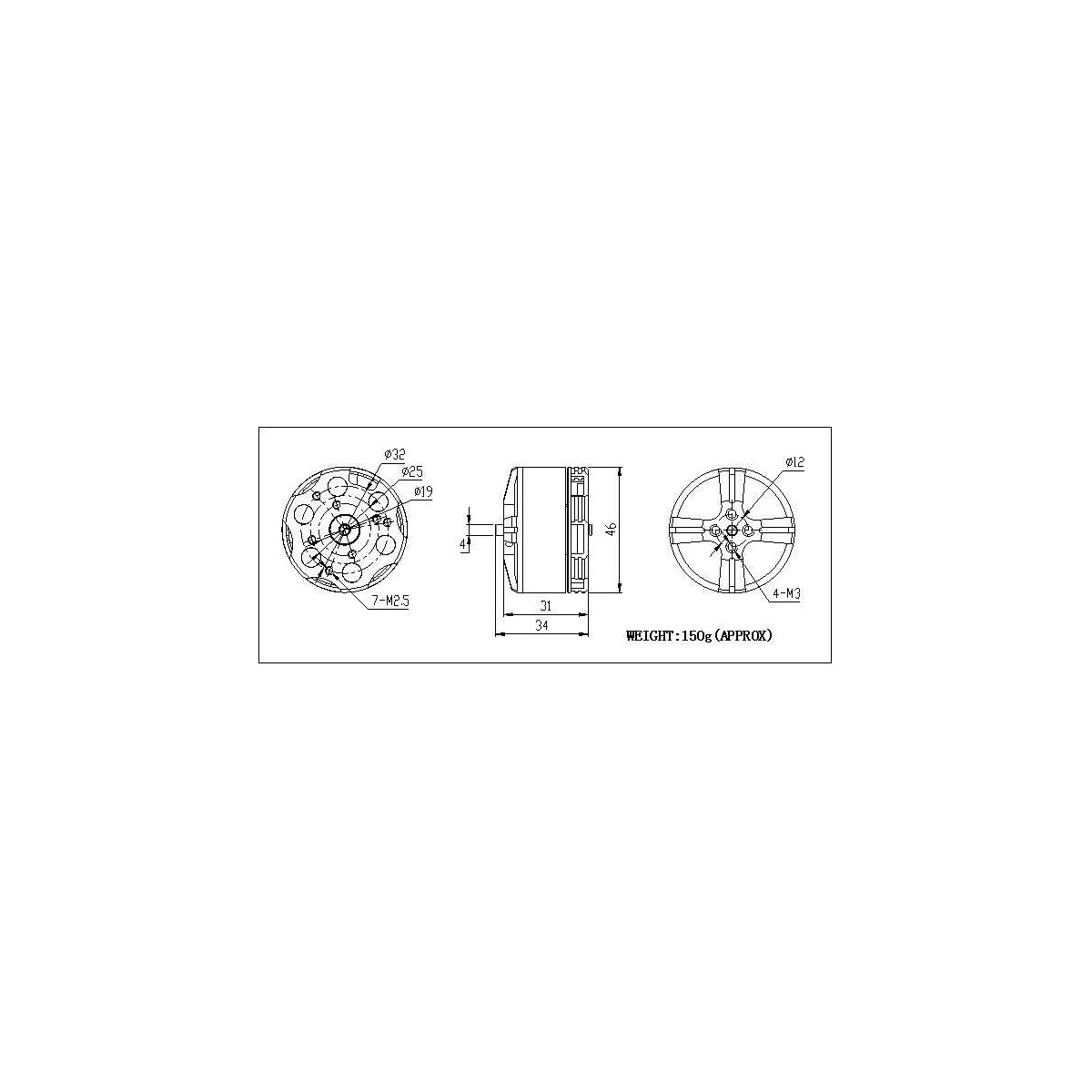

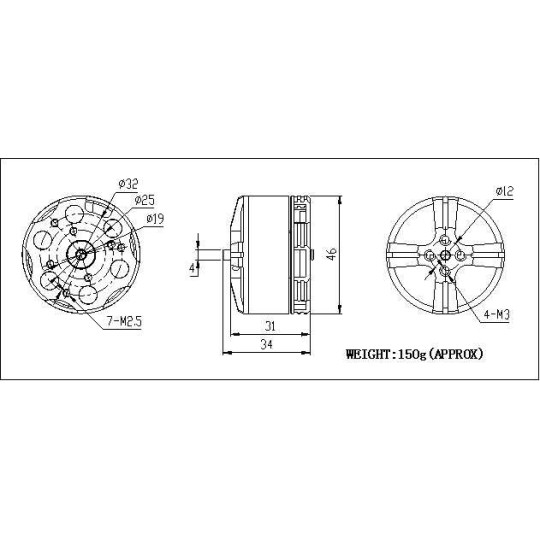

Motor dimensions (Dia.*Length): Φ46x31mm
Weight: 150g
Number of cells (LiPo): 5-6S
Maximum continuous current: 18.5A
Maximum continuous power: 212W
Internal resistance: 0.123Ω

Item No.	ON LOAD						LOAD TYPE
	KV	VOLTAGE	CURRENT	Sweater	Power	EEP	Battery/prop
	rpm/v	V	HAS	g	W	%	Battery/prop
BE4114-10(350KV)	350	22.2	2.4	600	53.28	11.26	LiPox5/15X5.5
			3	700	66.6	10.51
			3.5	800	77.7	10.30
			4	900	88.8	10.14
			4.9	1000	108.78	9.19
			5.7	1100	126.54	8.69
			14.5	2100	321.9	6.52
		18.5	2.9	600	53.65	11.18	LiPox6/15X5.5
			3.6	700	66.6	10.51
			4.3	800	79.55	10.06
			5.1	900	94.35	9.54
			5.8	1000	107.3	9.32
			6.5	1100	120.25	9.15
			11.5	1670	212.75	7.85

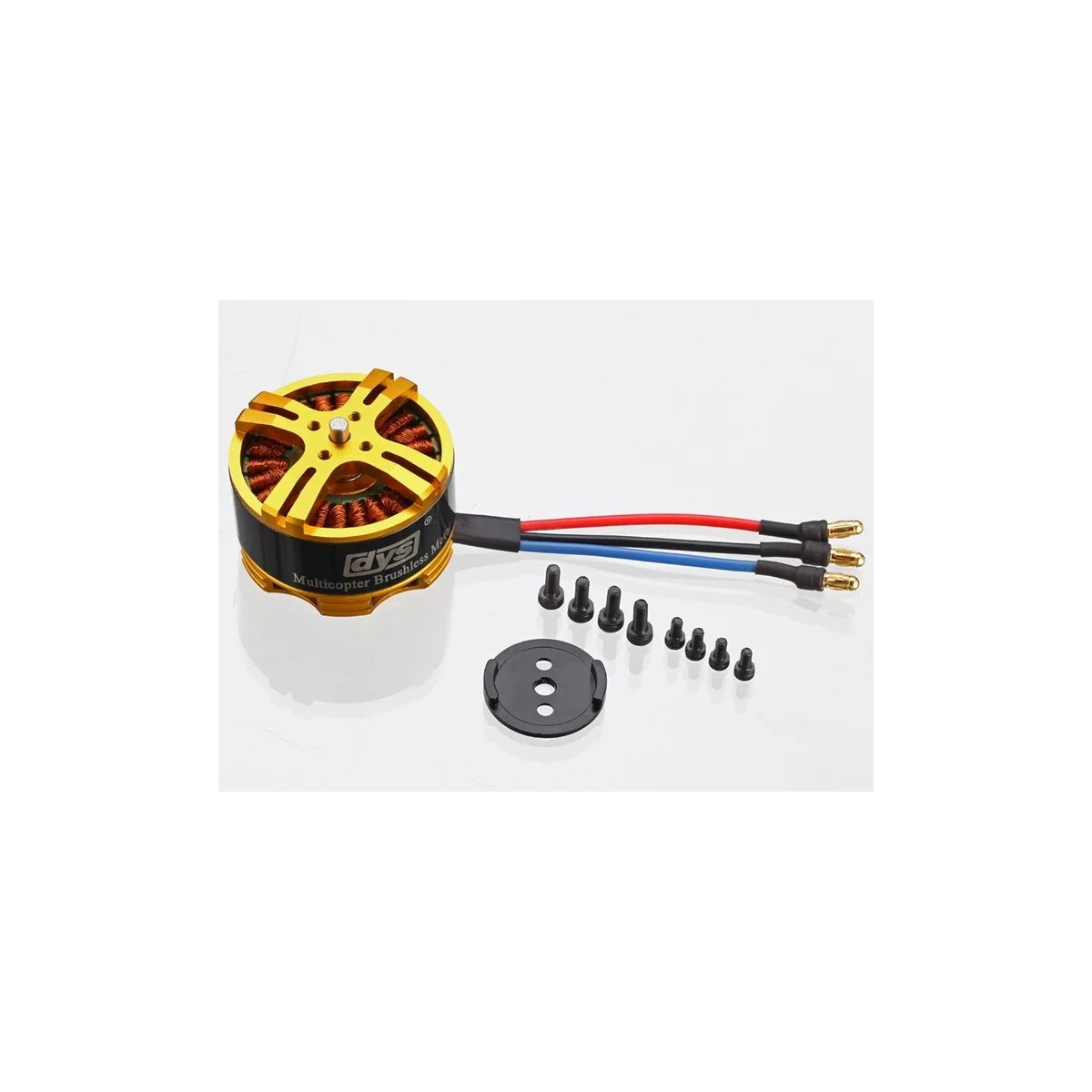

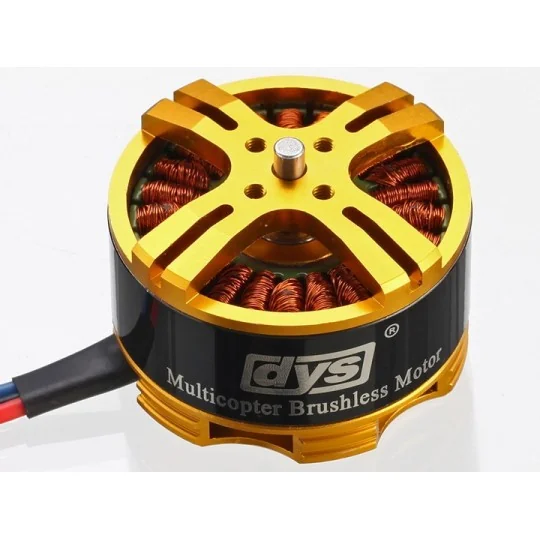

DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
