KV: 630
Stator diameter: 36mm
Stator length: 8mm
Shaft diameter: 4.0mm
Motor dimensions (Dia.*Lon): Φ42x15mm
between 6 Apr and 9 Apr with Colissimo Points de retrait €7.90
between 6 Apr and 9 Apr with Colissimo Domicile €8.90
between 6 Apr and 9 Apr with DPD Livraison en relais Pickup €7.90
between 6 Apr and 9 Apr with DPD Livraison à domicile Predict €8.90
between 6 Apr and 9 Apr with Lettre simple (sans assurance) €6.50
between 6 Apr and 9 Apr with Lettre suivi (sans assurance) €5.00
between today and 10 Apr with Magasin Next Model RC / Univers Train Free!
Features :
KV: 630
Stator diameter: 36mm
Stator length: 8mm
Shaft diameter: 4.0mm

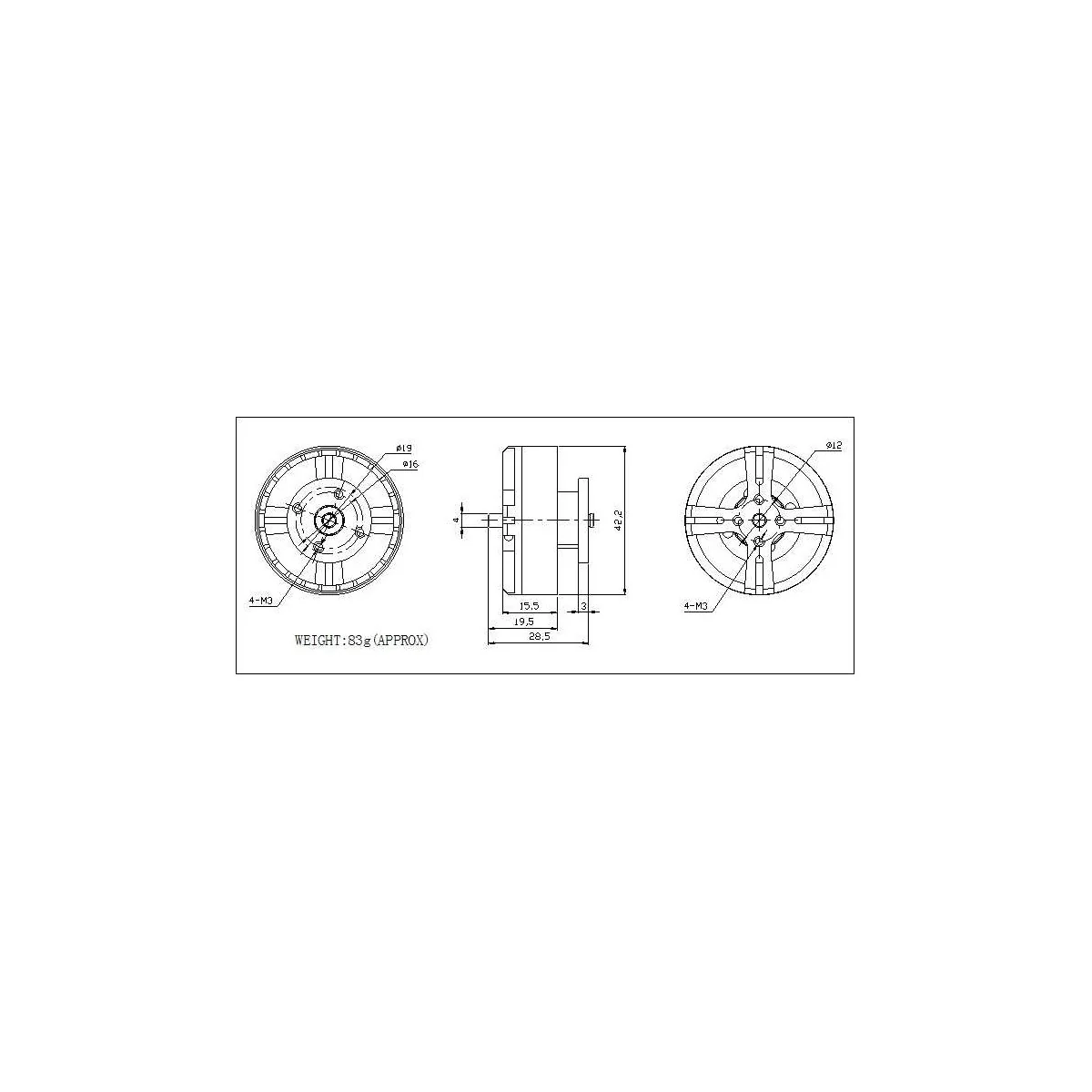

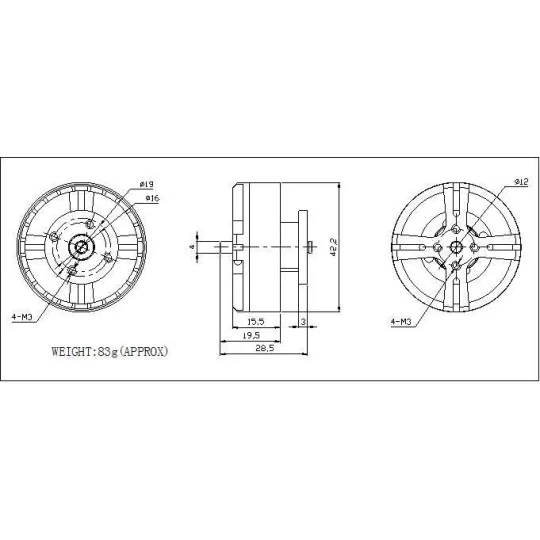

Motor dimensions (Dia.*Lon): Φ42x15mm
Weight: 83g
Number of cells (LiPo): 3-6S
Maximum continuous current: 32.1A
Maximum continuous power: 700W
Internal resistance: 0.076Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE3608-11 (630KV) | VOLTAGE | CURRENT | SPEED | CURRENT | Sweater | Power | Battery/prop |
| V | HAS | rpm | HAS | g | W | ||
| 11.1 | 0.7 | 6985 | 8 | 713 | 88.8 | LiPo 3/1047 (APC) | |
| 11.9 | 1029 | 132.1 | LiPo 3/1238 (APC) | ||||
| 15.1 | 1119 | 167.6 | LiPo x3/1365 (CF prop) | ||||
| 12 | 927 | 133.2 | LiPox3/1447 (CF prop) | ||||
| 17.7 | 1392 | 196.5 | LiPox3/1503 (CF prop) | ||||
| 14.8 | 0.8 | 9285 | 12.6 | 1154 | 186.5 | LiPo 4/1047 (APC) | |
| 19.3 | 1650 | 285.6 | LiPox4/1238(APC) | ||||
| 23.2 | 1652 | 343.4 | LiPox4/1365 (CF prop) | ||||
| 17.8 | 1442 | 263.4 | LiPox4/1447 (CF prop) | ||||
| 25.5 | 2069 | 377.4 | LiPox4/1503 (CF prop) | ||||
| 18.5 | 0.9 | 11675 | 17.6 | 1620 | 325.6 | LiPo 5/1047 (APC) | |
| 22.4 | 1970 | 414.4 | LiPo 5/1238 (APC) | ||||
| 24.6 | 1805 | 455.1 | LiPo x5/1365 (CF prop) | ||||
| 24.4 | 1987 | 451.4 | LiPo 5/1447 (CF prop) | ||||
| 30.1 | 2275 | 556.9 | LiPo x5/1503 (CF prop) | ||||
| 22.2 | 0.9 | 13775 | 18.1 | 1783 | 401.8 | LiPo 6/1047 (APC) | |
| 22.6 | 2121 | 501.7 | LiPo 6/1238 (APC) | ||||
| 27 | 1990 | 599.4 | LiPo x6/1365 (CF prop) | ||||
| 26.3 | 2123 | 583.9 | LiPo x6/1447 (CF prop) | ||||
| 32.1 | 2369 | 712.6 | LiPo x6/1503 (CF prop) | ||||

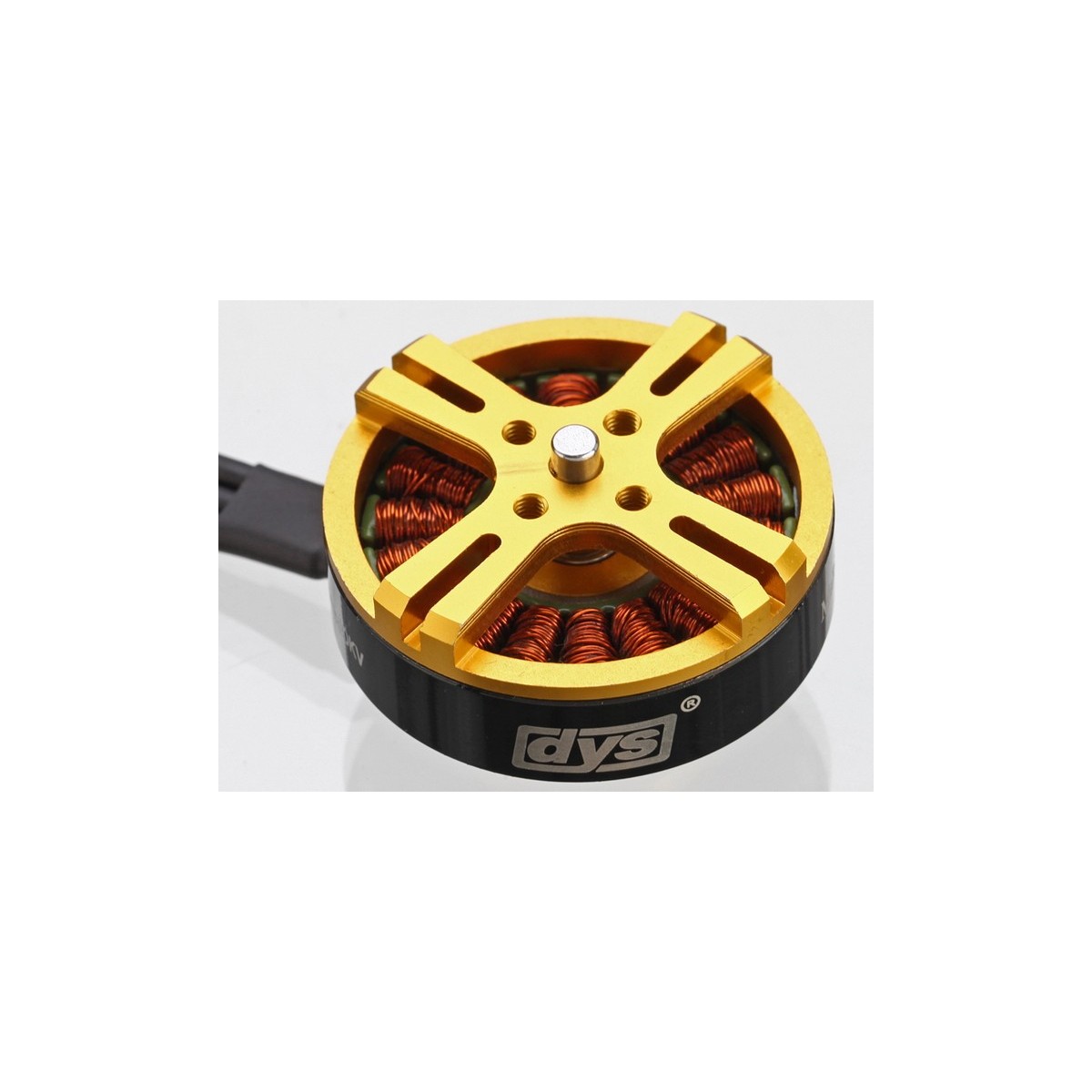

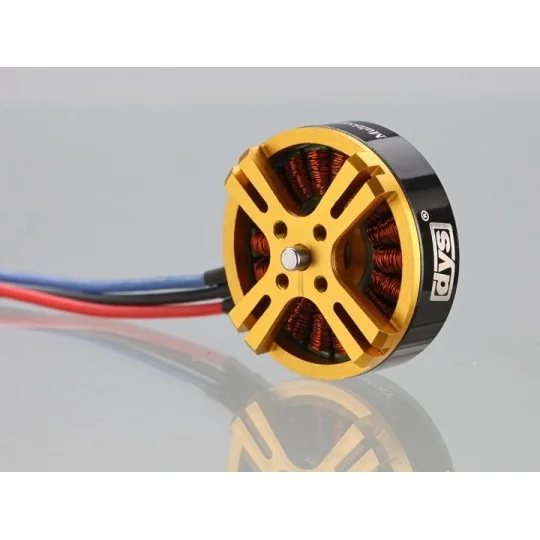

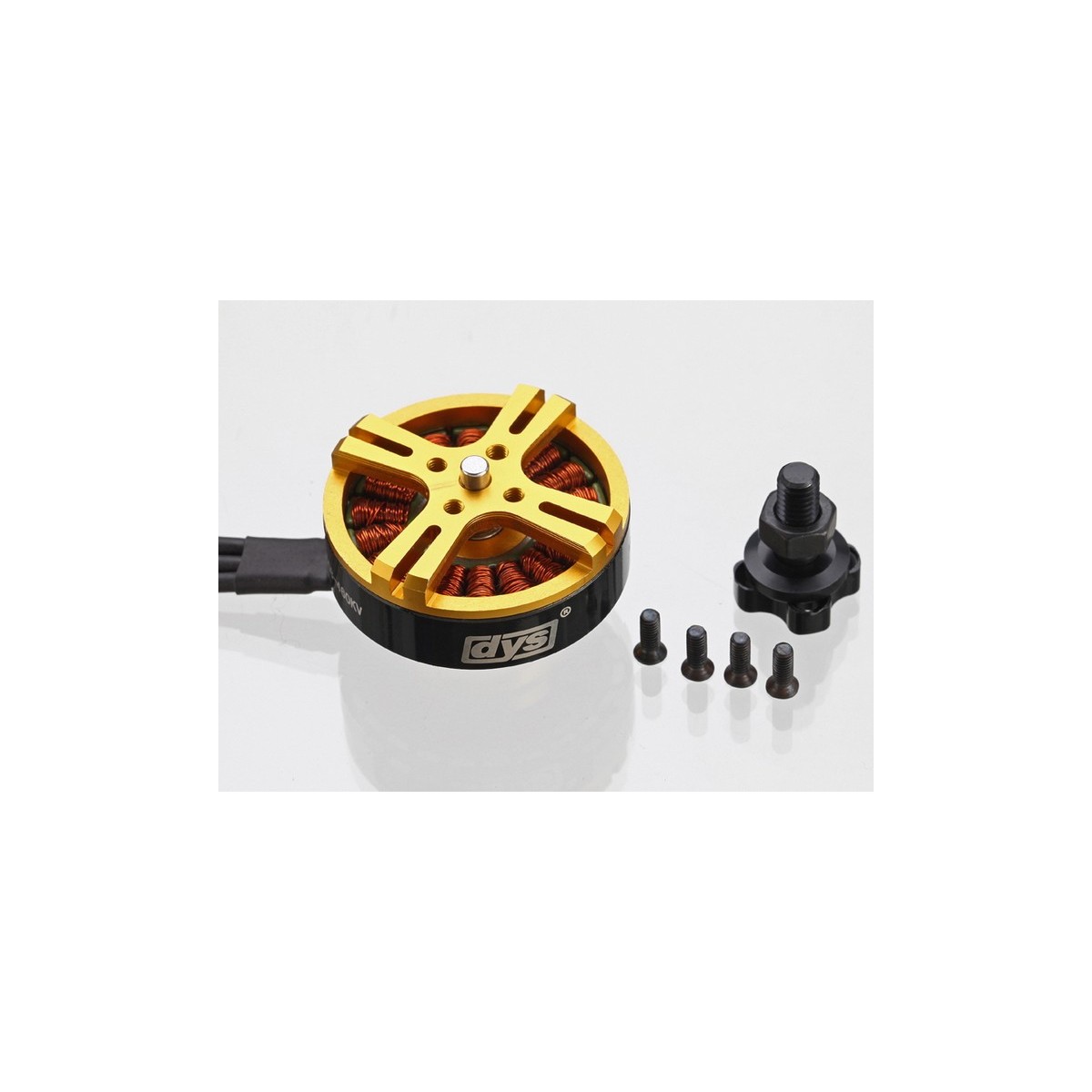

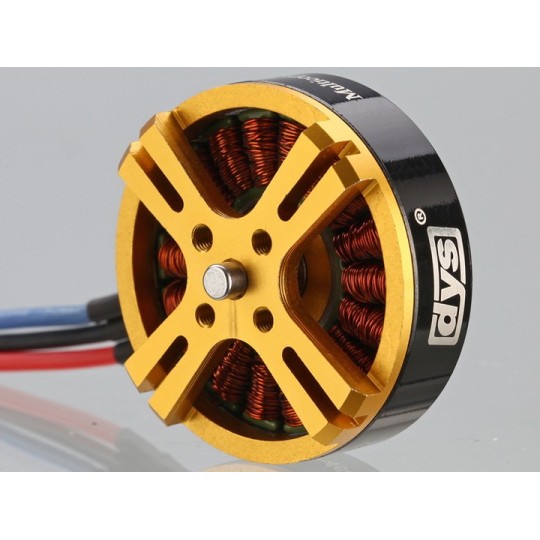

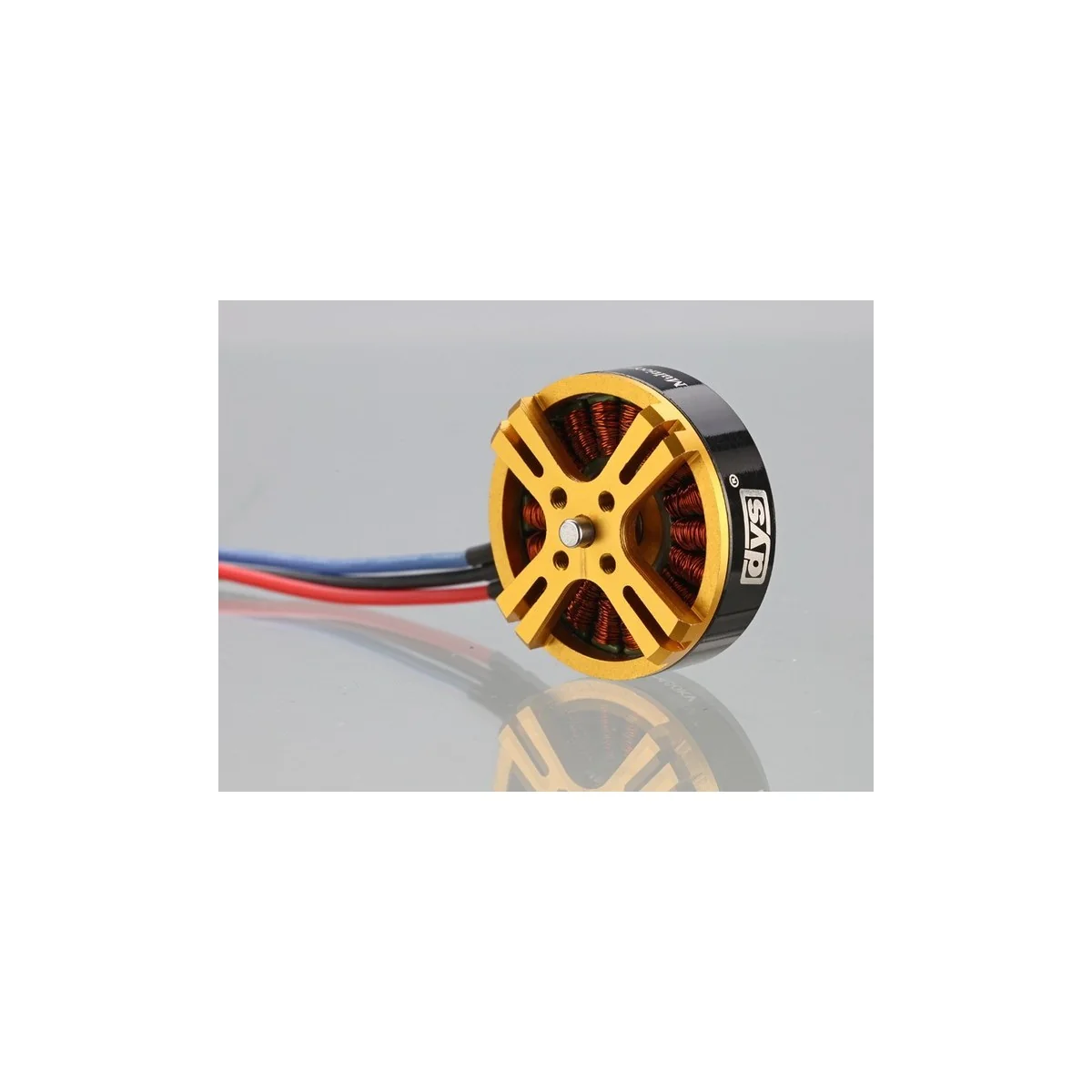

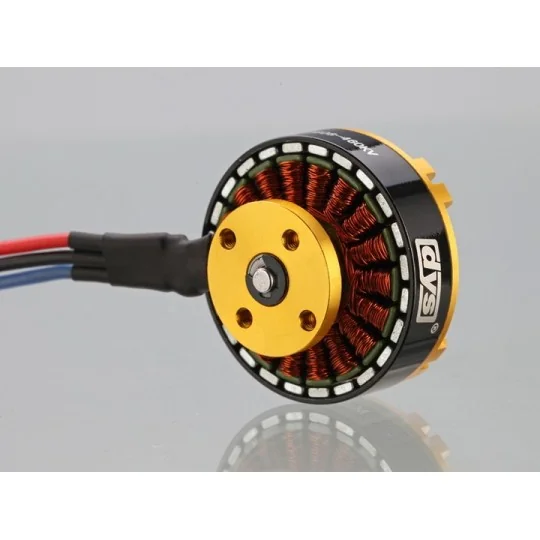

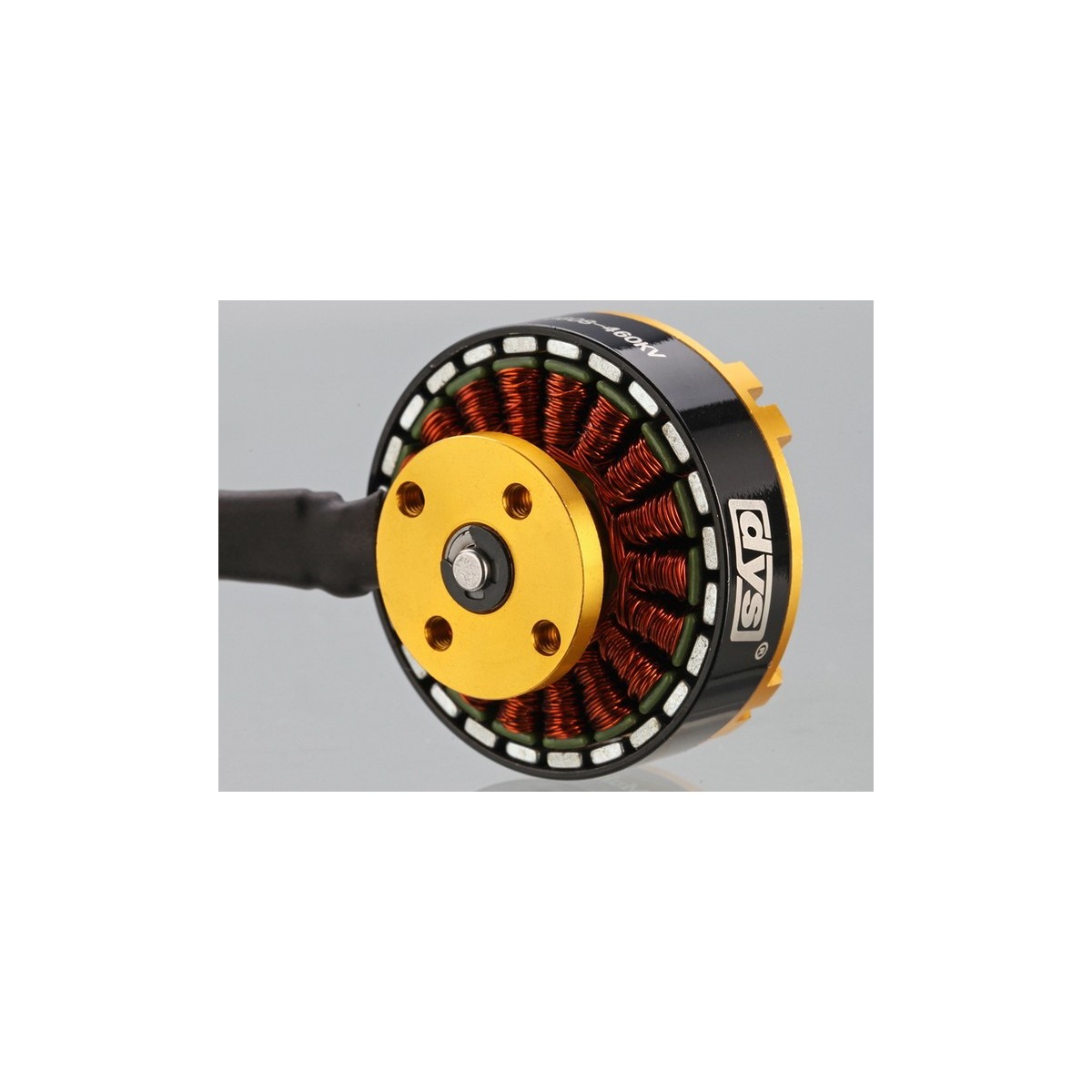

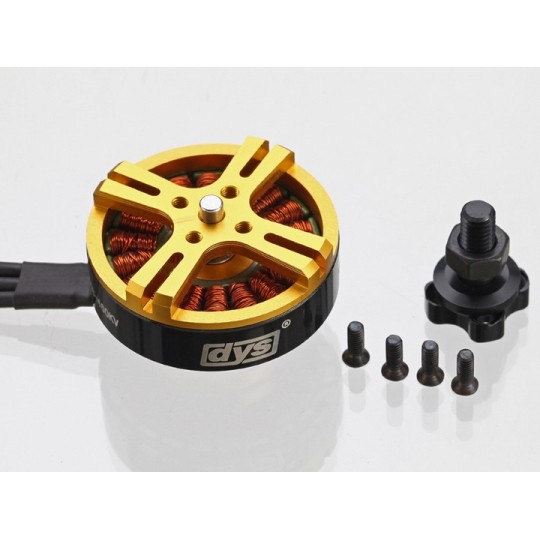

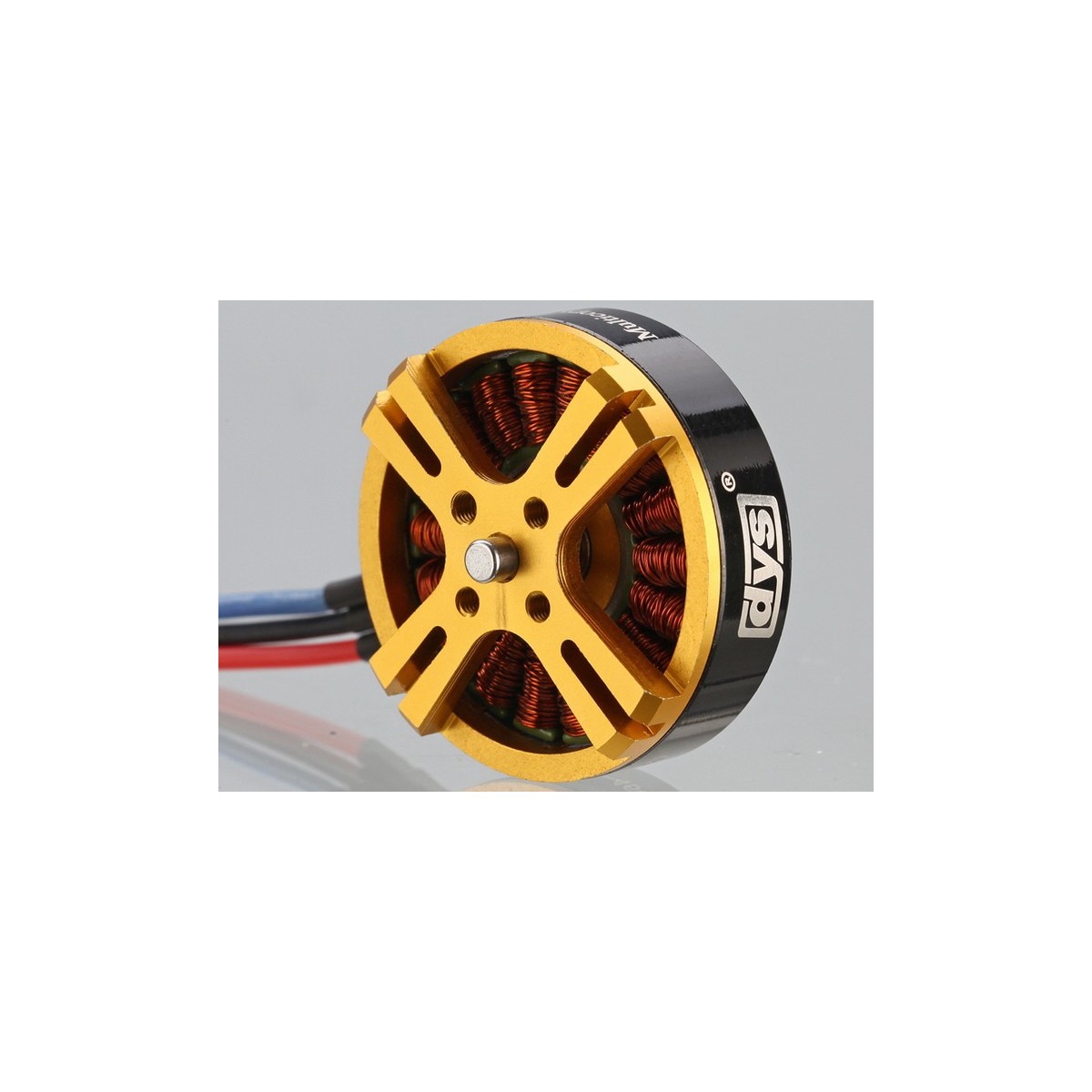

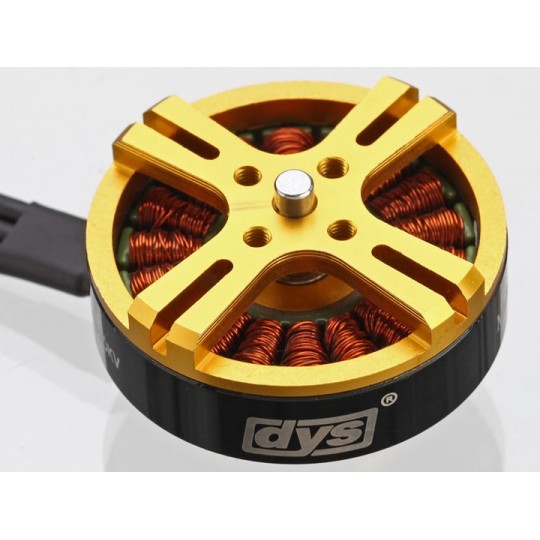

DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
