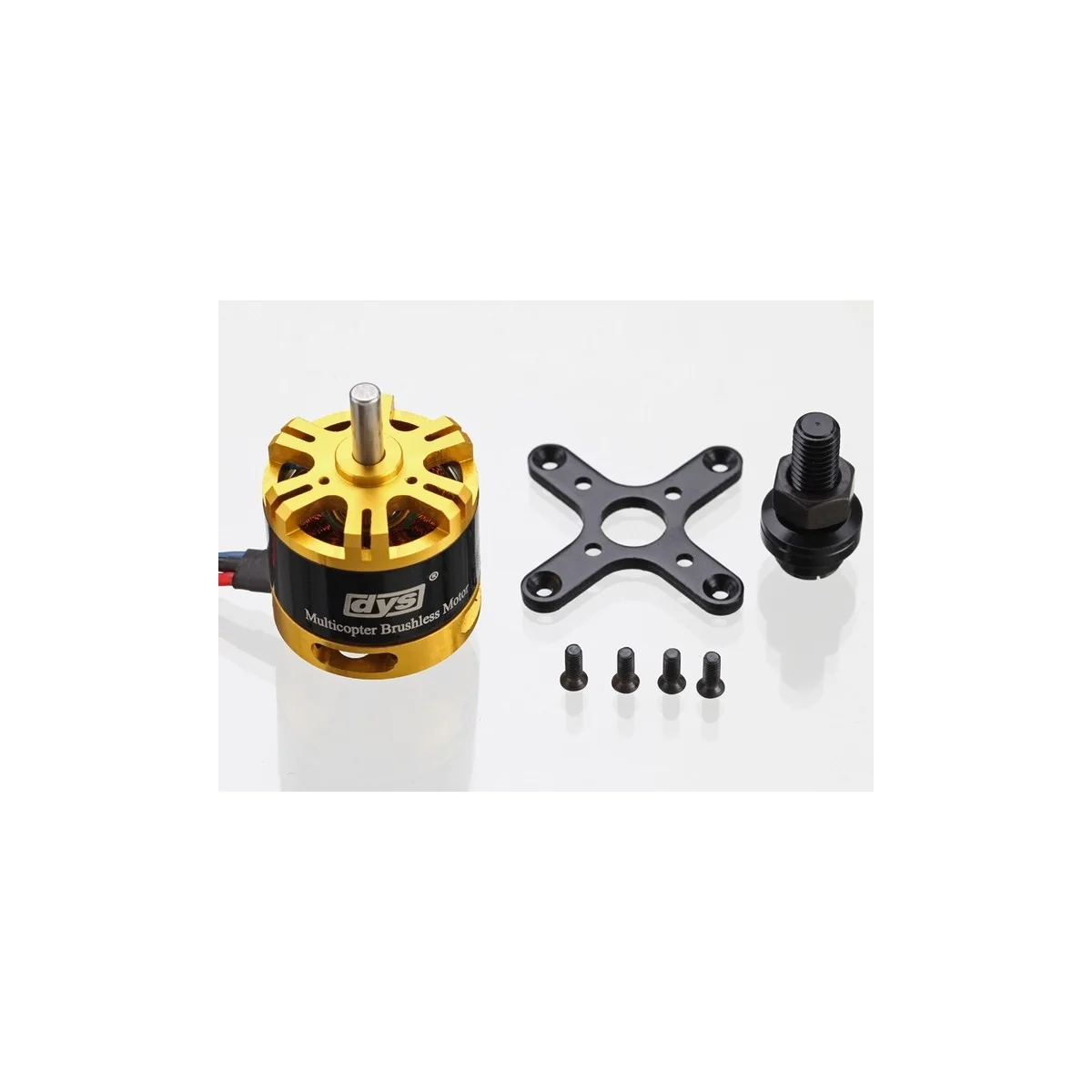

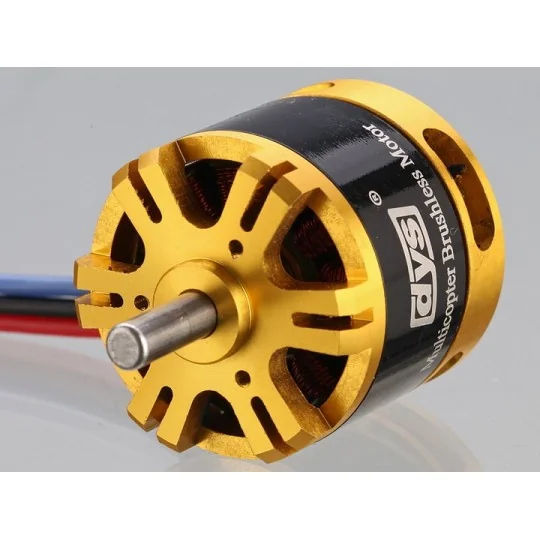

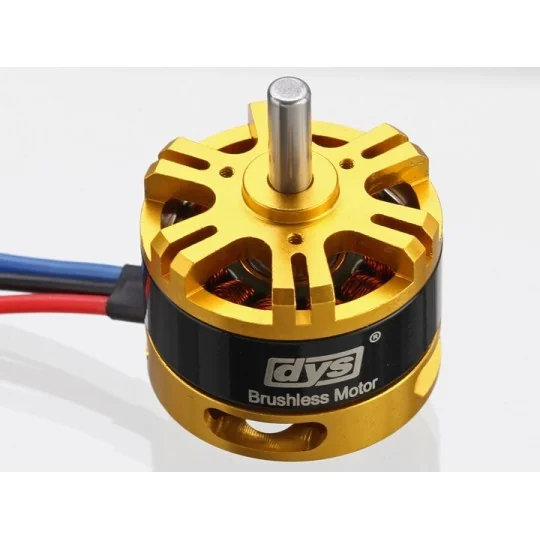

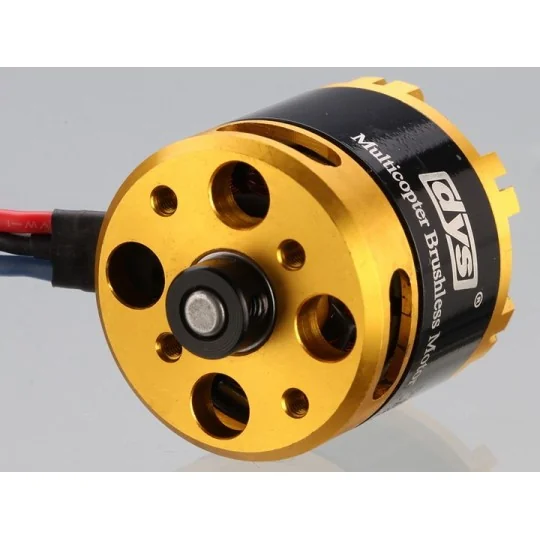

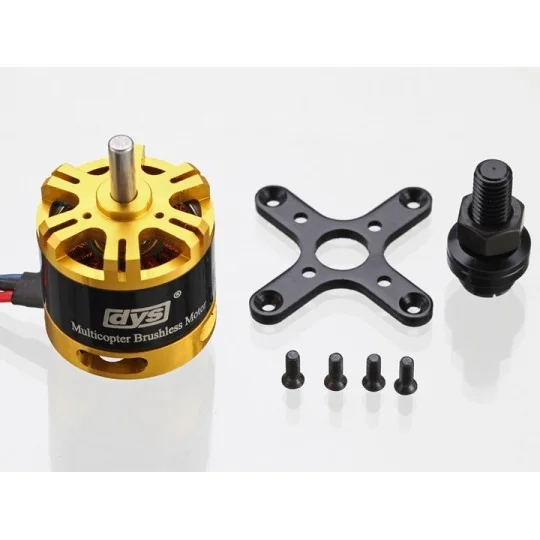

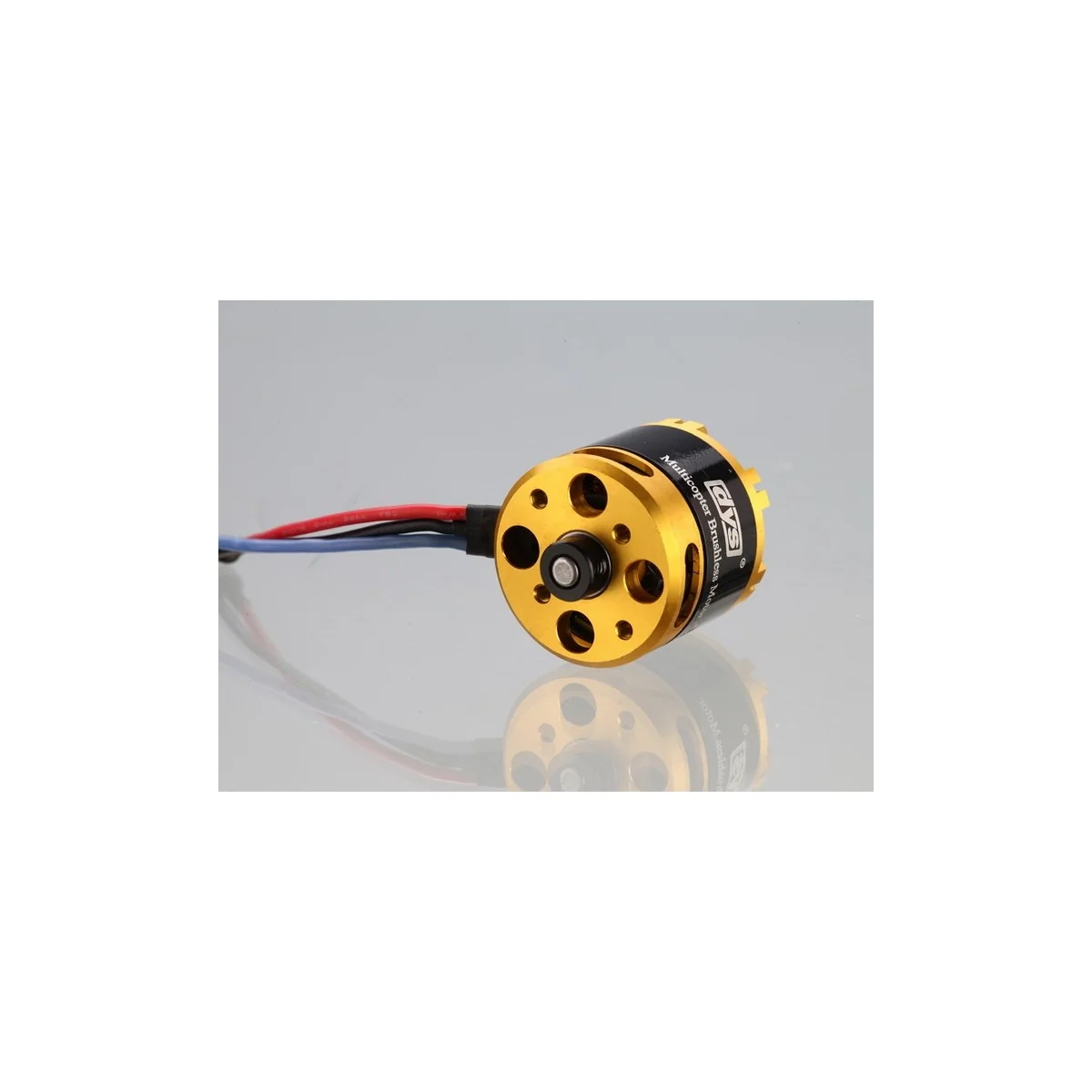

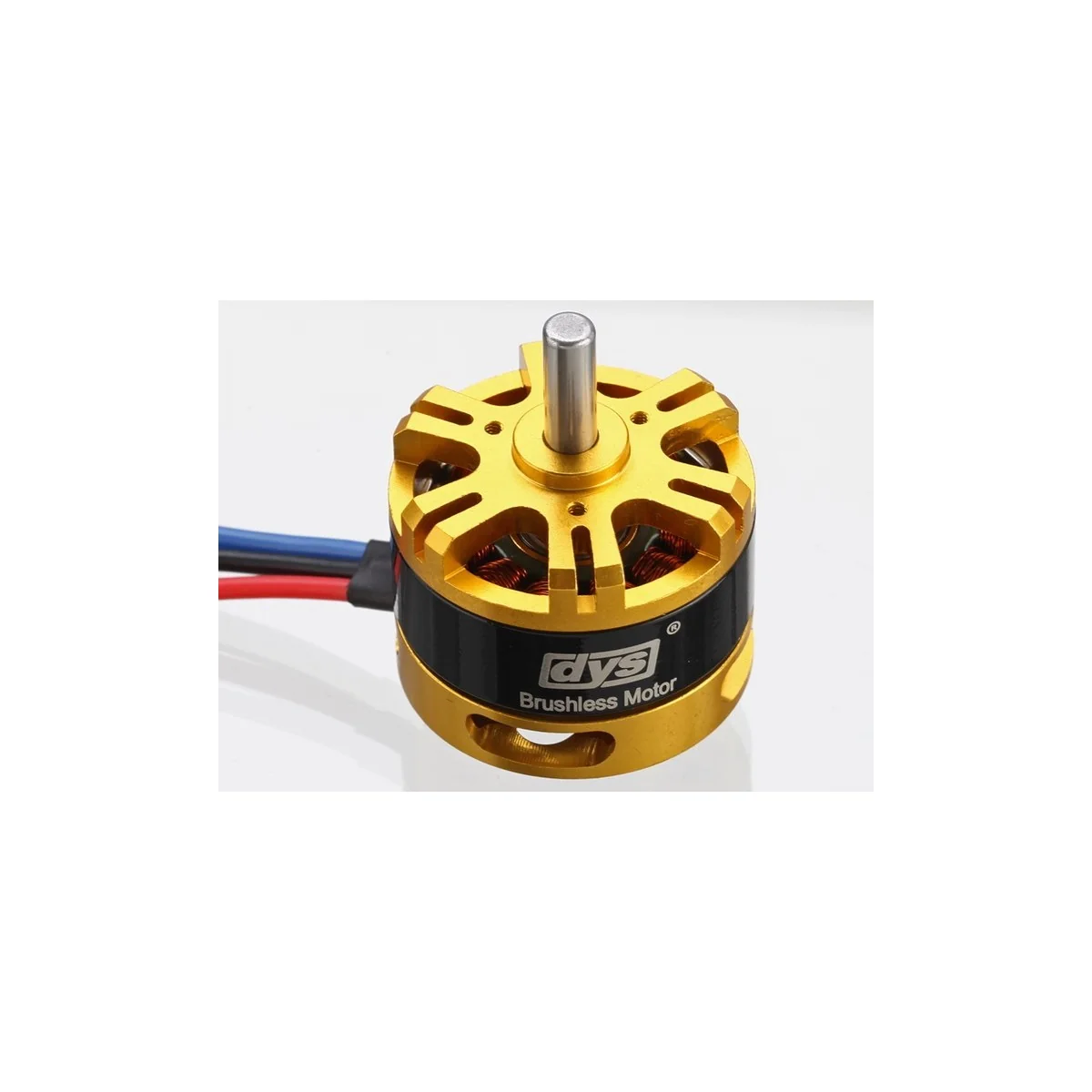

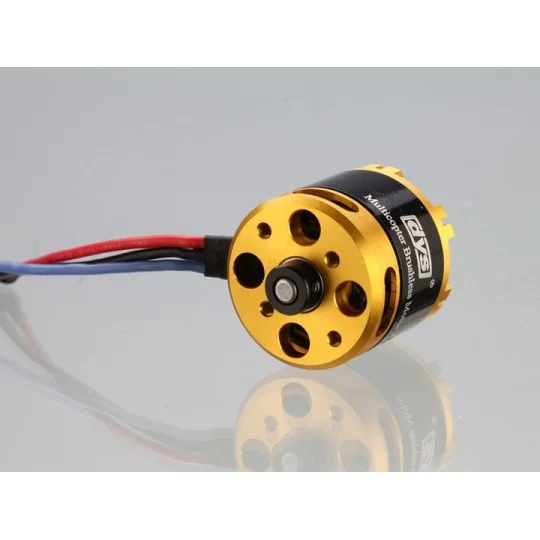

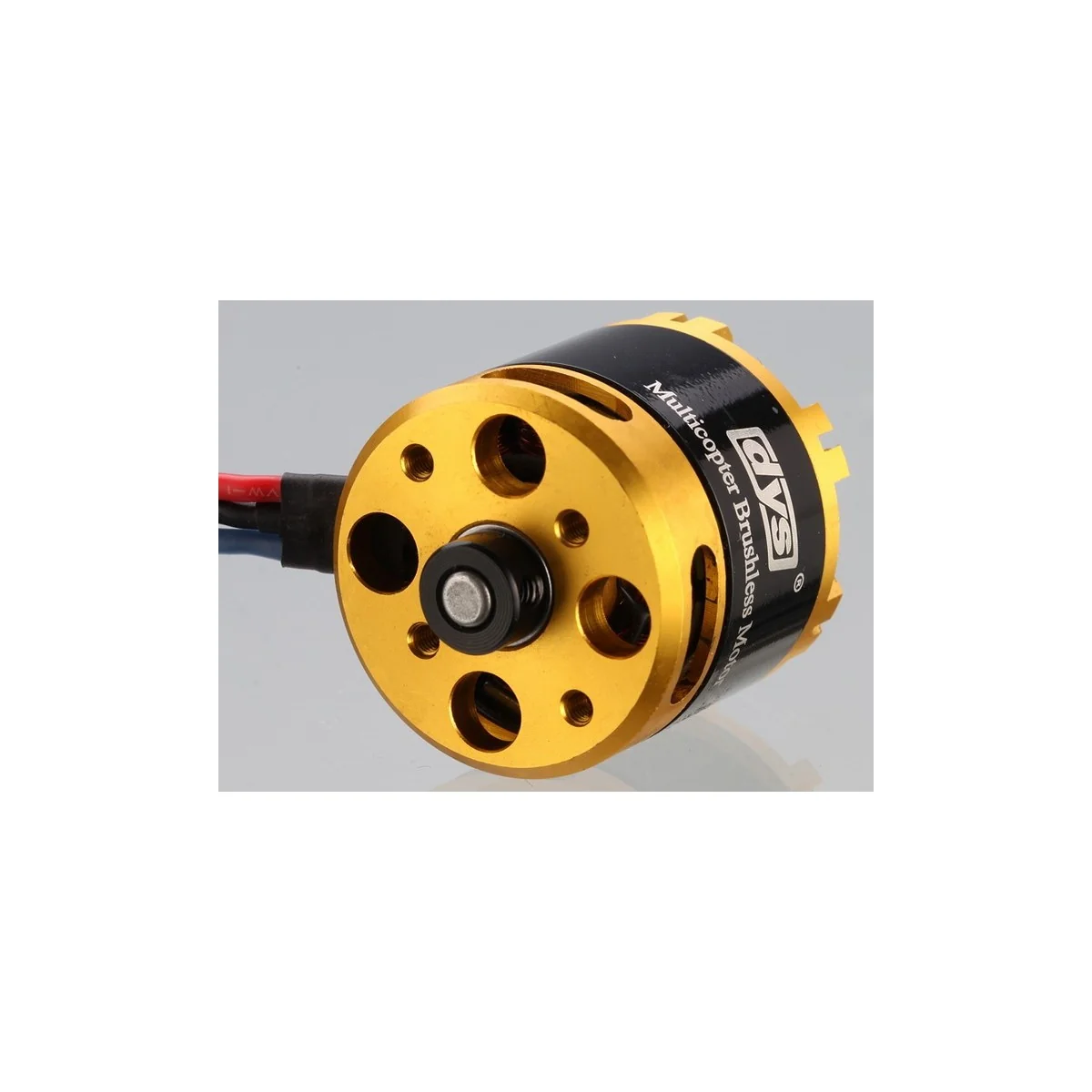

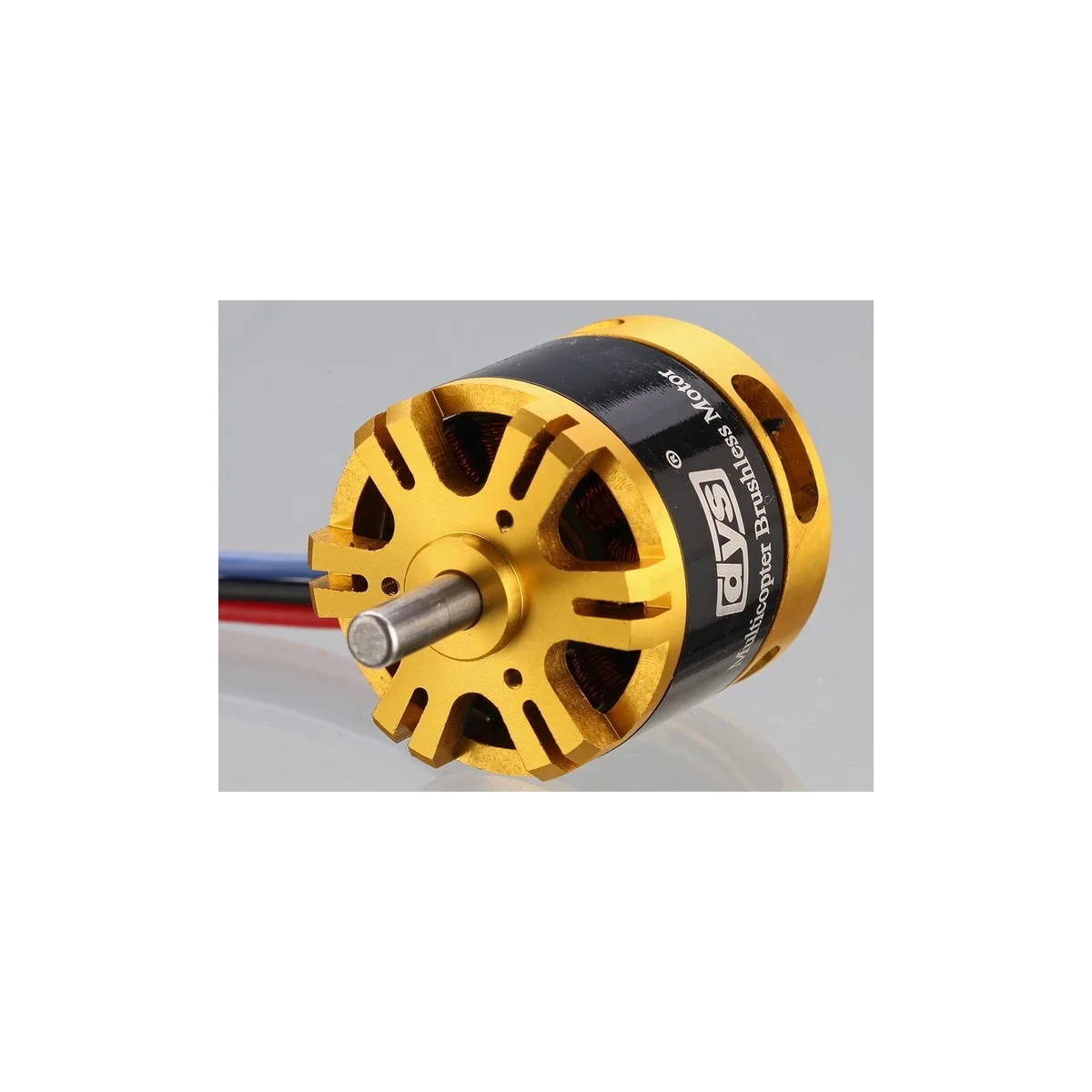

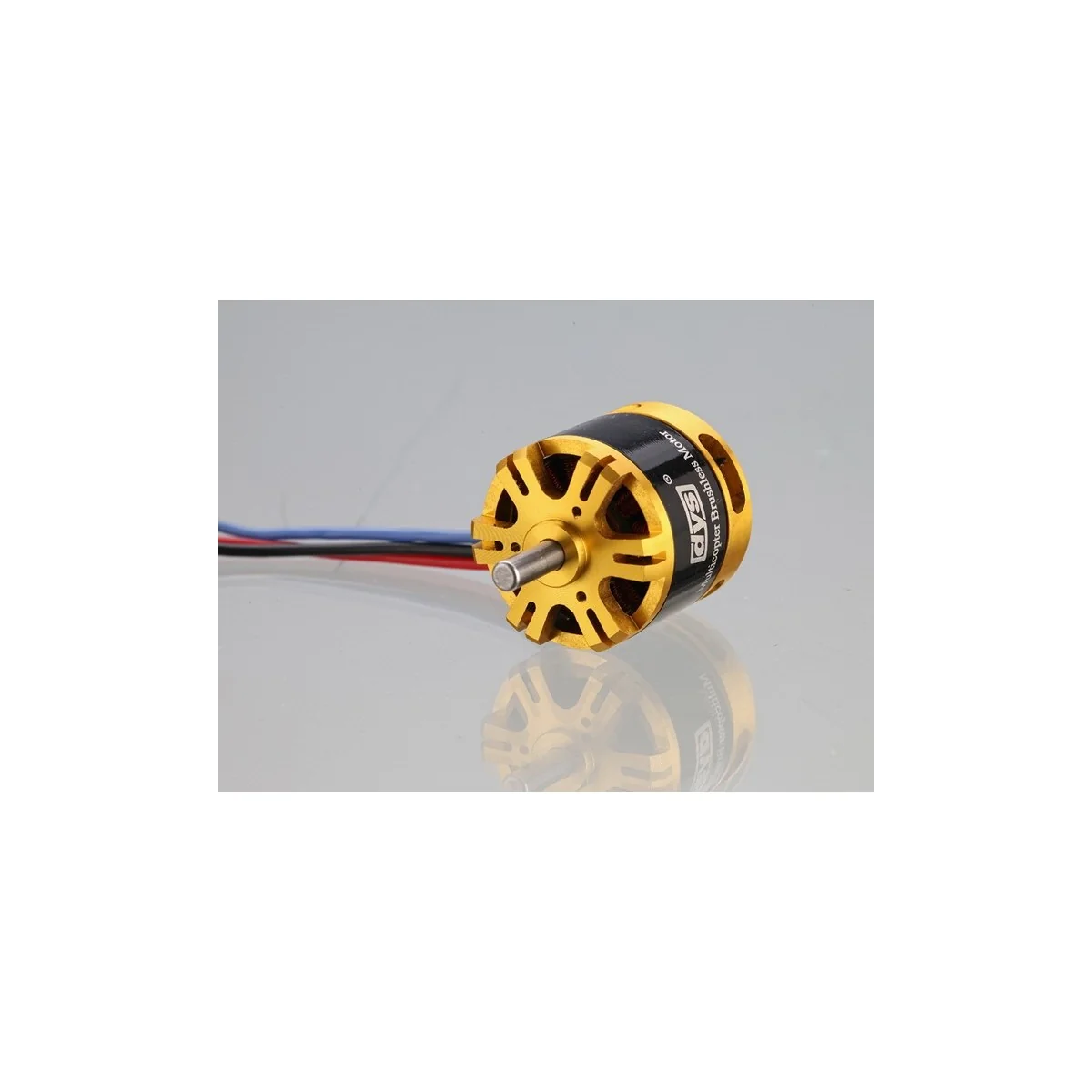

Brushless motor multicopters BE2814-6 DYS
€29.90
Tax included
KV: 1280
Stator diameter: 28mm
Stator length: 14mm
Shaft diameter: 5.0mm
Motor dimensions (Dia.*Length): Φ35x36mm
Order now and receive it...
between 25 Apr and 29 Apr with Colissimo Points de retrait €7.90
between 25 Apr and 29 Apr with Colissimo Domicile €8.90
between 27 Apr and 30 Apr with DPD Livraison en relais Pickup €7.90
between 27 Apr and 30 Apr with DPD Livraison à domicile Predict €8.90
between 25 Apr and 29 Apr with Lettre simple (sans assurance) €6.50
between 25 Apr and 29 Apr with Lettre suivi (sans assurance) €5.00
between today and 30 Apr with Magasin Next Model RC / Univers Train Free!
Hurry up! Only 2 item(s) left in Stock!
Features :
KV: 1280
Stator diameter: 28mm
Stator length: 14mm
Shaft diameter: 5.0mm

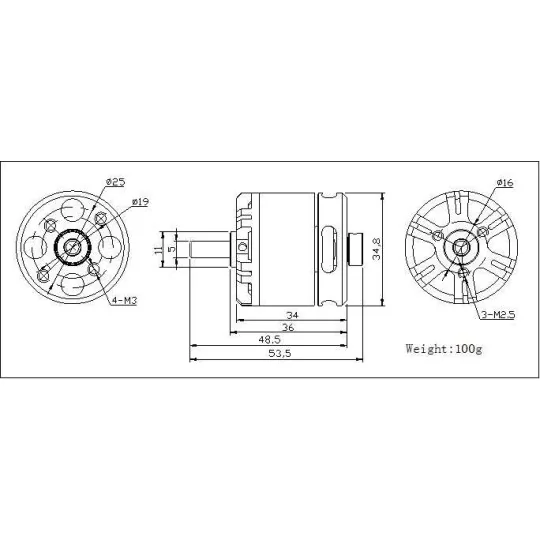

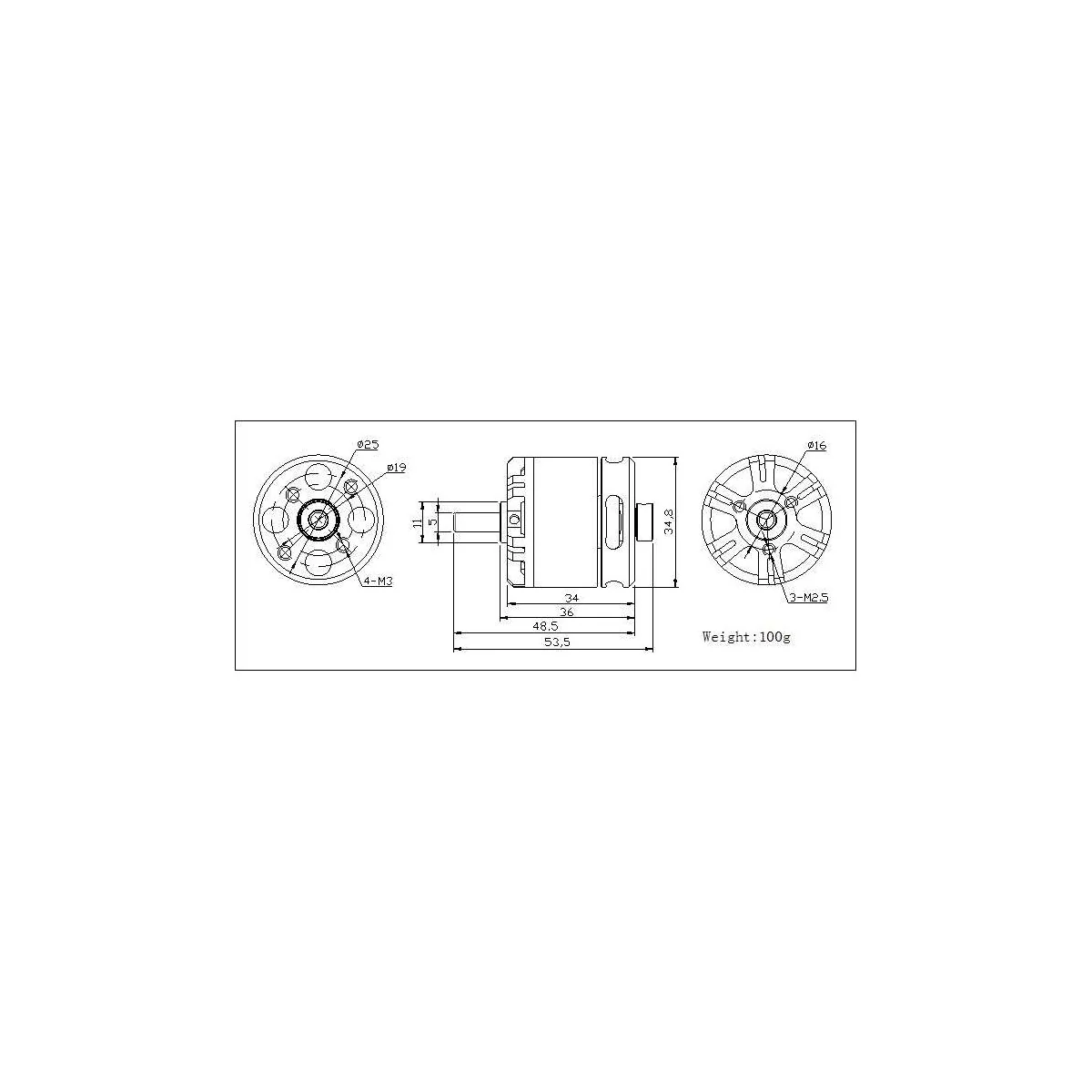

Motor dimensions (Dia.*Length): Φ35x36mm
Weight: 100g
Number of cells (LiPo): 3-6S
Maximum continuous current: 14.8A
Maximum continuous power: 569W
Internal resistance: 0.022Ω
| Item No. | NO LOAD | ON LOAD | LOAD TYPE | ||||
| BE2814-6 (1280KV) | VOLTAGE | CURRENT | SPEED | CURRENT | Sweater | Power | Battery/prop |
| V | HAS | rpm | HAS | g | W | ||
| 11.1 | 2 | 14400 | 21.8 | 790 | 242.0 | LiPox3/7x5E | |
| 24.7 | 1050 | 274.2 | LiPo x 3/8 x 4E | ||||
| 29 | 1330 | 321.9 | LiPox3/9x6E | ||||
| 14.8 | 2.2 | 19190 | 34.1 | 1250 | 504.7 | LiPox4/7x5E | |
| 38.5 | 1610 | 569.8 | LiPox4/8x4E | ||||
DYS final released BE series super strength out-runner multicopter dedicated brushless motor, The BE series motor is with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet. Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced. DYS BE Series multicopter dedicated motor perfectly compatible with more than 99% of commercially available brushless ESC.
BE2814-6
