Tamiya TT-02R Chassis Kit
€169.90
Tax included
47326
TT-02R Chassis Tamiya Build Kit - 47326
Optional and reinforced version of the TT-02.
Order now and receive it...
between 25 Feb and 2 Mar with Colissimo Points de retrait €7.90
between 25 Feb and 2 Mar with Colissimo Domicile €8.90
between 25 Feb and 2 Mar with Livraison en relais Pickup €7.90
between 25 Feb and 2 Mar with Livraison à domicile Predict sur créneau horaire €8.90
Hurry up! Only
1
item(s) left in Stock!
Limited edition reissue under the new reference 47326. The contents of the kit are the same as the old reference 84409.
This TT-02 chassis equipped with a multitude of options is ready for competition!
Parts Included:

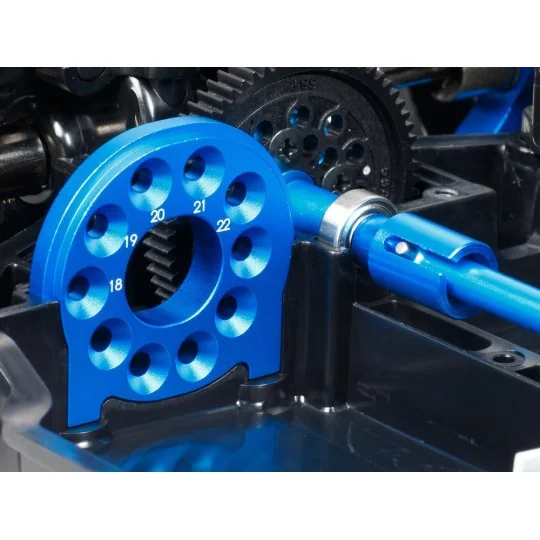

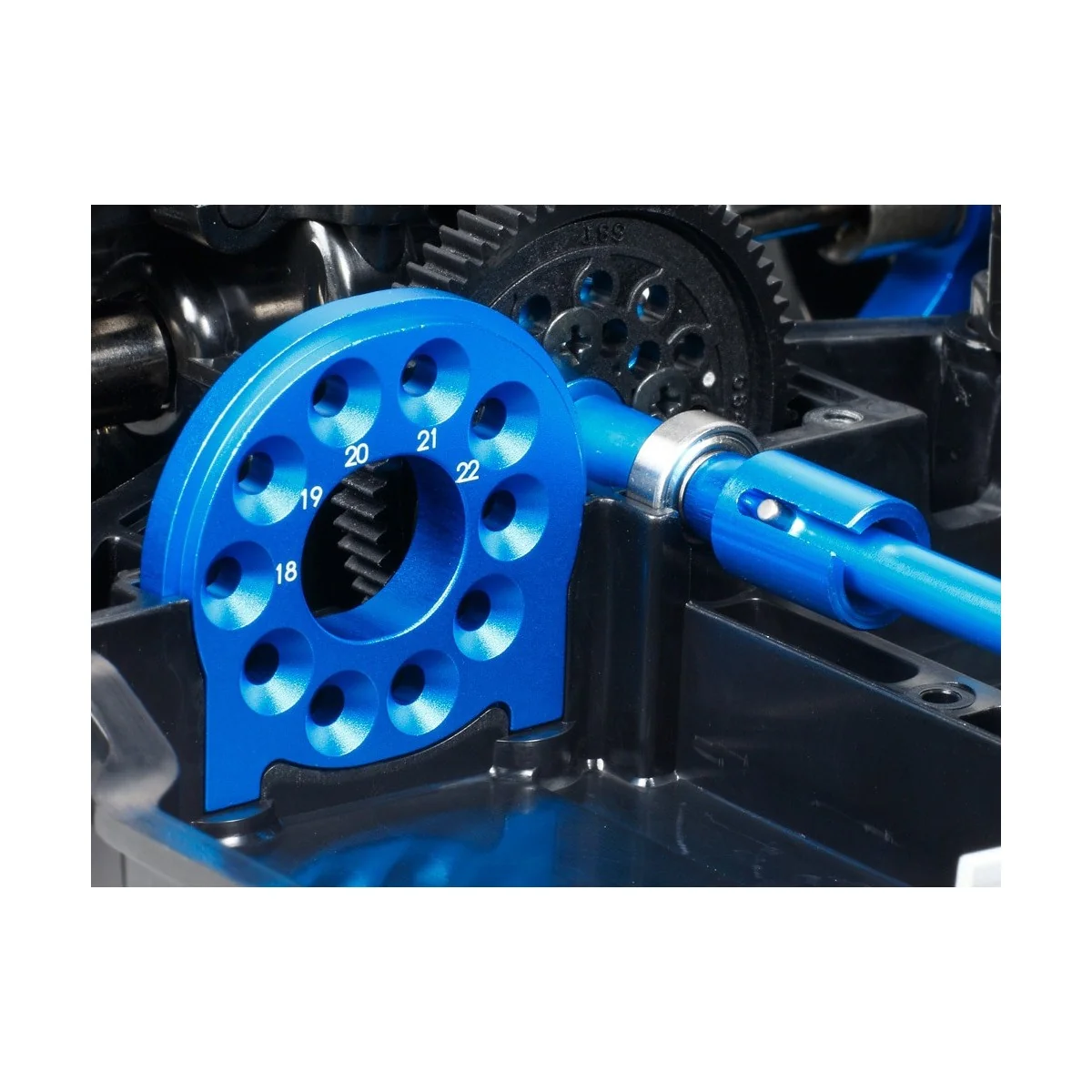

• A new aluminium motor mount

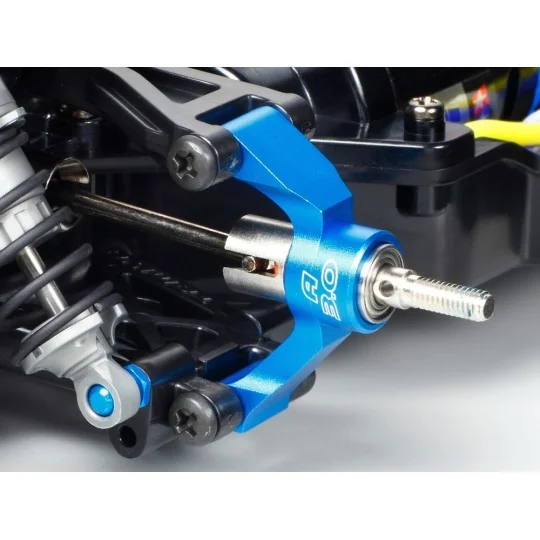

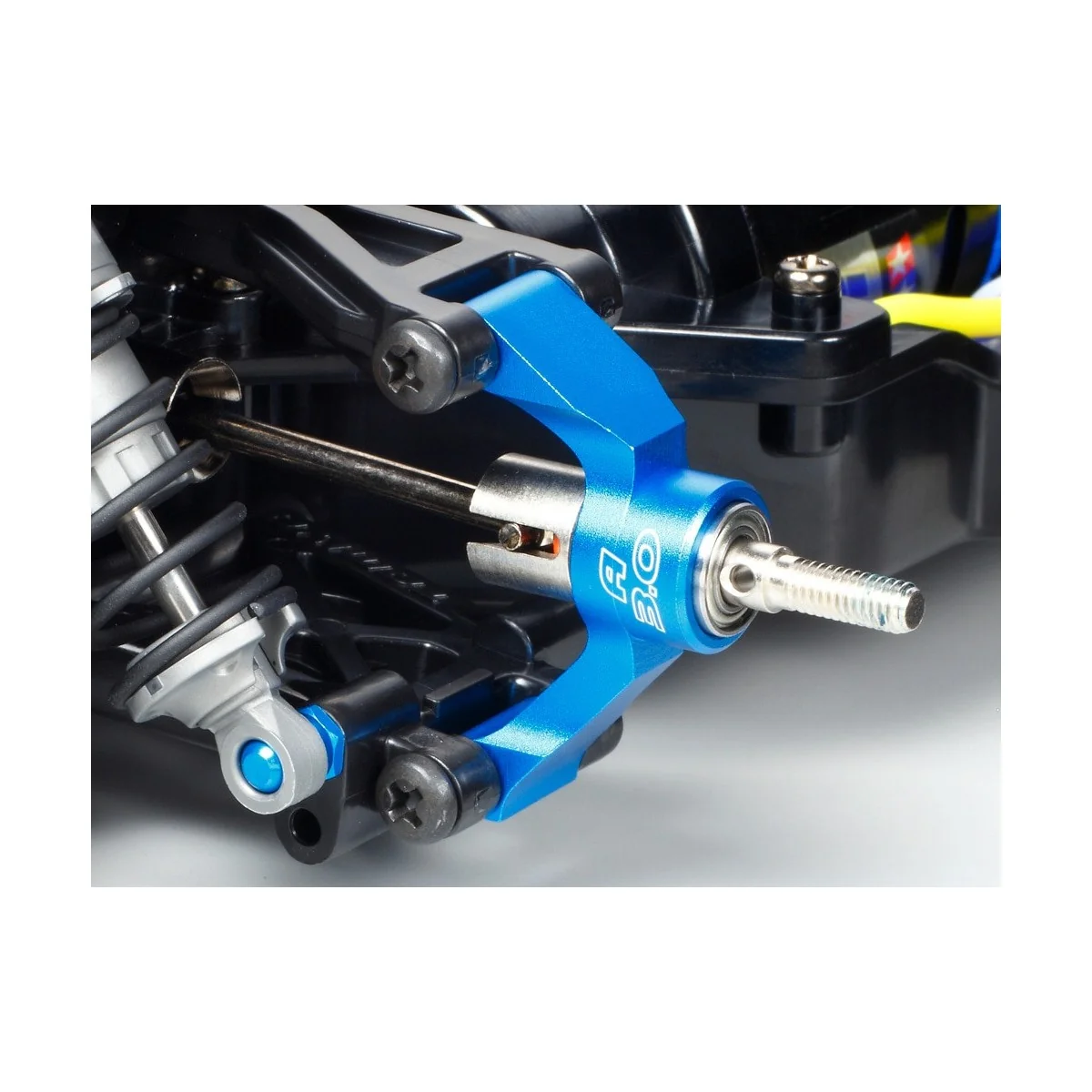

• 3° aluminum rear knuckles

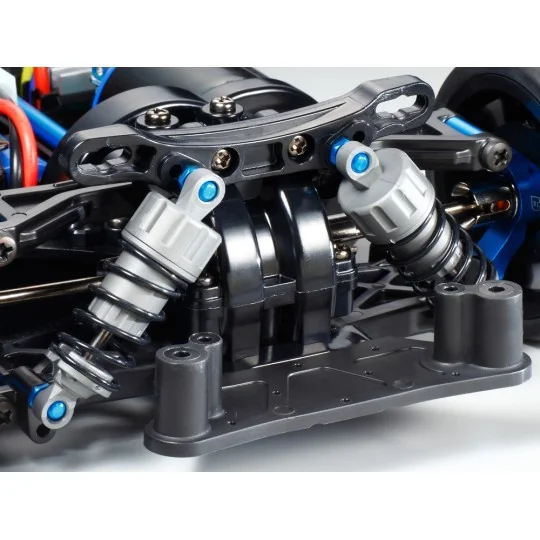

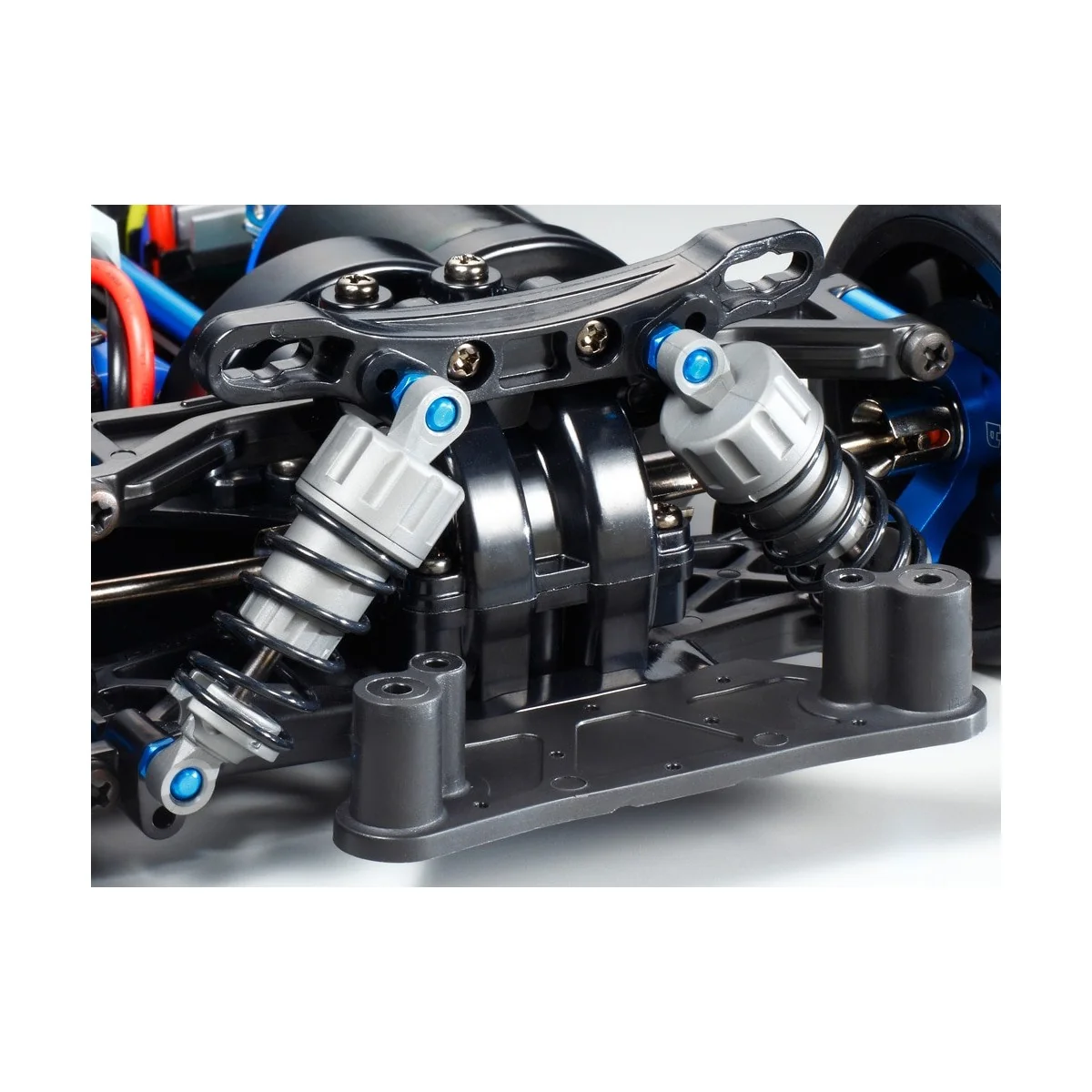

• Hydraulic shock absorbers
• A central aluminium universal shaft
• aluminium central cardan shaft nuts
• High-speed main ring gears (64 and 68DTS) with their aluminium support
• A set of bearings
• Steel differential nuts, wheel shafts and wheel axles
Tamiya TT-02 Type R Chassis Specific Options:
53159 Blue Aluminum Nuts 4mm
54247 Blue aluminum connecting rods 3x18mm
54501 Aluminum Gimbal
53642 Aluminium ball joints blue 5mm
54500 High Speed Ring
54502 Blue Aluminum Wheel Shafts
Bearing kit included
Hydraulic shock absorbers with black spring
Aluminium motor mount
Characteristics:
● Length: 376mm, Width: 182mm
● Wheelbase: 257 mm
● Tire width/diameter: 24/64 mm (front and rear)
● Bathtub-type frame
●4 Shaft Drive
● 4-bevel resin front/rear differentials
● 3-piece steering rod
● 4-wheel double wishbone suspension
● Front/rear CVA oil shock absorbers
● Includes 68T and 64T spur gears. Combine with sprockets sold separately for gear ratios from 9.82:1 to 5.74:1.
Inclusive:
4WD Assembly Kit, TT-02B Chassis, Complete Ball Bearings, Type 540 Engine Including Optional Parts, Polycarbonate Body, Shaft Drive, Double Wishbone Suspension, Spike Tires, Tubular Frame Chassis, User Guide
Equipment NOT included:
Lexan Body + Paint
Engine
Variator
2-channel radio + receiver
Power steering
7.2v battery + charger
Tires
