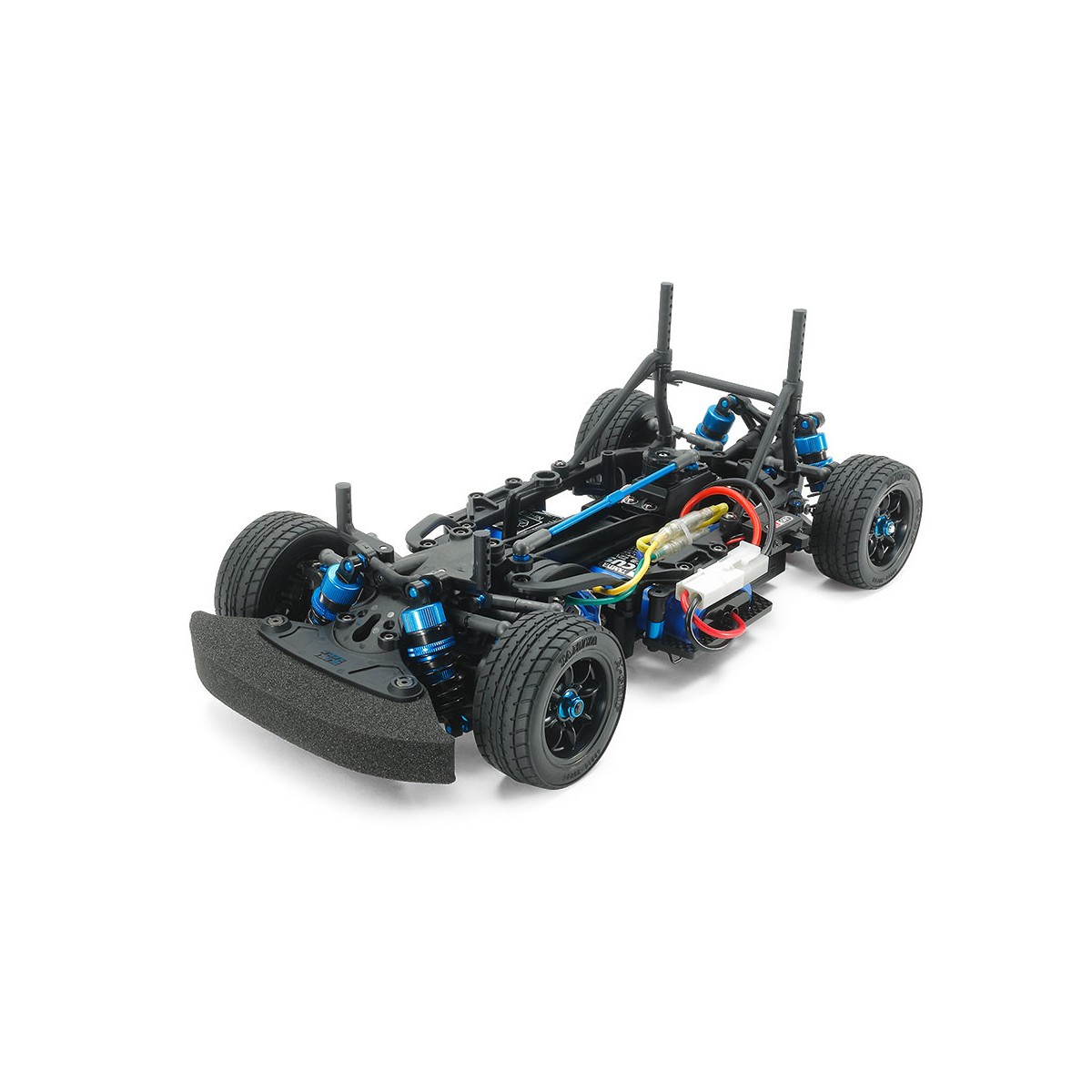

Tamiya M-07R Chassis Kit
€259.90
Tax included
47520
Tamiya M-07R Chassis Buildable Kit - 47520
Order now and receive it...
between 25 Feb and 2 Mar with Colissimo Points de retrait Free!
between 25 Feb and 2 Mar with Colissimo Domicile €2.50
between 25 Feb and 2 Mar with Livraison en relais Pickup Free!
between 25 Feb and 2 Mar with Livraison à domicile Predict sur créneau horaire €2.50
Hurry up! Only
1
item(s) left in Stock!
Limited edition reissue under the new reference 47326. The kit contents are the same as those of the old reference 84409.
This front-wheel-drive chassis takes the concept of the M-07 chassis and combines it with a wide range of optional parts selected by the Tamiya Racing Factory (TRF) team. The M-07R is the ideal option for anyone wanting to get into competition or have a high-performance car without having to choose optional parts themselves.
Optional parts included:
• High-Traction M-7 Concept lower plate (54812)

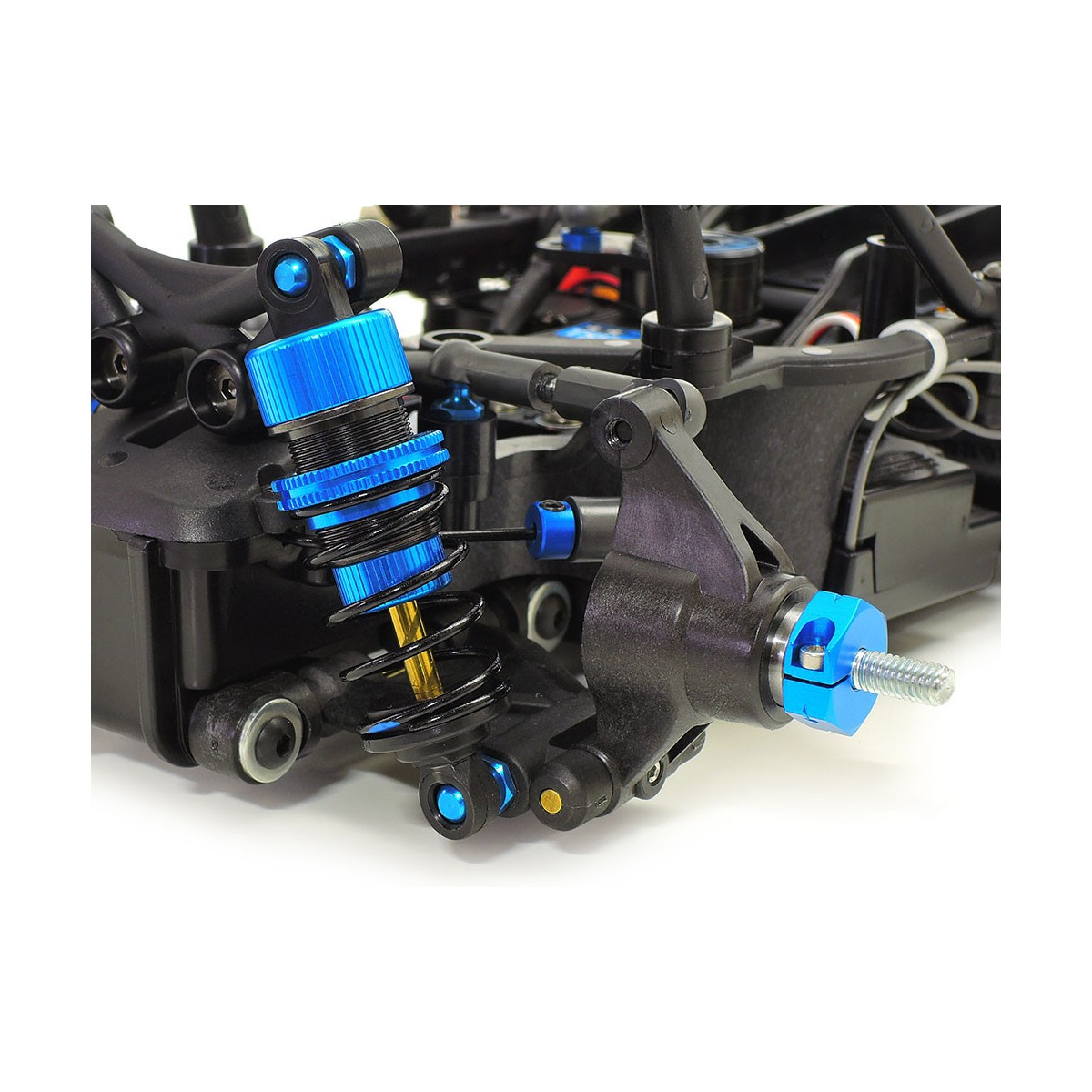

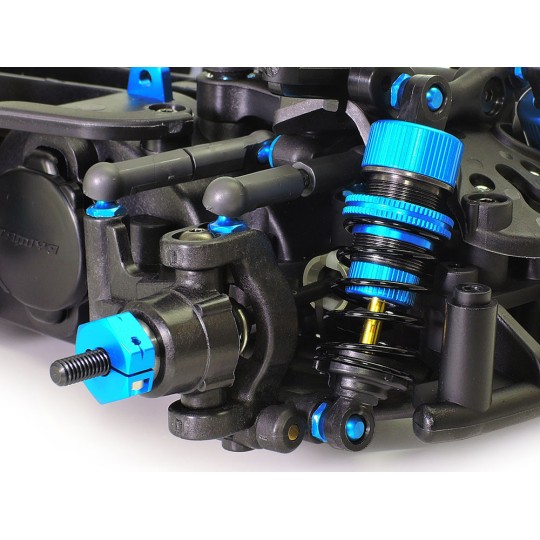

• TRF special shock absorbers (Hard black coating) (42102)
• M-07 Concept Reinforced Rockets 2 pcs (54810)
• Reinforced triangles M-07 Concept 2 pcs (54811)
• Articulated universal joint M-07 33mm 2 pcs (42312)
• 5mm aluminum wheel hexagons (53823)
• Rear stabilizer bar
• Differential nut TA06 2 pcs (54532)
• Reinforced aluminum motor pinion 0.6mm 20 teeth (53509)
• 2.6mm titanium reinforced axles for reversible suspension (53917)
• Reinforced titanium suspension axles 46mm 2 pcs (53851)
• Aluminum reverse thread connecting rods 3x106mm (54756)

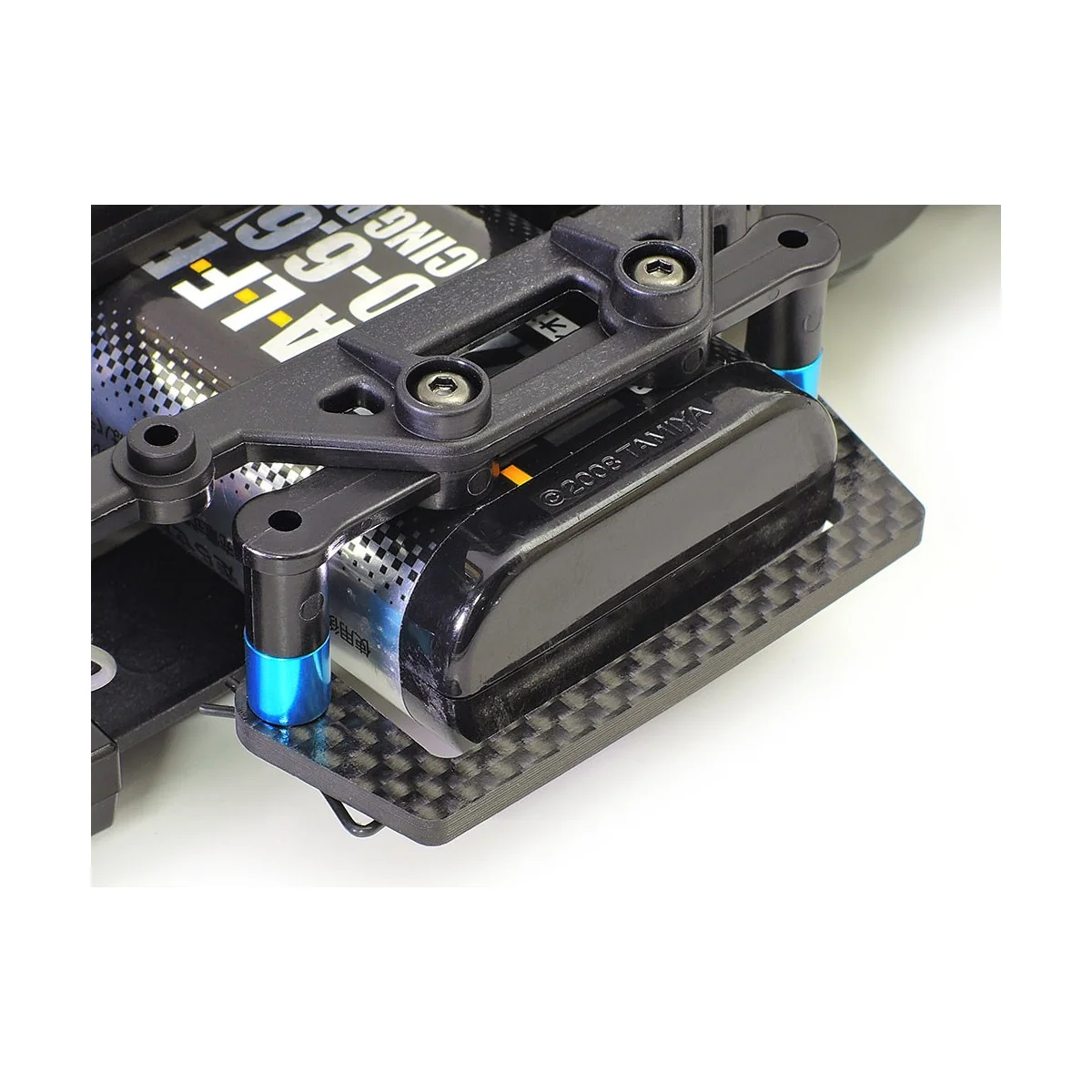

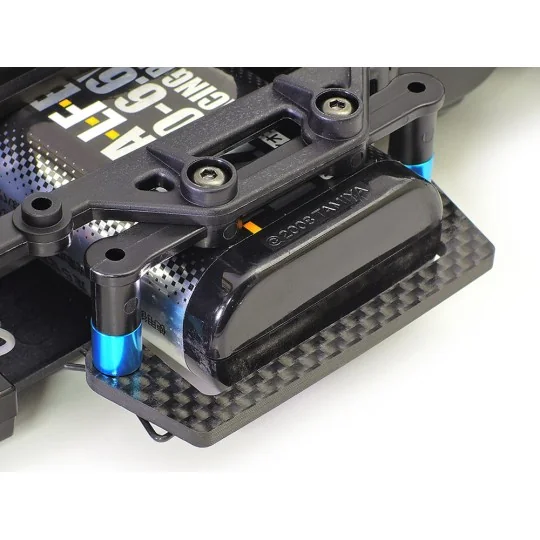

• Includes carbon fiber battery pack brackets specifically designed for this product.
Features :
●Length: 332 mm (including bumper)
●Width: 164 mm
● Wheelbase: 225 mm or 239 mm (your choice)
● Monocoque chassis
● Front mid-engine, front-wheel drive
● Oil-bath gear differential
● 3-piece steering tie rod
● Independent double wishbone suspension on all 4 wheels
● TRF Special Shock Absorbers
● Gear ratio = 5.78:1 with 20-tooth sprocket included (7.22:1 - 4.81:1 available with sprockets sold separately)
Equipment NOT included:
Lexan bodywork and paint
Engine
Variator
2-channel radio + receiver
Steering servo
7.2v Battery + Charger
Tires
