Expert DUO 2.0 Charger - 2x6A 12V/230V Carson

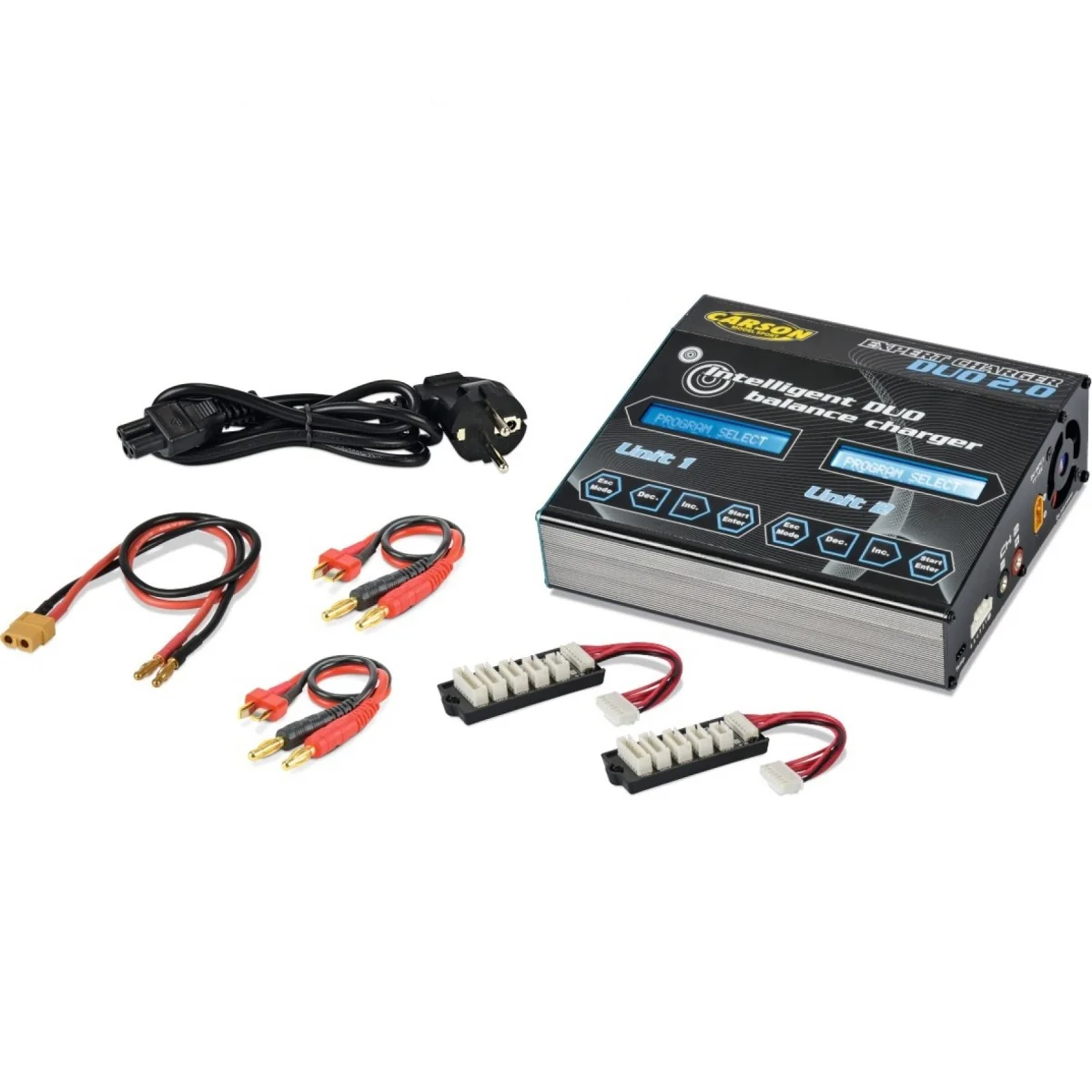

The CARSON Expert Charger DUO 2.0 is a dual-output charger with numerous professional functions. It charges all types of batteries from 1V to 20V with a current of 0.1 to 10A. This practical charger is extremely powerful and suitable for conventional NiMH/lead-acid batteries as well as modern lithium batteries (LiIon/LiPo/LiFe). It also functions as a precise battery charge level indicator.

The key feature is the memory function, which allows you to easily store and recall up to five battery data points. The clear blue LCD display shows the battery voltage, current charging current, charging time, and charged capacity. The balancer ensures that all cells in the LiXXX packs have the same final charging voltage. The Expert Charger Station is well-equipped and very easy to use.

Features :

- Charging current up to 50W per output
- Large blue backlit LCD screen
- Charge/discharge function
- LiPo/LiIon/LiFe 1-6 cells
- 3-24V power supply function
- 12V or 230V connection
- Includes balancing adapter, TAMIYA charging cable & T Plug

Technical specifications:

- Input voltage: 230 V or 11-18 V
- Charging current: 0.1-10 A (max. 50W per output)
- Delta-Peak stop
- Car charging current 1 C at input capacity
- Discharge current: 0.1 to 2.0 A (max. 5W per output)
- Selectable discharge current cutoff for a cell voltage
- 1 to 6 Li-XX cells (lithium-ion/polymer/iron oxide)
- 1 to 15 NiMH/NiCd cells, 2 to 24V lead-acid (Pb) cells, integrated balancer from 2.45 to 24.5V, tolerance +/- 0.01V, balancing current of 250mA
- Charging cable with XT60 and T-plug (Dean) and XHP charging cables
- Power supply function 3V to 24V (1A to 6A)
- Aluminum casing
- Weight: approximately 930g
- Dimensions: approximately 170 x 150 x 55 mm

Box contents:
