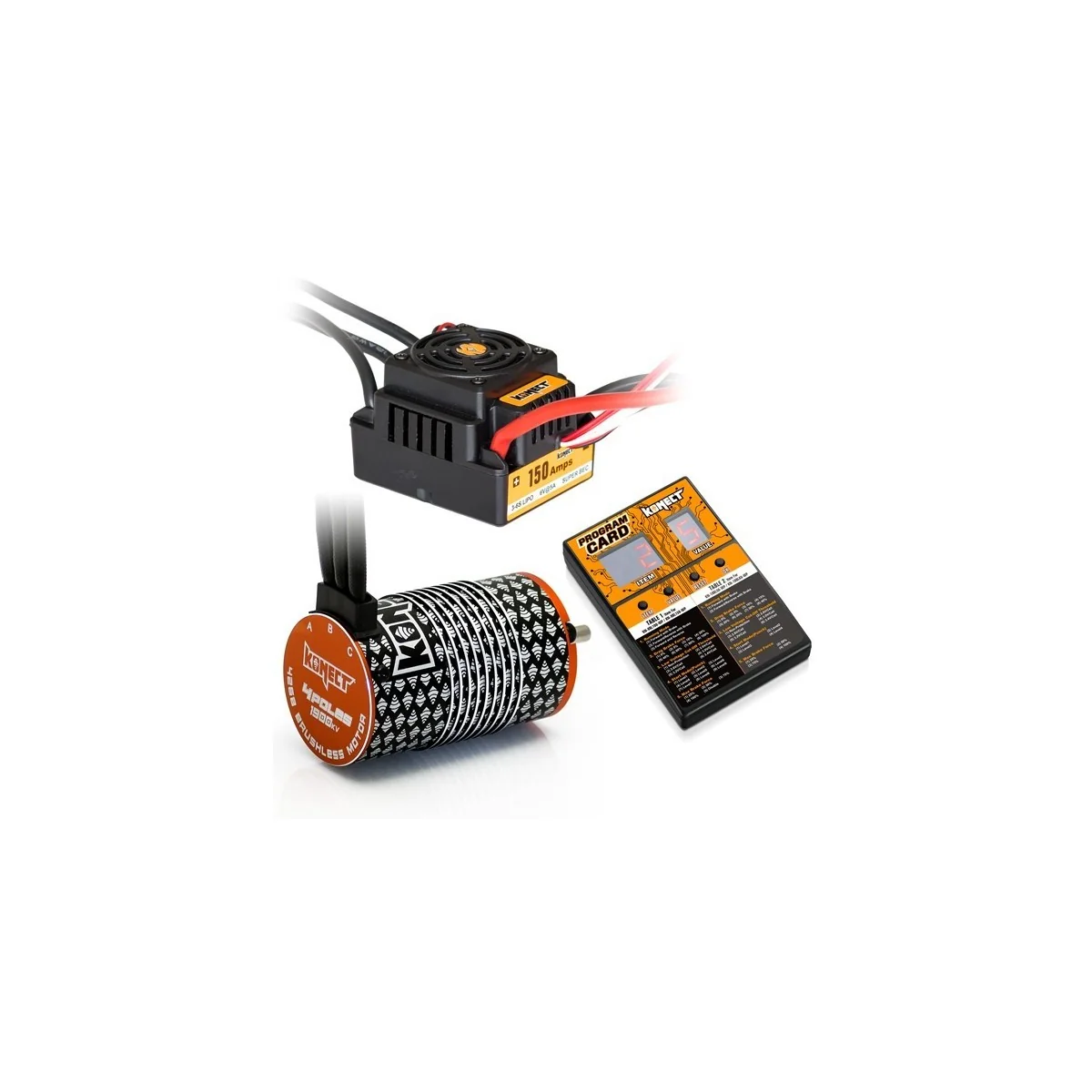

Combo brushless 1/8 ESC WP 150A - engine 1900kv 4P 4268 - Prog Konect card

This Konect combo is made by Hobbywing and is designed for 1/8th competitive buggies (between 4 and 5 kg) or cars that drive in 6S. Because of its 68mm length, it is ideal for 1/8th buuggies that cannot accommodate longer engines (74mm). It comes with a 1900Kv engine, a 150A controller and a programming card. The combo comes wired.

Konect Variator 150Amp WP
Sensorless motor compatible.
Power 150A continuously.
Power 950A at the top.
Resistance 0.0008 ohm
Power 9 to 18 Elements Nimh
Diet 3 to 6S in Lipo (from 11.1 to 22.2 v)
BEC 6 3A.
Dimensions 59.5 mm(L) x 48 mm(l) x 42 mm (H) with fan
Weight 178g

Konect Engine 1900KV
Engine Type 4268 Brushless 4 Poles 1/10" Sensorless 1900KV
Engine axis: 5 mm
Cage diameter: 42 mm
Engine length; 68 mm

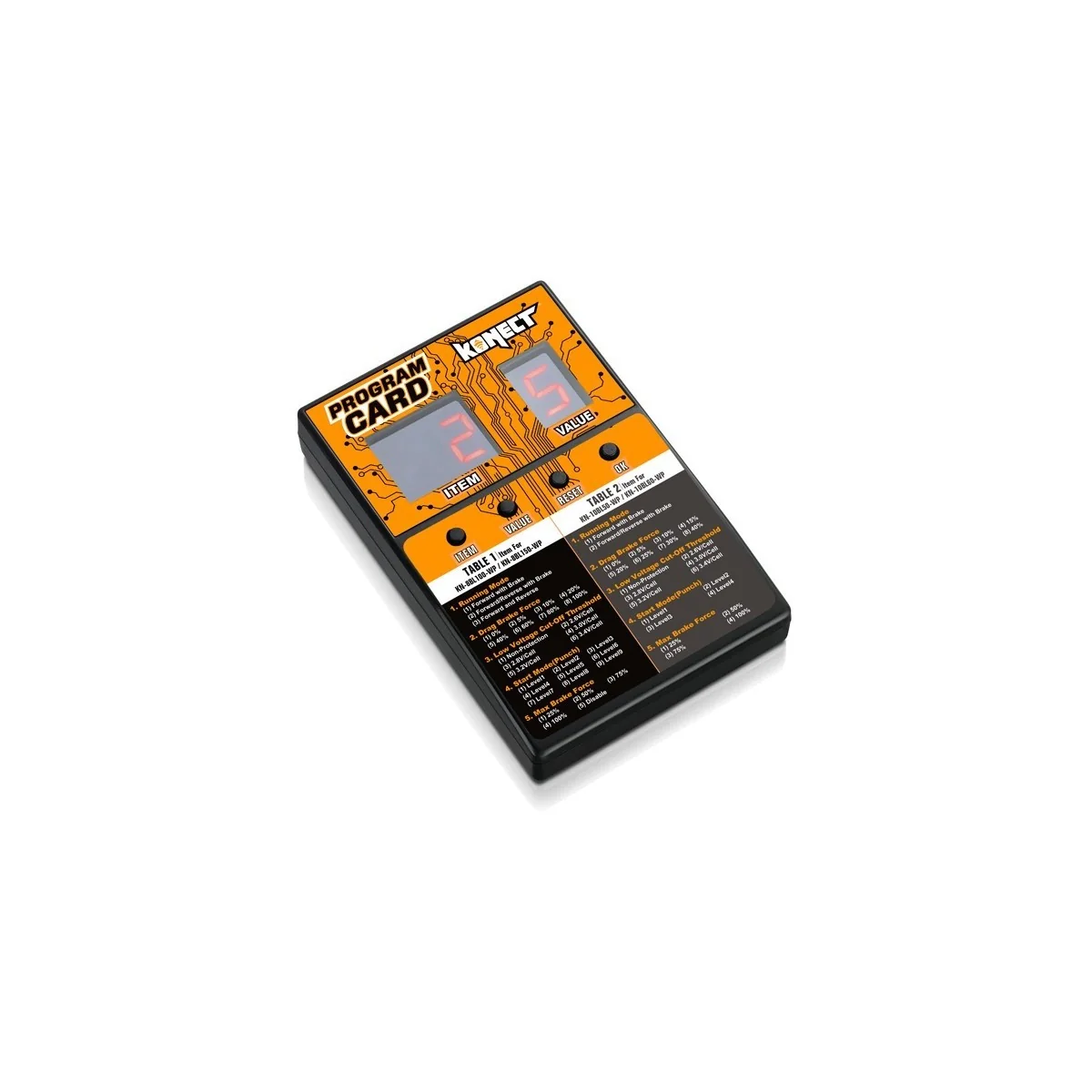

Konect programming map

The programming card plugs into the fan socket via a cable provided in the box
It is possible to settle:
- The mode of operation: front-brake - front-stop brake
- Drag brake: from 0 to 40%
- Cut voltage: from 2.8V to 3.4V per cell or no protection
- The punch at the start: Level 1 to 4
- Braking force: 25, 50, 75 or 100%
