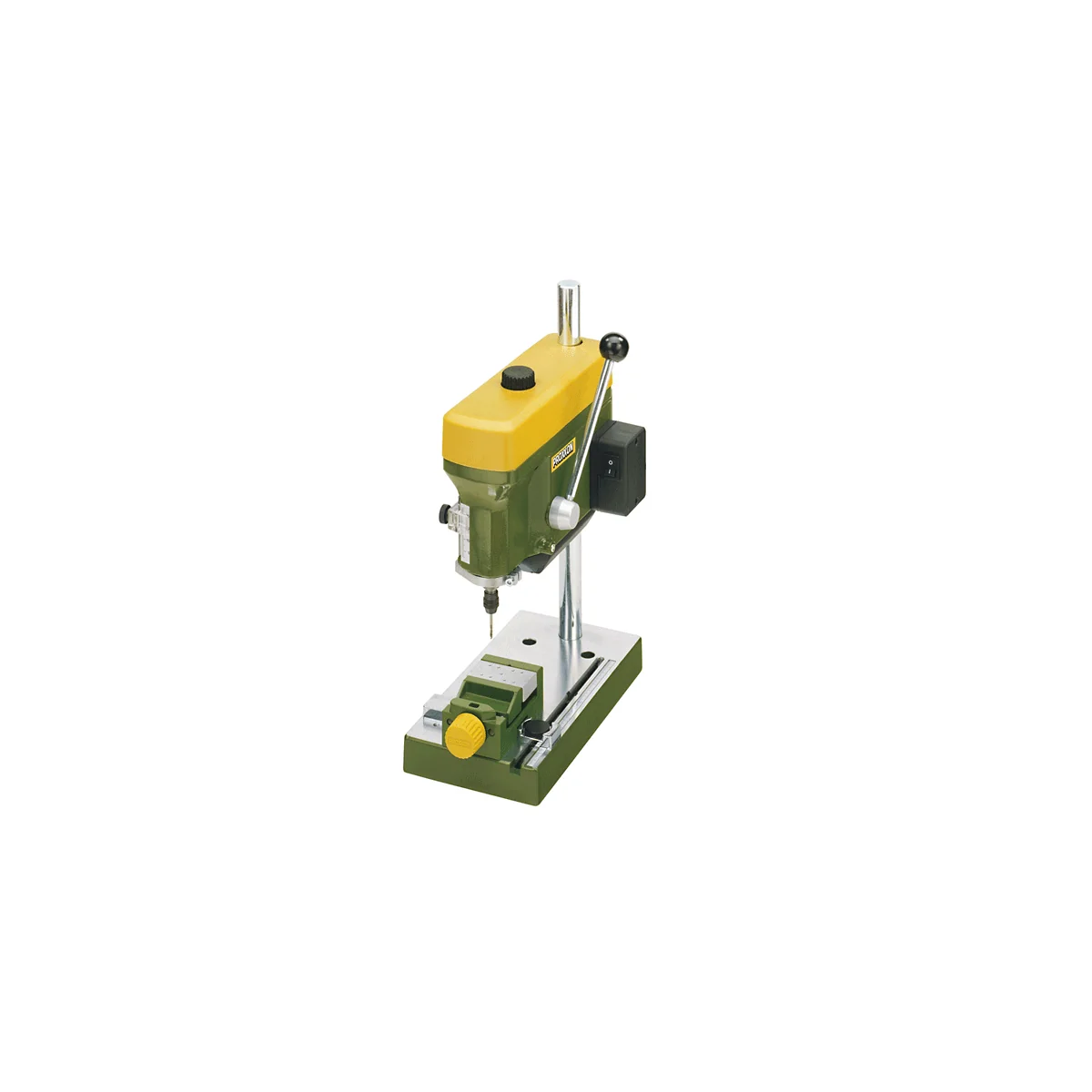

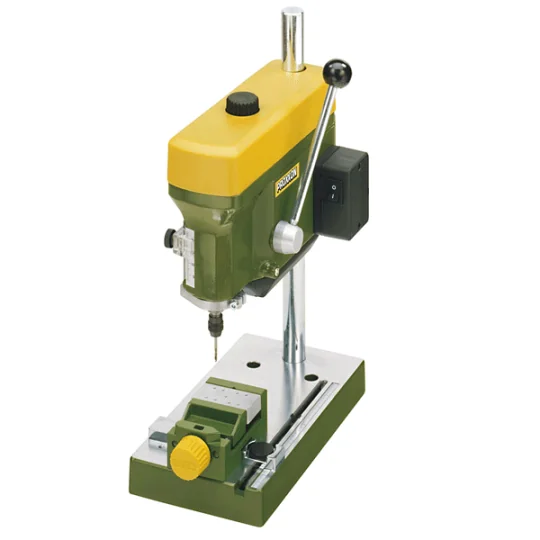

TBM 220 - Proxxon 3-speed bench drill with 6 collets from 1.0 to 3.2 mm - PRX-28128

- 3 speed settings by belt movement for triple torque at low speed.
- Practical indication of drilling depth with adjustable stop.
- The advantageous MS 4 machine vise made of die-cast zinc (not supplied with the TBM 220).
- Comes with 6 MICROMOT steel clips.

Flat milled cast aluminum worktable, die-cast (220 x 120 mm) with parallel stop and graduation and threaded holes for fixing the KT 70 MICRO-coordinate table.

Solid steel column (20 x 340 mm). Die-cast aluminum console with machined guides and adjustments. High-quality, VDE-certified motor that is extremely quiet and very durable. 3-speed belt drive. Belt movement provides three rotation speeds and triple the torque at low speeds. Convenient adjustable depth stop indicator.

Technical data:

230 V. 85 W. 50–60 Hz. Spindle speeds: 1,800, 4,700, and 8,500 rpm. Reach (from the inside of the column to the center of the tool): 140 mm. Spindle quill travel: 30 mm. Accessory clamping via 6 triple-slotted steel MICROMOT collets (1, 1.5, 2, 2.4, 3, and 3.2 mm). 3/8" thread for attaching a geared chuck. Weight: 3.3 kg.

Toothed crown chuck (optional)

For rods from 0.5 to 6.5 mm. Industrial finish with very precise concentricity (up to 10,000 rpm). 3/8" thread, compatible with the TBM 220.

NO 28 122

MICROMOT MS 4 machine vise (optional)

Made of cast aluminum. Three milled bearing surfaces. With a groove, also compatible with the longitudinal stop of the TBM 220 bench drill, and the MB 140/S and MB 200 drill stands. Vertical and horizontal prism for round materials. Jaw width 50 mm. Jaw height 10 mm. Maximum jaw opening 34 mm.

NO 28 132

KT 70 MICRO-coordinate table
Made of high-tensile-strength aluminum (densified surface) with adjustable dovetail slides. Three longitudinal T-slots (MICROMOT standard 12 x 6 x 5 mm). Sliding scale for easy transverse positioning of the carriage. Knobs with repositionable vernier scale: 1 turn = 1 mm, 1 graduation = 0.05 mm advance. Supplied with clamps and mounting hardware for the MB 140/S , MB 200, and TBM 220. Table dimensions: 200 x 70 mm. X-axis (longitudinal) adjustment: 134 mm, Y-axis (depth) adjustment: 46 mm, height adjustment: 43 mm.

NO 27 100
