KG 80 - Tab saw 2 to 45-4000 rpm Proxxon
€249.00
Tax included
PRX-27160

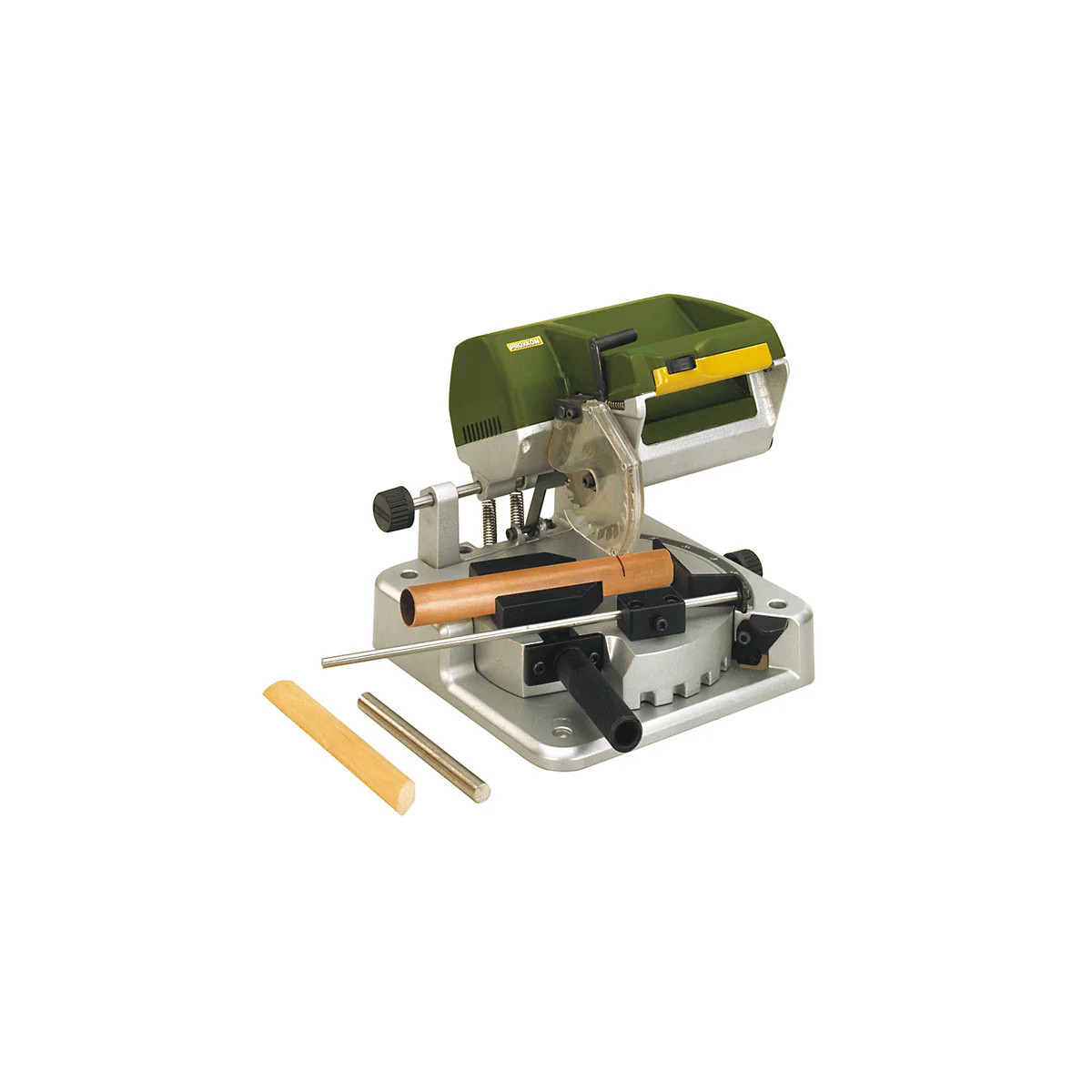

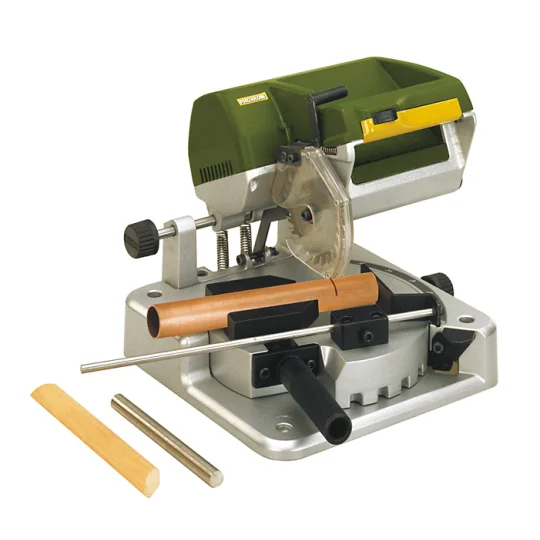

KG 80 - Tab saw 2 to 45 degrees 4000 rpm Proxxon - 27160
The advantage for tab cuts: the setting is not done on the head of the saw but at the round table (with fixed piece)!
Order now and receive it...
between 25 Feb and 2 Mar with Colissimo Points de retrait Free!
between 25 Feb and 2 Mar with Colissimo Domicile €2.50
between 25 Feb and 2 Mar with Livraison en relais Pickup Free!
between 25 Feb and 2 Mar with Livraison à domicile Predict sur créneau horaire €2.50
Hurry up! Only
1
item(s) left in Stock!
- Lateral adjustment of the saw head for positioning the blade as close to the nod, allowing vibration-free cutting and clean cutting!
- With longitudinal stop (maximum length 300 mm).
- Ergonomic handle with built-in switch and unlocked head control.
- Aluminium cast iron guided table. Bilateral tightening, gradually orientable up to 45 degrees. Blocking at 15 degrees.
- Built-in tightening device with central noose. V-shaped rain (for round parts). Front groove for fixing small parts.
The advantage for tab cuts: the setting is not done on the head of the saw but at the round table (with fixed piece)!
The longitudinal stop allows, by the opposite rotation of the table of 2 x 45 degrees, to achieve the counter-angle for a second element of the same length by simple tipping. Powerful and very quiet DC engine. Transmission of power by anti-vibration notch belt. With hard metal saw blade for non-ferrous metals, wood and plastics (80 x 1.6 x 10 mm, 36 d).
Other technical features:
230 V. 200 W. 50/60 Hz. 6,000 t/mn. Base with high-pressure aluminum cast iron round table and guided and adjusted by CNC-controlled machines. Table 230 x 230 mm. Weight 6 kg. Cutting capacity, cf. table.
Cutting capacity at 90 degrees (right-angle cut):
| Maximum thickness (in mm) |
Maximum width (in mm) |
Round pieces (in mm) |
| 10 18 21 25 |
65 50 40 25 |
Max 25 |
Cutting capacity at 45 degrees (tab cut):
| Maximum thickness (in mm) |
Maximum width (in mm) |
Round pieces (in mm) |
| 5 10 15 20 |
36 30 25 18 |
Max 20 |
Reinforced cutting disc.
Corindon agglomerated and resistant to rupture. For the cutting of allied and non-allied steels, stainless steels and non-ferrous metals. Also suitable for wood and plastics.
NO. 28,729 80 x 1 x 10 mm
Hard metal circular saw blades with carbide wafers (36 d).
Extremely sharp cut thanks to the high number of teeth when cutting balsa, plywood and soft wood, and fiberglass turntables. Also suitable for cutting hardwood, polycarbonate, plastics and aluminum. Also for table saw Fet.
NO. 28,732 80 x 1.6 x 10 mm
