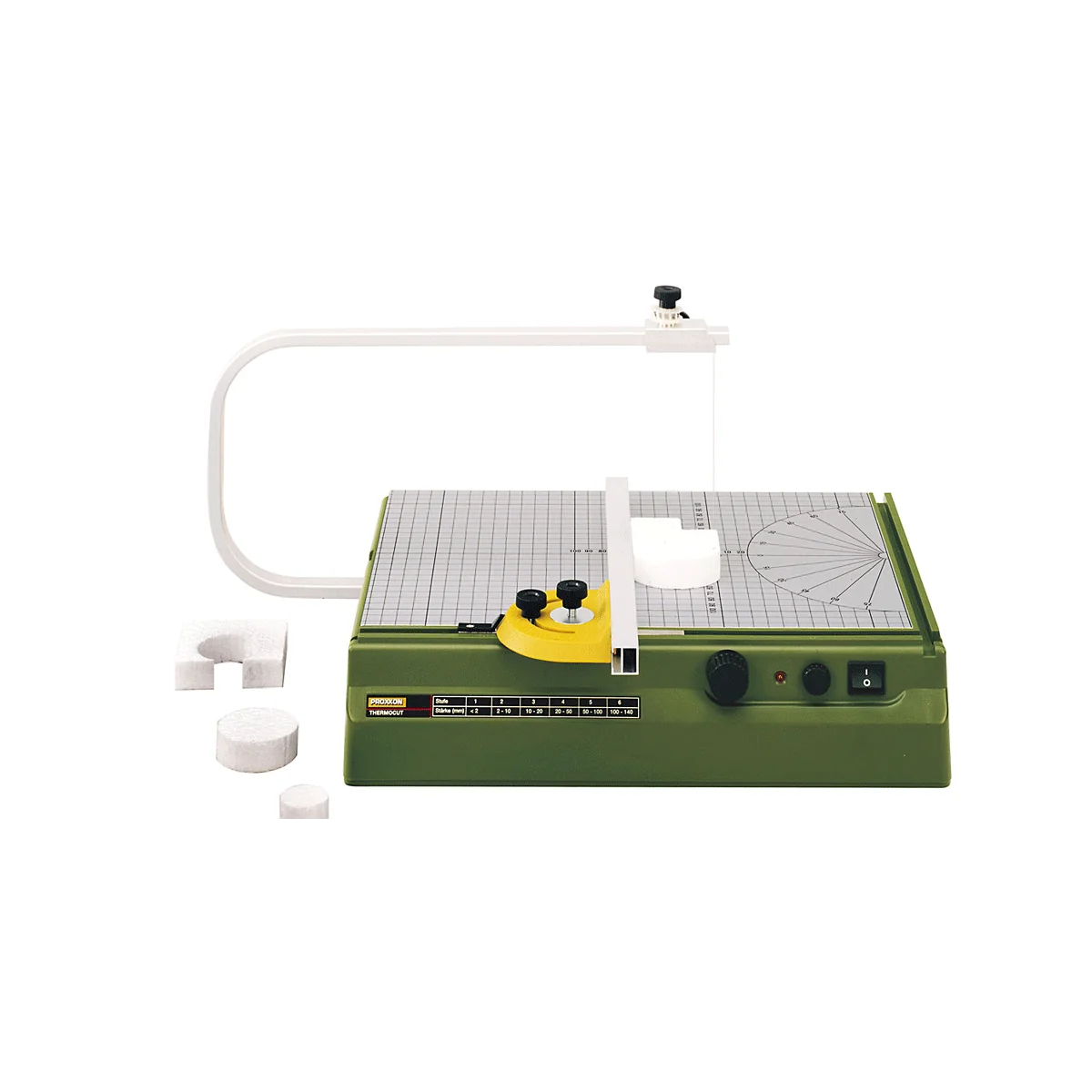

THERMOCUT 230/E - Hot wire cutter for polystyrene and Proxxon plastic film
€113.00
Tax included

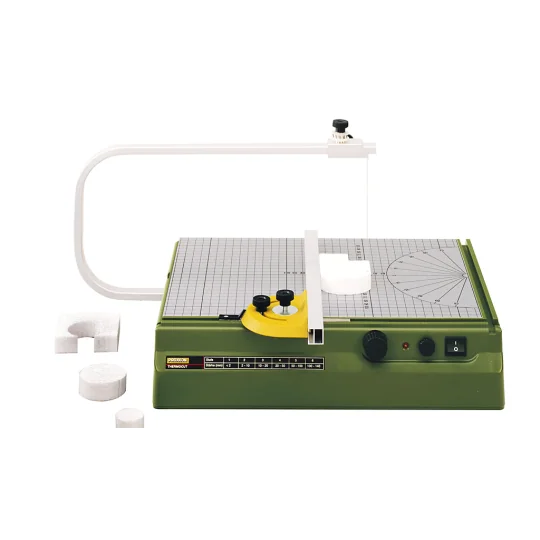

THERMOCUT 230/E - Polystyrene hot wire cutter and Proxxon thermoplastic film - 27080
For architectural models, for designers, decorators, artists (also for practical work of applied art) and for the construction of prototypes. In course for the classic model (trains, planes, boats).
Order now and receive it...
between 19 Mar and 24 Mar with Colissimo Points de retrait €7.90
between 19 Mar and 24 Mar with Colissimo Domicile €8.90
between 19 Mar and 24 Mar with DPD Livraison en relais Pickup €7.90
between 19 Mar and 24 Mar with DPD Livraison à domicile Predict €8.90
between today and 24 Mar with Magasin Next Model RC / Univers Train Free!
Hurry up! Only
1
item(s) left in Stock!
Aluminium composite table for easy and regular sliding of cutting parts. Cut marks and screen-printed angles.
For architectural models, for designers, decorators, artists (also for practical work of applied art) and for the construction of prototypes. In course for the classic model (trains, planes, boats).
Stable construction and surface of 390 x 280 mm in aluminum composite material. Structured surface, allowing a regular sliding of the cutting piece. The screen-printed frame and angle design makes practical work easier. Solid aluminum arch (350 mm range and 140 mm crossing height). With stirrup and coil (delivered with 30 m of wire - 0.2 mm). Tab cuts are possible by sliding the stirrup. An LED light prevents you from burning your fingers, as the hot wire reaches its full temperature in less than a second.
The correct temperature (depending on material and thickness) is determined with a little sensitivity and exercise. An optimal cut is obtained rather with a measured temperature and pressure.
Important:
With the built-in separation transformer and Class 2 insulation protection, this device is perfectly safe. The heating elements work with a current of 10V to 1 A.
Other technical data:
230 V, 50/60 Hz. Secondary Transfo: max. 10 V for 1 A. Temperature of 0.2 mm adjustable cut wire of about. 100 to 200 degrees Celsius. Weight about 3 kg. Protection insulation Class 2.
A simple and effective solution for circular cutouts: attach an upturned bug to the tray with duct tape. It then serves as a central axis.
Two-functional stop with lockable guide (German patent 100 00 102.5).
Note:
Styrofoam is a cheap material, very ecophilic compared to other materials and can be easily cut with a hot yarn. This material is available in almost all DIY stores in the form of plates in standard size of 50 x 100 cm and in thickness of 2 to 16 mm.
Replacement wire (optional)
For THERMOCUT 230/E and other hot phone cutters. Material: NiCr 8020. 30m x 0.2mm reel.
NO. 28,080
PRX-27080
Specific References
- EAN13
- 4006274270800
