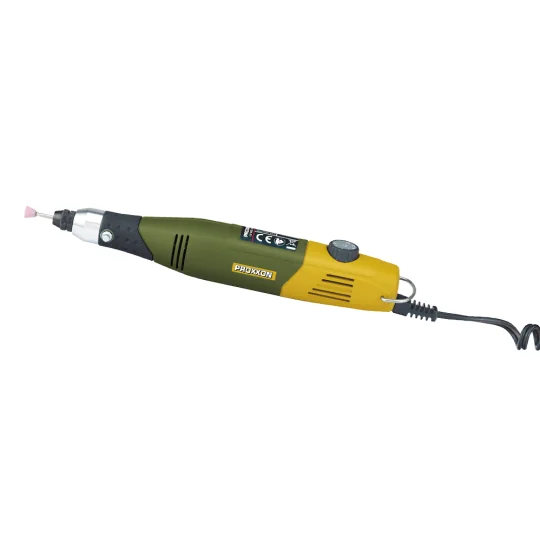

MICROMOT 60/E - 12V milling drill, regul, with 6 Proxxon pliers

MICROMOT 60/E Strawberry Drill

Particularly handy thanks to their 35 mm diameter, they also have a reduced weight (approximately 230 g), pleasant noise and flexible operation thanks to a balanced engine and the rectified axis mounted on ball bearings. The use of high-quality steel MICROMOT clamps (see description below) allows for an extremely concentric tightening of the smallest tool tails. There is no grazing or bumps of the tool.

The use of MICROMOT 60 devices requires a transformer. We recommend microMOT NG 2 transformers.

1. 20mm collar attachment system allows use with the MB 200 vertical support and the UHZ universal support.
2. Robust polyAMIDE case reinforced with fiberglass. With flexible component in the grip area.
3. Electronic progressive adjustment of the feedback-effect rotation regime. For high drive power at low revs.

• To pierce, mill, sand, polish, brush, cut and burn. For the processing of steel, precious metals, glass, ceramics, plastic and minerals.
• With low voltage safety voltage. Suitable for working with cooling liquid (polishing and cutting under liquid).
• For electronics do-it-yourselfers, modellers, precision mechanics, goldsmiths, opticians, sculptors, pedicures, dentists, tool and mold manufacturing.

Setting electronic progressive rotation and power regime high-level low-speed training. Tool holders by clamps MICROMOT steel (1 Exhibit 1 - 1.5 - 2 - 2.4 - 3 and 3.2 mm).

Note:

The speed control of our 12-volt units only works with unstabilized power supplies (e.g. all MICROMOT transformers). A connection to stabilized power supplies is possible. However, the devices then operate at maximum speeds (this also applies to battery power).

Note:
MicroMOT steel clamps are soaked, giving them a high and constant elasticity . They retain the necessary precision even after long use (incomparable to unstipped clamps with 4 slots or brass or aluminum clamps. The triple slot which is much more difficult to achieve than a quadruple slot, allows for a better seating. This is particularly important for the centering of small diameter stems.

Technical data:

Continuous current 12 - 18 V.
40 W.
5,000 - 20,000/min.
Length of 220 mm.
Weight 230 g.

Appropriate accessories:

FS foot switch
Work with your hands free. For all devices with a European plug (class 2) and a power of up to 500 W max. Also suitable for set-up devices. A fibreglass-reinforced NYLON case. Cordon 250 cm for sector 230 V. 50 cm of cable out. For 12V devices, the switch can be plugged into the transformer.

NO. 28,700

MICROMOT electric extension cord
Three trillion inches. For 12-volt aircraft. Male and female sheets with polarity.

NO. 28,992
