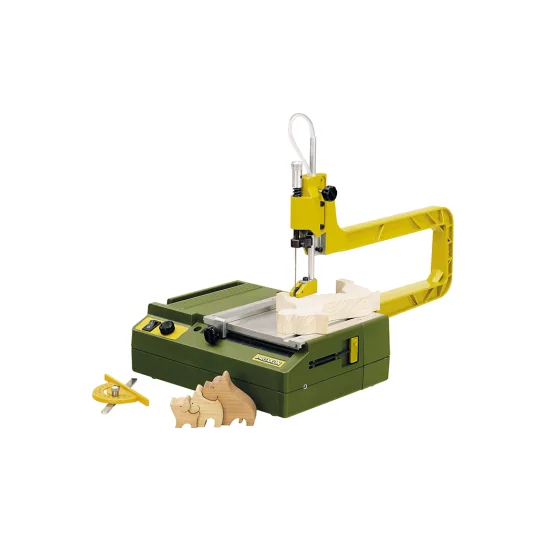

DS 230/E - Proxxon Cutting Saw - 27088

With electronic speed adjustment. The ideal device for precision work in model making, toy construction and precision mechanics.

Order now and receive it...

26 Feb with Pré-commande Free!

between 27 Feb and 4 Mar with Colissimo Points de retrait €7.90

between 27 Feb and 4 Mar with Colissimo Domicile €8.90

between 27 Feb and 4 Mar with Livraison en relais Pickup €7.90

between 27 Feb and 4 Mar with Livraison à domicile Predict sur créneau horaire €8.90

Hurry up! Only 1 item(s) left in Stock!

Description
Product Details

With electronic speed adjustment. The ideal device for precision work in model making, toy construction and precision mechanics.

For cutting soft wood up to 40 mm, hard up to 10 mm, plastic (also turntables) up to approx. 4 mm and non-ferrous metal up to 2 mm. Die-cast aluminum sawing caliper with transverse ribs (span 300 mm). Built-in blower blade guide. Height adjustable head (3 positions) resulting in 2 important advantages (see description on the right).

DC engine, silent and resistant. Silent drive by toothed belt and stop with division scale. Comes with 5 blades (3 in coarse tooth and 2 in fine tooth).

Technical data:
230 V. 85 W. Electronic control from 150 to 2,500/min. Weight 2 kg.

Height-adjustable head (EP patent 09783341), bringing undeniable advantages (see below).
Lifespan of the blades tripled after the 2nd lowering (use of teeth also on the middle part).
In the lower position, the work is even more precise thanks to a blade reduced to 60 mm.

A suction tip allows for clean work. We recommend the use of our compact CW-matic workshop vacuum cleaner.

Super-Cut cutting saw blades

Special high performance steel for high cutting capacity. Standard finish (without through ergot).

For hard and soft wood, plastic, plexiglass and soft nonferrous metal.

Coarse teeth (No. 9: 14 teeth by 25 mm):
NO. 28,116     130 x 1.50 x 0.48 mm 12 pieces

Medium tooth (No.5: 17 teeth by 25 mm):
NO. 28,117     130 x 1.20 x 0.38 mm 12 pieces

Fine teeth (No.3: 20 teeth by 25 mm):
NO. 28,118     130 x 0.80 x 0.34 mm 12 pieces

For hard materials such as iron and PERTINAX.

Medium tooth (No.5: 36 teeth by 25 mm):
NO. 28,112     130 x 0.85 x 0.4 mm 12 pieces

Fine teeth (No.3: 41 teeth by 25 mm):
NO. 28,113     130 x 0.75 x 0.36 mm 12 pieces

Ultrafine teeth (No.1: 50 teeth by 25 mm):
NO. 28,114     130 x 0.6 x 0.3 mm 12 pieces
