PD 250/E - Precision lathe - 250mm between centers Proxxon

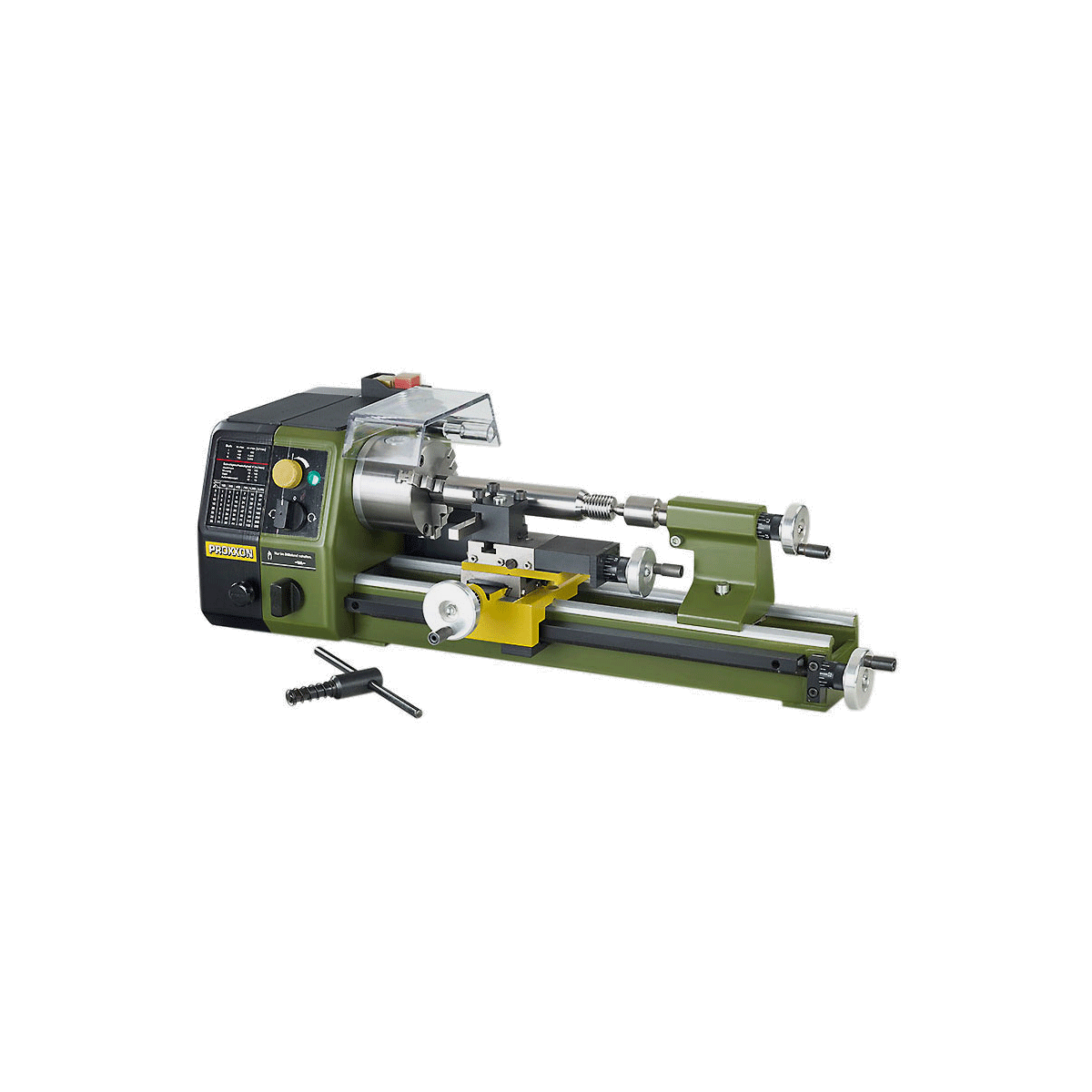

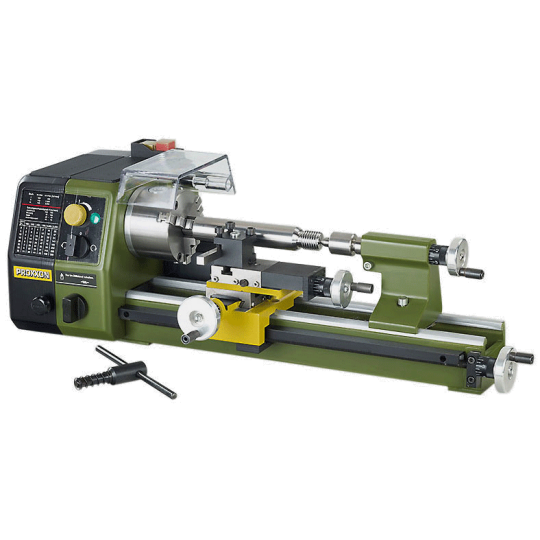

Proxxon PD 250/E precision lathe, reference 24002.

For flat turning, longitudinal and conical turning, and threading. For machining steel, brass, aluminum, and plastic. Mounting flange for the PF 230 drilling and milling attachment.

Distance between centers 250mm.
Height of the spikes 70mm.
Height above the support: 43mm.

Machine bench: Cast iron construction with prismatic guide. For vibration-free operation, even under high loads. Rear mounting point for the PF 230 milling machine. Covered leadscrew.

TREE : Made of die-cast aluminum. Precision guided main spindle (concentricity without chuck 1/100 mm) with a 10.5 mm bore. 70 mm hollow chuck side, drilled to 14 mm. With MT 2 adjustment. Switchable for automatic feed selector: 0.05 or 0.1 mm/rev.

Doll : Made of die-cast aluminum. Pinole Ø 18 mm, extendable up to 30 mm. With millimeter scale, CM 1 adjustment and rotating tip.

Support: Die-cast zinc bed. Cross slide and small steel slide (60 or 45 mm stroke). Rotating tool holder for 8 x 8 mm turning steel.

Training : Special quiet DC motor with a 3-speed belt drive for 300, 900, and 3,000 rpm. Features additional speed control (full-wave electronic), with continuously adjustable speeds of 100, 300, or 1,000 rpm depending on the belt drive. Rotates clockwise and counterclockwise. Includes a relay switch with emergency stop and restart protection.

Mandrin: 3 high-quality jaws according to DIN 8386 class 1 (concentricity tolerance 0.04 mm). Clamping range with reversible jaws: 2–75 mm. With chuck guard and safety stop.

Cranks: Made of aluminium, with adjustable scale ring (1 bar = 0.05 mm, 1 turn = 1 mm).

Threading equipment: With changing crank for left and right thread with main graduations (pitch of 0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5).

Other technical data:

230 V. 50/60 Hz.
Dimensions 560 x 270 x 170 mm.
Weight approx. 12 kg.

Accessories for PD 250/E:

Radial turning device - 24062

Mounts on the cross slide in place of the turning tool holder. For machining convex and concave shapes, radial turning, or turning 3/4" spheres up to a maximum radius of 32 mm. Height-adjustable steel support (swiveling center adjustable from 30 to 45 mm above the cross slide) for use with the FD 150/E, PD 250/E, PD 400 lathes and older PROXXON lathes. Dimensions: base 67 x 50 mm, height 55 mm. Includes an 8 x 8 x 80 mm pointed chisel. In a wooden box with a sliding lid.

Chisel holder, easy assembly! (1) - 24026

For quick chisel replacement and easy height adjustment. With two chisel elements.

Chisel holder (separate) (2) - 24024

For the chisel support above.

Chip collection tray with splash guard - 24008

Made of 1.5 mm thick powder-coated sheet steel. The practical edges allow for easy cleaning. Steel base with pre-drilled holes for screw fixing and secure installation. L. 495 x W. 215 x H. 150 mm. The stand shown opposite is not included. L. 550 x W. 230 x H. 175 mm.

4-jaw chuck with individually adjustable jaws - 24036

For clamping angled and asymmetrical workpieces. Clamping capacity up to 80 mm. Chuck Ø 75 mm.

Clamping device with ER 20 type clamping jaws. For extreme concentricity of 2–10 mm. - 24038

For precise work on round parts. The clamping device is mounted in place of the chuck. Includes 8 collets (2, 2.5, 3, 4, 5, 6, 8, and 10 mm). Supplied in a wooden case.

Between-centers turning device. For high-precision work with high concentricity. - 24014

Supplied with 1 training platform, 2 fixed tailstocks (CM2 and CM1/short) and 1 trainer (toc). Delivered in a wooden case.

Fixed steady rest for long parts - 24010

(especially longitudinal turning). Up to ø 40 mm. Also indispensable when the tailstock cannot be used.

Industrial chuck with CM 1 - 24020

For the tailstock of the PD 250/E lathe. Clamping up to 10 mm.

TA 250 splitter. - 24044

For symmetrical work on circular workpieces (e.g., gear manufacturing). Supplied with two discs (40 and 48 teeth), for divisions 2, 3, 4, 5, 6, 8, 10, 12, 16, 20, 24, 40, and 48. The chuck mounting is identical to that of the PD 250/E lathe spindle. Therefore, it is possible to use the 3-jaw chuck (available separately under No. 24 034, see below) and the 4-jaw chuck (No. 24 036, see page 57). Horizontal mounting (e.g., on the PD 250/E carriage) or vertical mounting (e.g., on the machine bed). Includes nuts and corresponding screws for T-slots according to the standard MICROMOT standard (12 x 6 x 5 mm). Supplied in a wooden case with a sliding lid.

3-jaw chuck, concentric clamping - 24034

Identical to that of the PD 250/E lathe. High-quality clamping according to DIN 8386, class 1 (concentricity 0.04 mm). Clamping capacity from 2 to 75 mm (reversible jaws). Compatible with the PD 250/E and dividing head No. 24 044.

High-quality HSS cobalt steel turning tools. Sharpened and ready to use.

5-piece set - 24530

Roughing tool, parting tool, finishing tool, right-hand angled turning tool and left-hand angled turning tool. In a wooden box with a sliding lid. 8 x 8 x 80 mm (for PD 230/E and PD 250/E).

Threading set, 3 pieces - 24540

External thread, internal thread (both 60° metric thread) and drill bit thread (bore). In a wooden box with a sliding lid. 8 x 8 x 80 mm (for PD 230/E and PD 250/E).

Blade holder with blade - 24217

For the PD 250/E quick-change system. Allows cutting workpieces to length and drilling grooves. With a 12 x 3 x 85 mm HSS cobalt-containing blade.

Replacement blade for the cutting tool holder (without adapter) - 24554

As described above.

Steel tool holders with carbide inserts - 24555

3 pad holders (90 mm long):

to rough-cut and flatten
to finish and turn
for boring (bores from 12 mm)
55° carbide inserts (standard coated finish). Supplied with 3 spare inserts, a fixing screw and a TX 8 wrench. 8 x 8 mm (for PD 230/E and PD 250/E).

Carbide plates - 24557

For the plate holder described above.
10-piece set

Angled tool holders with carbide inserts - 24560

A 45° left-angled tool holder for 6 mm diameter round carbide inserts. Provides exceptionally high surface finish with minimal surface roughness. Suitable for round turning radii and recesses. The package includes two carbide inserts, two mounting screws, and a TX 8 wrench.
Dimensions: 8 x 8 x 60 mm

Replacement carbide inserts - 24564

For the steel supports described above.
10 pieces

Center drill bit set, 3 pieces - 24630

Made of HSS steel. DIN 333 (Form A). 60°. Complete set with 3 drill bits of 2, 2.5 and 3.15 mm.

Set of 6 HSS chisels for internal threads, grooves and splines - 24520

For metric 60° and Whitworth 55° threads. 1 piece of 1.3, 2.65, and 4 mm. 6 mm shank. 95 mm overall length. The chisels are to be placed in the supplied tool holder (9 x 9 mm) and clamped in the tool holder of the PD 230/E, PD 250/E, or PD 400. In a wooden box with a sliding lid.

Tool holder for working with a lathe. - 24098

For secure and precise mounting of IBS/E or LBS/E milling drills in the lathe tool holder. Shank dimensions: 8 x 10 mm. Total length: 65 mm.

Parallel wedges - set of 14 pieces - 24266

Polished in pairs. For installation work on drilling, turning, and milling machines. Made of hardened, high-alloy steel (58-62 HRC). Parallel accuracy 0.002 mm. Sold in pairs of 8 x 10, 15, 20, 25, 30, 35, and 40 mm polishes. Length 100 mm. Supplied in a wooden case.

Die holder with die - 24082

For external threads M3, M4, M5, M6, M8, and M10. Die holder trunnion Ø 10 mm for mounting in the lathe chuck. During threading operations, the die holder is held manually. Supplied in a wooden case with a sliding lid.
