MIS 1 - 12V Micro Screwdriver - 50W Proxxon

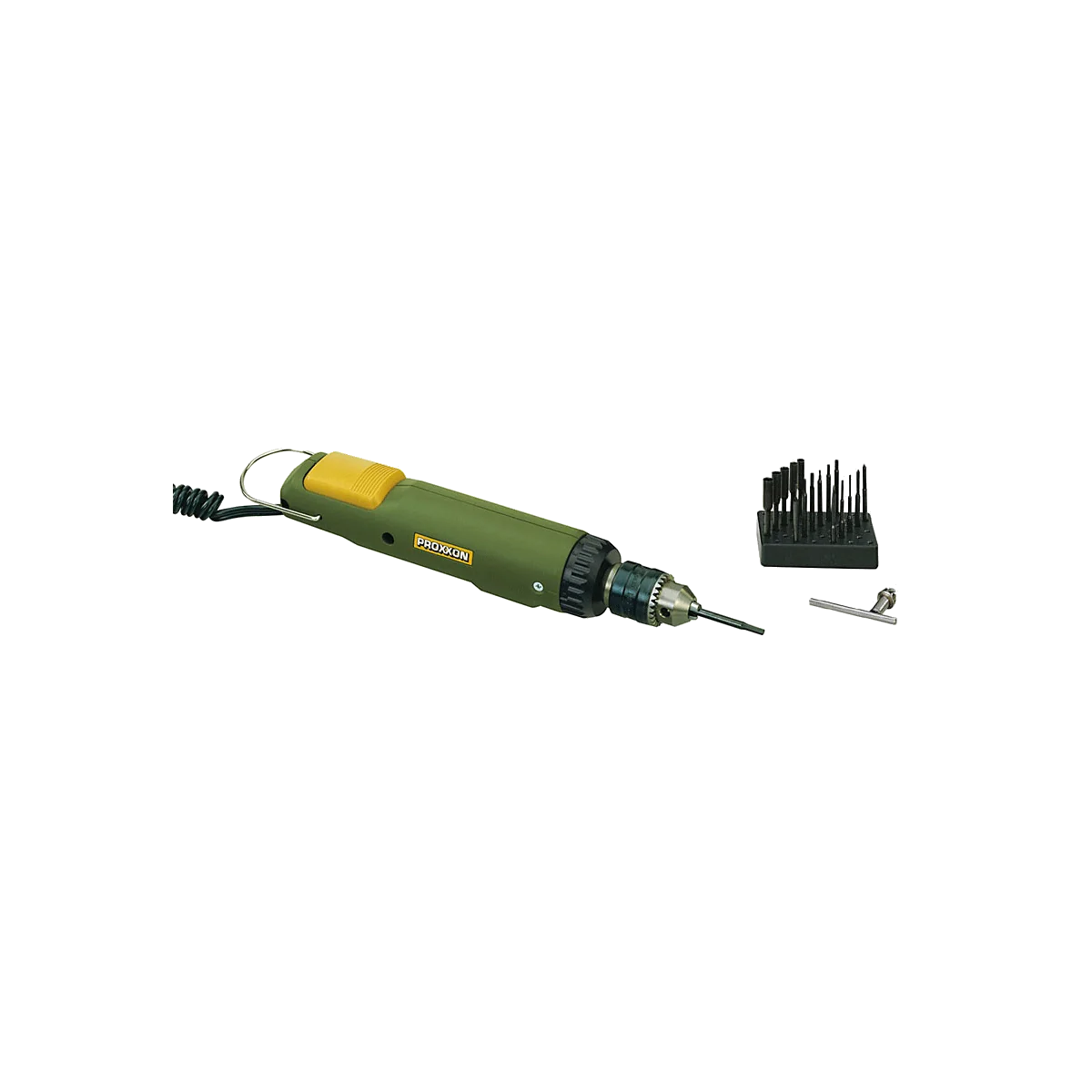

MIS 1 MICRO SCREWDRIVER
For tightening torques from 0.35 to 2 Nm. Thanks to the inverter switch for screwing/unscrewing, which is also ideal for threading. - 28690

Small, light and handy. Tool attachment via ring mandrel for shanks up to 6.5 mm (and standard 1/4" bits). Glass-reinforced POLYAMIDE housing. Comes with 16 chrome molybdenum steel accessories.

	Straight planks: 0.3 x 1.5 / 0.35 x 2 / 0.4 x 2.5 mm
	Phillips: 0 and 1
	TX: 6 - 8 - 10
	Hex keys: 3 - 3.5 - 4 - 4.5 - 5 mm
	Hex sockets: 1.5 - 2 and 2.5 mm

Technical data:

Direct current 12 - 18 V.
50 W.
Tightening torques from 0.35 to 1 Nm (in position 6, the clutch release function is discontinued, the torque being approx. 2 Nm).
Length 200 mm. Weight 415 g.

For power supply, we recommend MICROMOT transformers with a minimum power of 2 A.

Note on industrial uses:

For the torque range up to 2.0 Nm, the MIS1 is superior to pneumatic tools as an electric screwdriver. Not only because of the lower energy costs. It runs quietly and cleanly (no lubricated compressed air as exhaust air in the workplace). The highly flexible coiled cable makes the device pleasant to use.

In combination with the BV 2000 drilling device, the MIS 1 MICRO SCREWDRIVER is a suitable solution for tapping.
