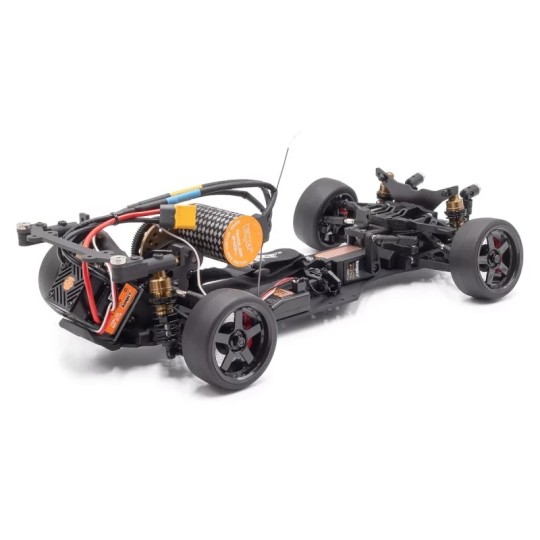

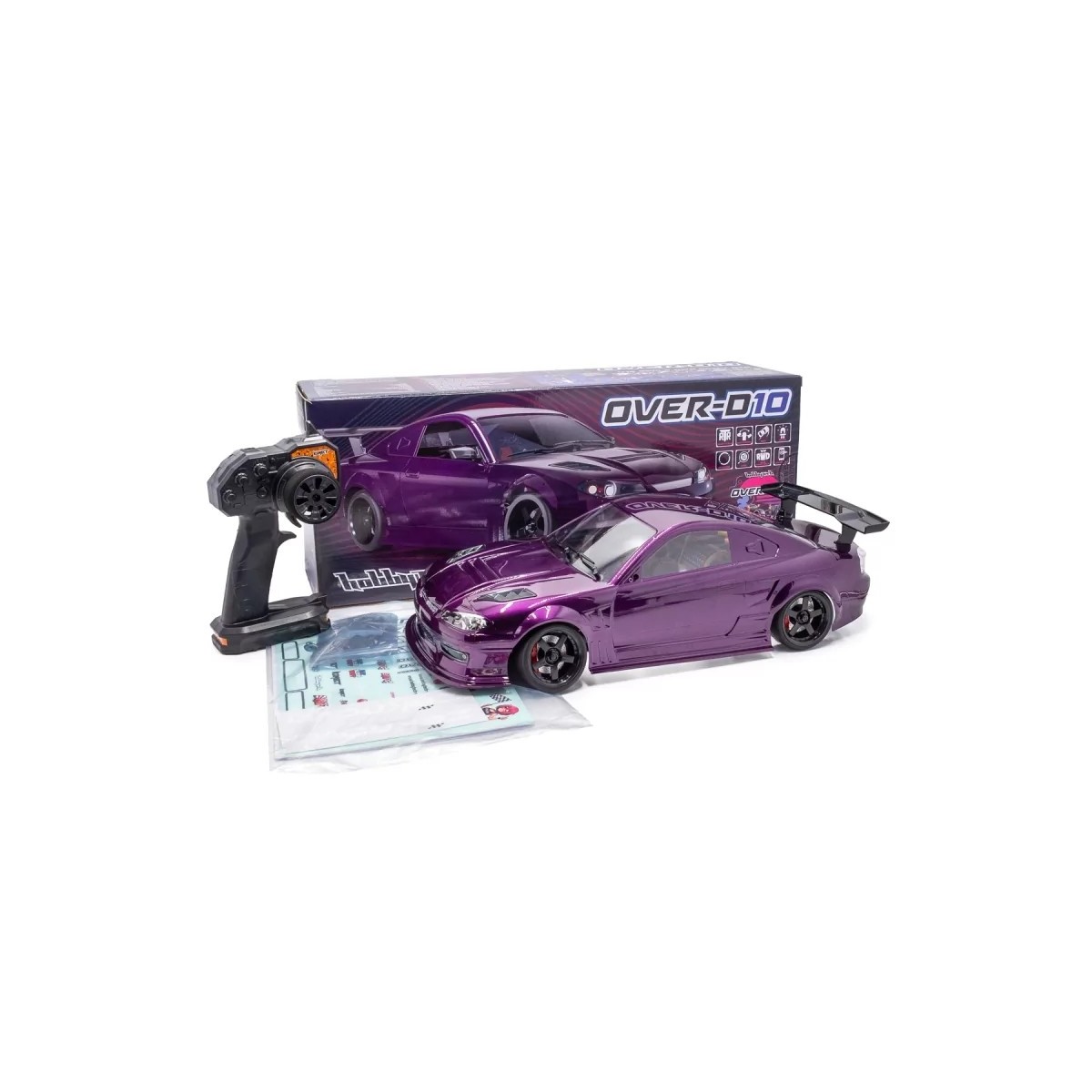

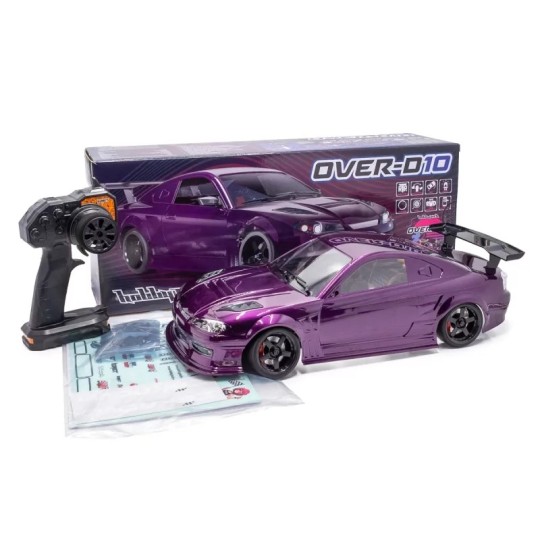

HobbyTech OVER-D10 S15 1/10 Scale Drift Car RTR Pack

Hobbytech OVER-D10 Drift 1/10 RTR – Ultimate Performance and Drifting

Discover the Hobbytech OVER-D10 Drift 1/10 RTR Pack , the radio-controlled car designed for drift and technical driving enthusiasts. Ready to run right out of the box, it offers a perfect combination of power, precision, and realism thanks to its rear-wheel drive (RWD) transmission and fully adjustable chassis.

Equipped with a 3400KV brushless motor and a 60A ESC , the OVER-D10 offers crisp acceleration and controlled drifts on any surface. Its integrated drift gyroscope helps stabilize the car and improve cornering control, making it ideal for both beginners and experienced drivers.

The car features a pre-painted S15 body with full LED lighting, combined with aluminum hydraulic shock absorbers and an adjustable composite chassis. Every detail has been designed to offer realistic handling and optimal performance, while still allowing for your own modifications and adjustments.

Why choose the OVER-D10 Drift?

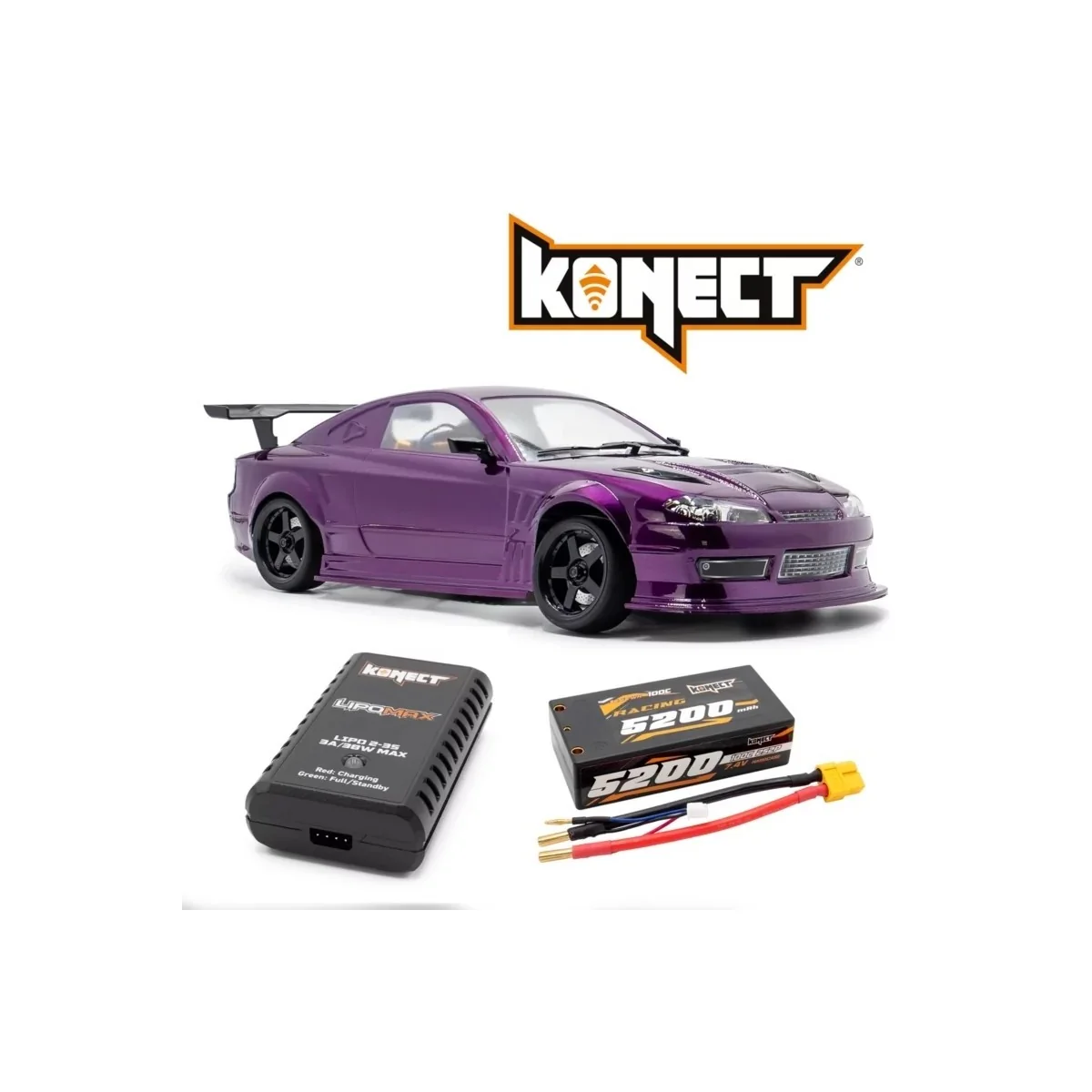

• Ready to ride (RTR) with included LiPo battery and charger
• RWD transmission optimized for drifting and controlled slides
• Powerful brushless combo for maximum performance
• Integrated drift gyroscope for greater precision and stability
• Composite chassis and adjustable shock absorbers for realistic handling
• Pre-painted S15 body with LED lighting for a realistic look

Ideal for RC drift enthusiasts looking for a high-performance, modular and ready-to-use vehicle, the Hobbytech OVER-D10 allows you to fully enjoy intense drift sessions on track, parking lot or suitable terrain.

FEATURES :

• KONECT KT3X 2.4GHz Transmitter & Receiver

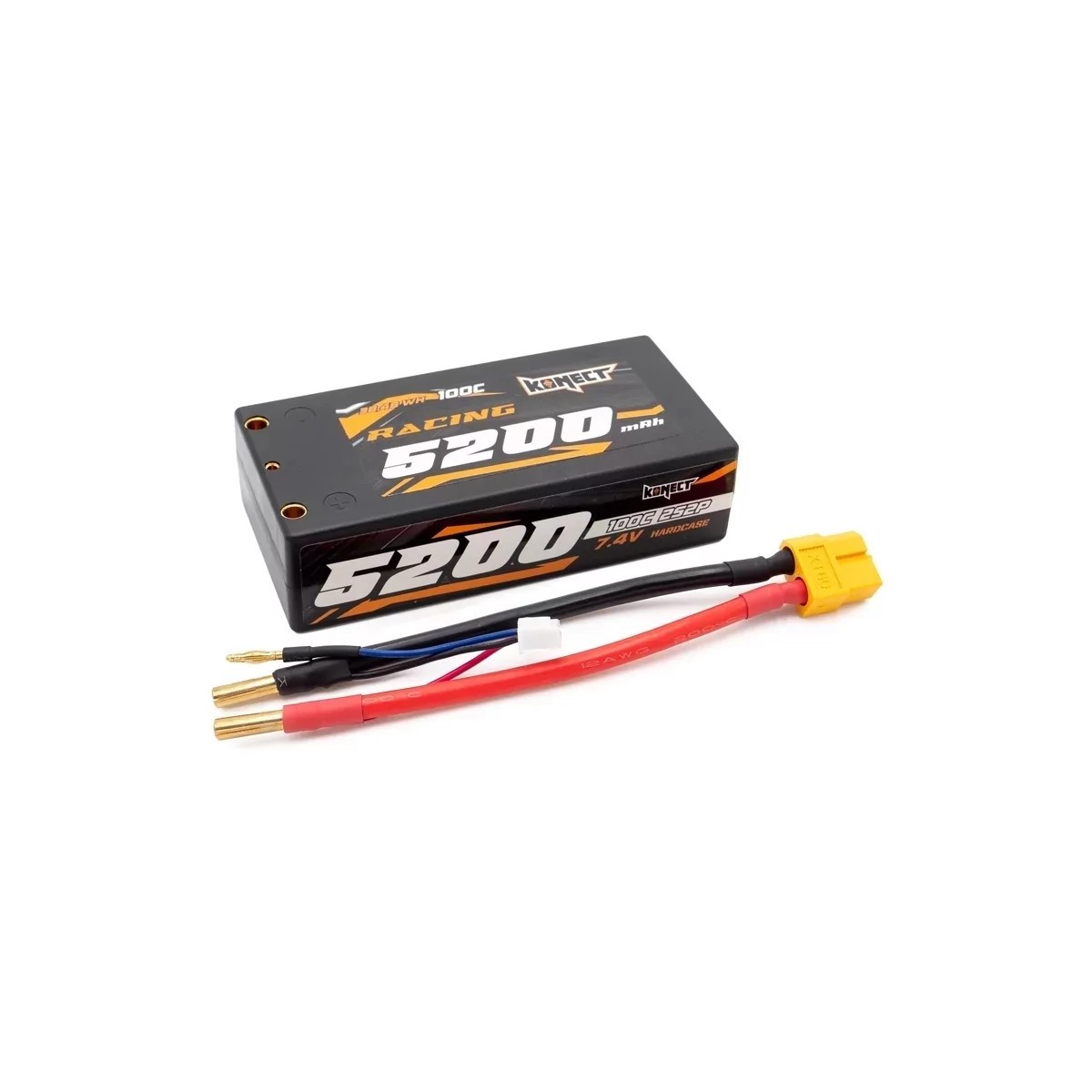

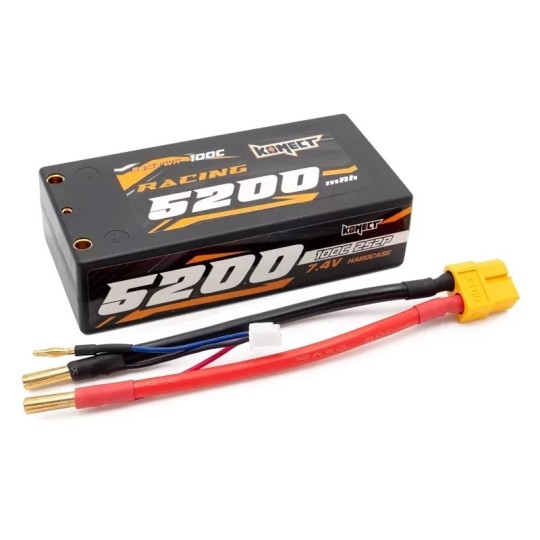

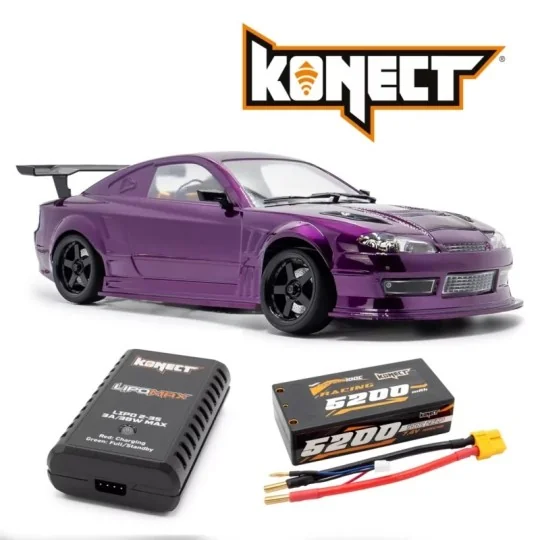

• KONECT Lipo battery 5200mah 7.4V 100C 2S2P SHORTY

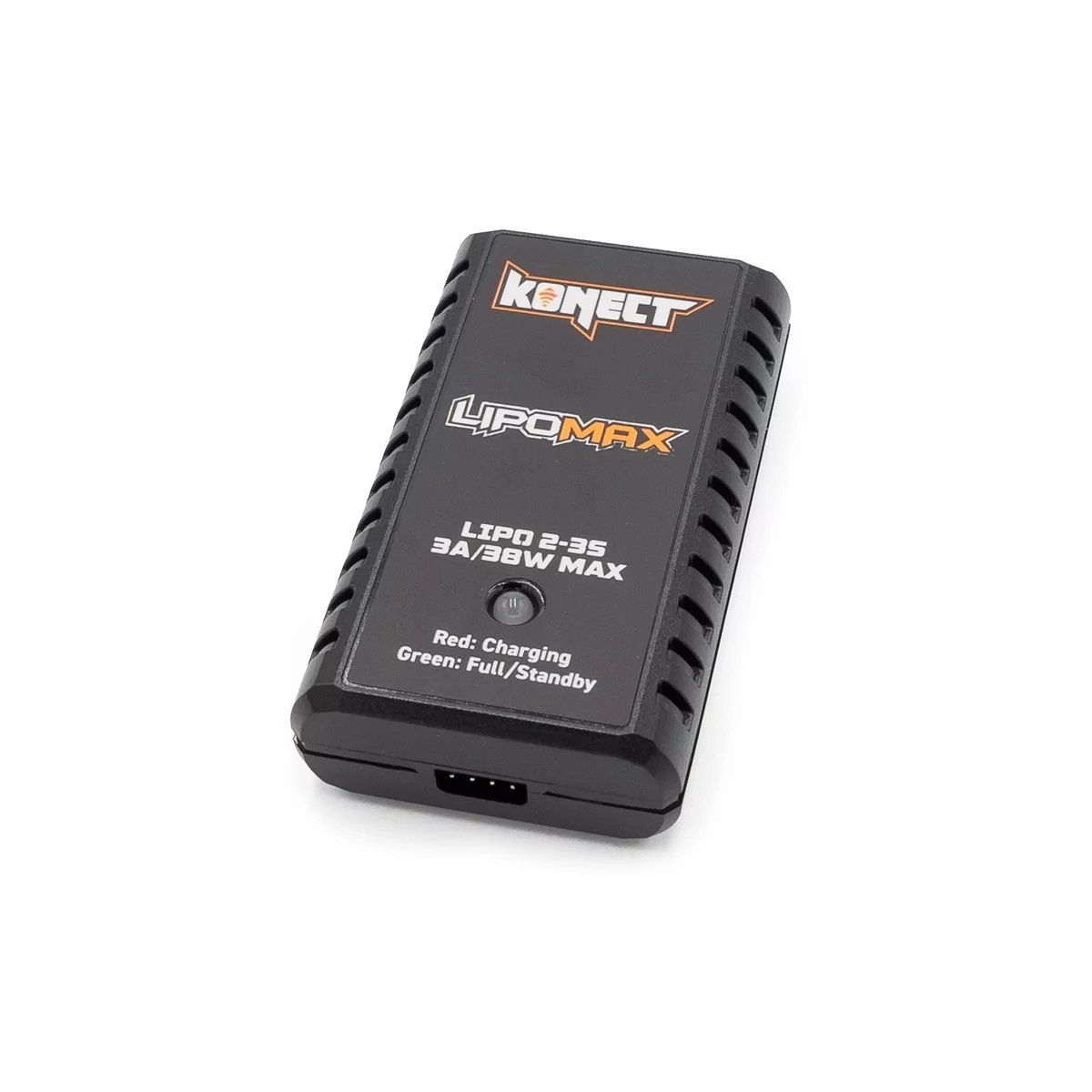

• KONECT LIPOMAX compact LiPo 2-3S 38W charger
• KONECT D2 Brushless Combo: 60Amp ESC and 3400kv motor
• KONECT Dual system KG1 gyroscope
• Steering servo 15 kilos KN-1509LPMG
• Pre-painted bodywork with LED kit included and installed!
• Multi-surface wheel set
• Magnetic body mounts

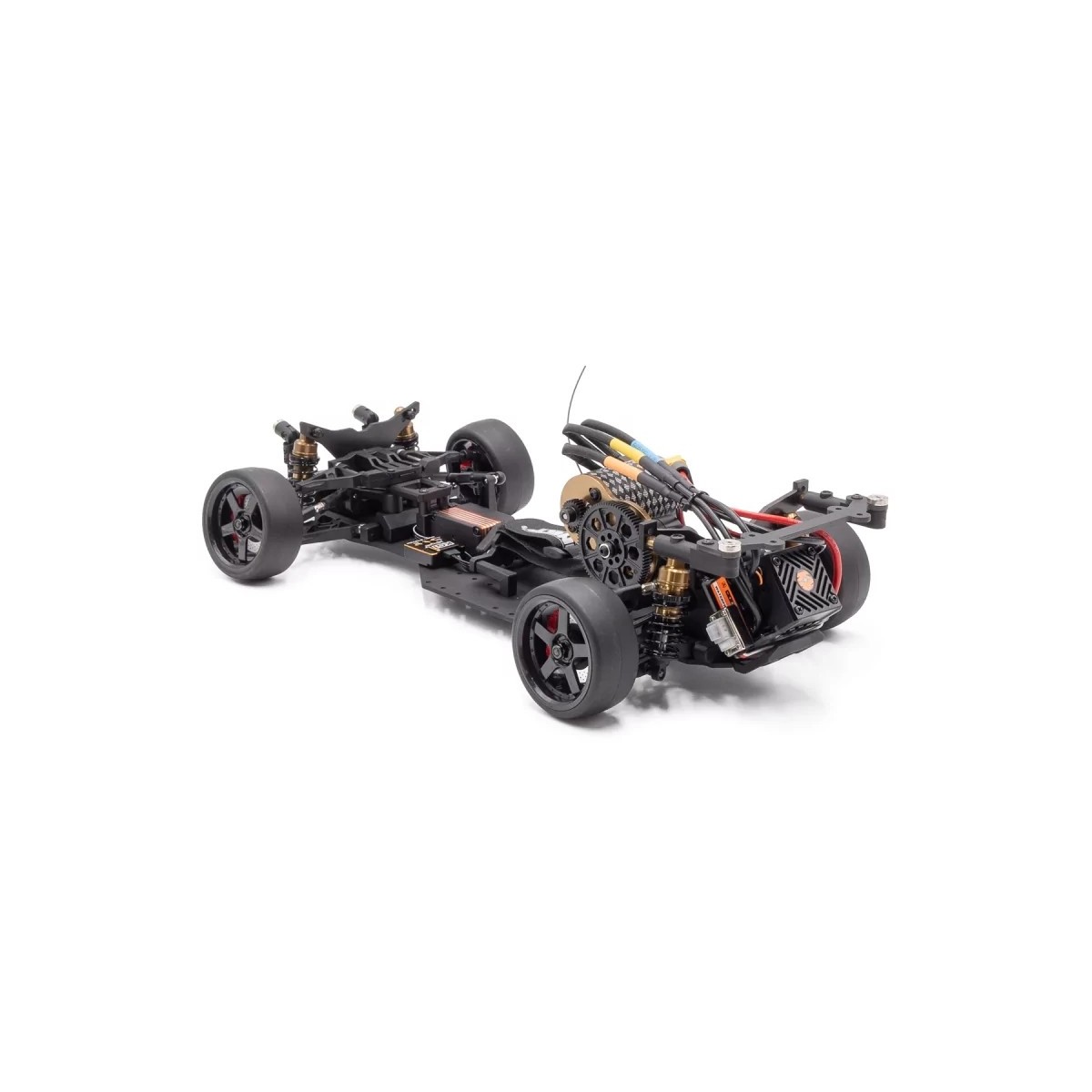

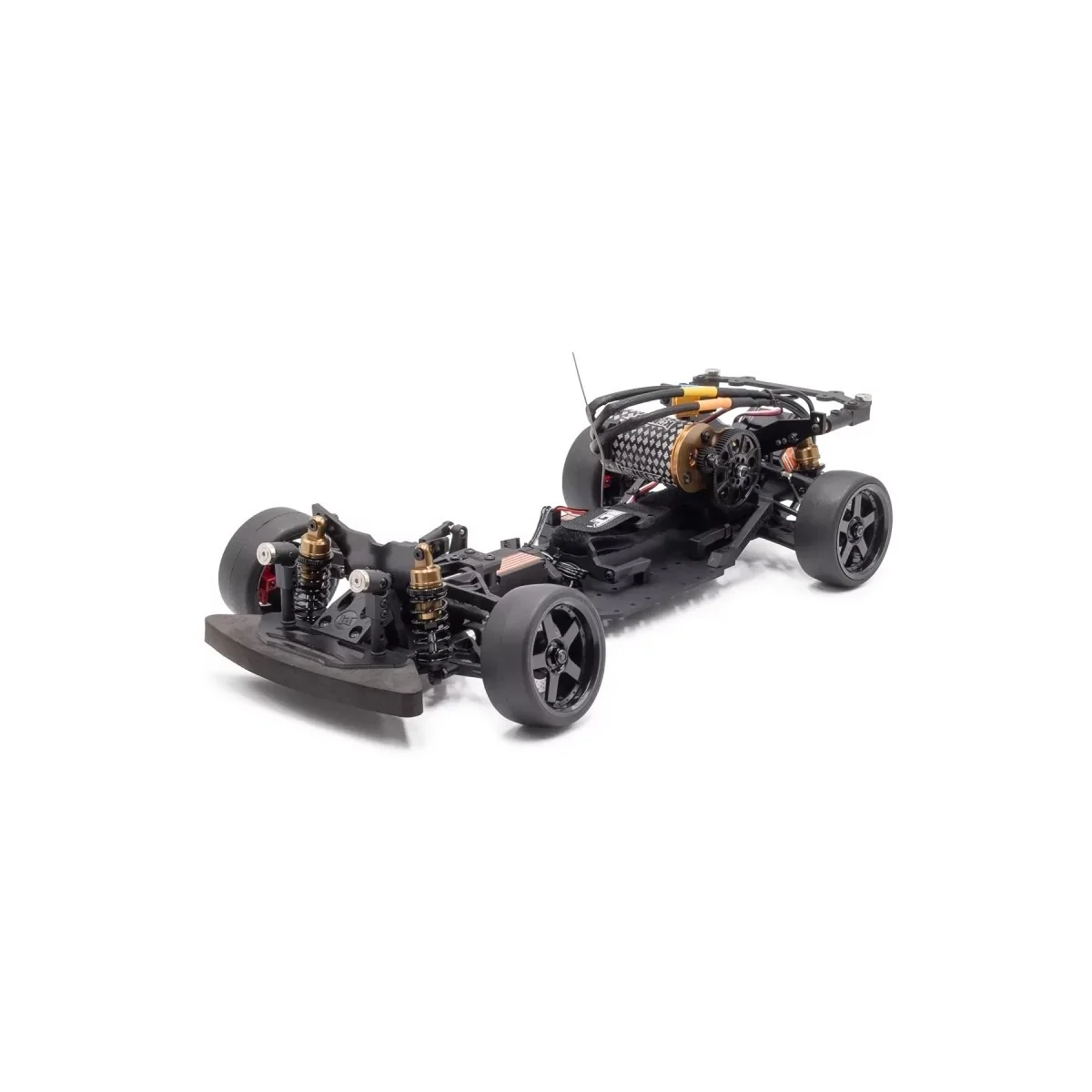

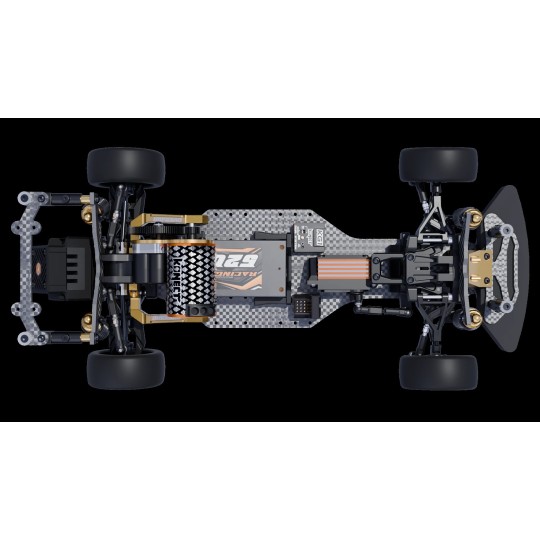

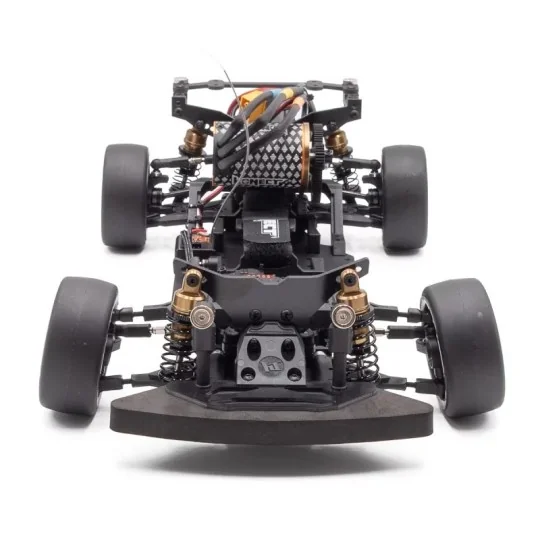

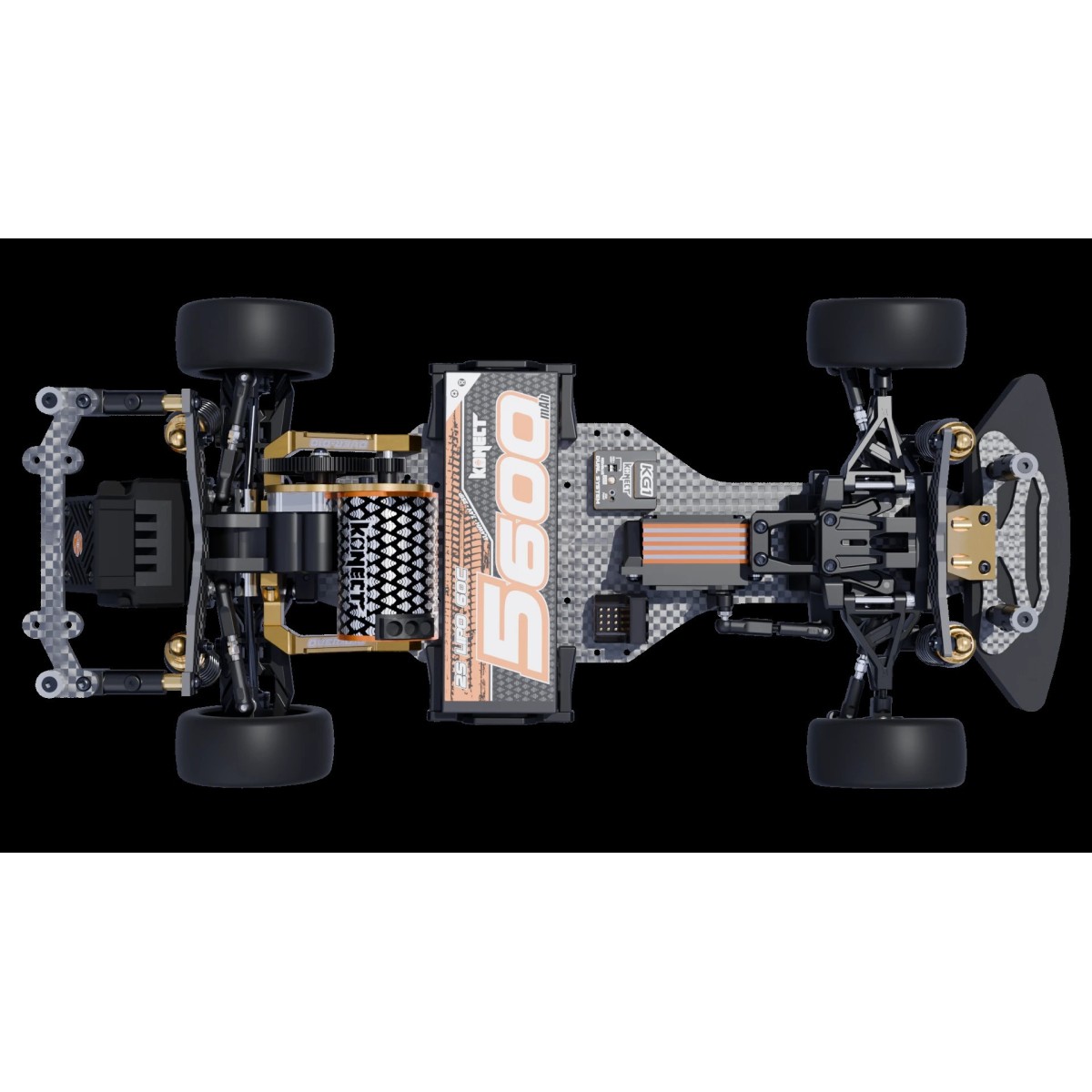

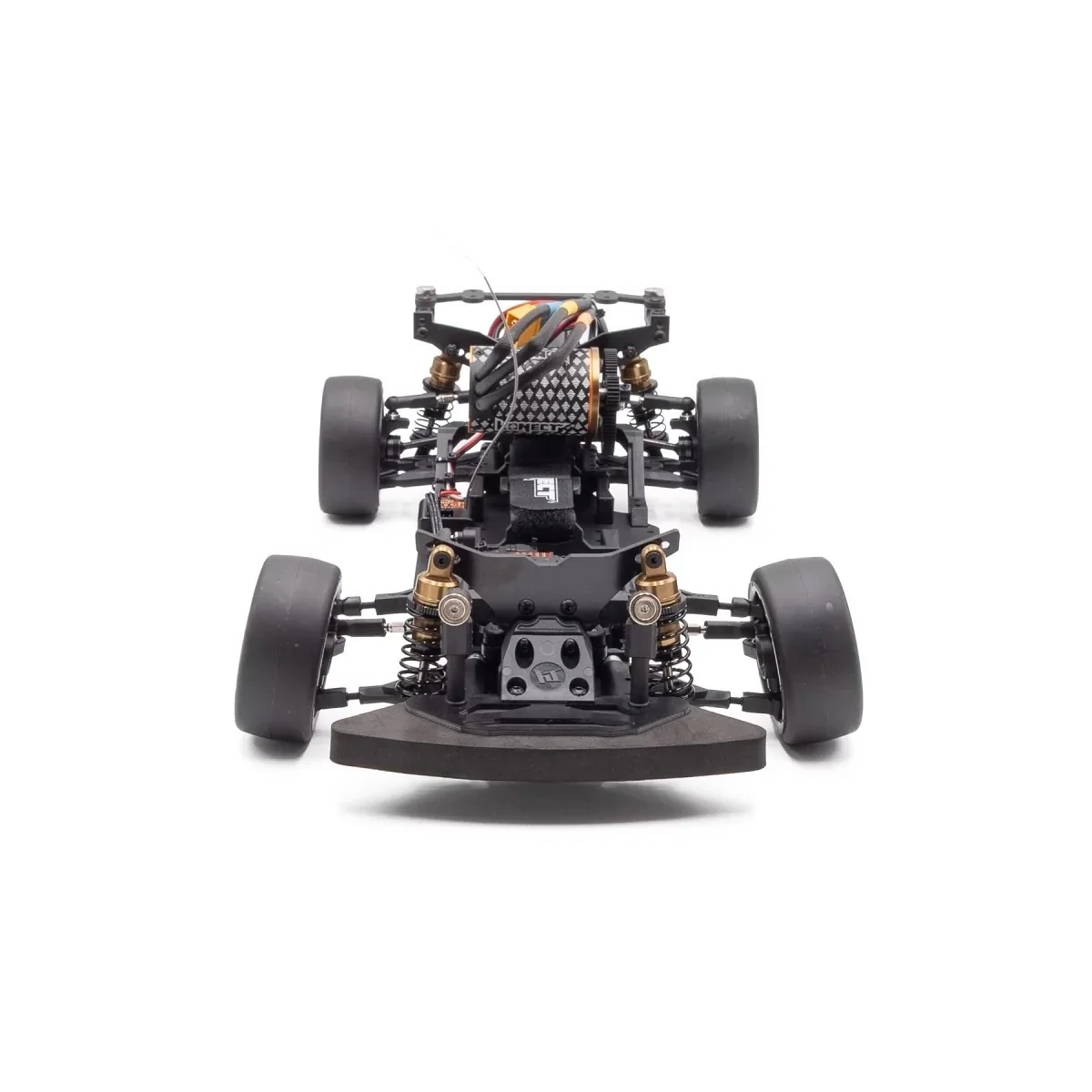

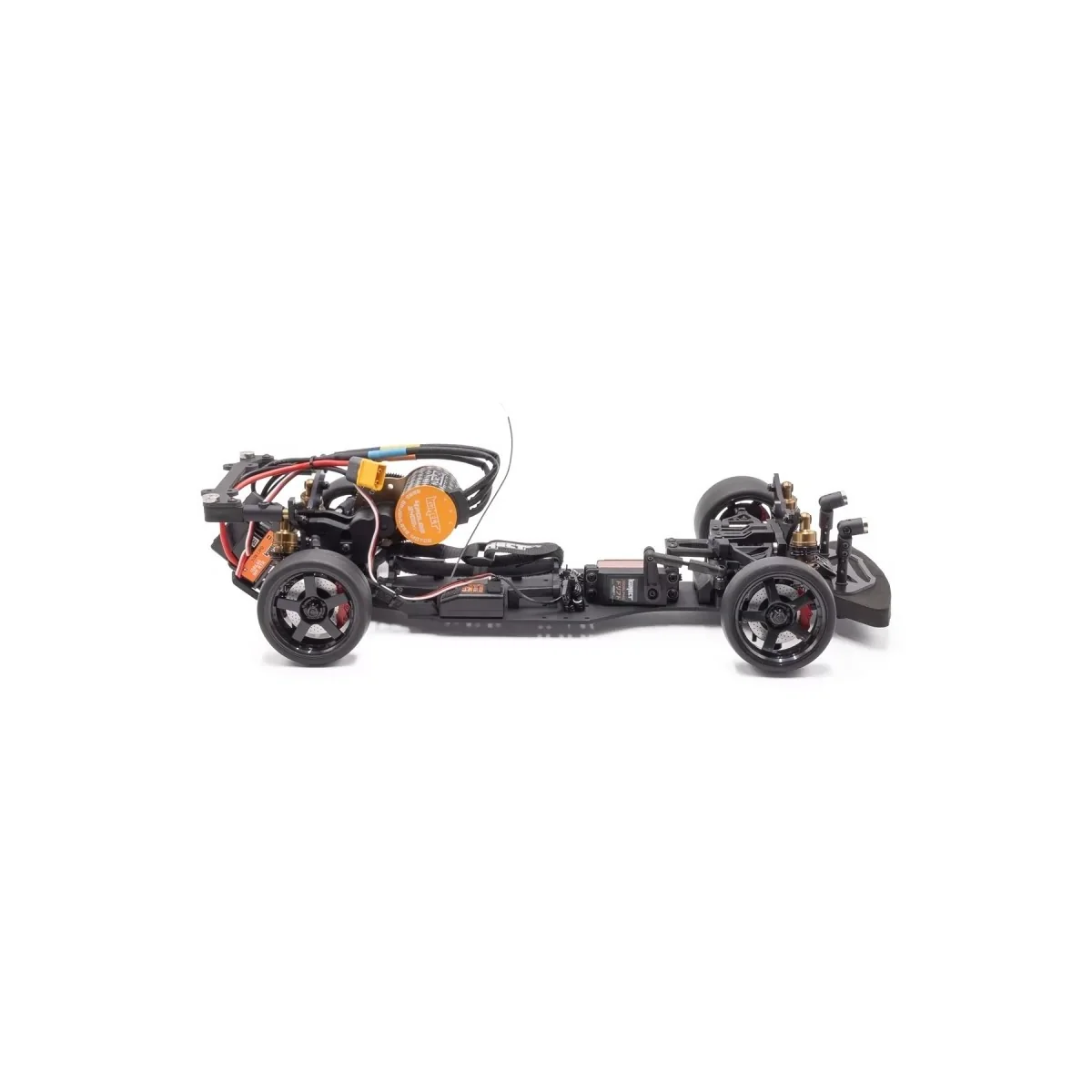

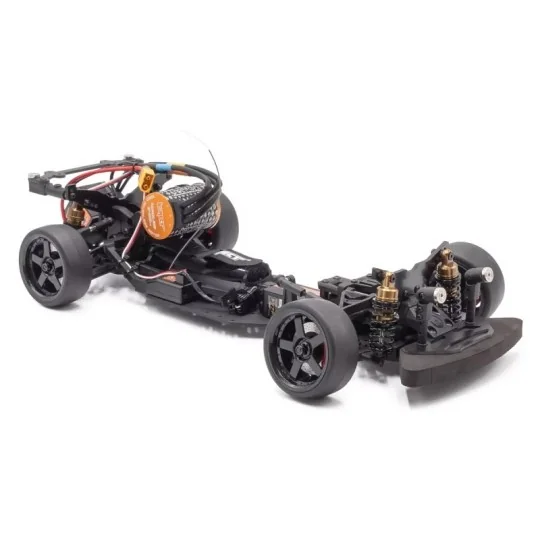

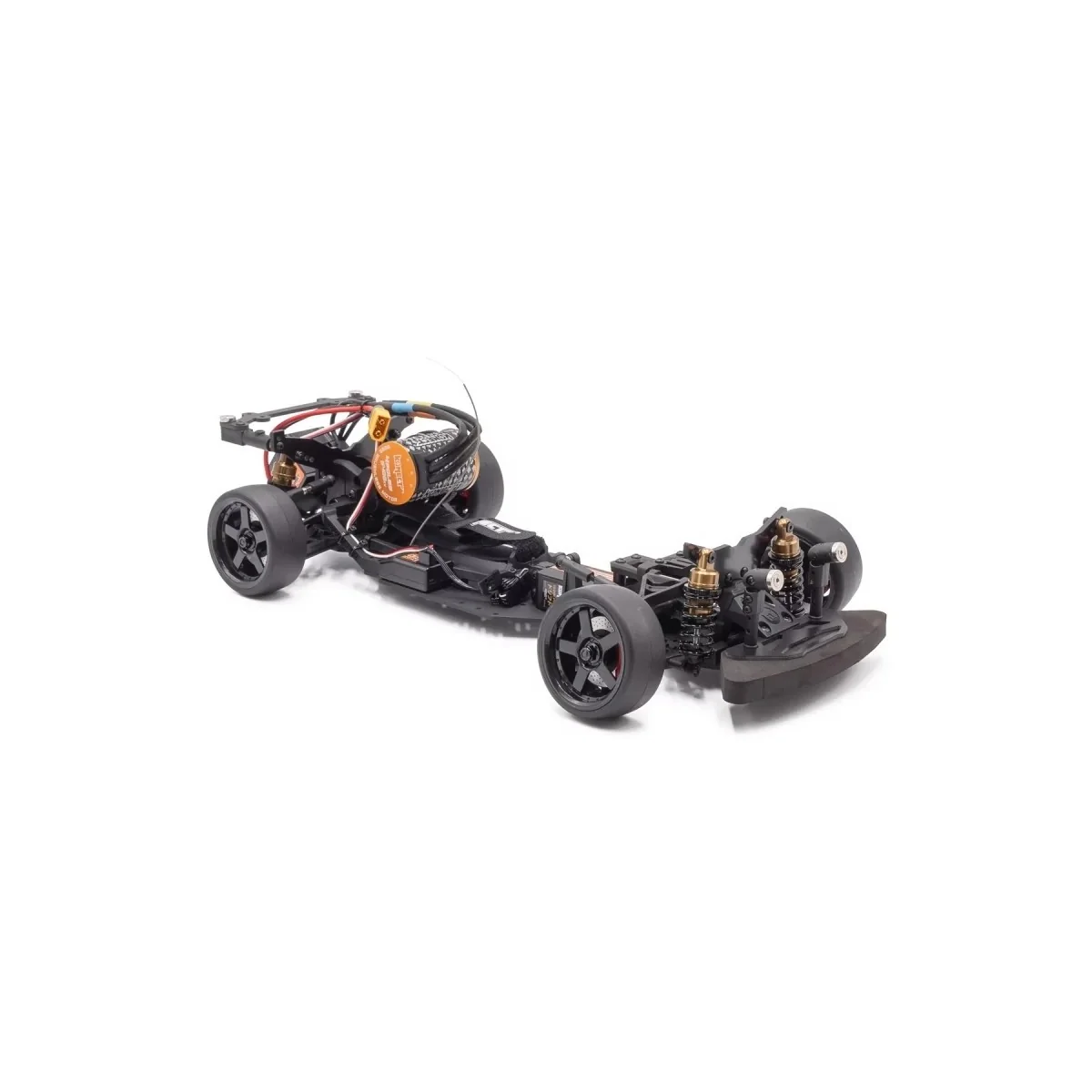

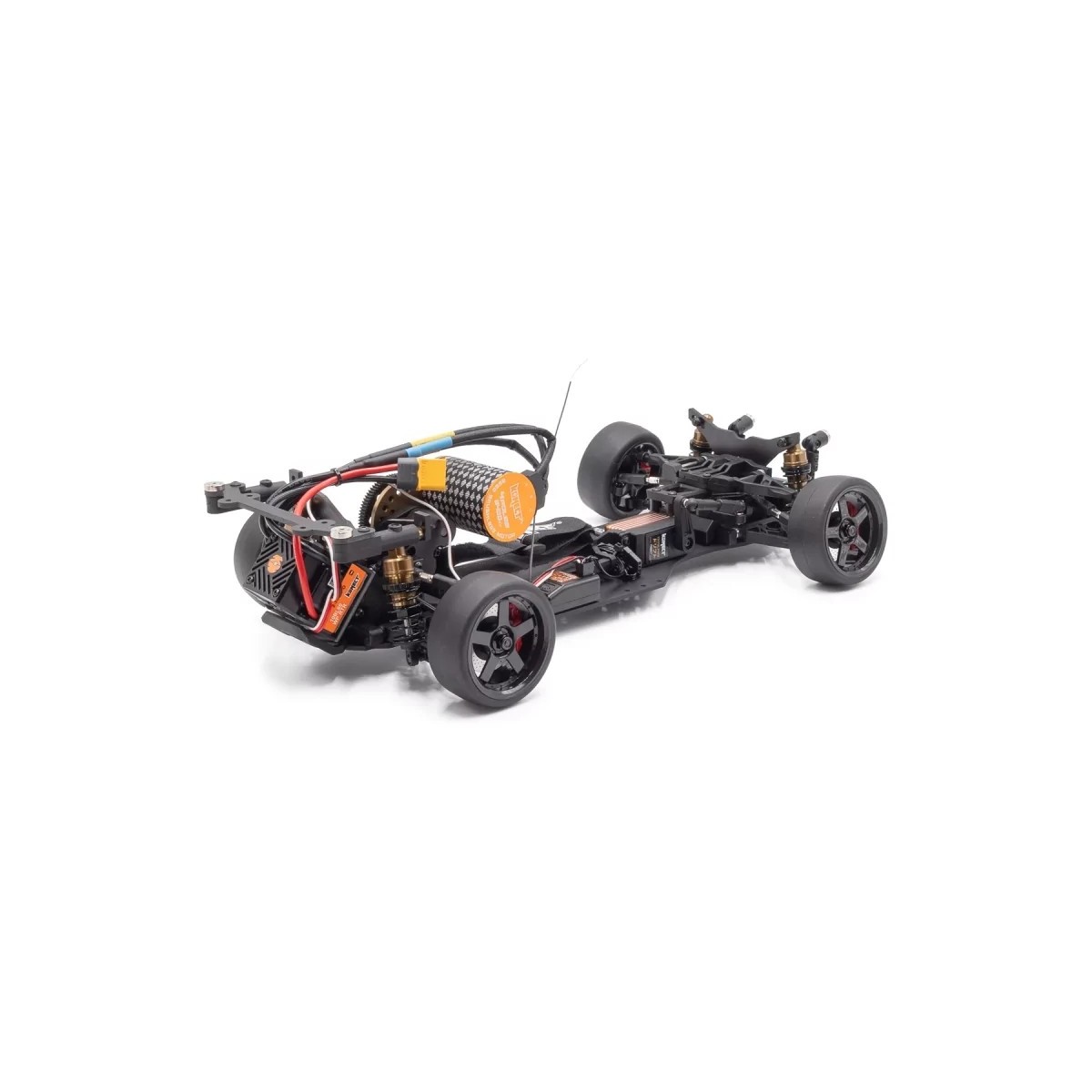

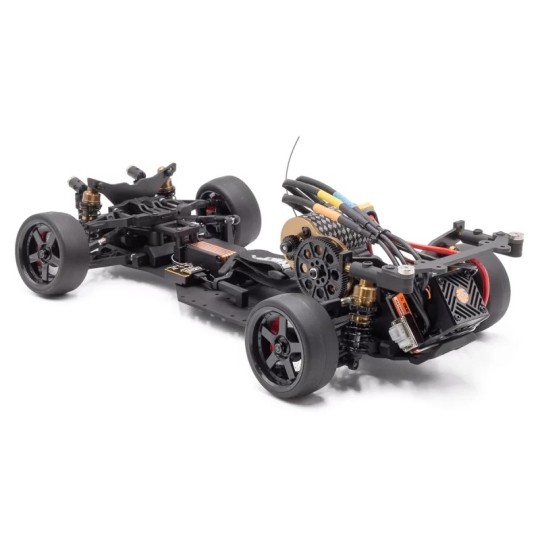

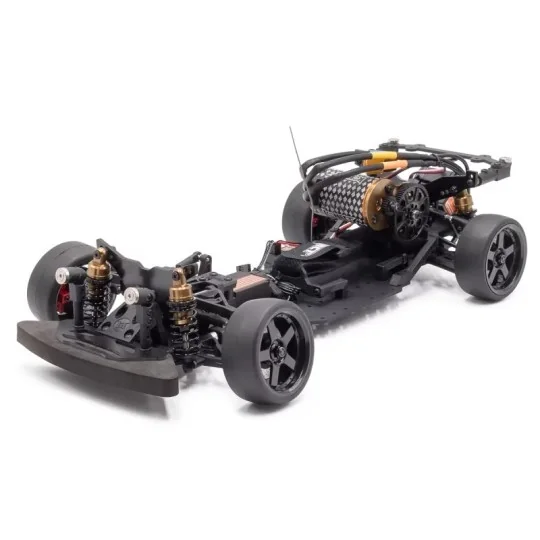

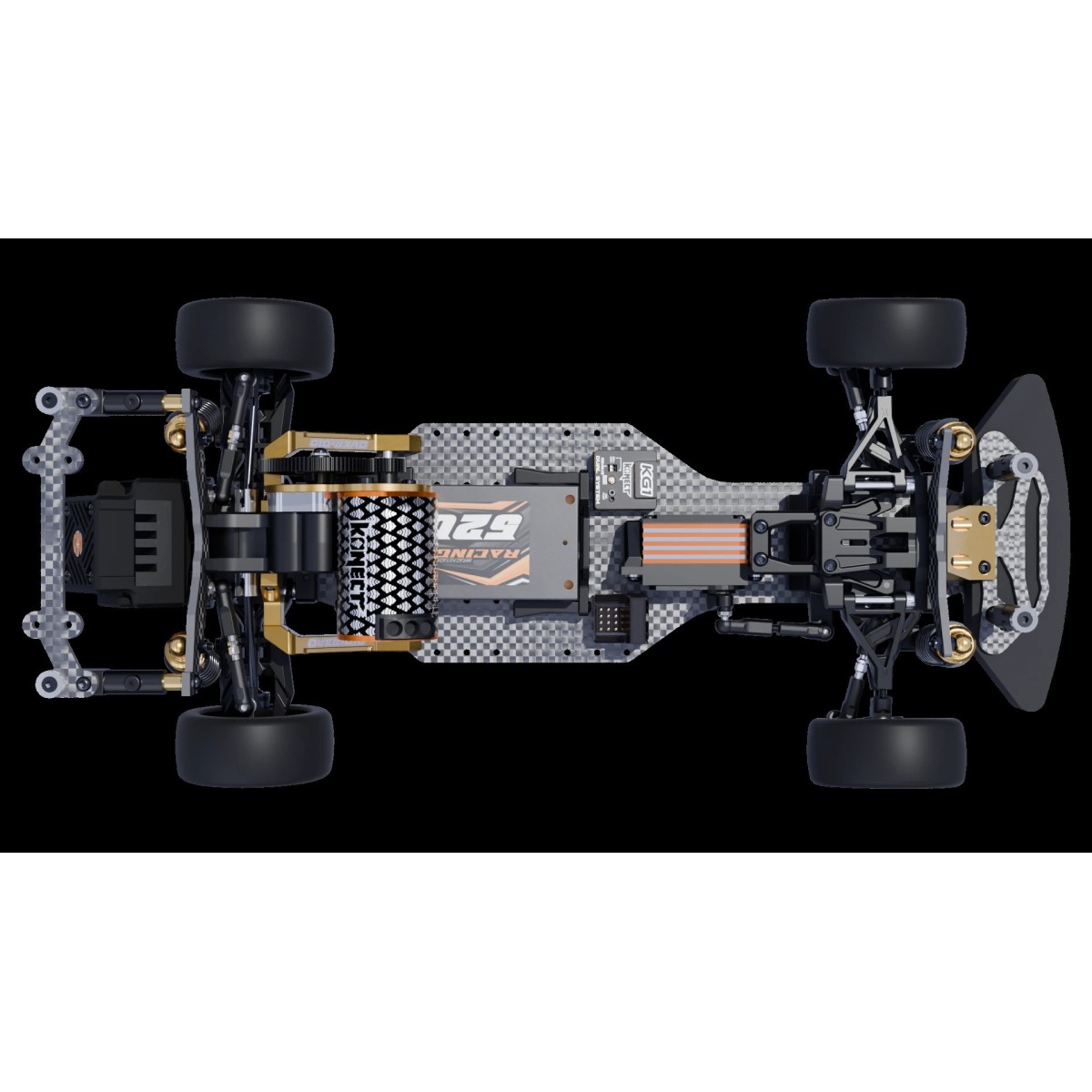

• G10 type composite chassis
• G10 type composite multi-position shock absorber mounts

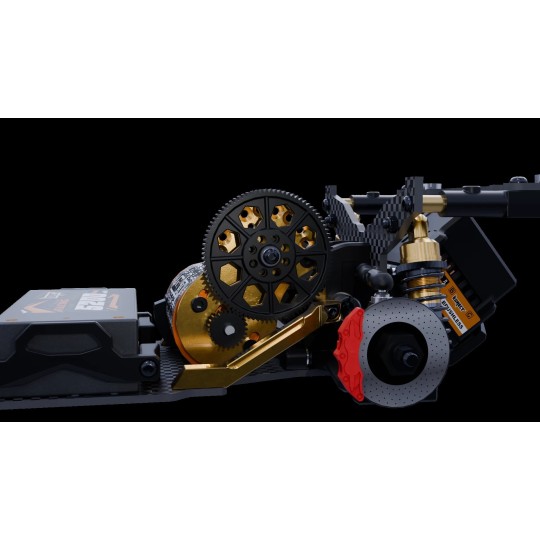

• 2 transmission sprockets included (84 and 88T)
• 10 motor positions to adjust the center of gravity
• 7 battery positions (shorty or standard battery)
• Aluminum hydraulic shock absorbers for optimal performance
• Fully adjustable suspension arms
• Magnetic body mount included
• Fully equipped with ball bearings

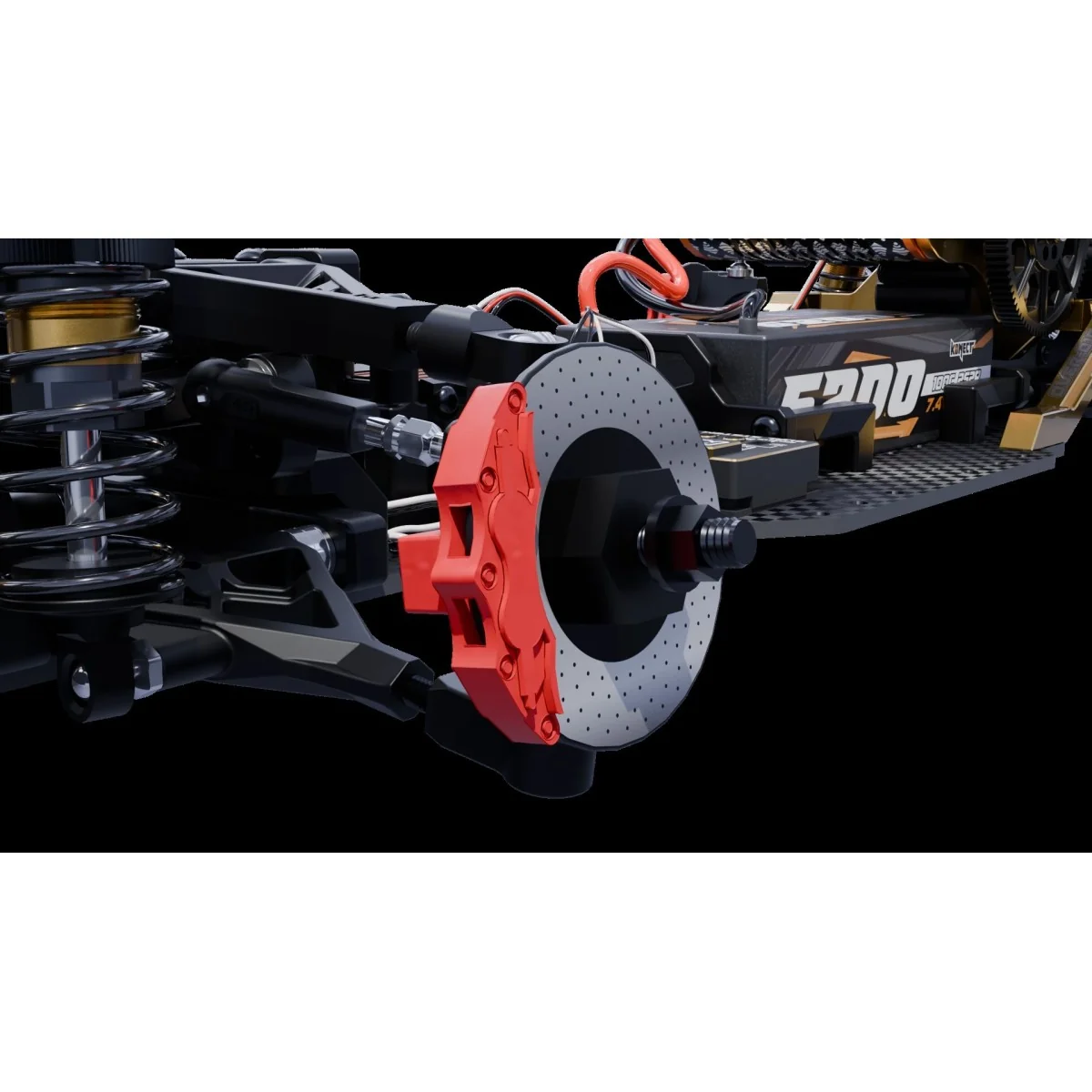

• Realistic brake discs and calipers
• Adjustable Ackermann
• Ball bearings throughout the chassis

Konect D2 Brushless Combo: 60Amp ESC and 3400kv motor

Brushless speed controller specifications:

• Current: 60A
• Motor limit: 2S motor ≤ 6000 Kv and 3S motor ≤ 3500 Kv
• BEC output: 6V/3A
• Size: L46 x W36.5 x H35.5 mm
• Weight: 98.2g
• Programming: Button or LED board
• Adjustable settings: Mode, Drag Brake, Cutoff, Punch, and Braking Force

Brushless motor characteristics:

• 4-pole motor of 3400 kv (equivalent to a 10.5T)
• Sensorless
• Diameter: 36 mm
• Length: 50 mm
• Shaft diameter: 3.17 mm
• Axle Length: 17 mm
• Plug: PK 4mm male (already wired)
• Compatible with the Konect programming board

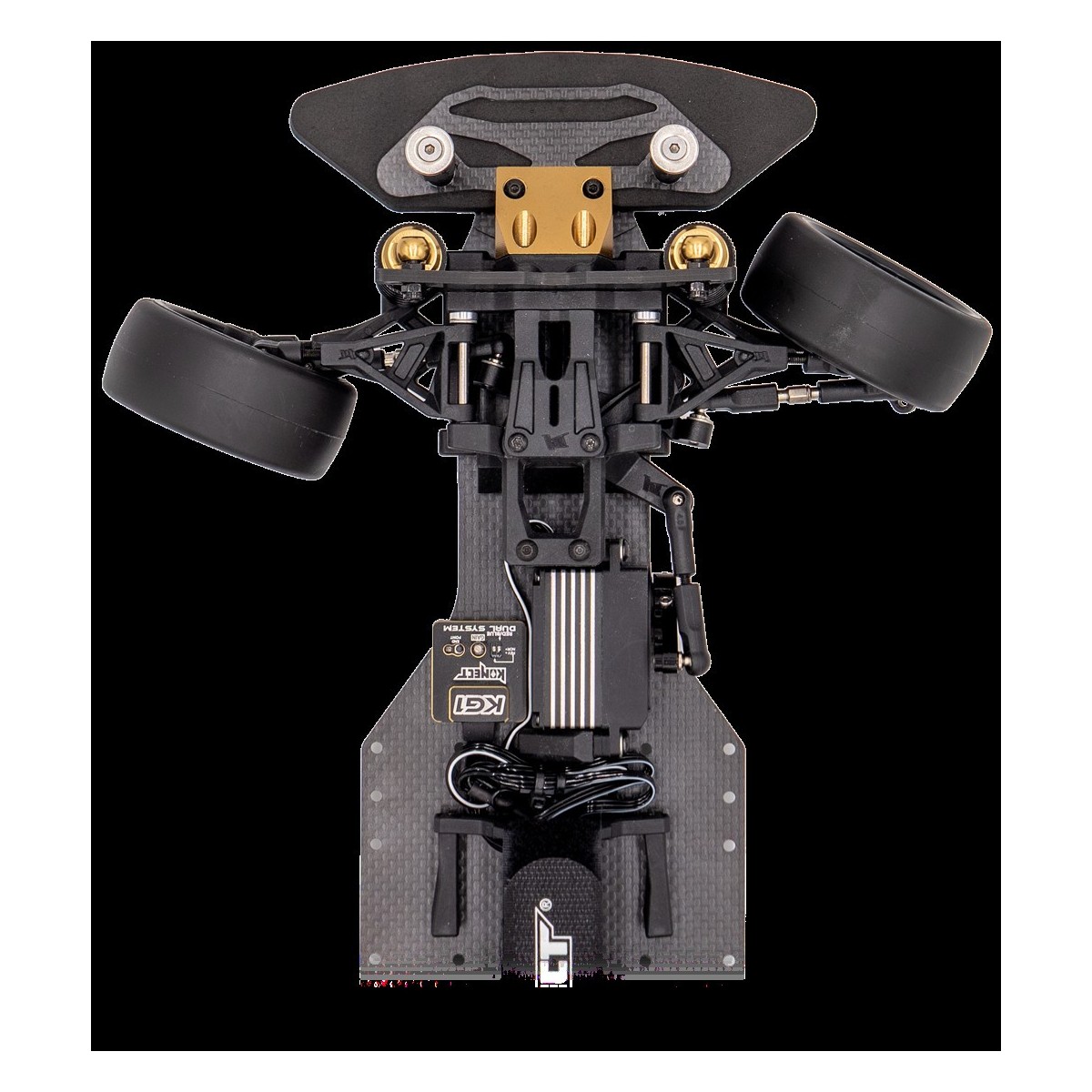

Konect Dual system KG1 gyroscope:

This Konect gyro is designed for RC drifting. The Konect KG1 is compact for easy mounting on your chassis and very user-friendly. Two driving modes are selectable via a switch. It's possible to reverse the steering servo direction and adjust the gain (either from the gyro itself or your 3-channel transmitter). Adjusting the endstops is quick and easy.

Steering servo, 15 kg:

With high torque and ultra-fast response time, this servo is perfectly suited to the demands of drifting. It guarantees precise and responsive steering control for perfectly controlled slides. The KN-1509LPMG is equipped with metal gears and its low-profile design makes it compatible with most drift chassis on the market.

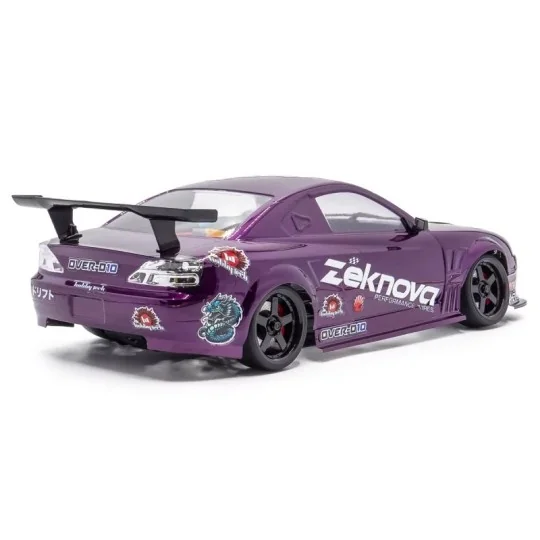

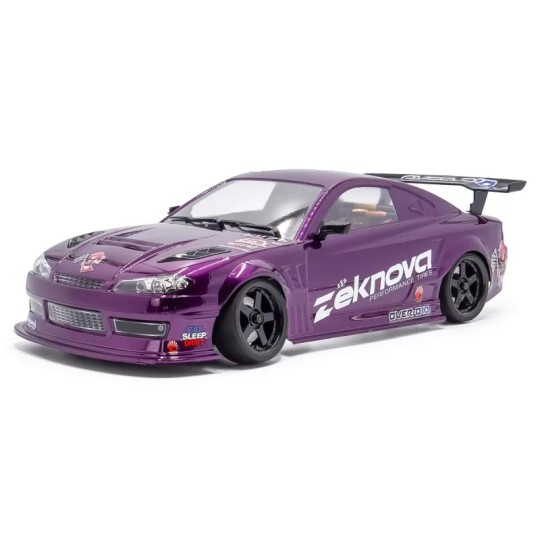

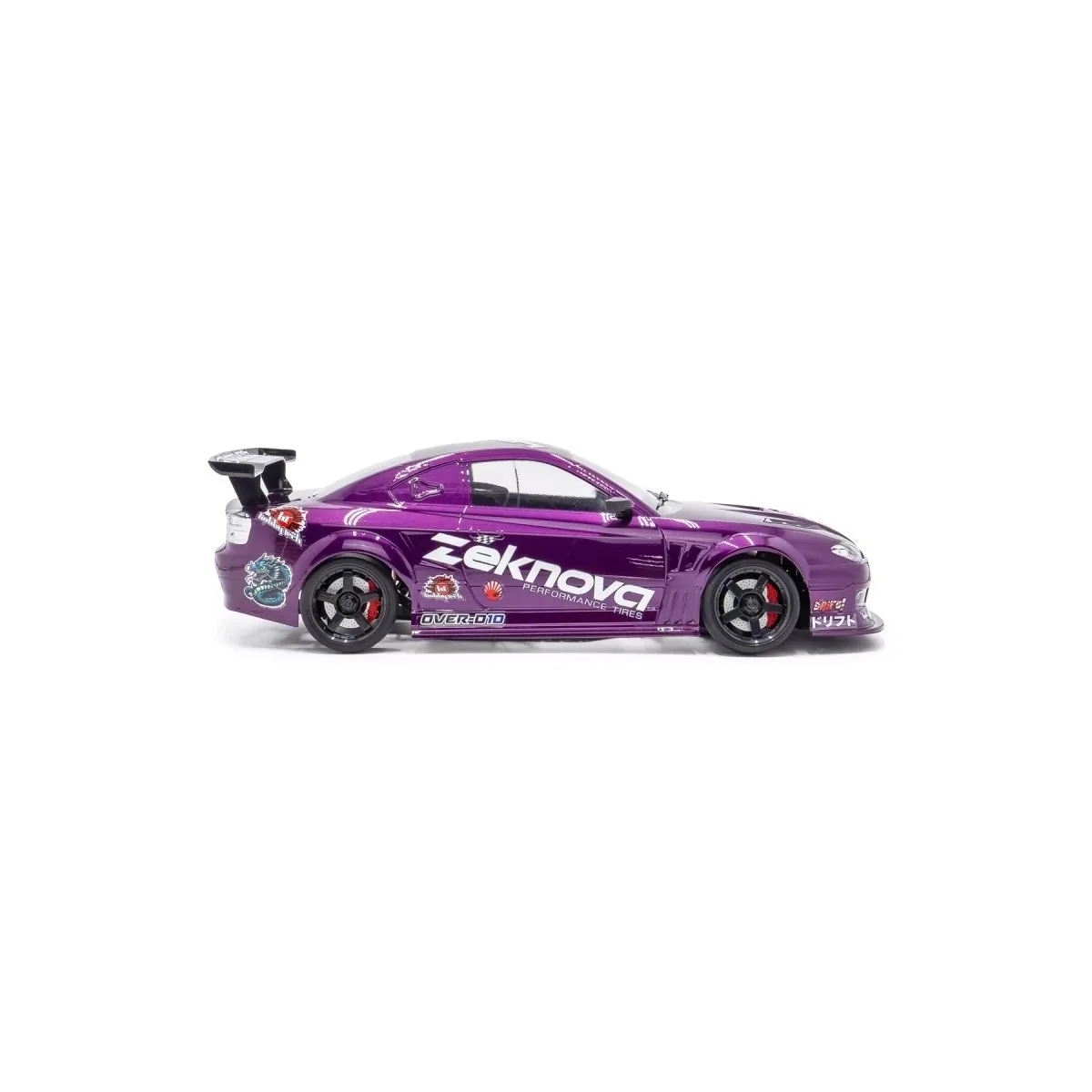

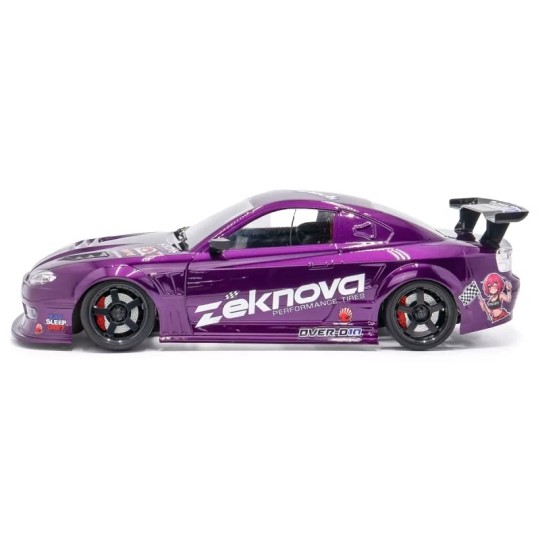

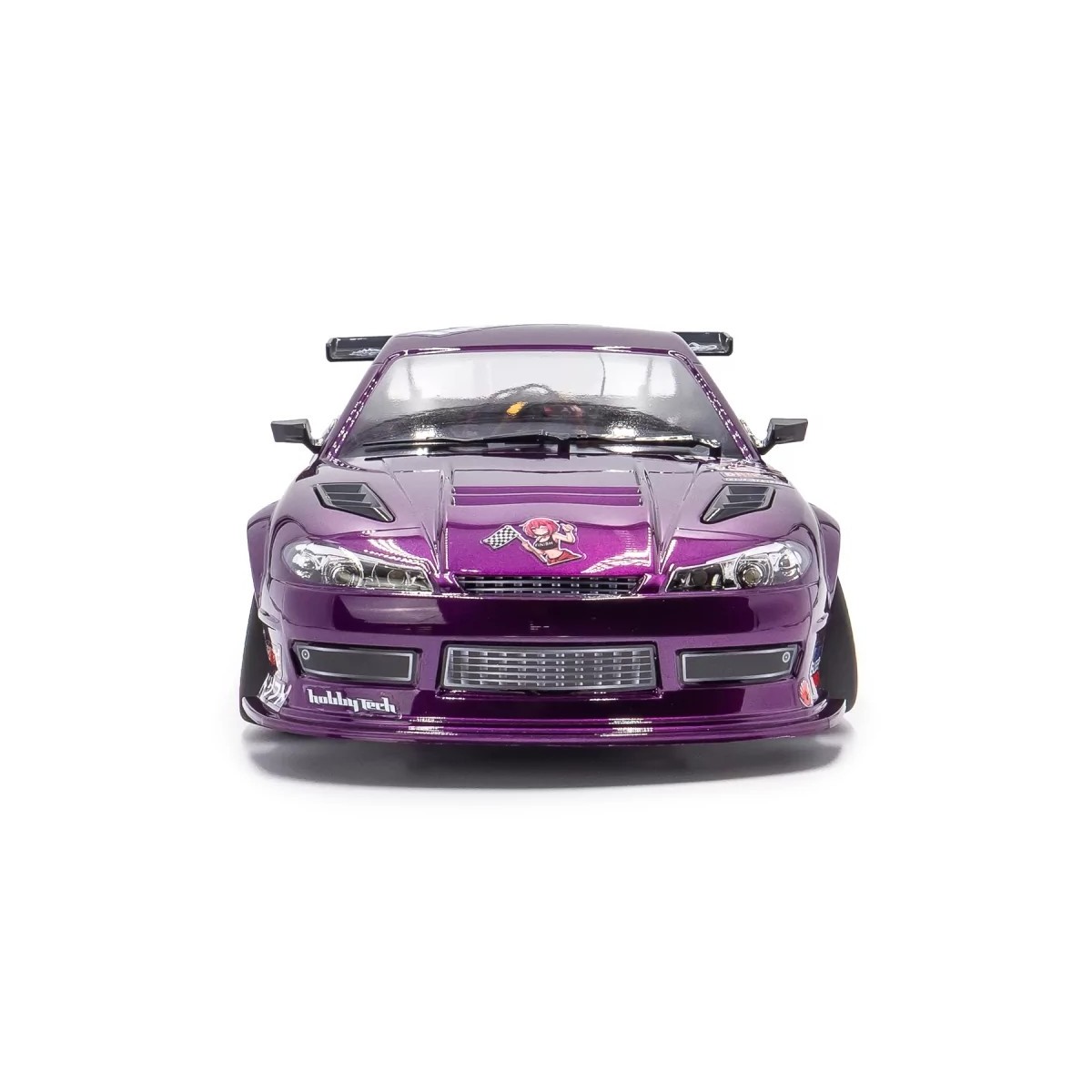

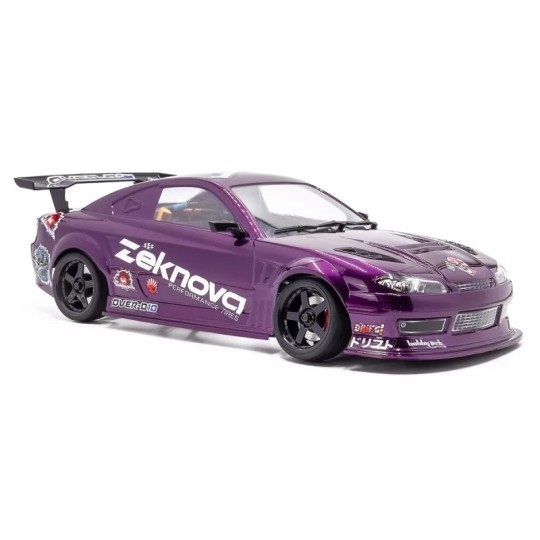

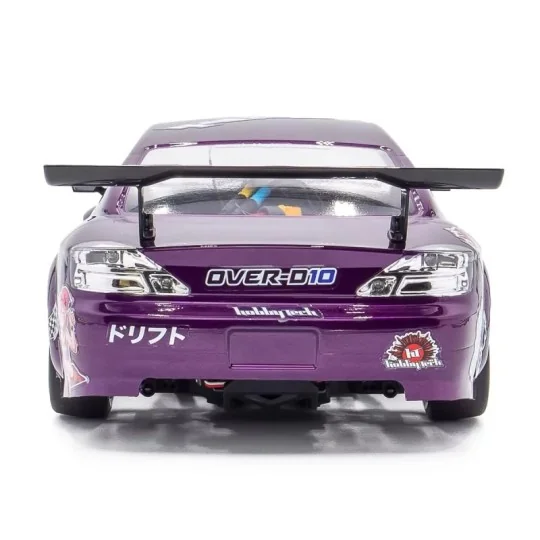

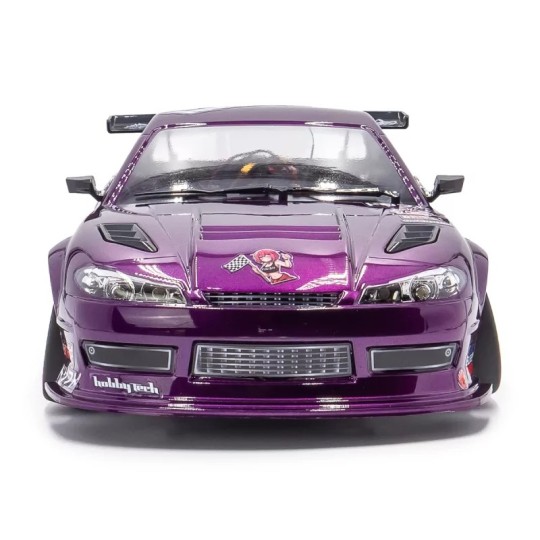

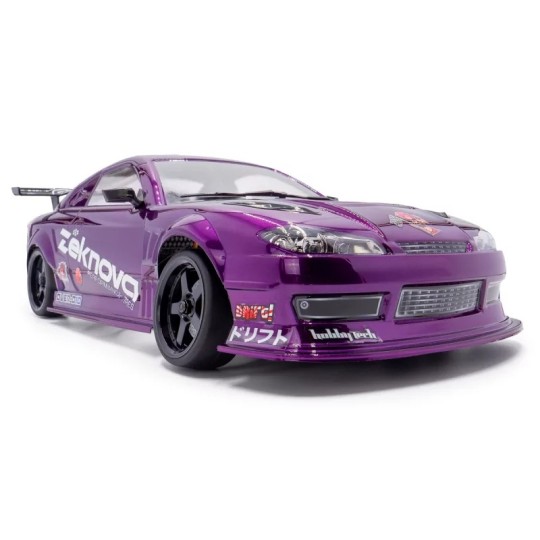

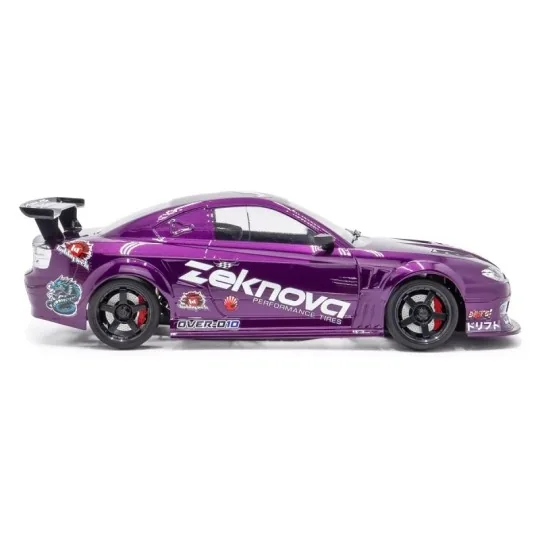

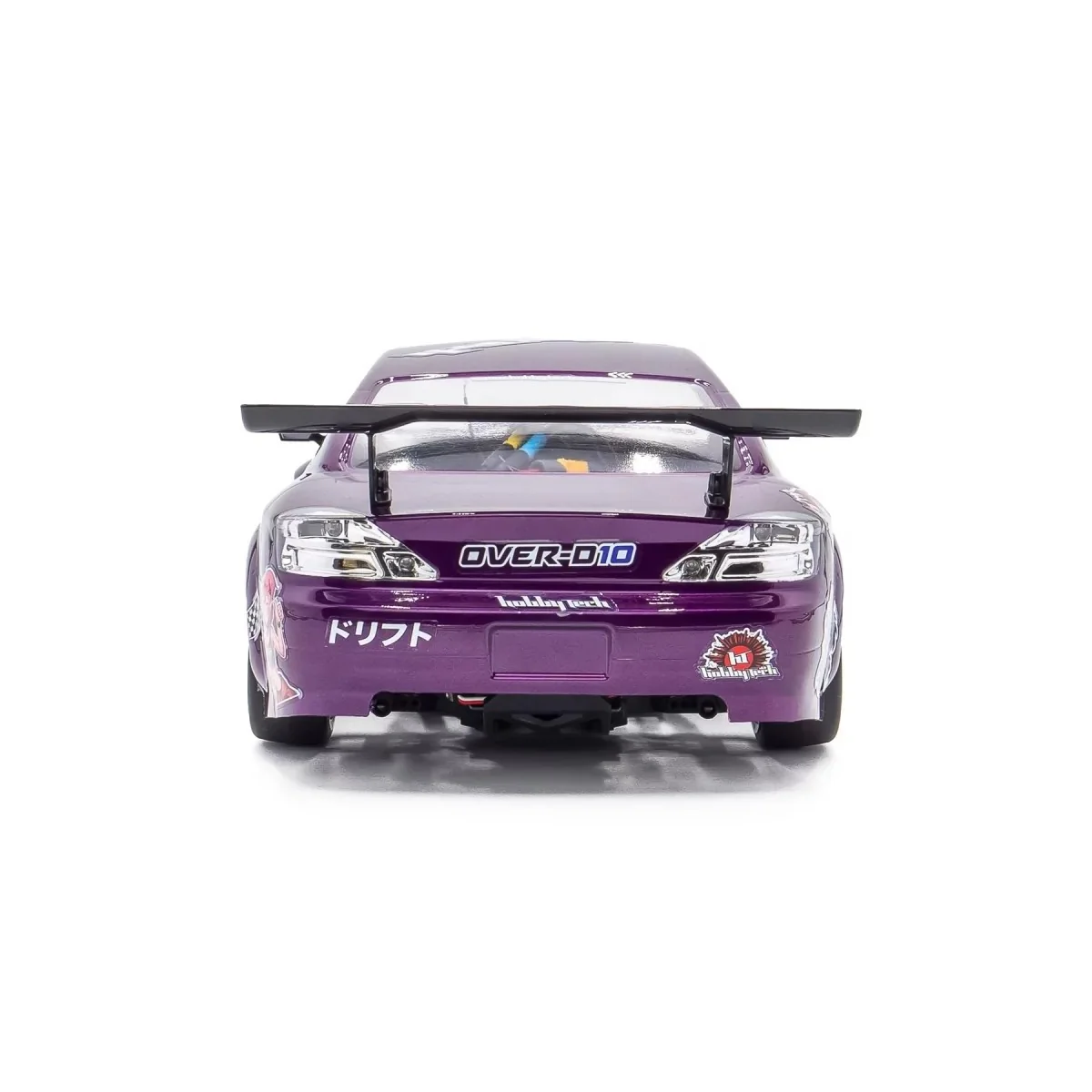

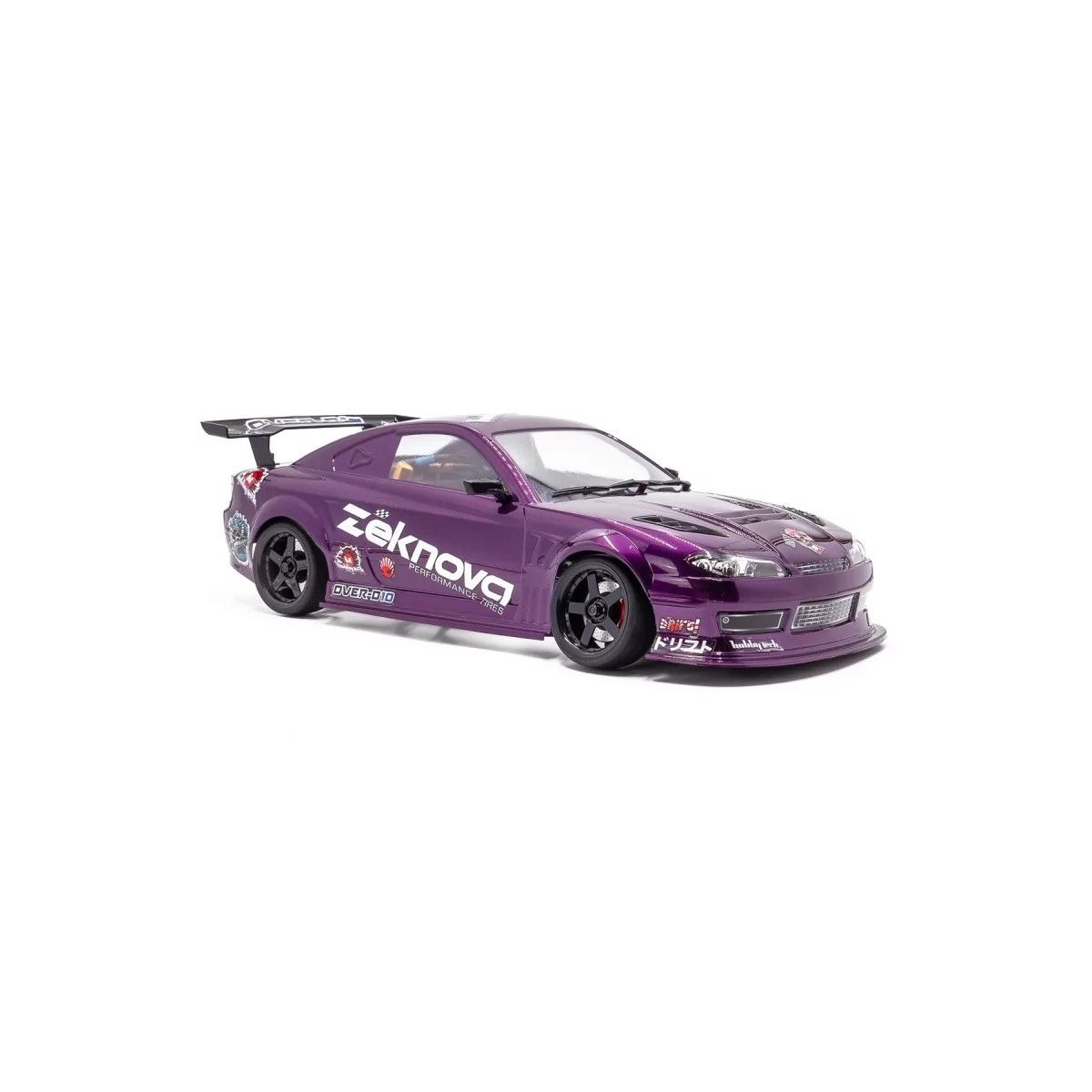

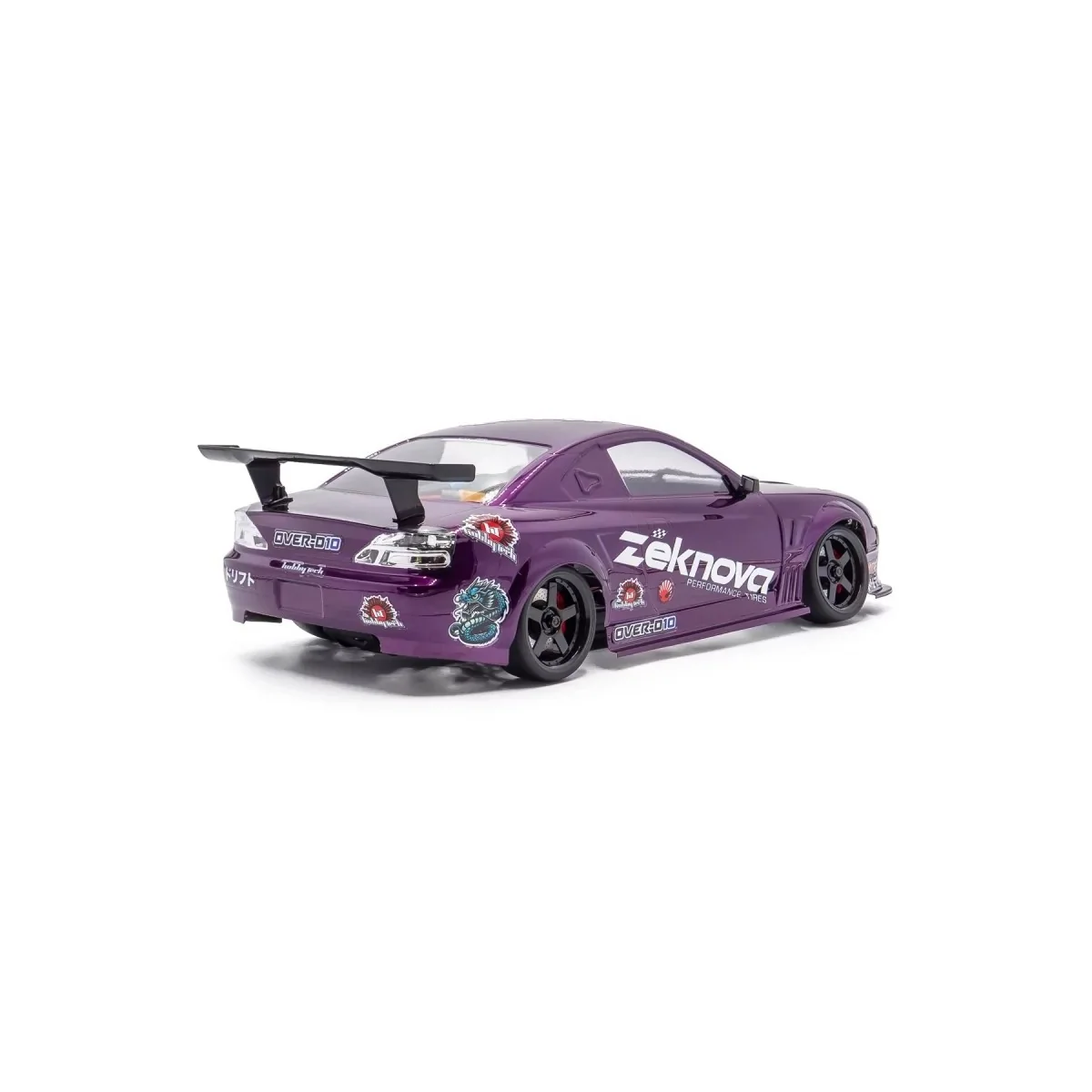

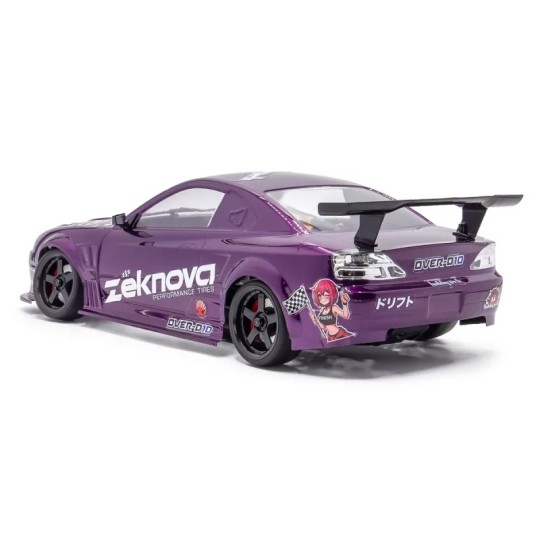

Pre-painted S15 bodywork with LED kit included:

Designed at 1/10 scale, this special "Drift" bodywork faithfully reproduces as many details as possible. Its flared "rocket bunny" style fenders and rear wing give it a perfect finish.

• Bodywork in polycarbonate painted "Metallic purple"
• Chrome front and rear "Light buckets"
• Front and rear LED kit included and installed
• Spoiler, mirrors, windshield wipers, air intake

Customizable engine settings:

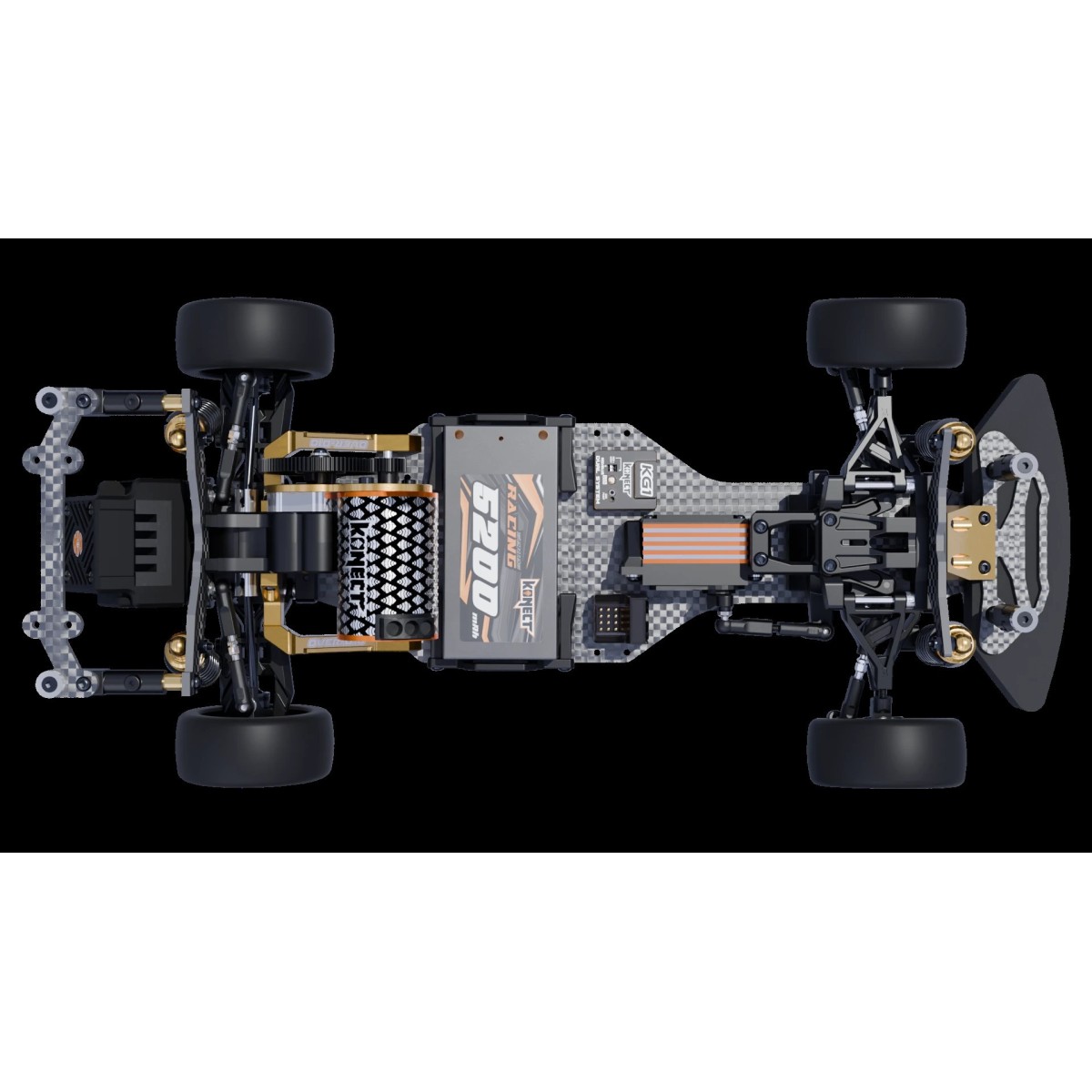

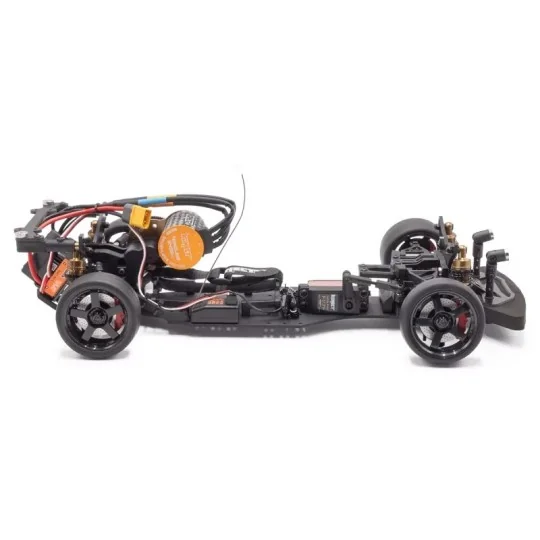

You can use one of 10 motor positions to optimize your riding experience and adapt the chassis behavior. A higher motor position promotes responsiveness and agility; a lower position increases stability and control.

Steering angle:

The OVER-D10 offers exceptional handling, perfectly suited to the demands of RC drifting. Thanks to its wide steering angle, it allows for tight turns and smooth transitions.

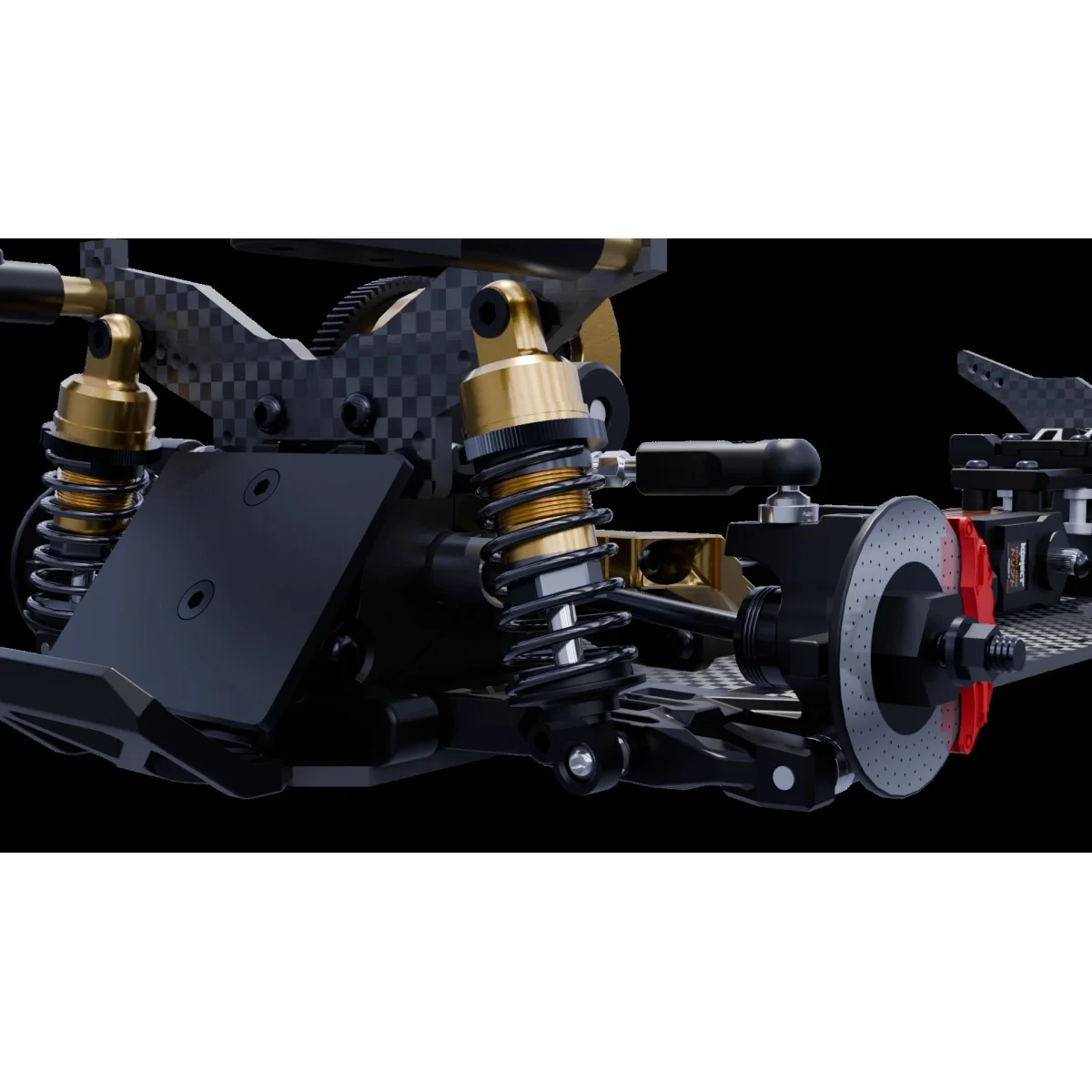

Shock absorbers:

Designed specifically for drifting, these shock absorbers offer a perfect balance between suppleness and responsiveness, ensuring optimal stability and a smooth response.

Items not included:

• 4 AA batteries for the transmitter
