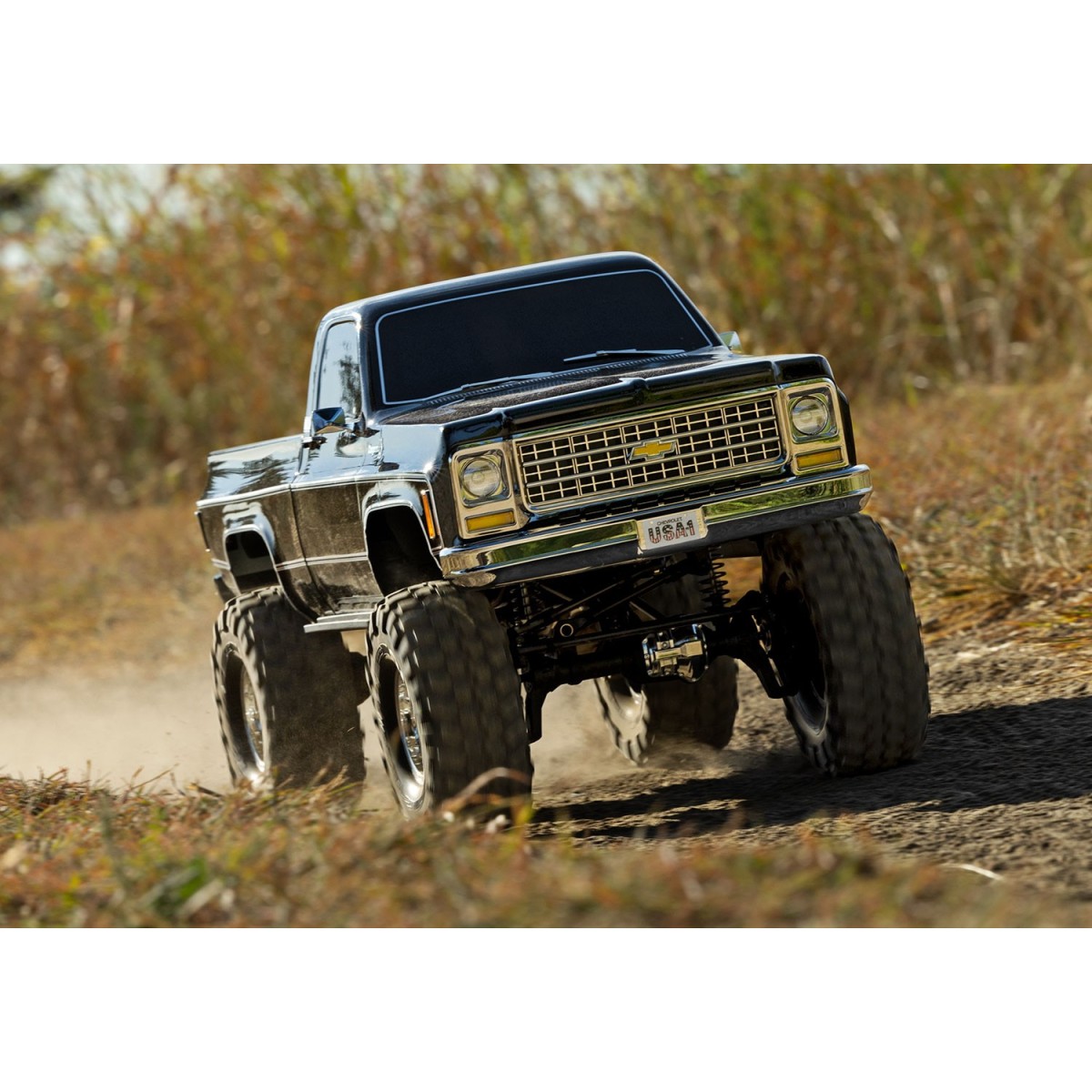

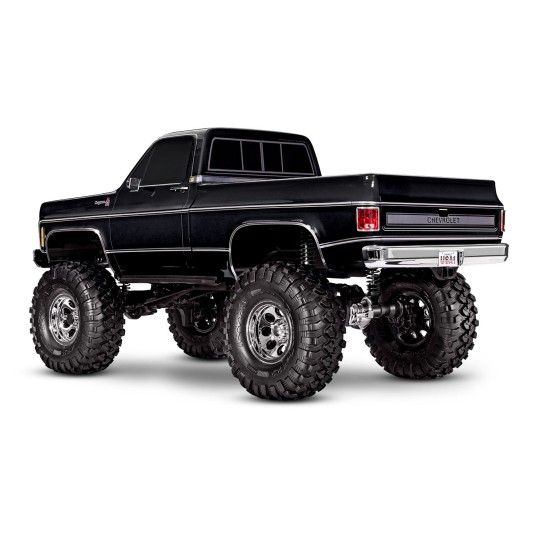

TRX-4 Chevrolet K10 Cheyenne 4WD TQi RTR Traxxas 92056-4

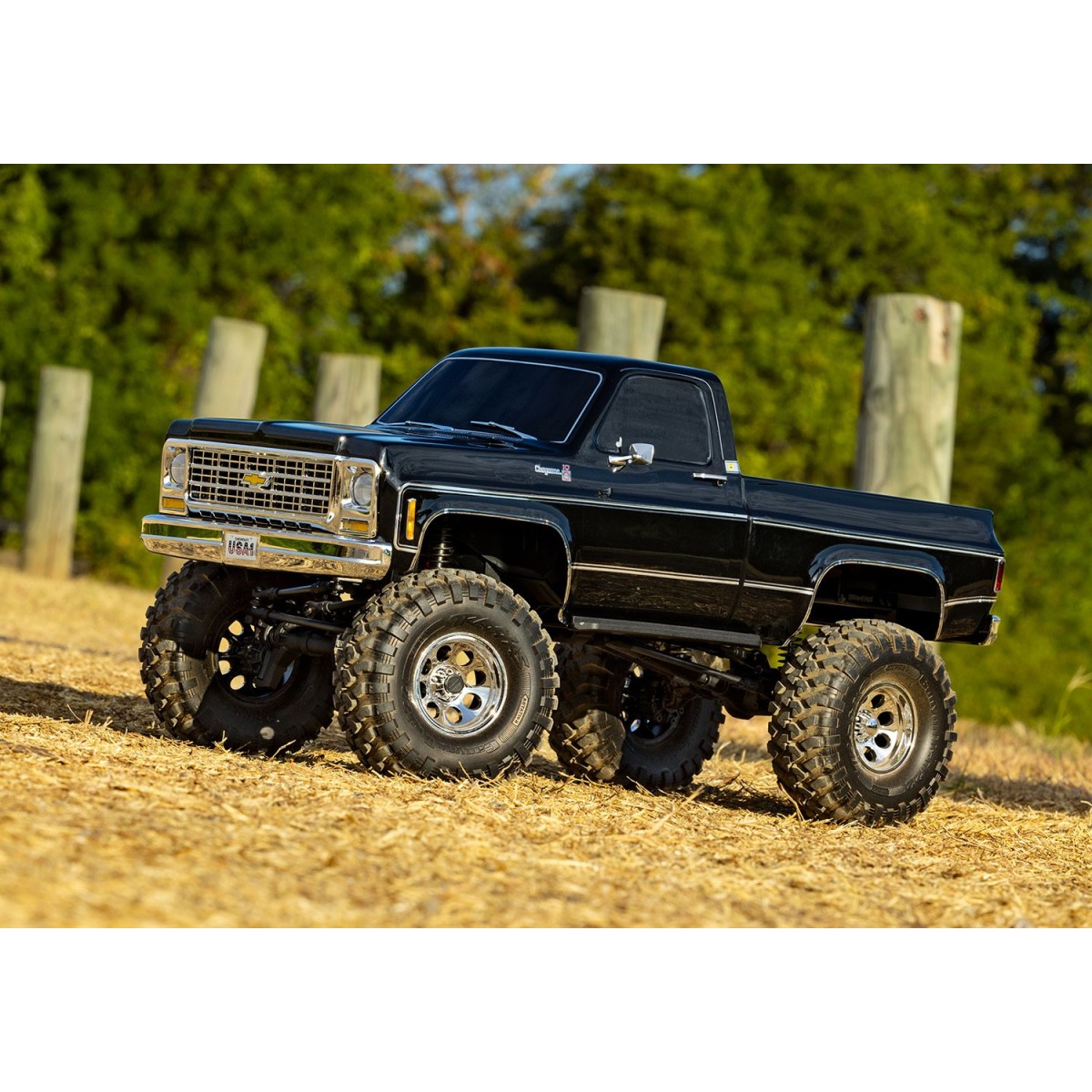

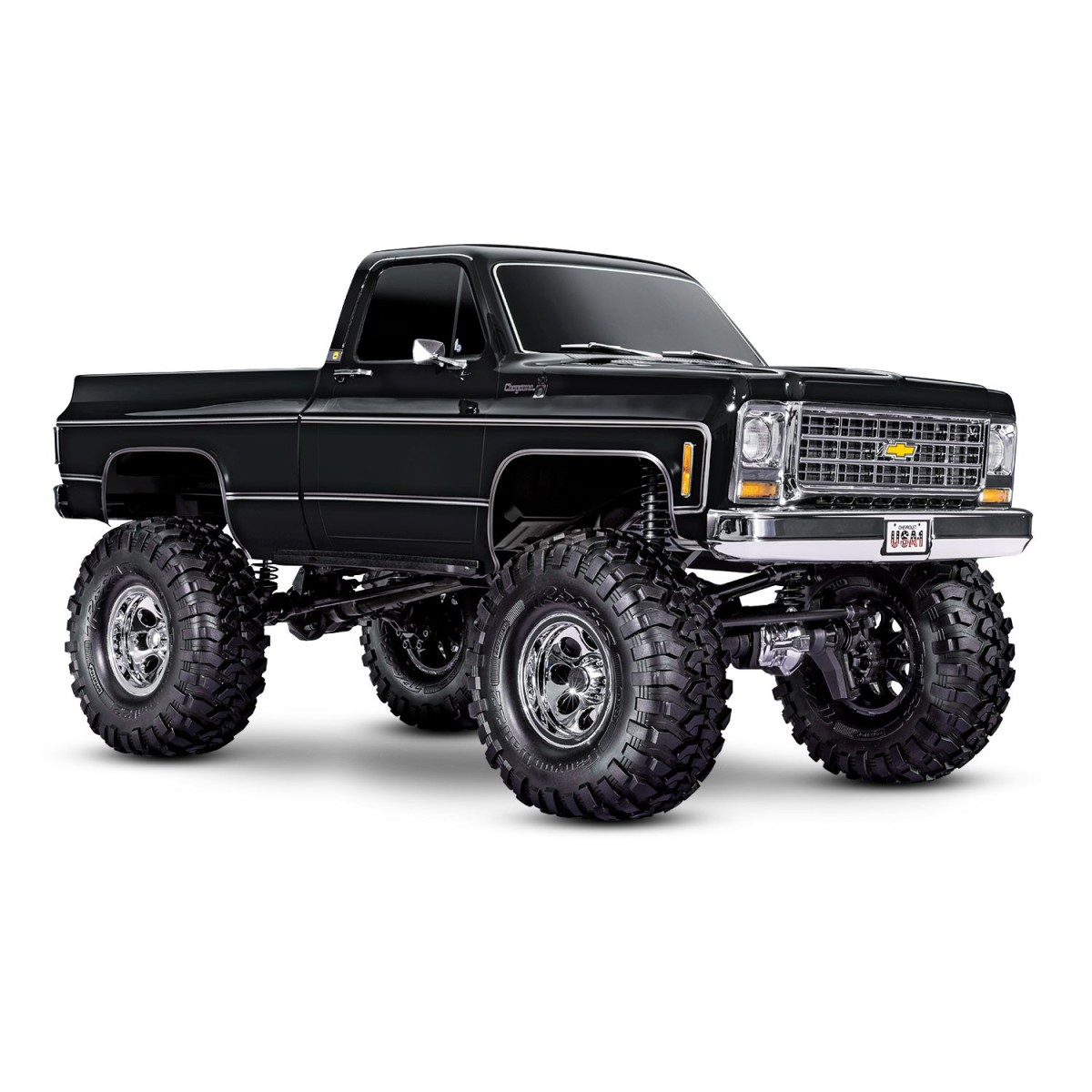

Traxxas takes adventure to a whole new level with the TRX-4 Chevrolet K10 High Trail raised edition (92056-4).

Thanks to the suspension lift kit and oversized tires, this highly detailed replica of the K10 has 25mm more ground clearance than the standard TRX-4.

The K10's extended wheelbase further enhances the already legendary off-road capabilities of the TRX-4, for even more fun on the trails.

The TRX-4 High Trail raised edition is the perfect vehicle for the driver who wants it all: extreme capability, a stunning scale look, and Traxxas toughness.

HIGH TRAIL EDITION
The factory-installed ground clearance lift kit raises the K10 High Trail Edition by over 25mm for increased ground clearance. Large 2.2-inch Mag wheels and Canyon Trail tires tame even the most technical trails and will extend your adventures further than ever before.

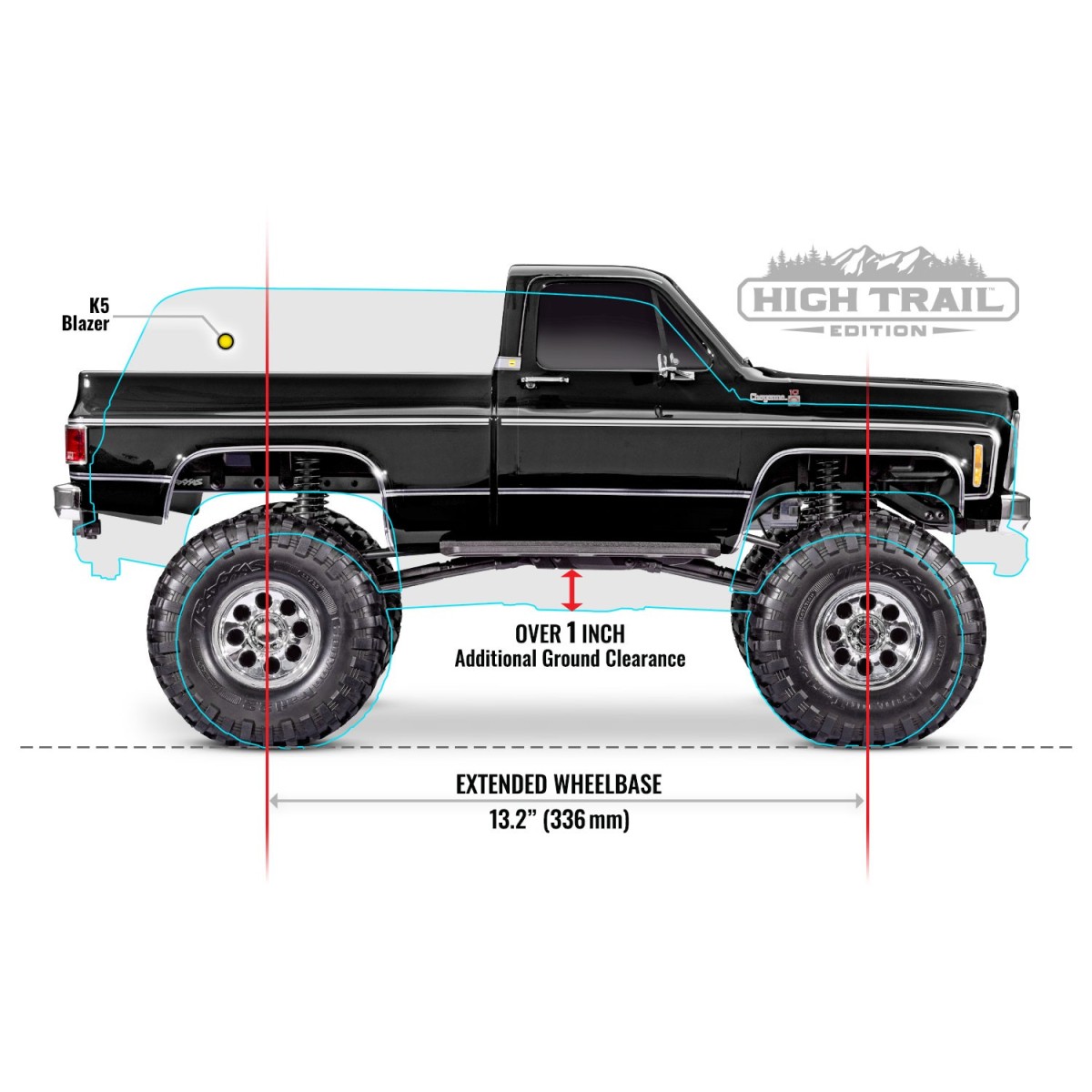

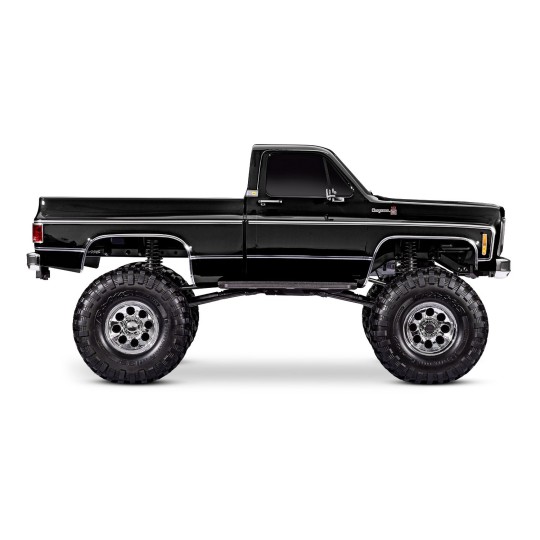

EXTENDED WHEELBASE OF 336MM
The K10's steel chassis rails extend the wheelbase to 336mm to perfectly capture the pickup's true proportions. A longer wheelbase also translates to greater stability when off-roading and a smoother, more stable ride on rough terrain.

CLIP-FREE BODY INSTALLATION
The K10's clipless body sits securely on the track but releases in seconds for easy access to the chassis. This hidden locking system adds a new level of convenience and scale realism to the TRX-4 by eliminating traditional body clips that can disrupt the clean lines of the body.

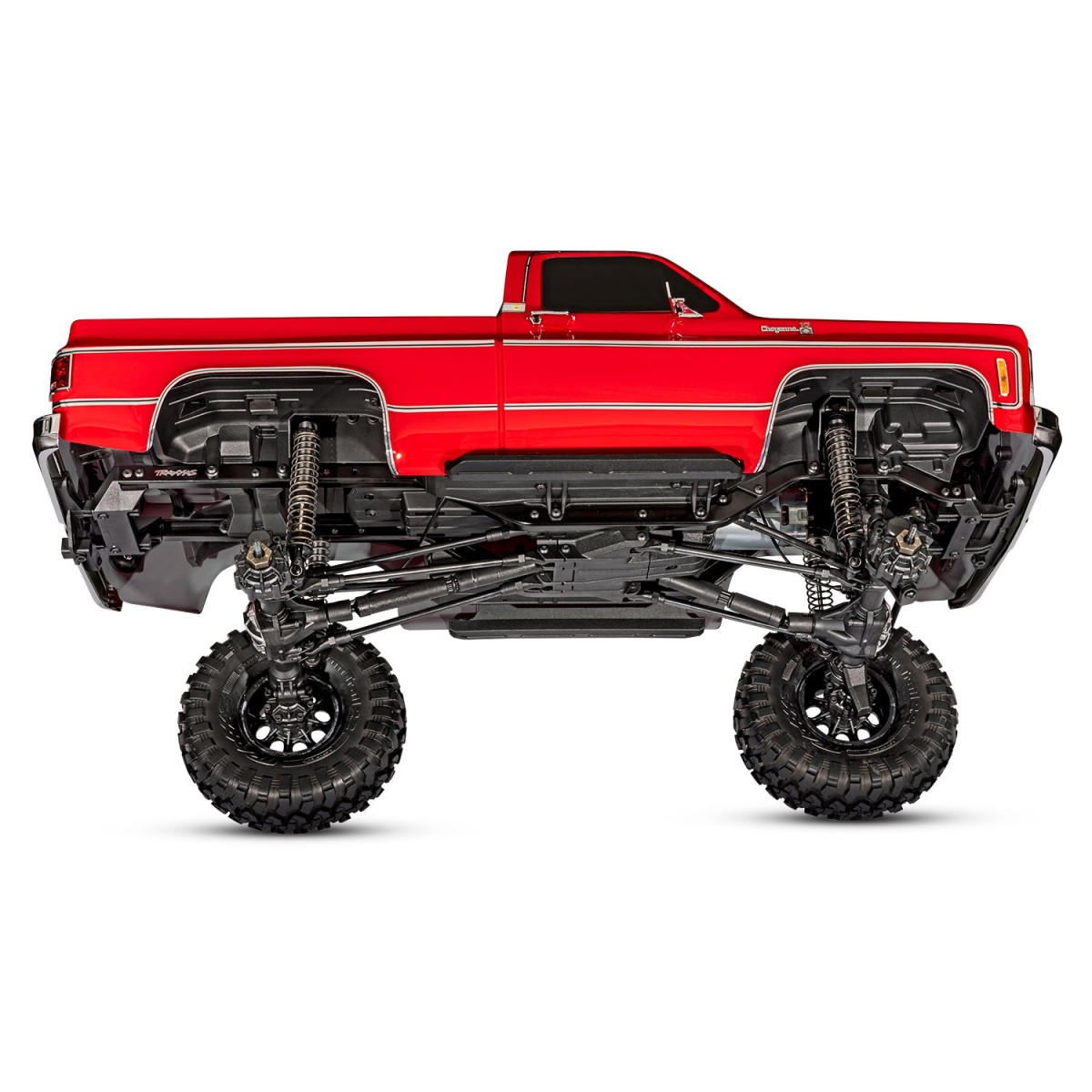

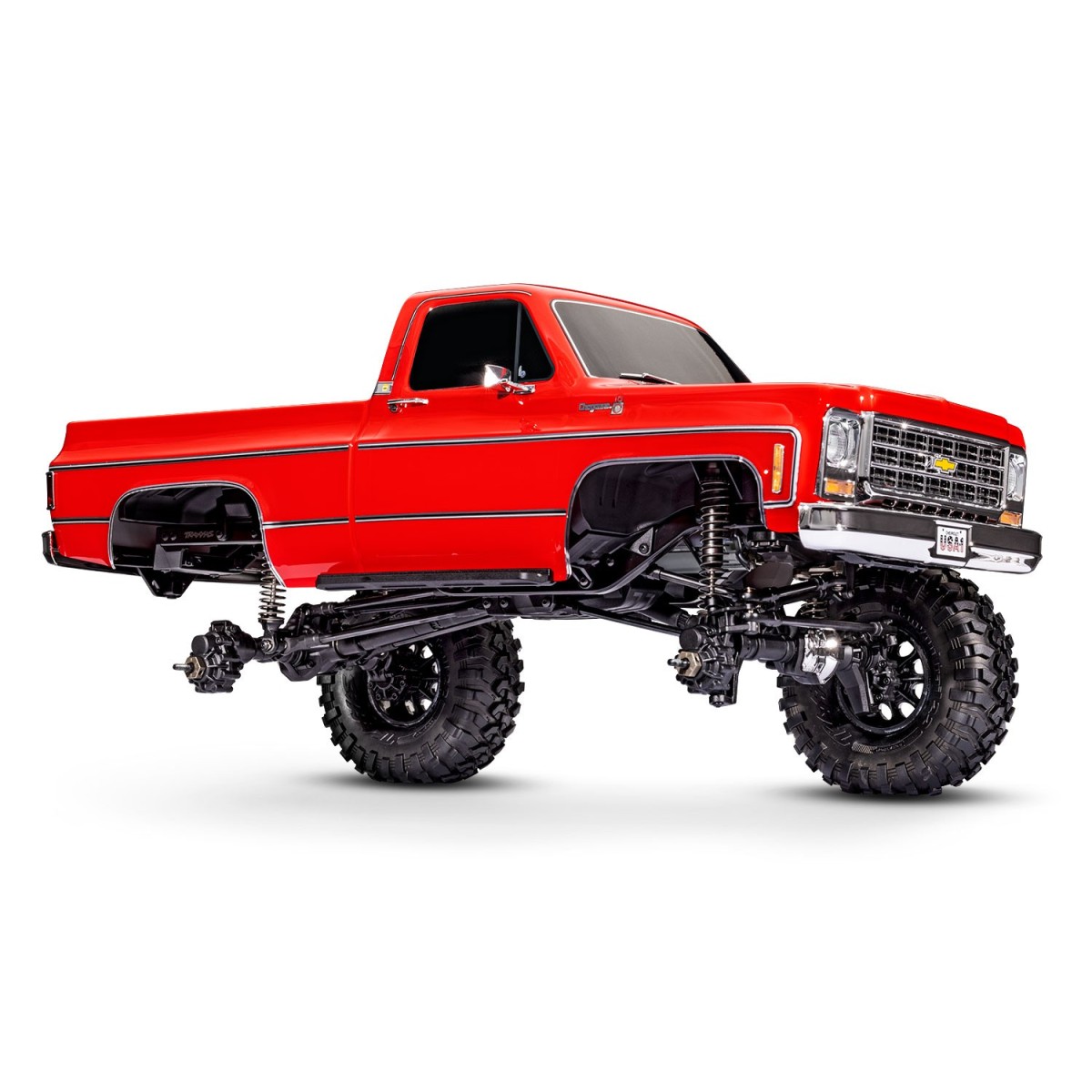

FACTORY-INSTALLED GROUND GUARD RISE KIT
The factory-installed lift kit on the K10 High Trail Edition and oversized tires add over 25mm of ground clearance for trail conquering. The 100mm longer GTS shocks deliver smooth, plush damping performance with improved wheel articulation for enhanced off-road capability.

Extended steel tie rods and a revised servo mount maintain the increased suspension geometry of this TRX-4.

MODEL DETAILS

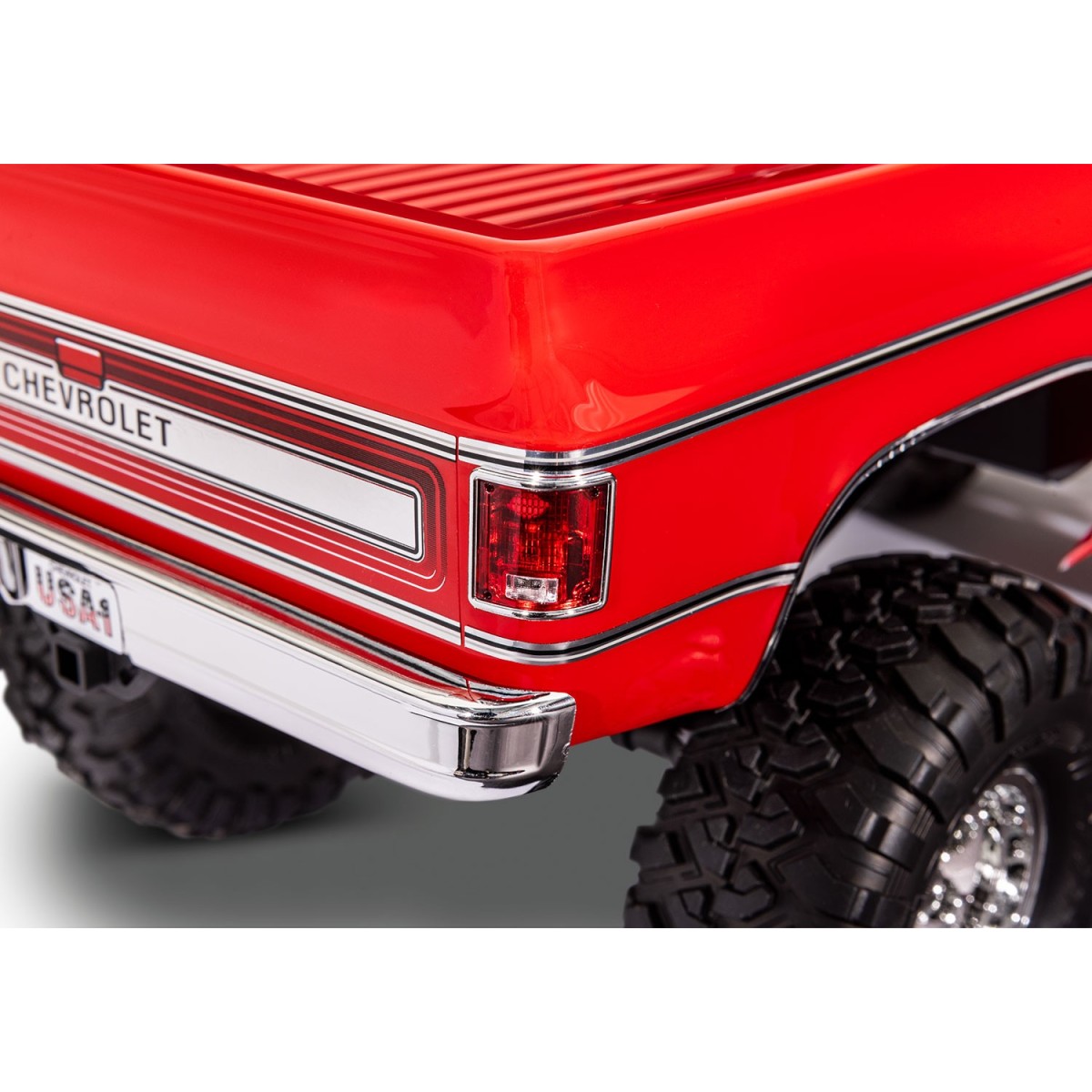

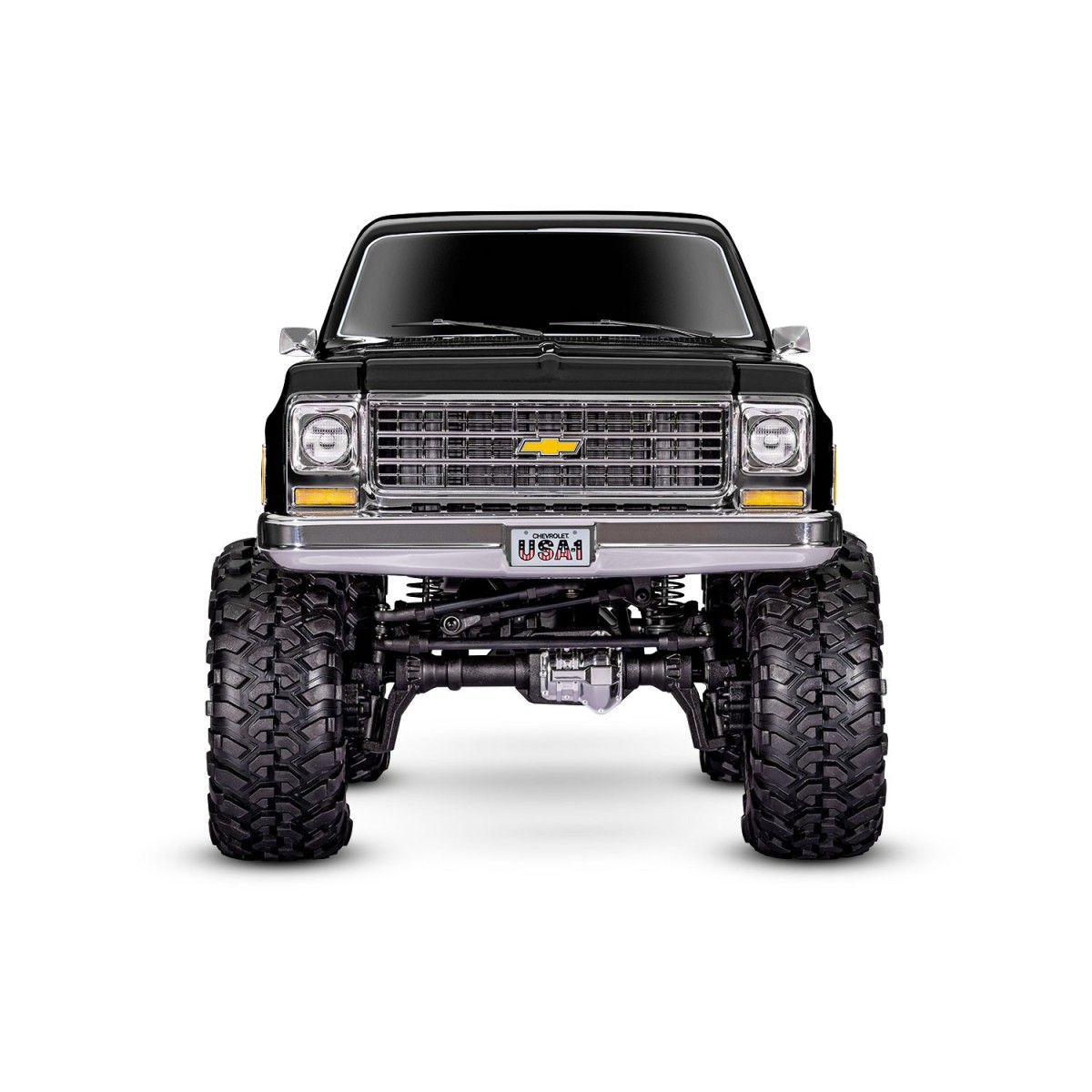

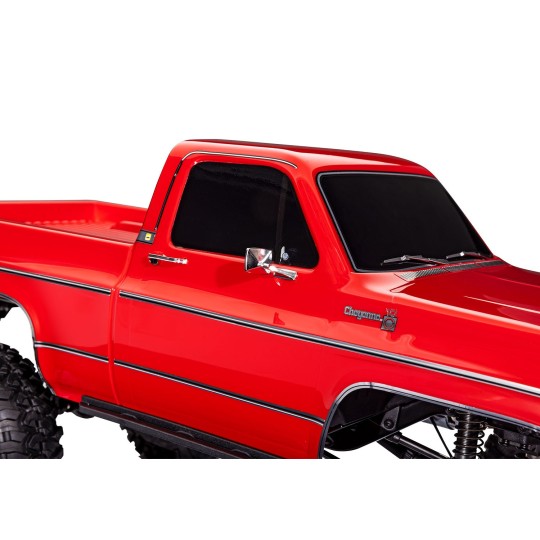

The K10 High Trail Edition is a masterpiece of scale model detail. Sparkling chrome trim frames the windows and wheel arches for a truly authentic look. The injection-molded grille, bumpers, wipers, and door handles are chromed for maximum visual impact. Even the 8-hole chrome Mag wheels are accurate down to the smallest detail.

CLIP-FREE BODY INSTALLATION
The K10's clipless body mounts hold securely but release in seconds without the need for clips or body studs. An integrated quick-release system secures the body invisibly.

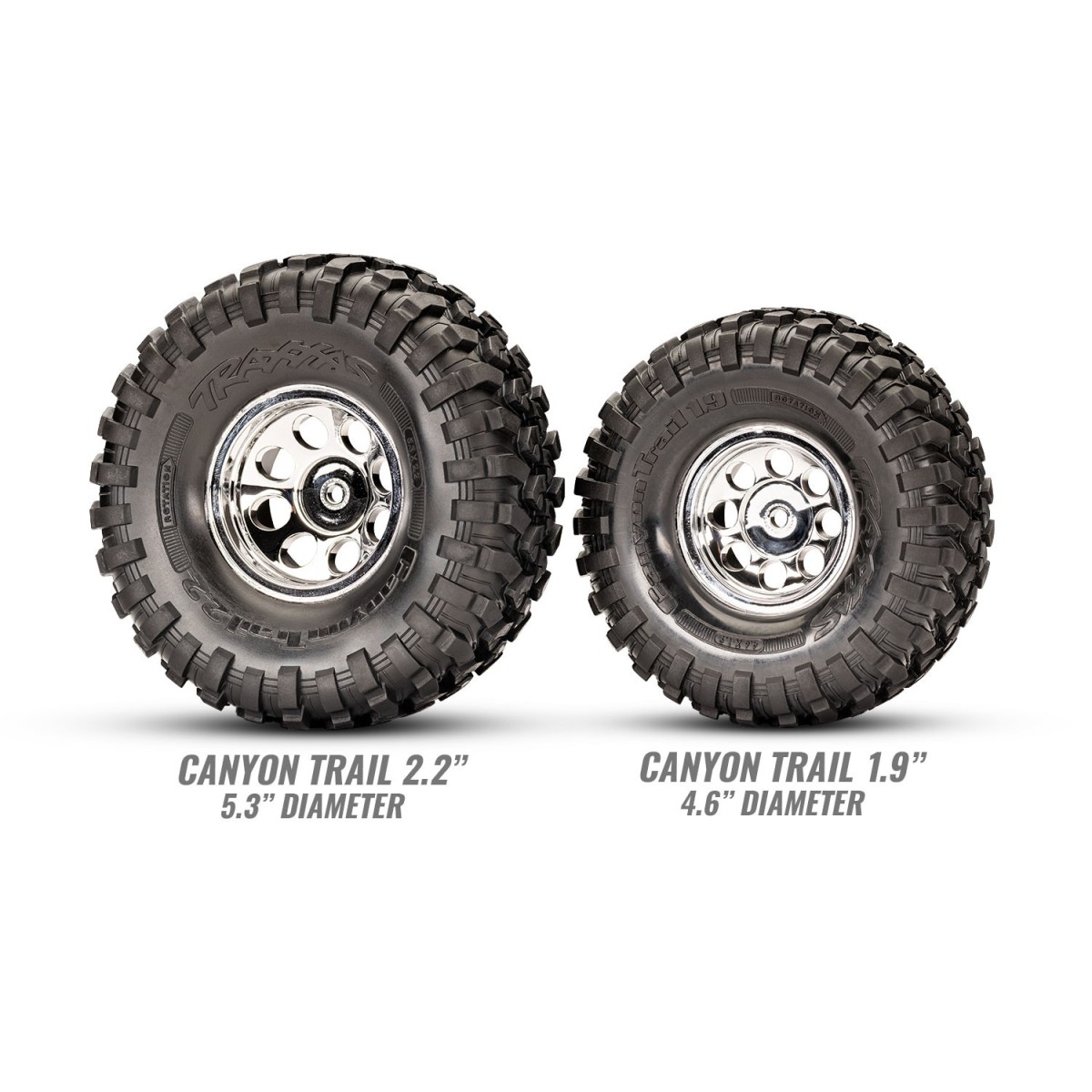

OVERSIZED 2.2-INCH RIMS AND TIRES
Canyon Trail's aggressive S1 compound tires feature wide knobs for enhanced grip and two-level foam inserts for realistic off-road performance. The tires come pre-mounted and glued onto large, 2.2-inch, 8-hole chrome rims with detailed replicas of locking hubs to conceal wheel nuts.

TRX-4 CAPABILITIES

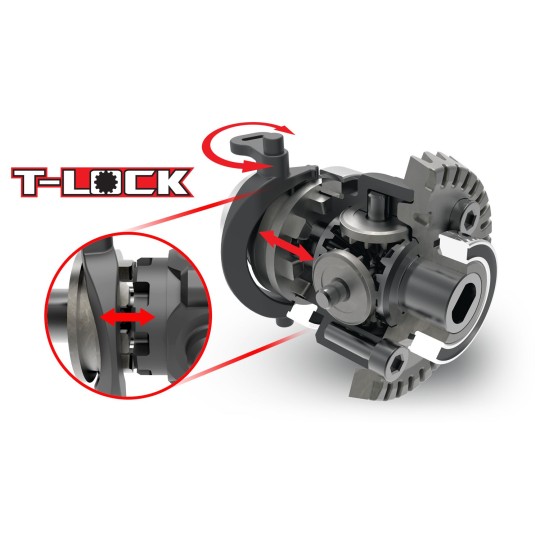

The K10 High Trail Edition comes standard with all the award-winning features of other TRX-4 models, with the added benefit of increased ground clearance. This includes portal axles, remote-locking T-Lock differentials, a 2-speed transmission, aluminum GTS shocks, steel frame rails… and more.

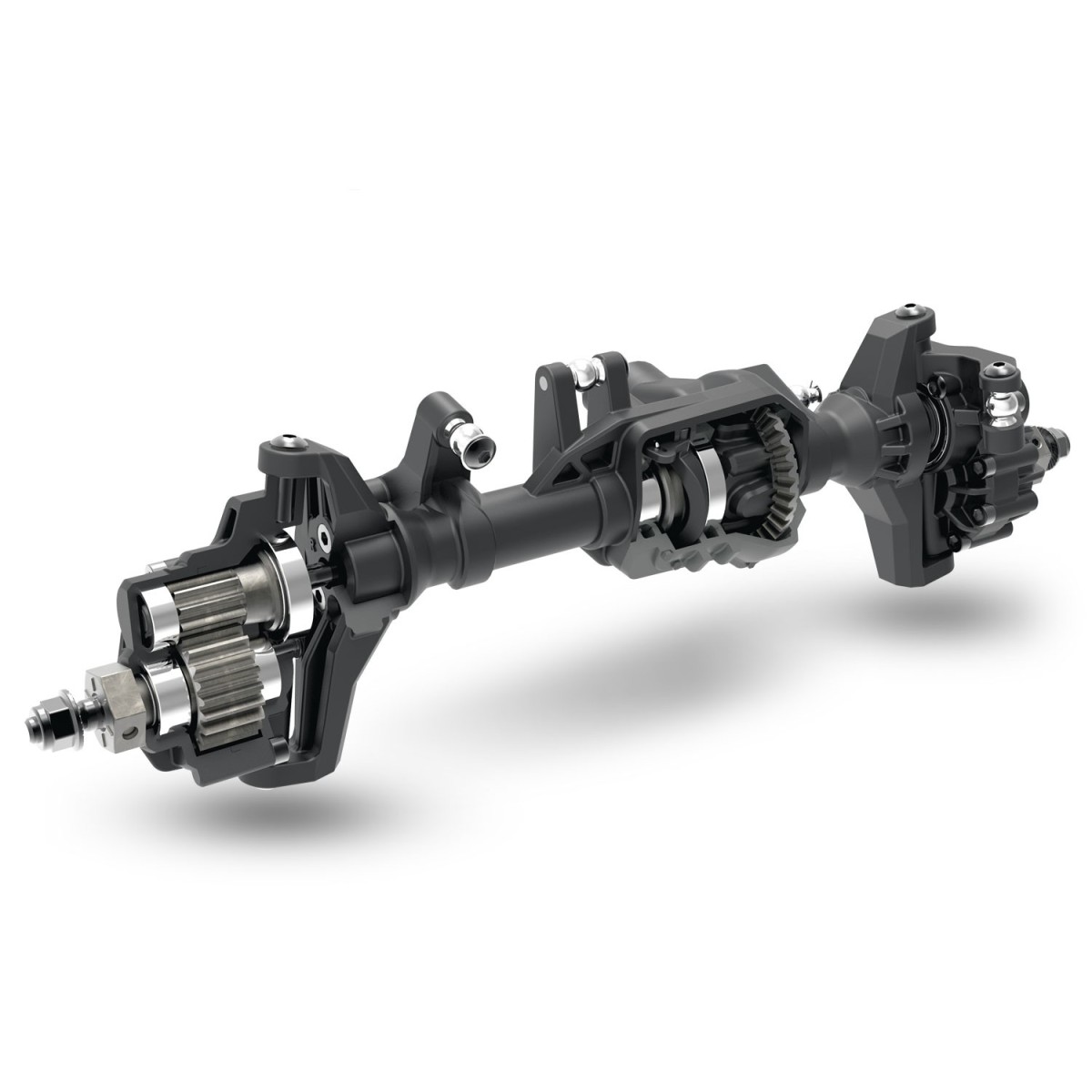

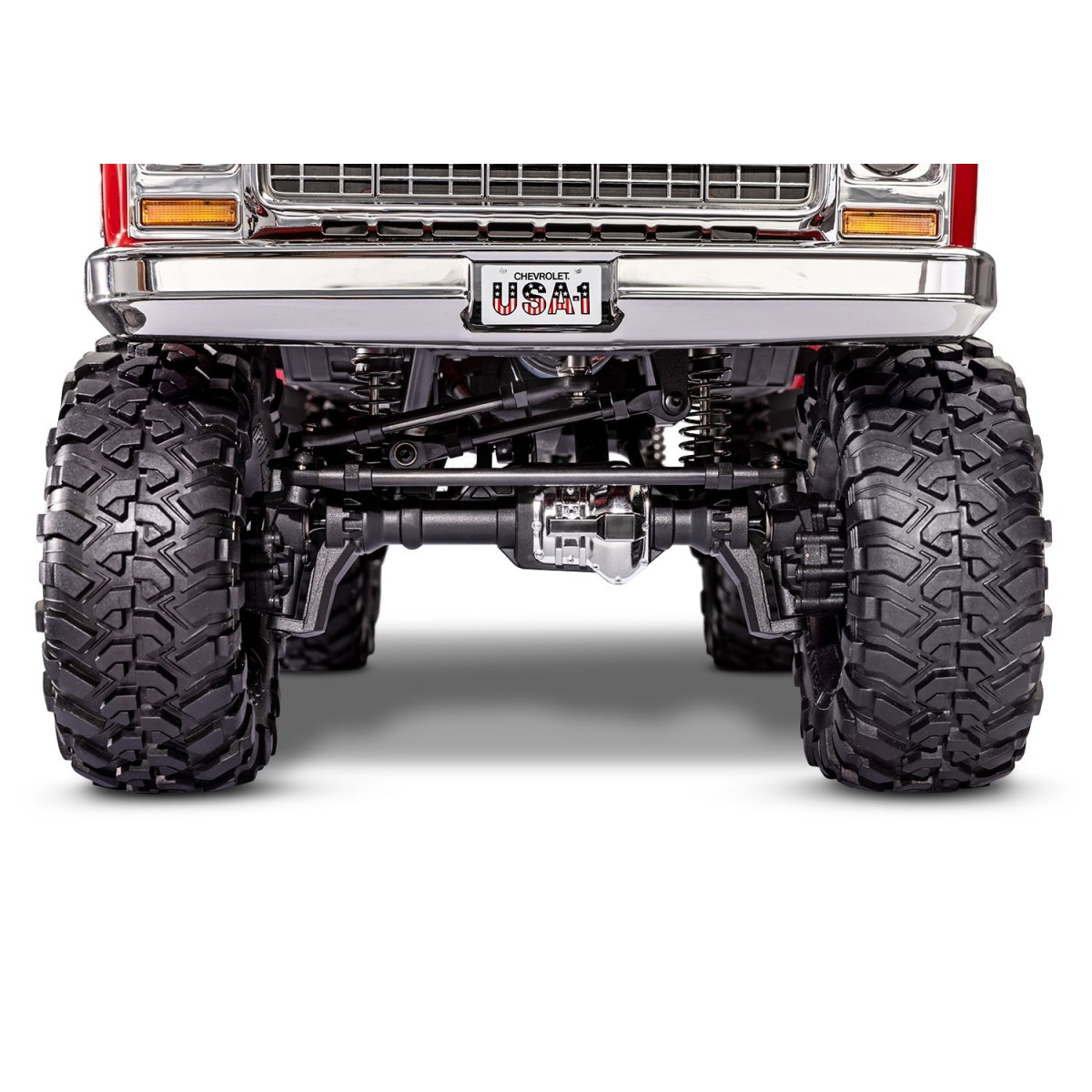

THE POWER OF THE PORTICATES

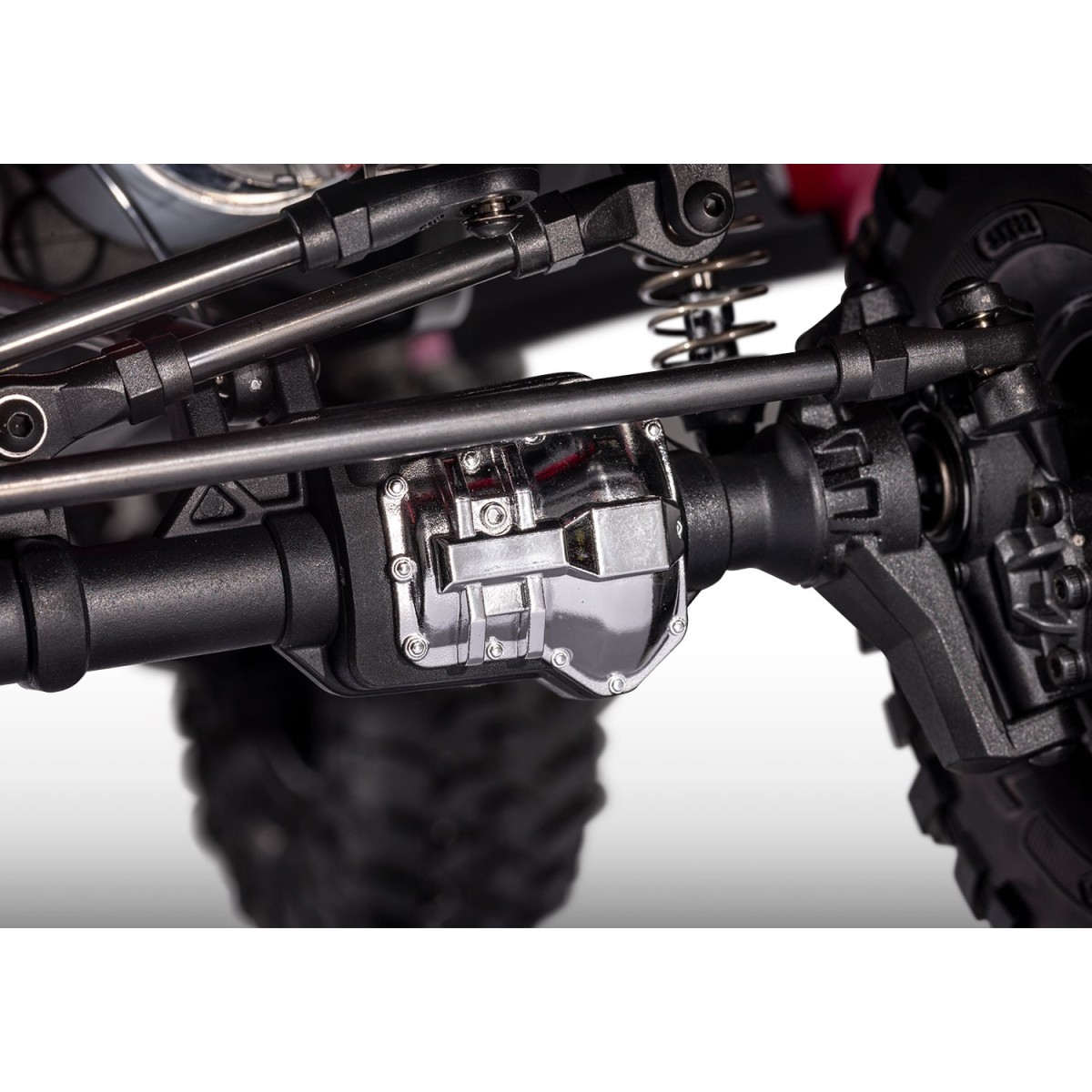

The K10's portal axles work in tandem with the lift kit to raise the vehicle for enormous center ground clearance. With over 25mm of clearance under the center deck, the K10 pickup can climb over obstacles that would snag other trucks. The portal axles' internal speed reduction virtually eliminates torque steer, keeping the K10 straight and on track.

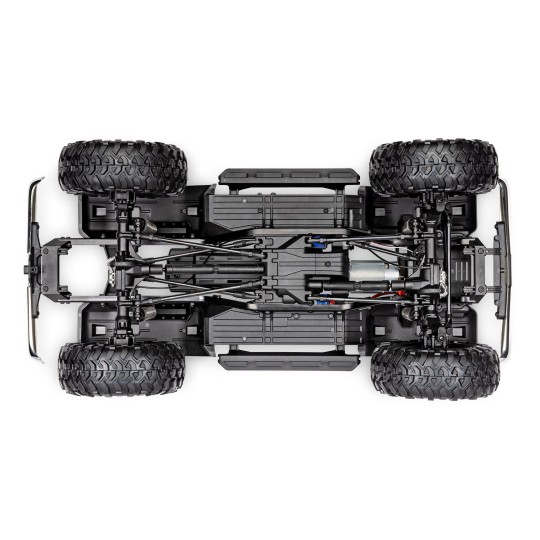

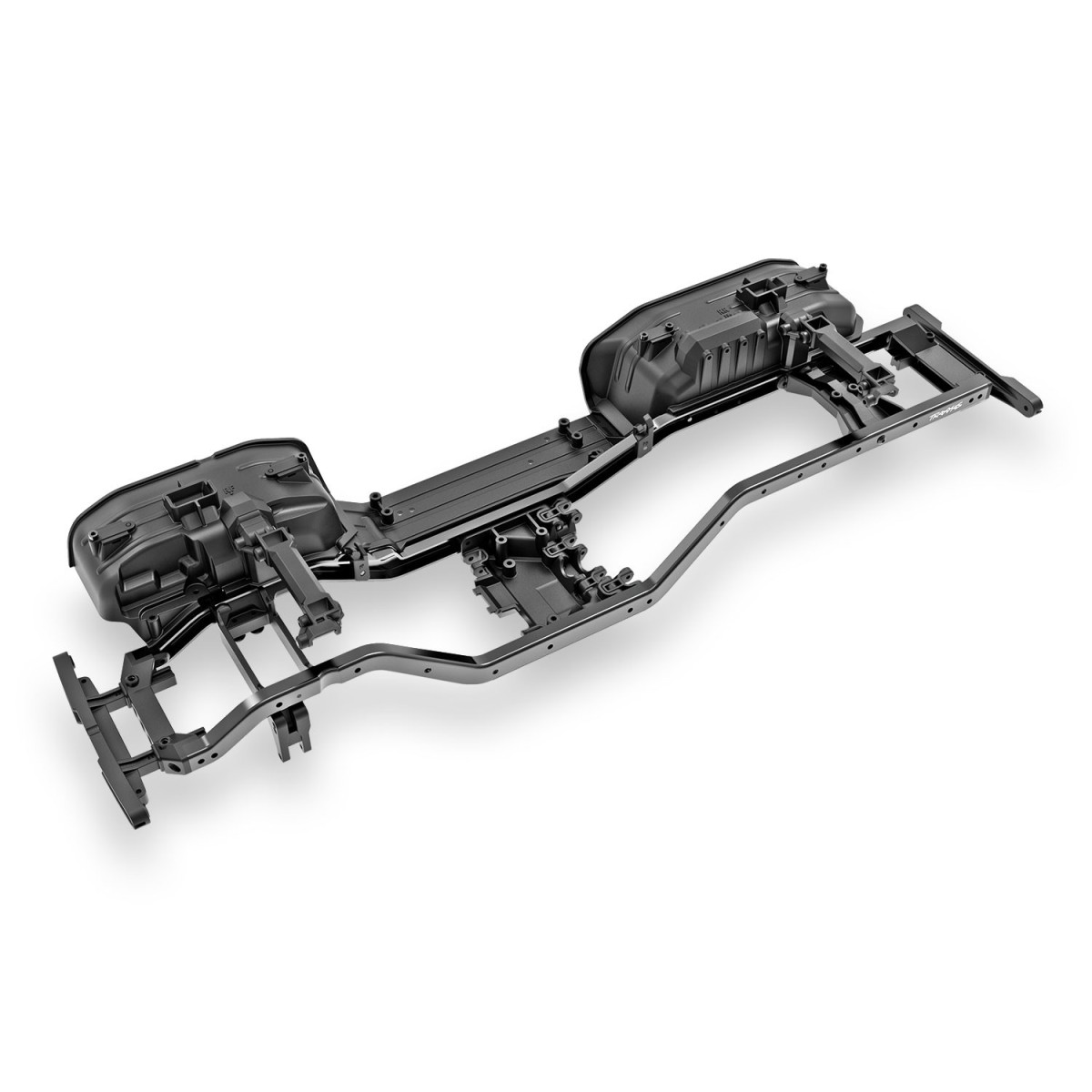

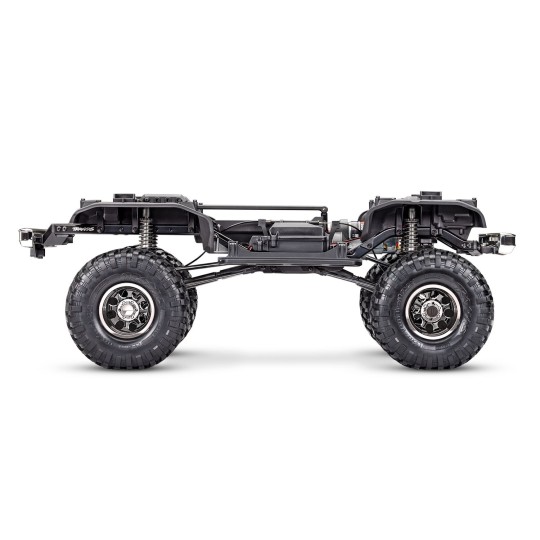

EXTENDED STEEL FRAME

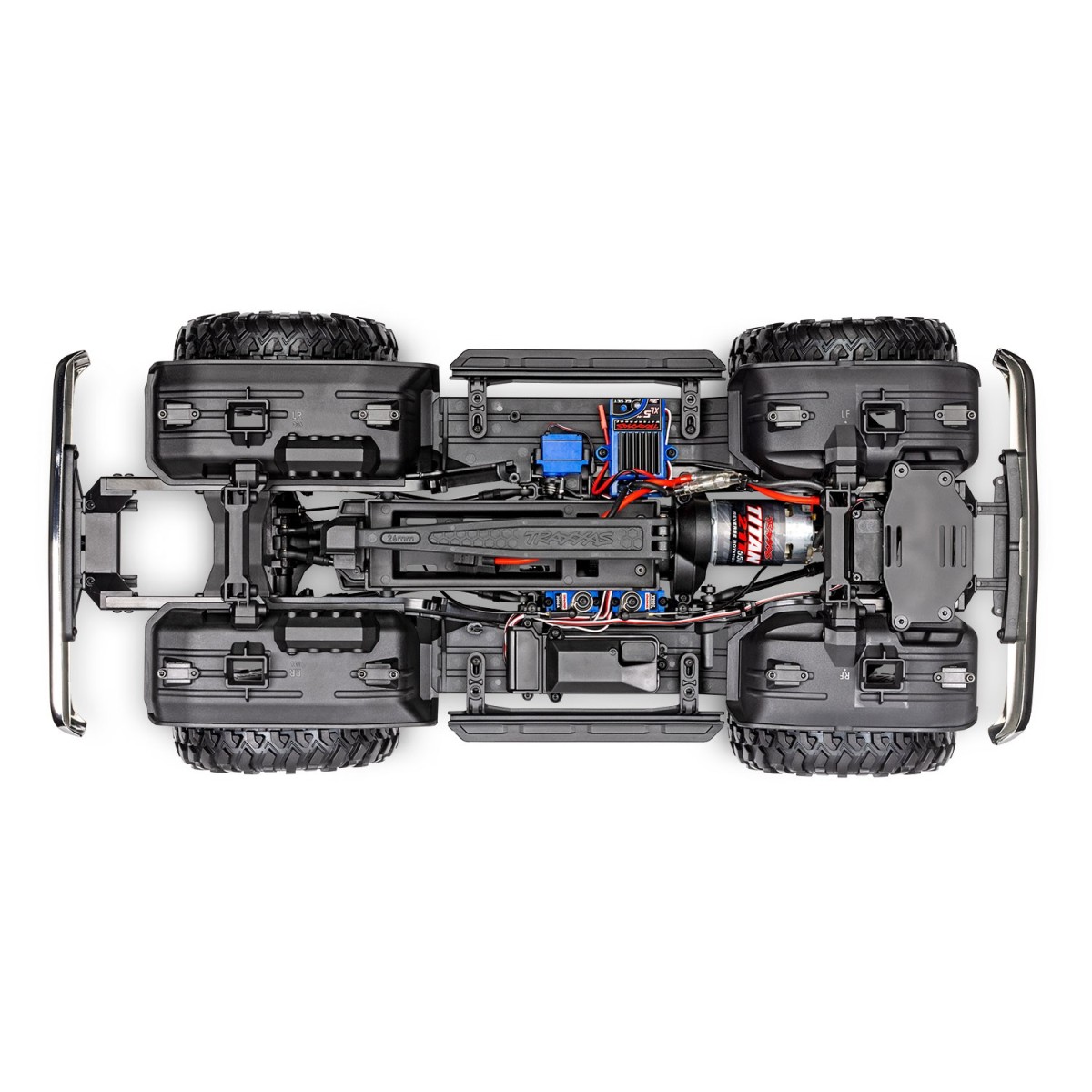

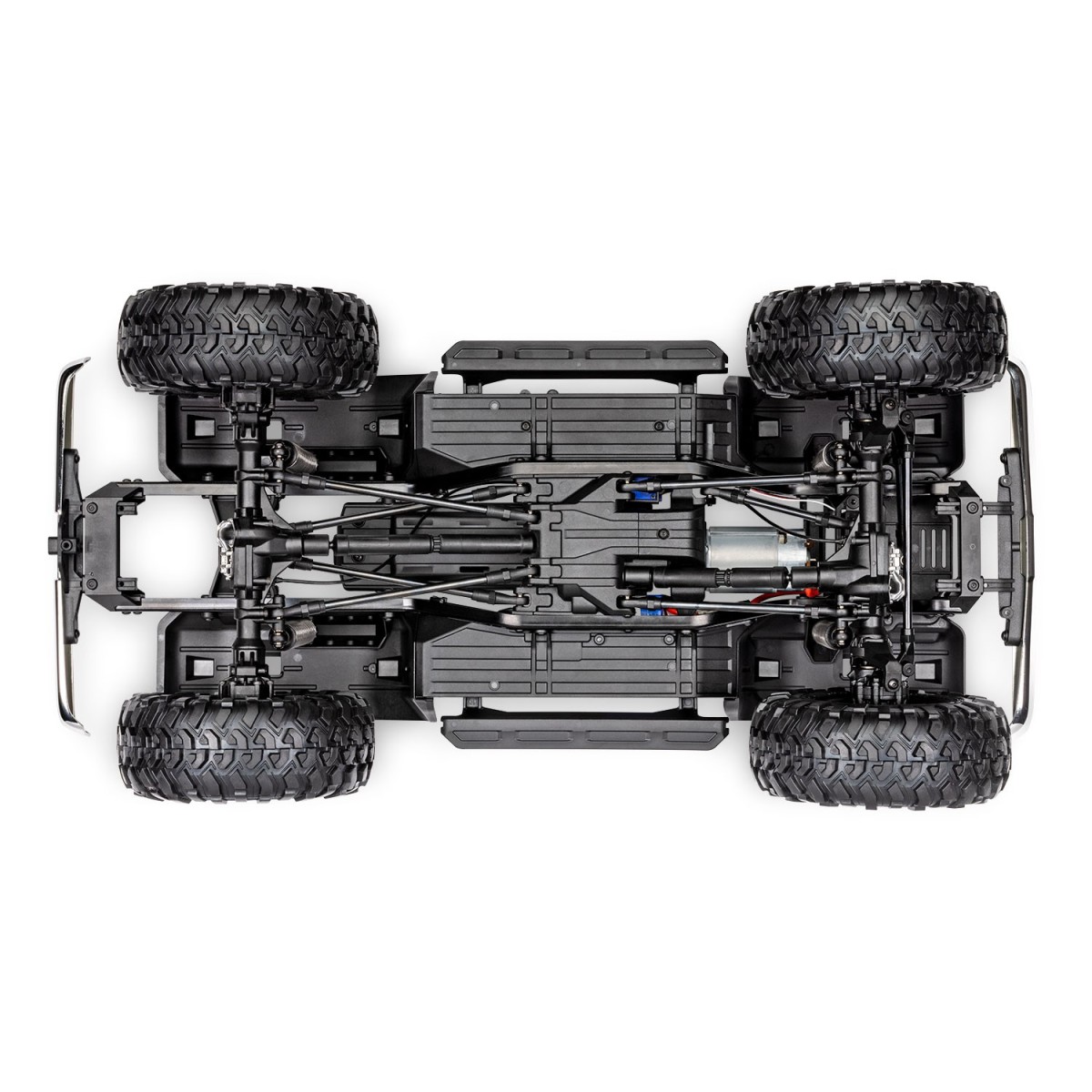

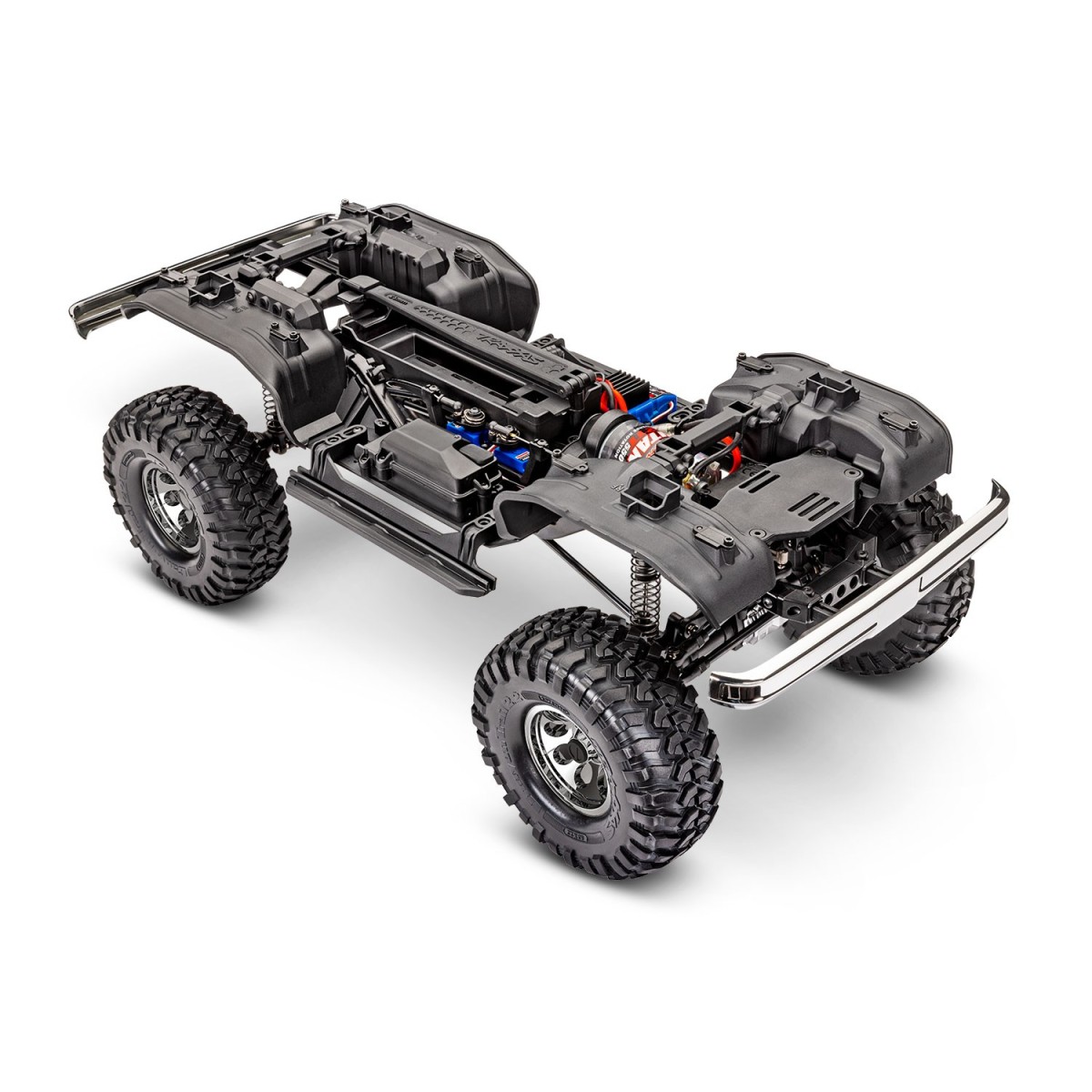

The K10 High Trail Edition's extended steel ladder frame stretches from bumper to bumper with molded crossmembers to create an extremely rigid spine. You'll feel the added stability of its longer wheelbase on steep climbs or when navigating technical terrain.

3s POWER SUPPLY SYSTEM
The XL-5 HV electronic speed control offers 3s LiPo compatibility for efficient and powerful operation. The Titan 21T motor provides the torque needed to haul heavy loads and climb steep inclines. This efficient system delivers exceptional runtime with a Traxxas 3s 5000mAh LiPo battery.

TQi RADIO SYSTEM
Shift through the 2-speed gearbox and T-Lock differentials with a simple press, and activate cruise control to maintain throttle position for long-distance comfort – it's all integrated into the TQi. You can even customize settings via your smartphone with the 6511 wireless module (sold separately).

WATERPROOF ELECTRONICS
The K10 High Trail Edition tackles mud, snow, and streams thanks to its waterproof electronics. The speed controller and servos are waterproof, and the receiver is fully protected by a waterproof enclosure. Like all TRX-4 models, the K10 delivers all-season, all-weather adventure.

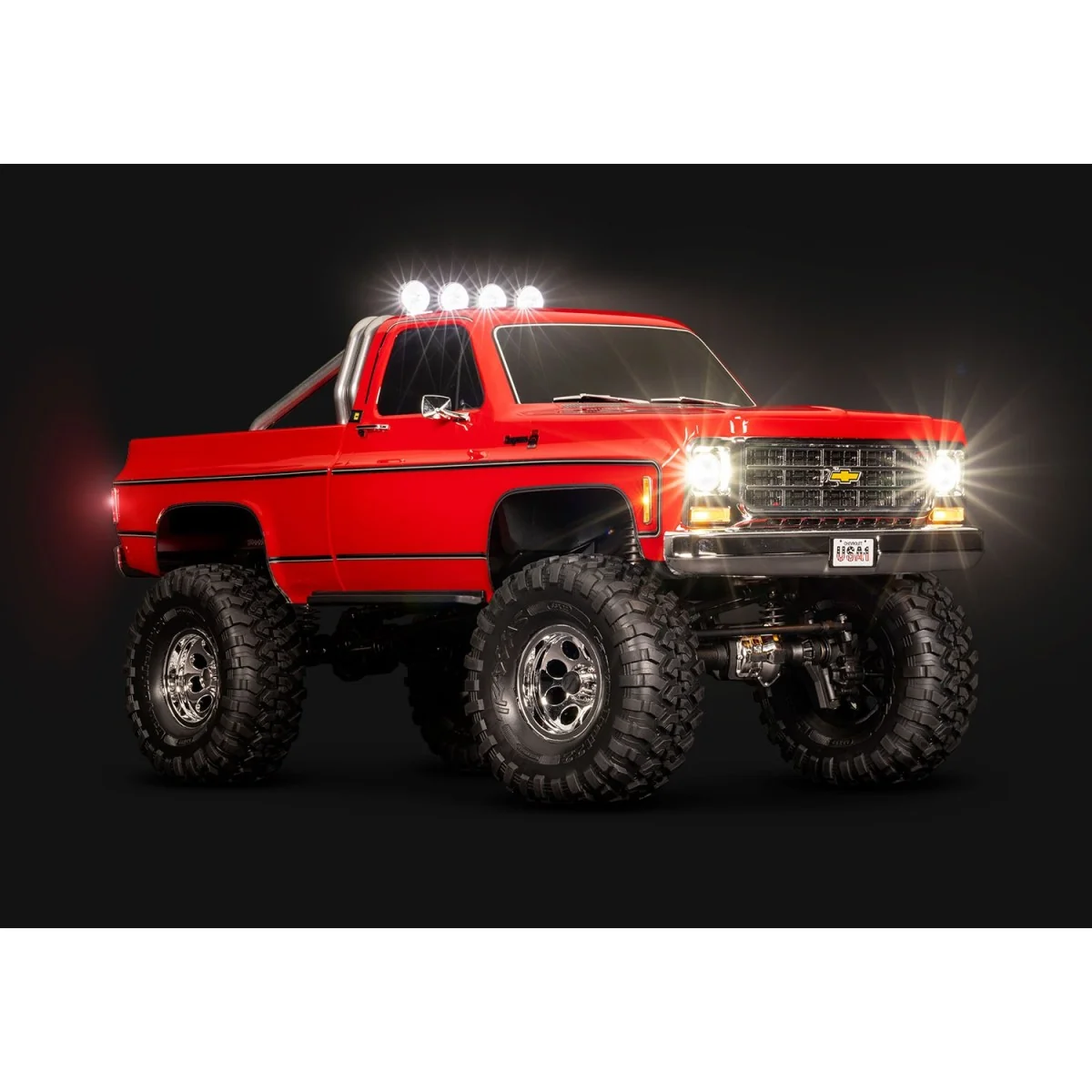

LED LIGHTING AVAILABLE AS AN OPTION

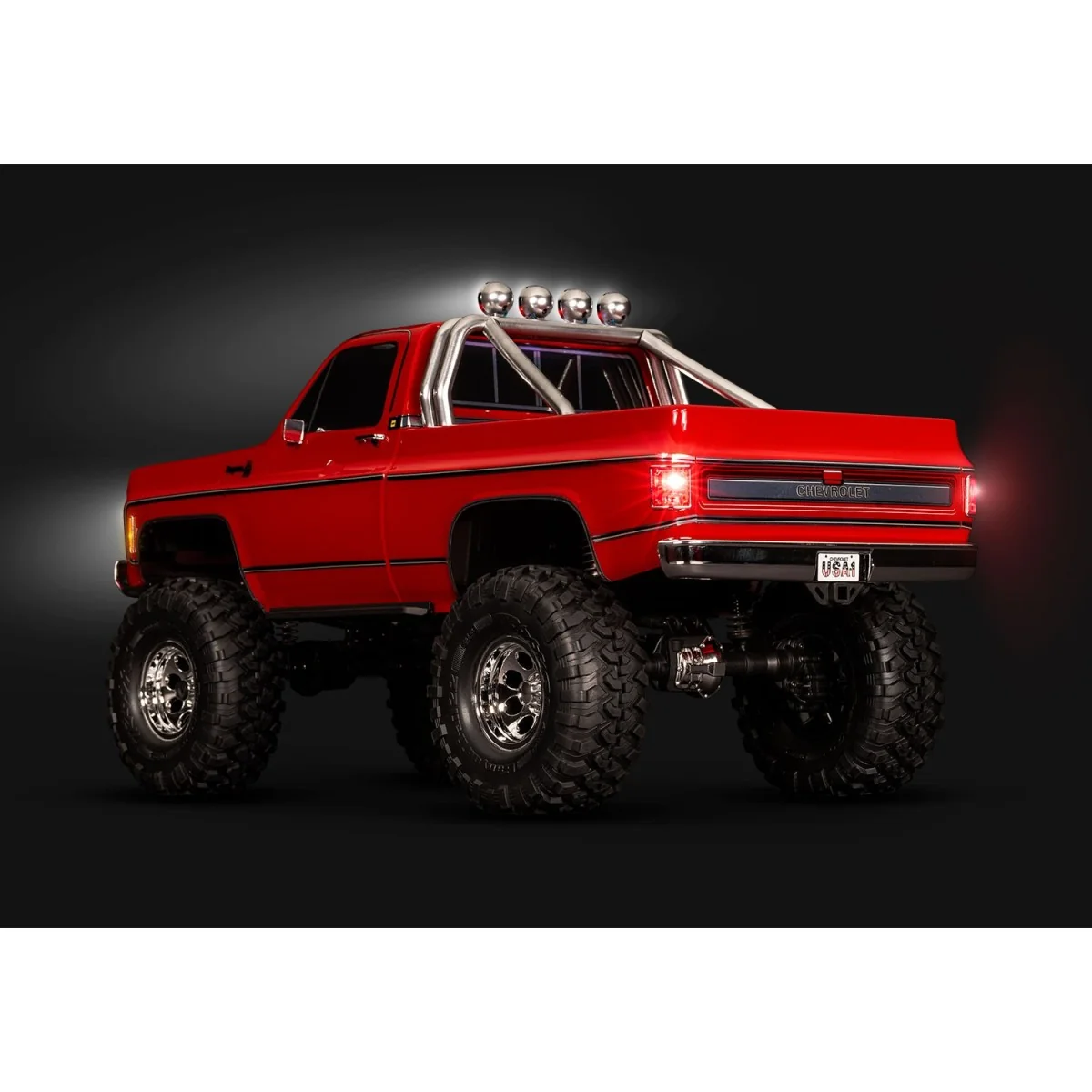

Take the realism of your K10 to the next level with the 9262X LED light bar and the 8038 LED lighting kit used on the TRX-4 Blazer (both sold separately). The advanced Pro Scale system controls headlights, brake and reverse lights, turn signals, multiple driving modes, and much more.

Features :

- 4x4 driveshaft transmission
- Lift kit installed (+25mm)
- Gear reduction system integrated at the wheel axles.
- Optimized geometry for improved ground clearance
- Rigid steel chassis
- Reinforced steel steering links

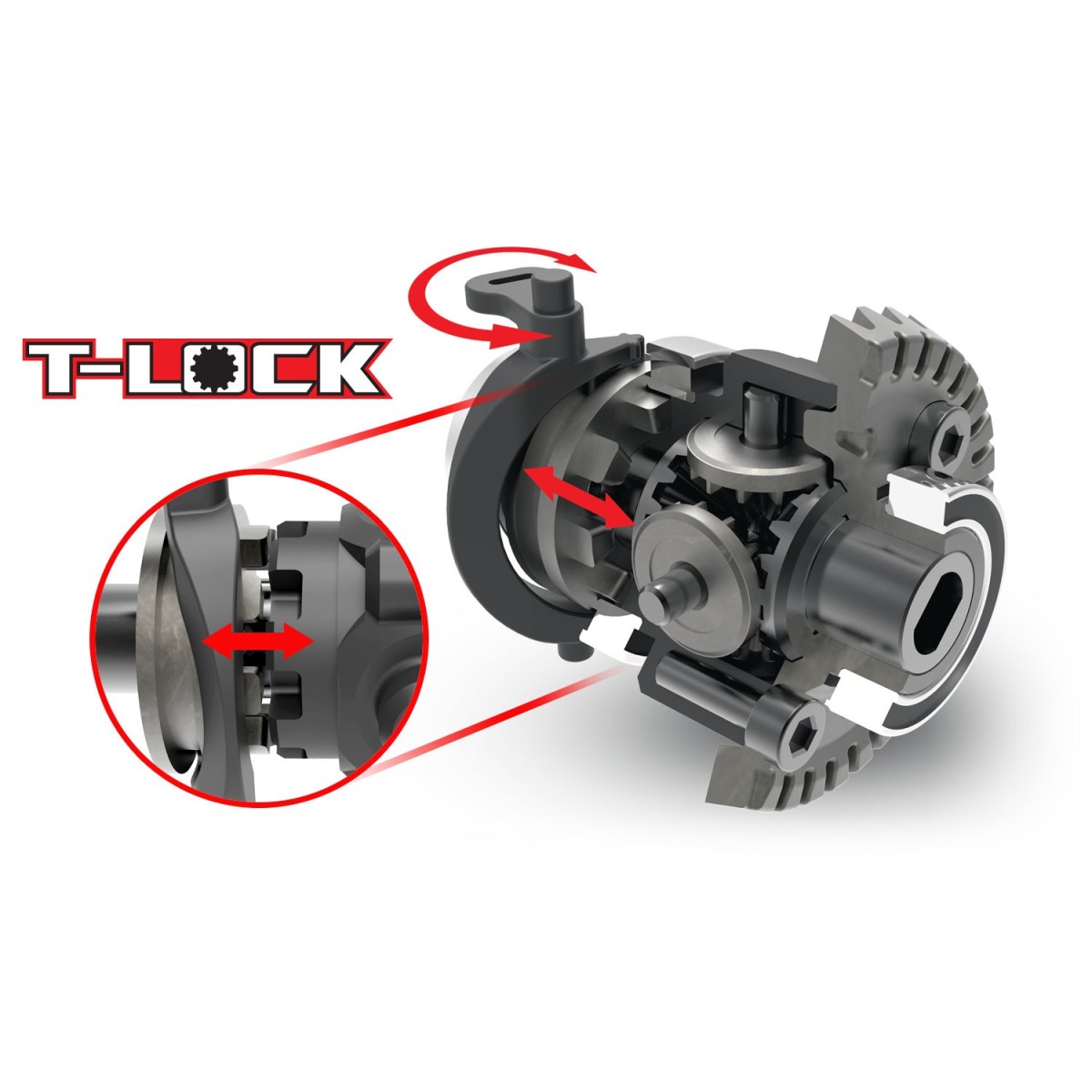

- Remotely lockable front and rear differentials
- GTS 110mm shock absorber

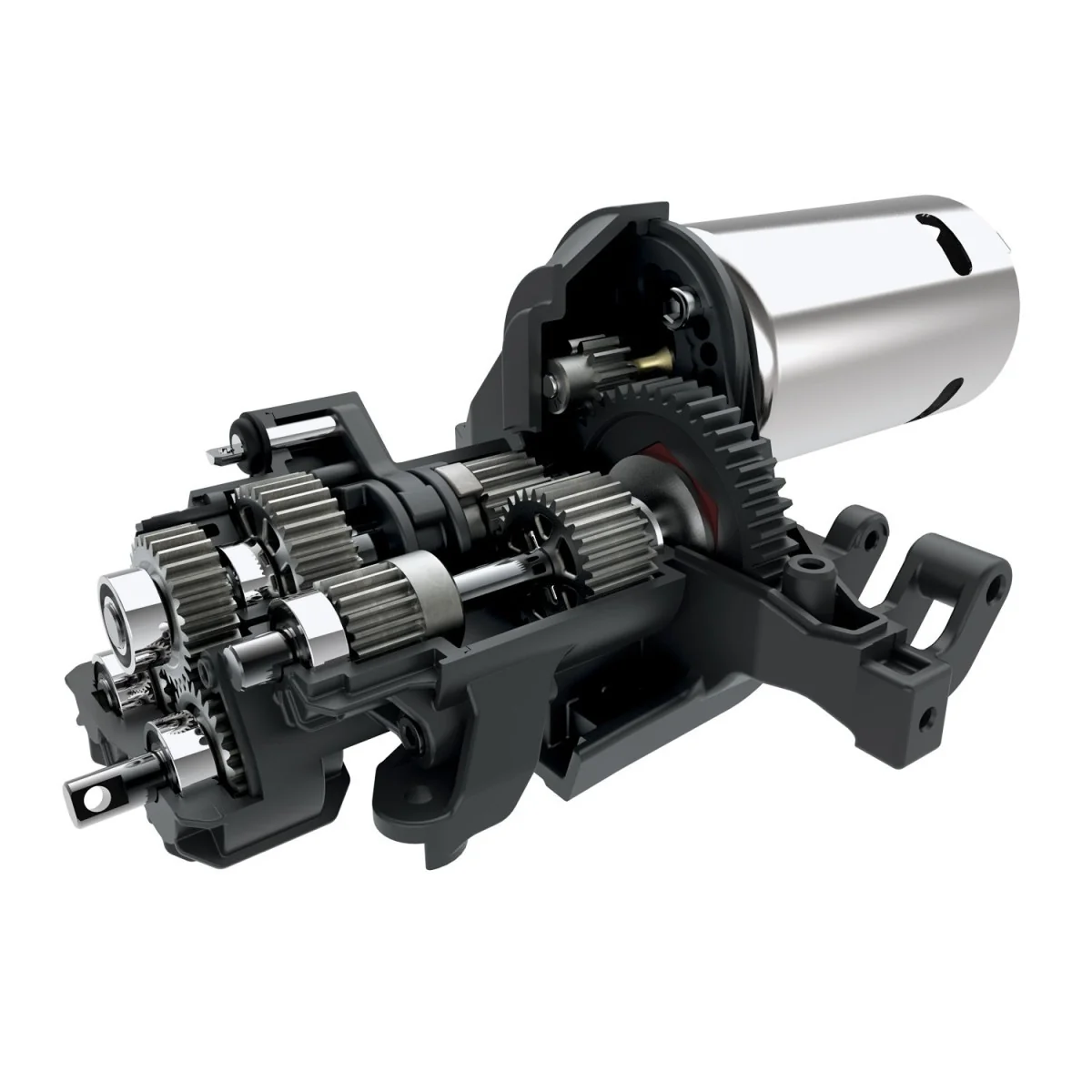

- 2-speed transmission (high or low speed) controllable remotely
- Bodywork treated with ultra-detailed model finish
- Clip-free bodywork attachment
- Fairled wheel arches
- Chrome rims
- Canyon Tail tires on 2.2 rims
- Sealed bearings

- Traxxas 2.4hgz TQi 4-way steering wheel radio

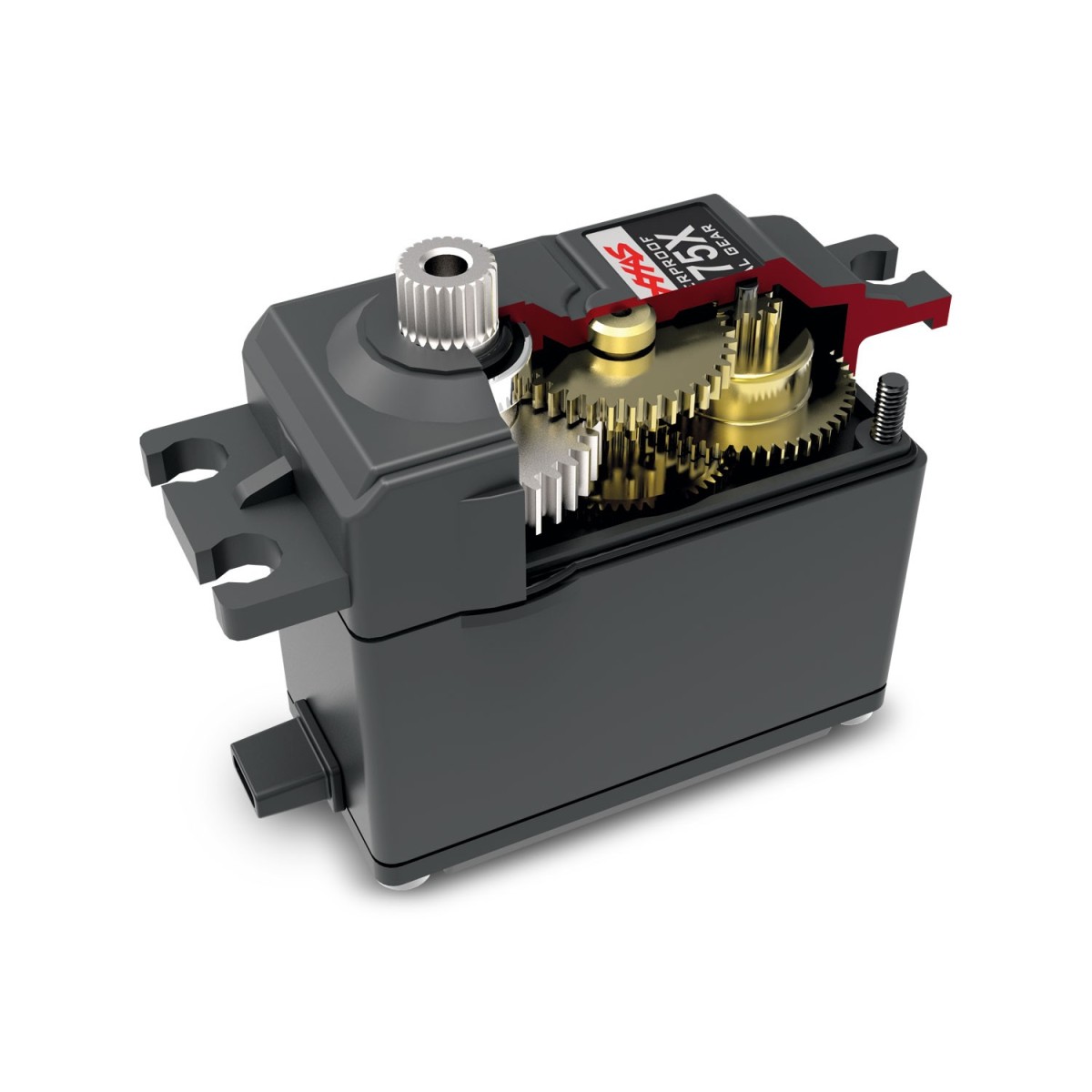

- 2075X steering servo with metal gears
- Titan 21T 550 16.8v brushed motor
- Traxxas XL5HV 100A speed controller compatible with 3s LiPo batteries and available with Trail or Crawler profiles
- 2-hour battery life with a 3S 5000mAh LiPo battery
- 100% waterproof

Required items not included:

- Battery + Charger with Traxxas ID connector
- 4 AA batteries for the radio

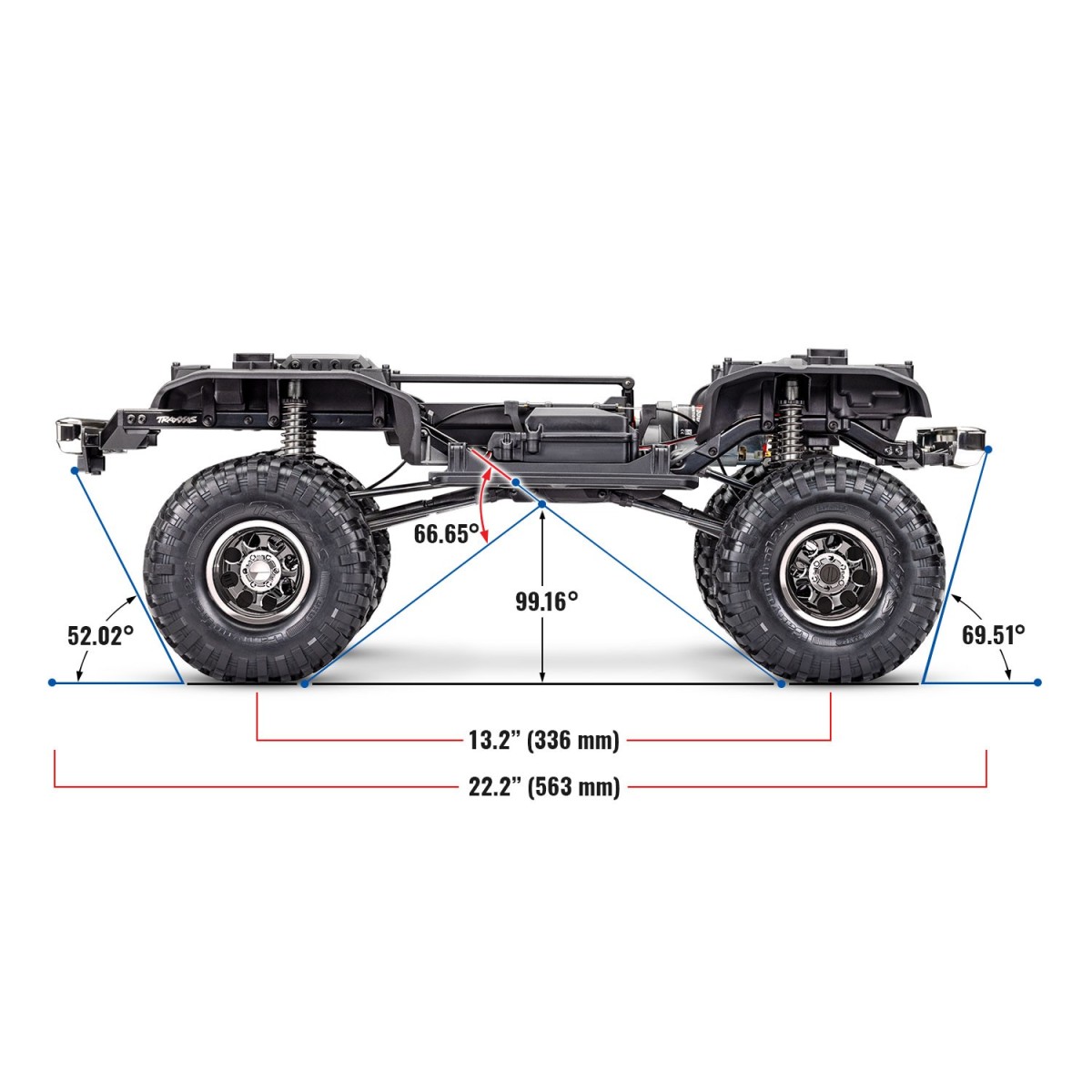

Technical data:

- Length 563mm
- Width 270mm
- Height 277mm
- Ground clearance 99mm
- Wheelbase 336mm
- 135x54mm tires
- Weight 3.35kg
