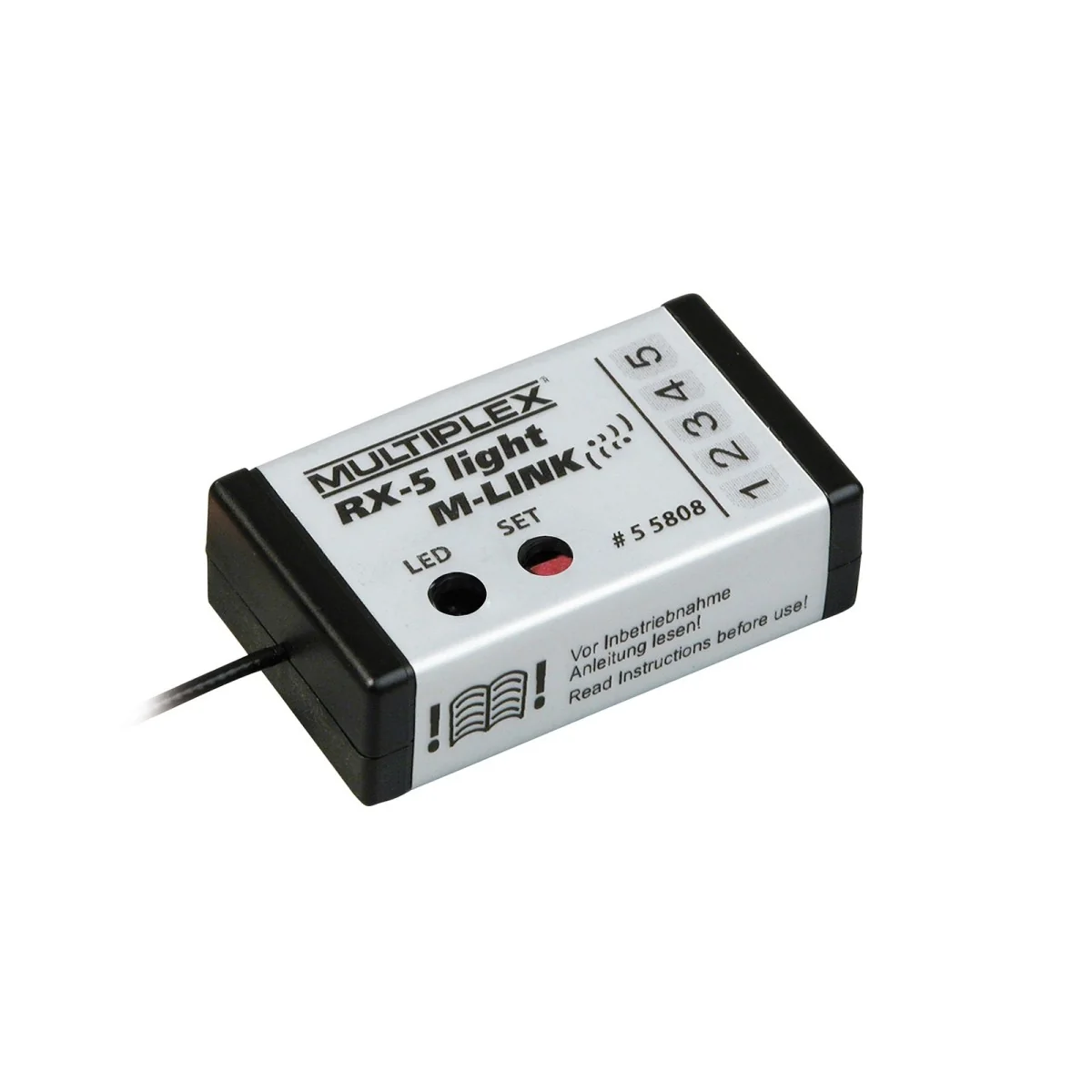

RX-5 Light M-LINK 2.4Ghz Multiplex Receiver

Low-cost 5-channel 2.4 GHz M-LINK receiver with UNI plugs. Thanks to its compact housing, small footprint and inline plugs, it fits perfectly into smaller models.

Typical uses:
• Helicopters with a rotor diameter of approx. 80 cm
• Models with combustion or electric motors, up to approx. 1.3 m wingspan
• Gliders and electric gliders up to approx. 2 m wingspan
• RC cars
• RC boats

PROS:
• HOLD/FAIL-SAFE function
• Built-in button and LEDs for:
- Binding
- FAIL-SAFE programming
-RESET
- Info on how to use

Technical characteristics:

Number of channels: 5
Receive Type: 2.4 GHz FHSS (Frequency Hopping Spread Spectrum)
Operating voltage: 3.5 ... 9.0 V
Power supply: 4 - 5 NiXX cells, 2S LiPo/LiIo
Permissible temperature range: -20°C ... +55°C
Dimensions (L x W x H): approx. 34 x 19.5 x 11 mm
Weight approx.: 7g
