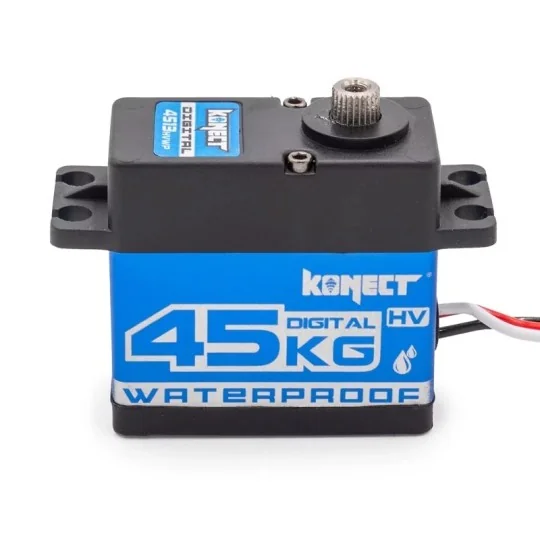

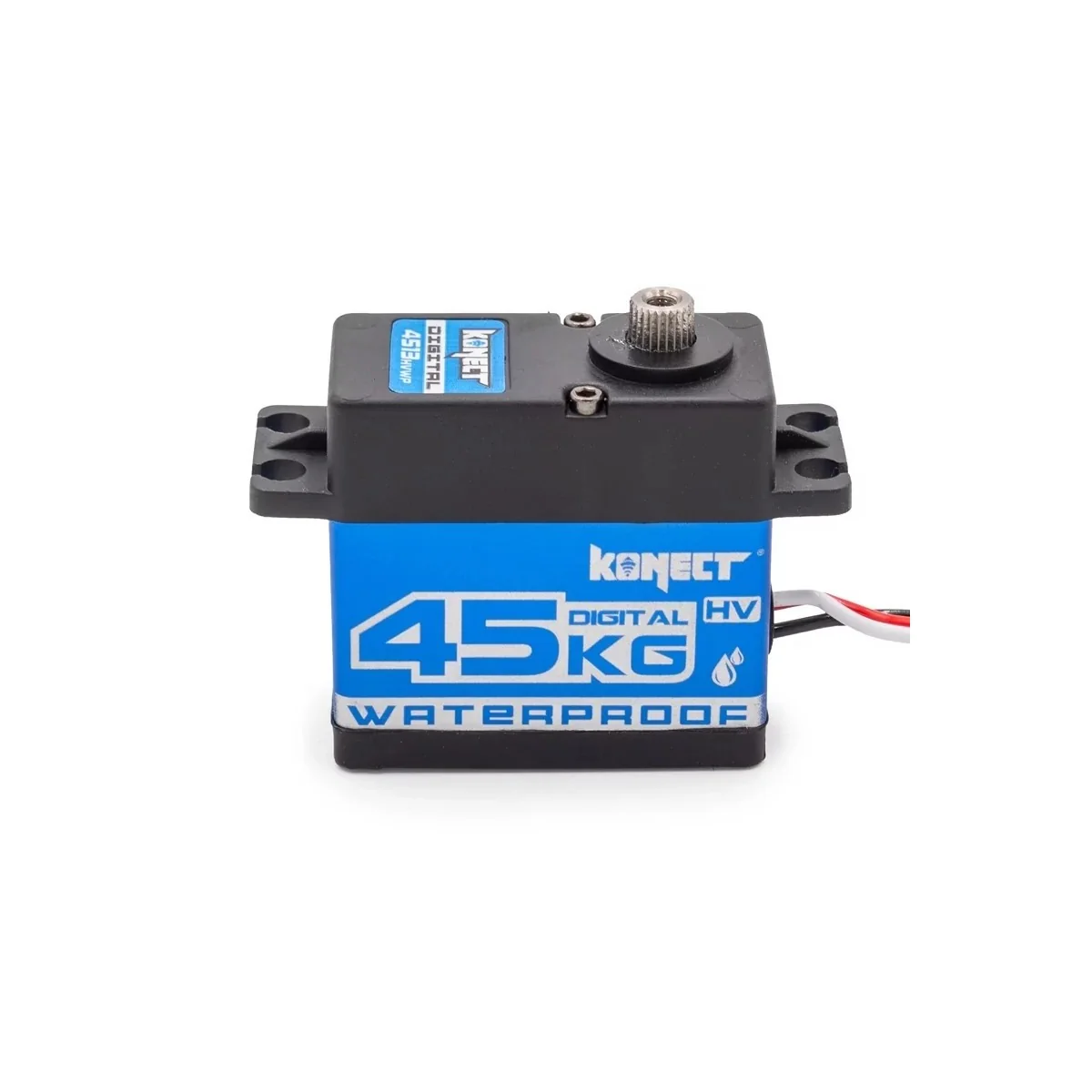

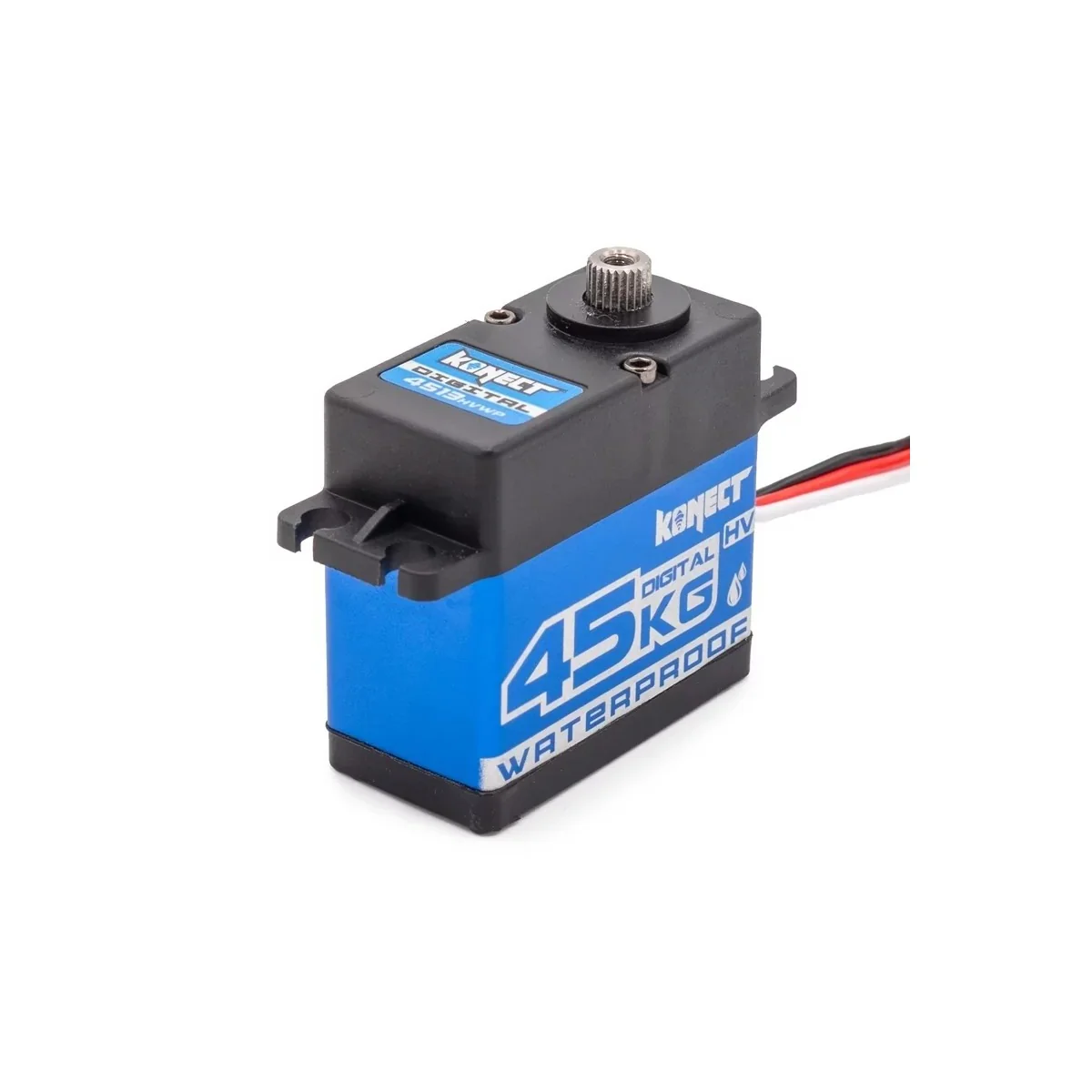

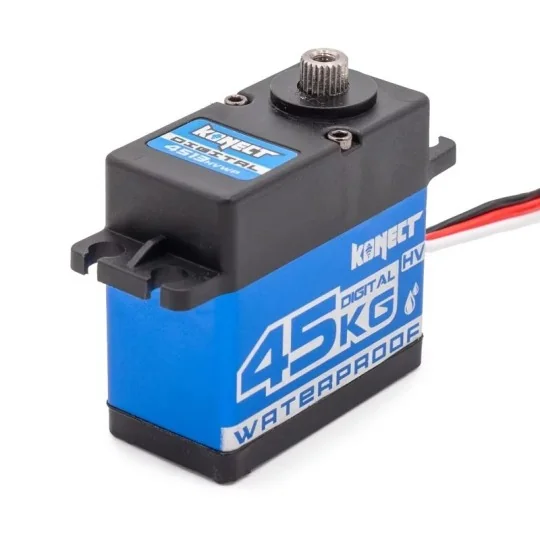

Digital servo Konect KN-4513HVWP 45 kg 0.13 s waterproof metal gears

The Konect KN-4513HVWP is a high-voltage digital servomotor designed for RC models that need a powerful, fast, and durable actuator. Its standard size of 40 x 20.2 x 40.2 mm makes it easy to fit into many chassis that provide a conventional servo mounting space. With a stated torque of 45 kg.cm at 8.4 V and an advertised speed of 0.13 s/60° at 8.4 V, this Konect servo meets the demands of steering and control systems subjected to significant loads.

An RC servo converts the commands sent by the receiver into mechanical motion. Linked to the linkage using a suitable horn, it can, for example, provide steering for a radio-controlled car. Torque, expressed in kg.cm, indicates the available rotational force; speed, expressed in seconds for 60°, describes how quickly the servo moves. These two parameters are key to maintaining precise and responsive steering on an RC model.

The KN-4513HVWP uses digital electronics. This technology processes the receiver’s control signals to drive the servo motor with precision. Its Coreless motor is paired with a metal-gear transmission, a configuration suited to high mechanical stresses. The housing combines an aluminium body with composite elements. At 58 g, the servo retains a form factor appropriate for standard mounting.

The waterproof design of the Konect KN-4513HVWP makes it suitable for RC models operating in environments exposed to moisture. It is an advantage for RC uses where steering electronics may face splashes and changing field conditions. As with any RC electronic equipment, installation must follow the power supply and configuration intended for the model.

This high-voltage servo operates with a control signal of 1520 µs at a frequency of 330 Hz. Its deadband is stated at 1 µs. It offers an operating angle of 120° or 180°. These figures relate to servo behavior and should be taken into account when setting travel limits on the transmitter, to achieve steering movement consistent with the linkage and the model’s mechanical end stops.

For installation, the servo is placed in the housing provided on the chassis and connected to the receiver via its control lead. Choosing a horn compatible with the servo output shaft and carefully setting the neutral point are important to use the steering correctly. It is recommended to set the end points to prevent the servo from forcing when the wheels reach their mechanical stops.

The Konect KN-4513HVWP is therefore a high-torque digital servo solution for RC projects requiring robust control. Its metal gears, Coreless motor, composite and aluminium housing, waterproof design, and performance at 8.4 V make it an equipment choice for installations where command precision and the ability to drive demanding linkages are required.

Technical specifications:

• Brand: Konect
• Reference: KN-4513HVWP
• Type: waterproof high-voltage digital servo
• Size: standard
• Dimensions: 40 x 20.2 x 40.2 mm
• Weight: 58 g
• Motor: Coreless
• Gears: metal
• Housing: composite and aluminium
• Torque at 8.4 V: 45 kg.cm
• Speed at 8.4 V: 0.13 s/60°
• Operating frequency: 1520 µs / 330 Hz
• Deadband: 1 µs
• Operating angle: 120° / 180°
