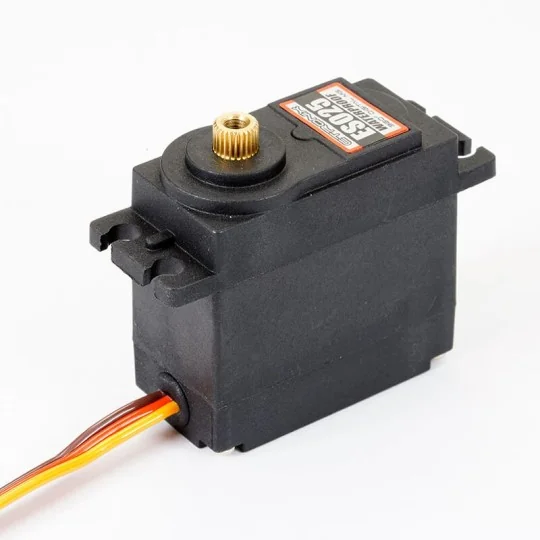

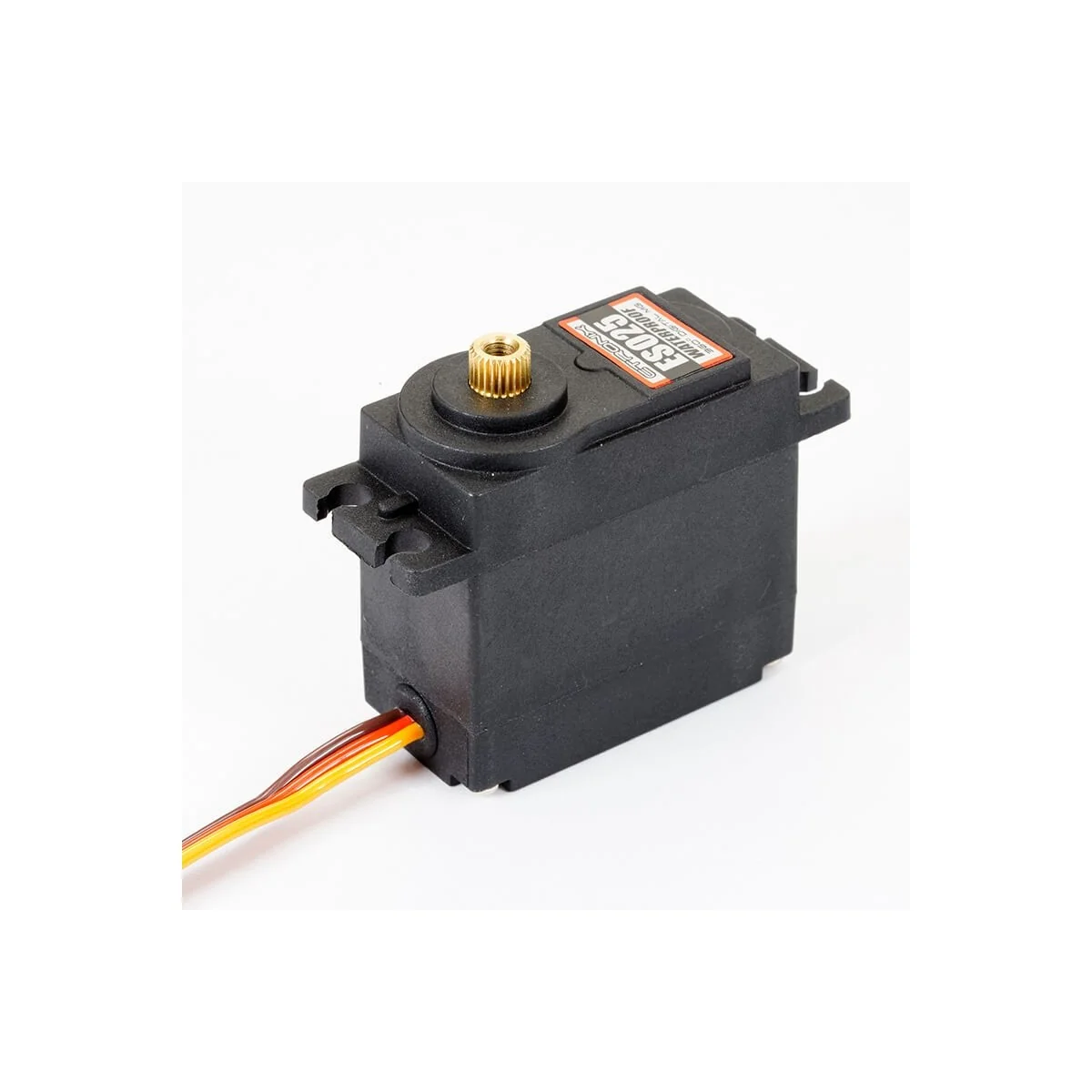

Etronix ET0025-360 Servo Winch, 25kg, 360° Rotation, Metal Gears

The Etronix ET0025-360 is a standard-sized servo winch designed for RC rock crawlers, off-road vehicles, and scale models equipped with a winch recovery system. Its continuous 360° rotation drives a winch drum to wind or unwind a cable according to commands from the model's electronics.

In a radio-controlled crawler, a winch provides a particularly useful function during technical maneuvers: it can help secure the vehicle on a slope, overcome an obstacle, or perform a recovery. Unlike a conventional steering servo, which is fixed in a specific position, a continuous rotation servo is designed for the rotary drive of a mechanism such as a winch.

The Etronix ET0025-360 servo delivers 25 kg-cm of torque at 6.0 V. Its metal gear transmission is suitable for use with an RC winch system, while its plastic housing maintains the standard servo size. Its dimensions of 41 x 20 x 44 mm allow for integration into a winch mount designed for this size.

The 25-tooth splined output shaft allows the servo to be connected to a compatible drive unit, for example, when building or maintaining a winch system for a crawler. This Etronix servo is suitable for scale crawler, trail, and off-road RC projects requiring continuous rotation to operate a traction mechanism.

Technical specifications:

• Brand: Etronix
• Reference: ET0025-360
• Type: 360° continuous rotation RC winch servo
• Format: standard servo
• Application: Rock crawler winch and off-road RC vehicle
• Torque: 25 kg-cm at 6.0 V
• Pinions: metal
• Case: plastic
• Output: 25-tooth splines
• Dimensions: 41 x 20 x 44 mm
