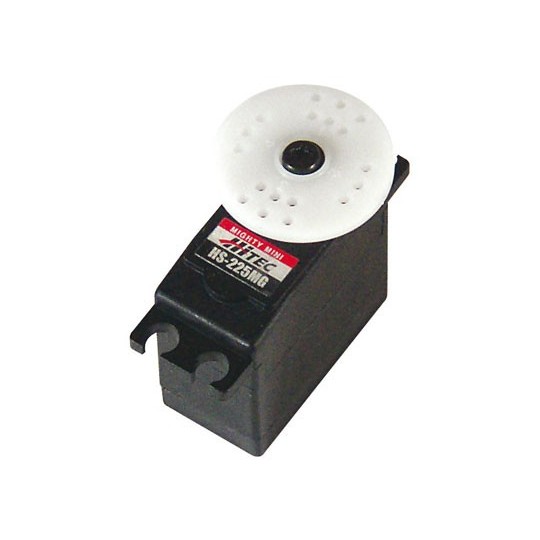

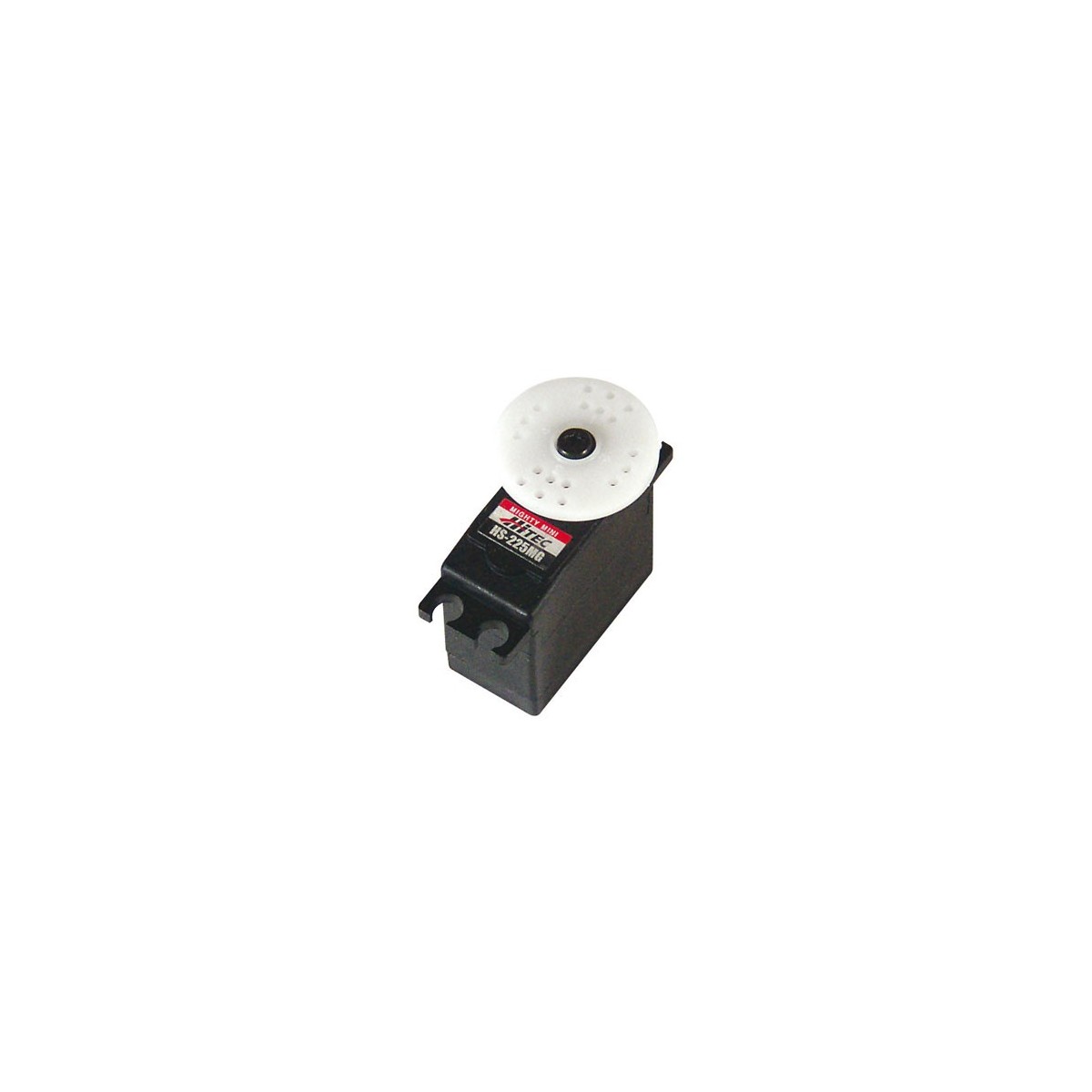

Mini servo HS - 225MG digital Hitec

The analog HS-225 series offers excellent value, with performance that rivals larger and more expensive servos. Ideal for applications requiring a small, lightweight, high-speed, and high-torque servo, this servo features a superior ball bearing and is built with the latest SMT component technology. It is perfectly suited for elevator control on gliders up to 4 meters, for example.

Technical specifications:

Motor: 3 poles
Bearings: upper ball bearing
Speed: 0.14sec/60° (4.8V) - 0.11sec/60° (6.0V)
Torque: 9kg.cm (4.8V) - 8kg.cm (6.0V)
Dimensions: 32.4x16.8x31mm
Weight: 31.0g
Pinions: metal
