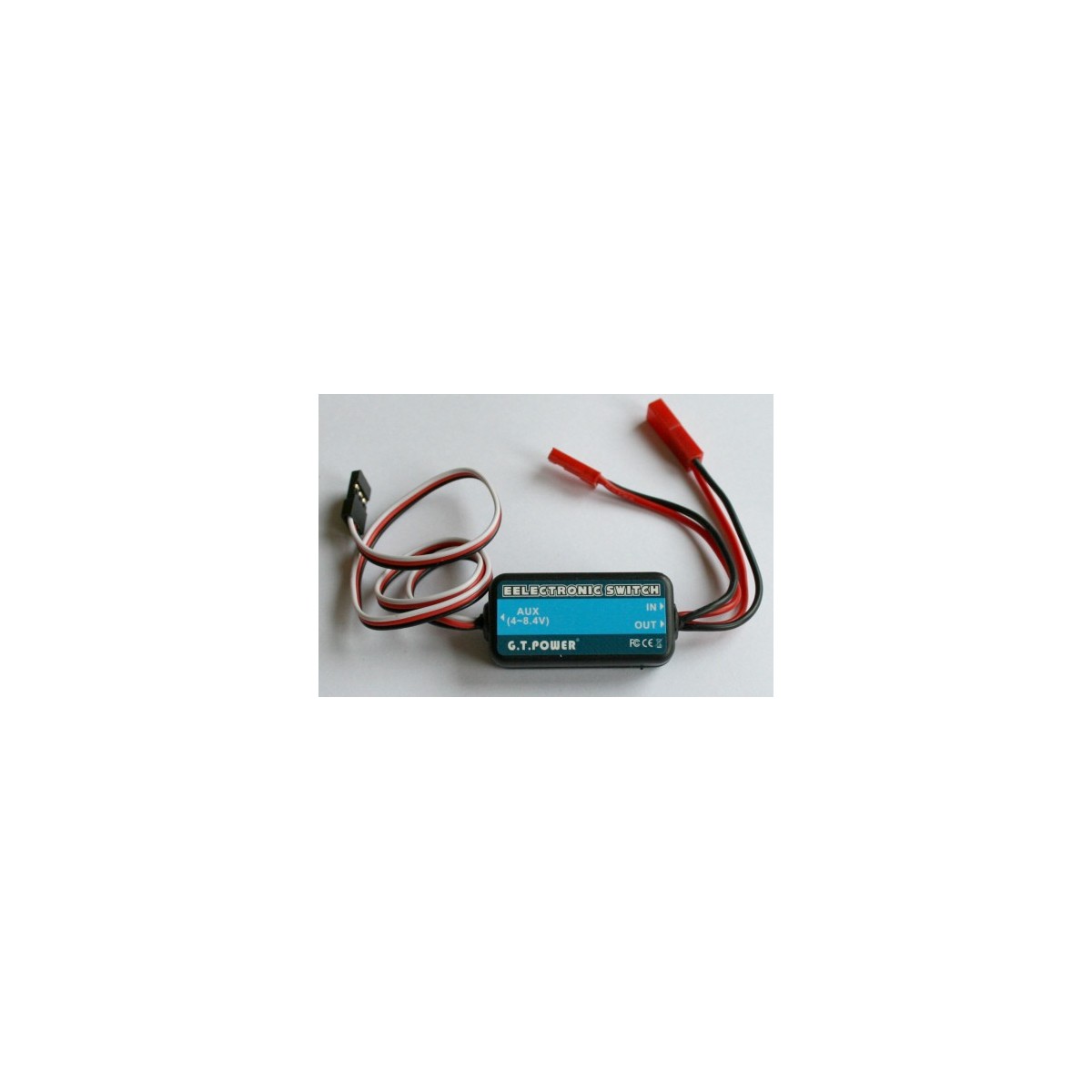

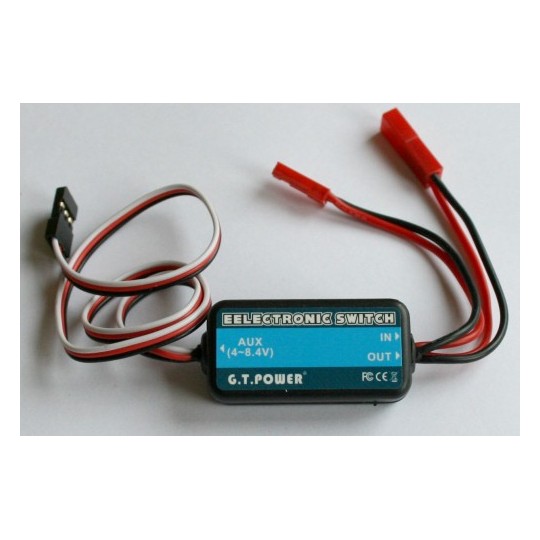

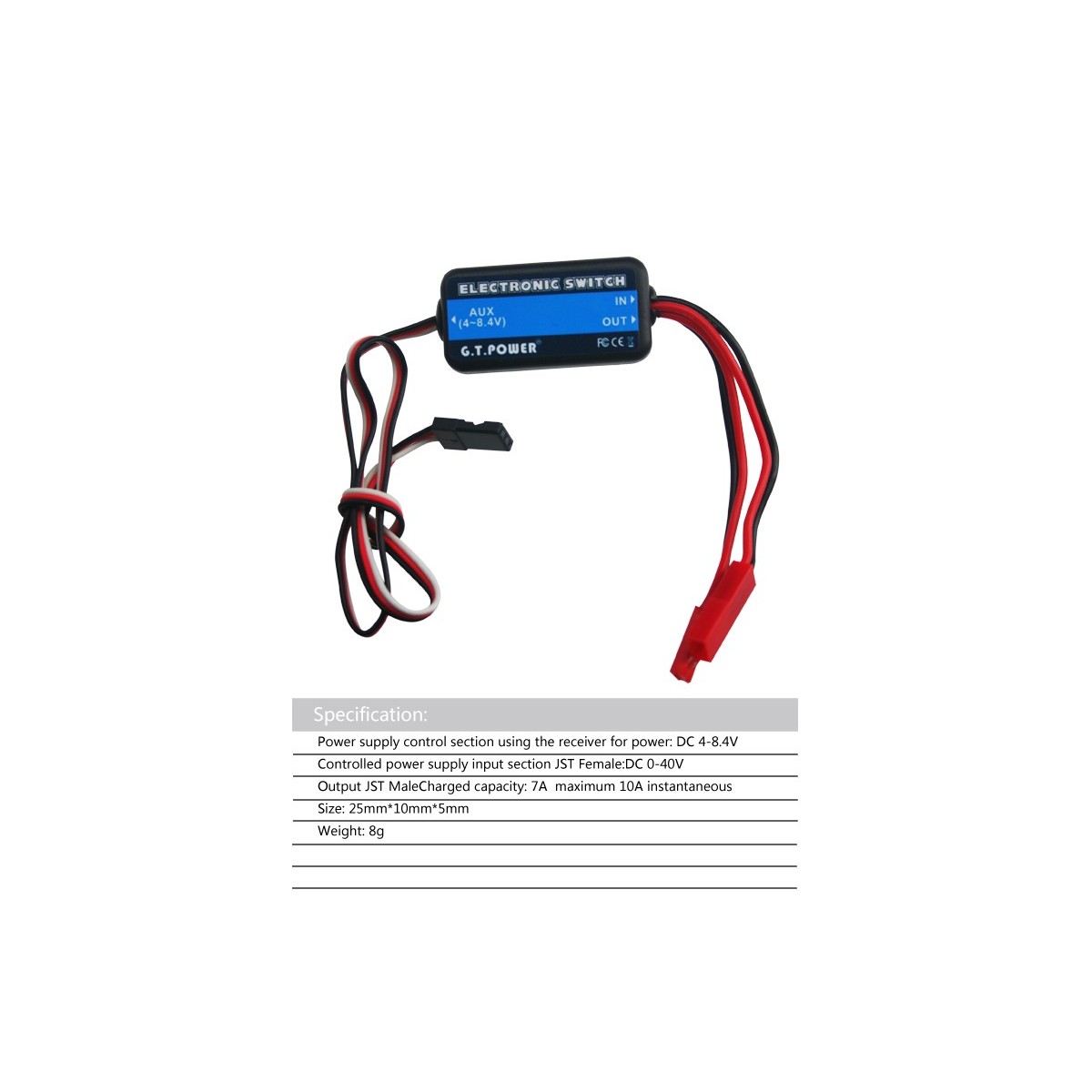

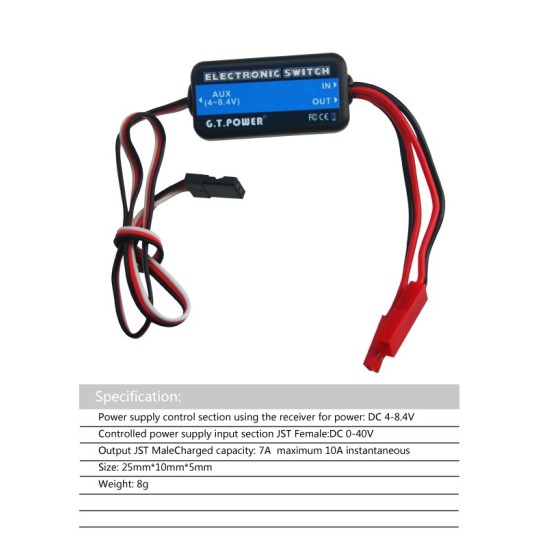

GT-Power embedded electronic switch - GT-ELEC-SWITCH2

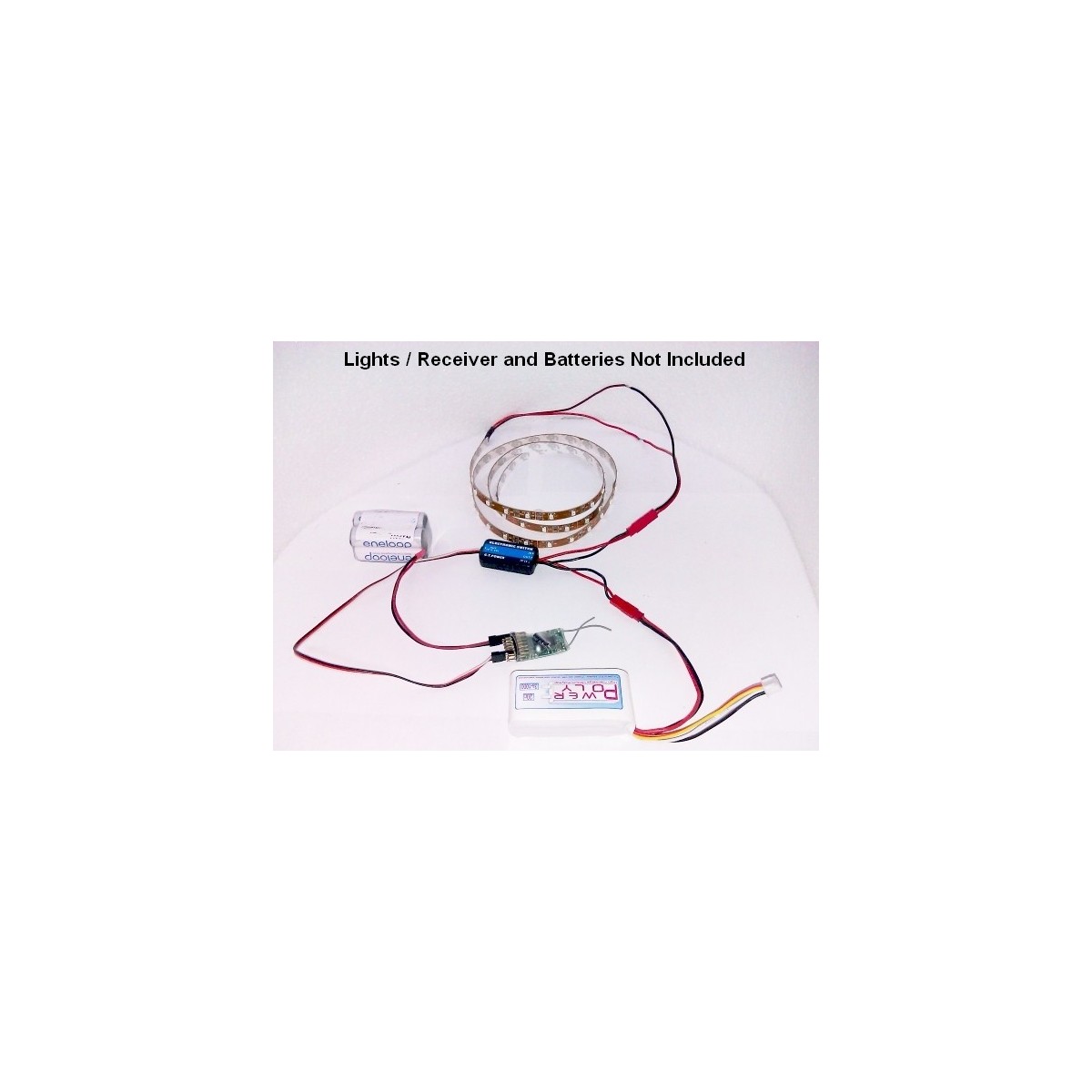

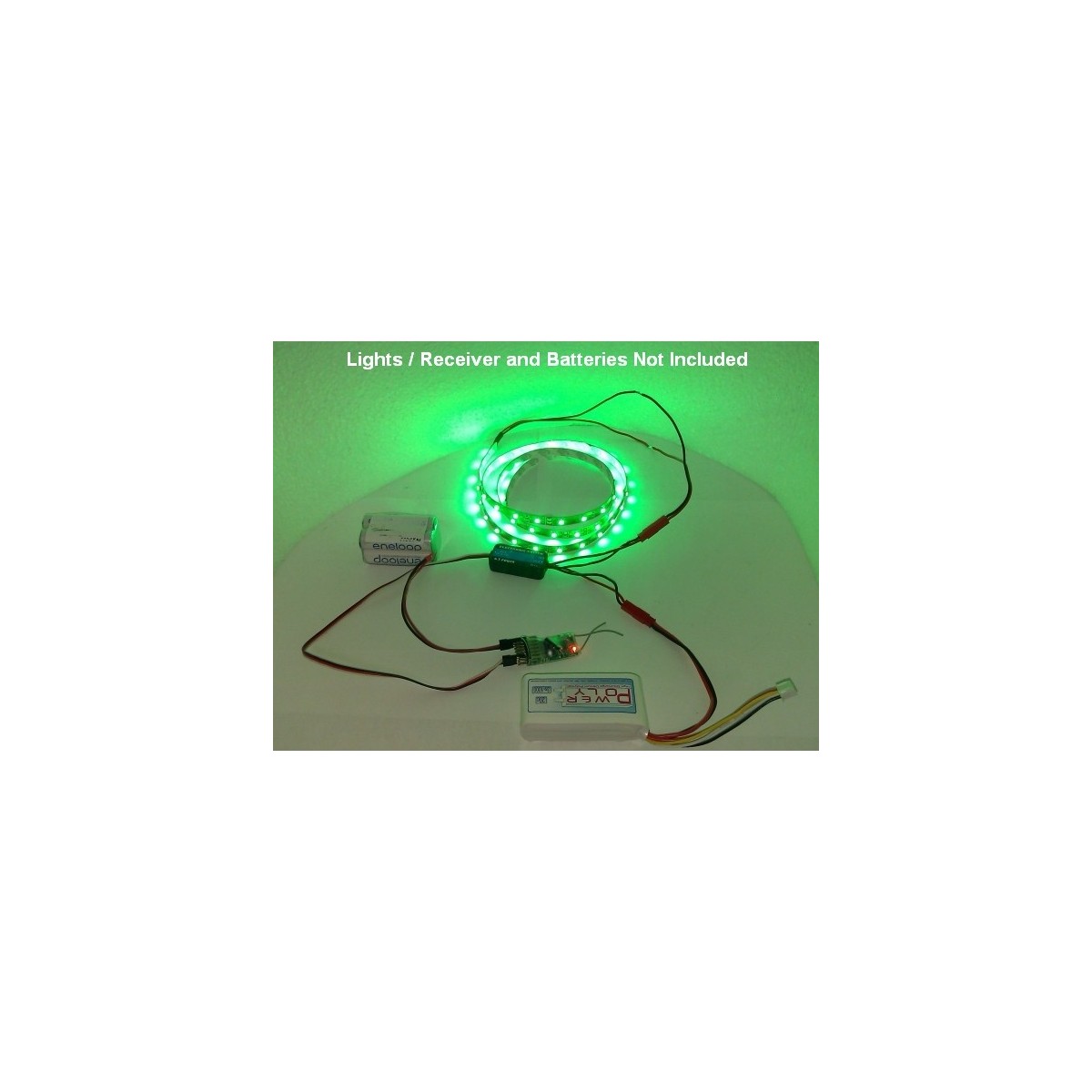

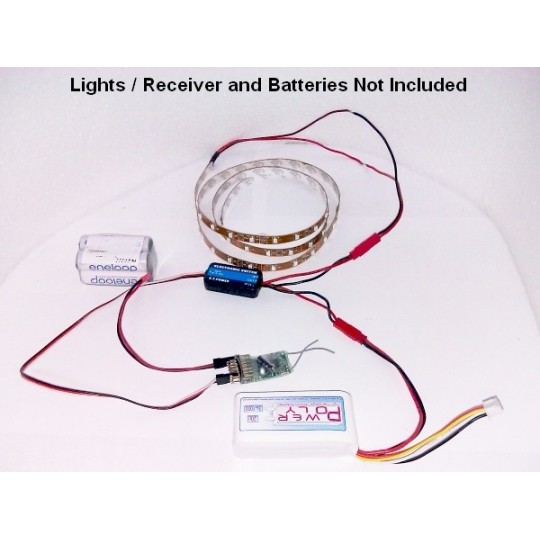

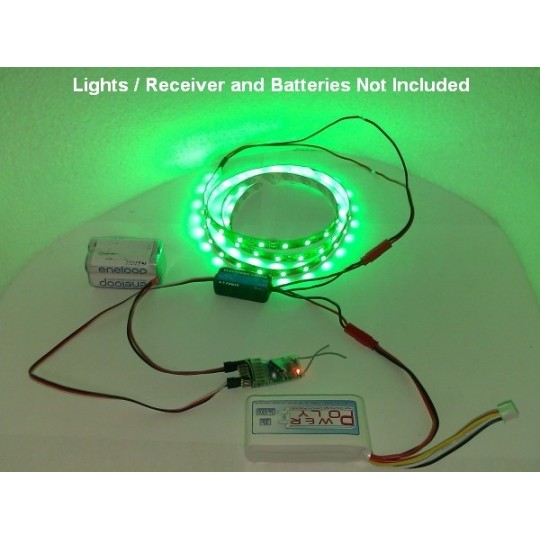

High voltage (40V) and current (10A) onboard electronic switch, can be connected to an auxiliary channel of the receiver to power an electronic module of your choice controlled by the transmitter such as: lights, smoke generator, release system, navigation lights, horn, foghorn, glow plug heater, engine starter, etc...

The switch has the effect of cutting off or not the current to a power supply on your module when the channel of your radio is at 0% or 100% of its travel.

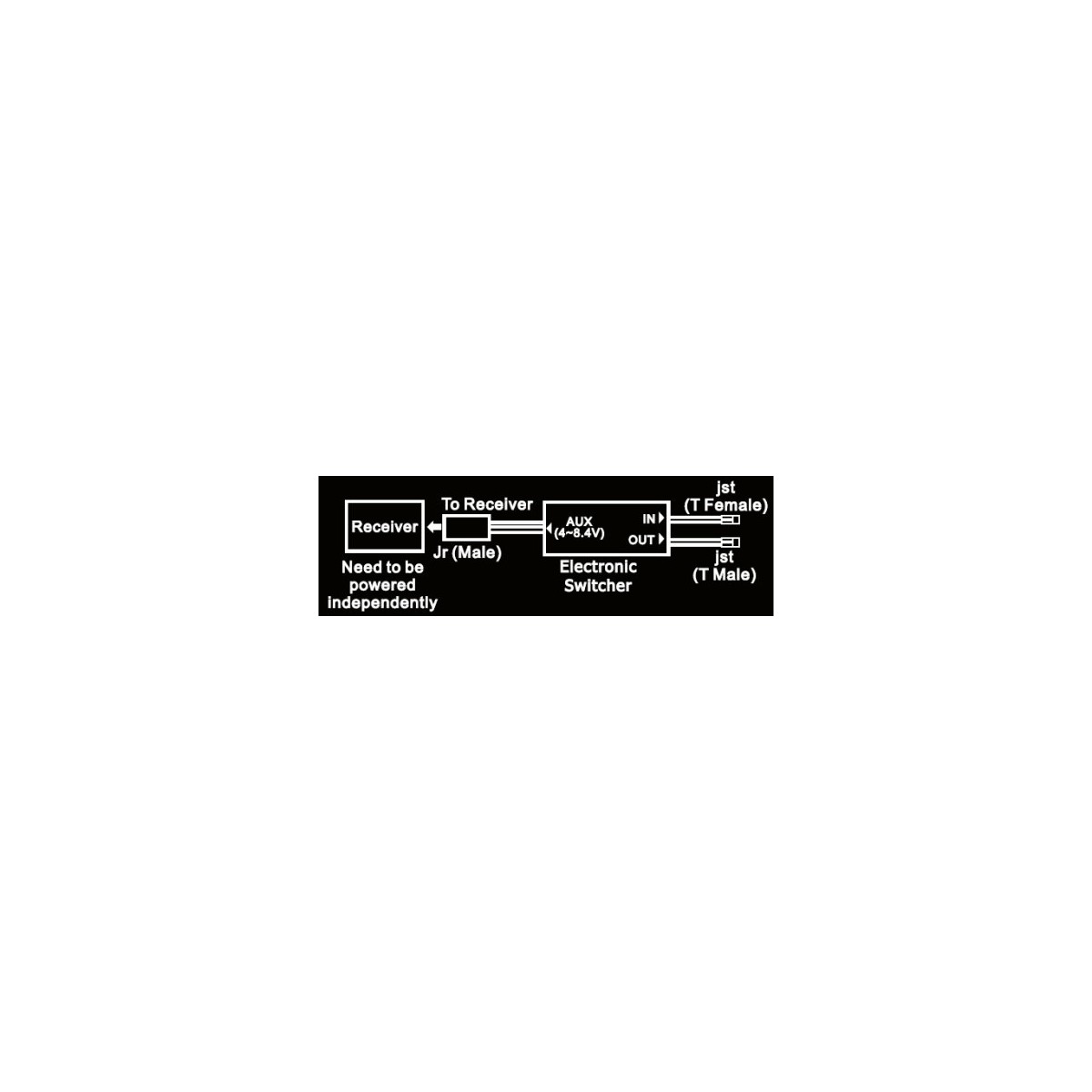

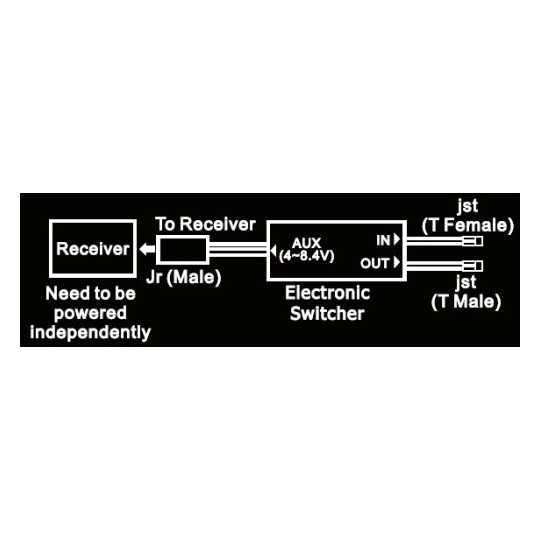

Connection:

IN: Power supply battery - up to 40V
OUT: The module you want to control (on/off) is connected.
AUX: This is connected to a channel on your receiver that will control the electronic switch, usually the flaps or train channels. You can also connect it to the throttle channel, for example, for a smoke system, or for afterburner LEDs, which will activate the system as soon as the throttle level exceeds 50%.

Features :

* Input voltage: 0 ~ 40V DC
* Output voltage = Input voltage
* Maximum direct current allowed: 7A
* Maximum admissible continuous current: 10A (10sec)
* Auxiliary cable (connection to receiver) length: 30cm
* Auxiliary (receiver connection) connector: universal servo plug
* Auxiliary (connection to receiver) voltage: 4 ~ 8.4V
* Input (battery side) length: 8cm
* Input (battery side) connector: JST (BEC) Male
* Output (controlled module side) length: 8cm
* Output (controlled module side) connector: JST (BEC) Female
* Dimensions: 25 x 10 x 5mm
* Weight: 8g

IMPORTANT: The input voltage (INPUT) will be the same as the output voltage (OUTPUT) on the component you wish to control. This switch will not reduce the output voltage.
